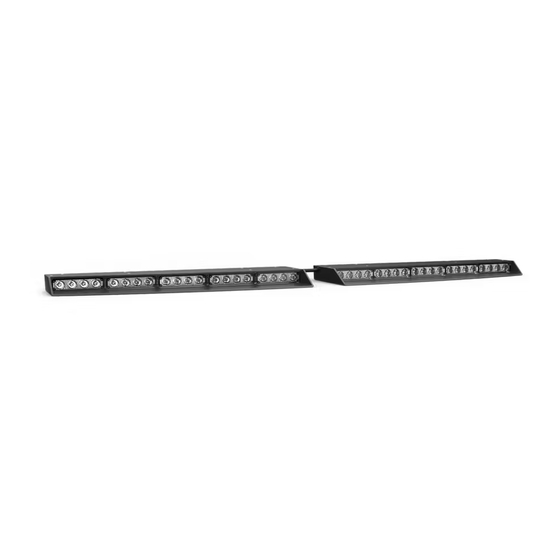

STL RAPTOR TIR Instruction Manual

Visor light bar
Hide thumbs Also See for RAPTOR TIR:

Advertisement

Quick Links

Download this manual

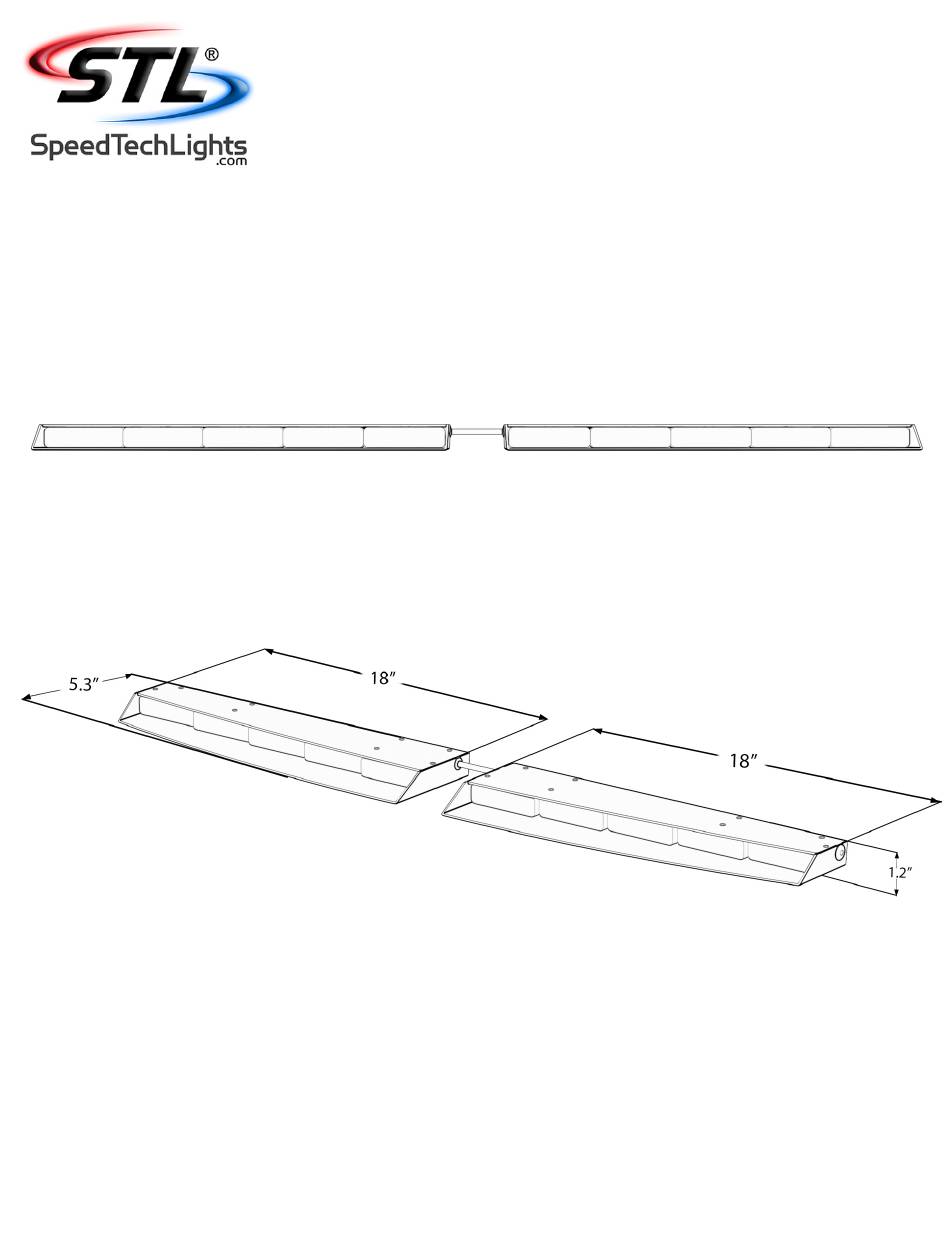

RAPTOR
TIR
®
VISOR LIGHT BAR
B-RT10
INSTRUCTION MANUAL
1
SpeedTech Lights, Inc © 2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAPTOR TIR and is the answer not in the manual?

Questions and answers

Related Manuals for STL RAPTOR TIR

Summary of Contents for STL RAPTOR TIR

  • Page 1 RAPTOR ® VISOR LIGHT BAR B-RT10 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2023...
  • Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.

  • Page 3: Maintenance

    Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products.

  • Page 4: Specifications

    AUX Wiring Diagram Wire Color Function AUX Positive AUX Negative Blue Control box back light * White * Only functional when using in conjunction with STL Grand Control Box (Sold separately) Specifications Voltage 12 VDC Amps < 4.2 Optic LED Count Cable Length 12’...
  • Page 5 RAPTOR ® VISOR LIGHT BAR Grand Control Switch Box Operation (Sold Separately) Power Button: • Push this button to turn On/Off the Direct Control Box. Mode 1 Button: • Activate warning function in flash pattern memory 1. Mode 2 Button: •...
  • Page 6 RAPTOR ® VISOR LIGHT BAR Available Visor Bracket Mounts Q-RVT15: Chevy Tahoe (2015-2020) Driver Center Passenger Side Side Q-RVT07: Chevy Tahoe (2007-2014) Driver Center Passenger Side Side Q-RVC11: Dodge Charger (2011+) Driver Center Passenger Side Side Q-RVR15: Dodge Ram (2015+) Driver Center Passenger...
  • Page 7 RAPTOR ® VISOR LIGHT BAR Available Visor Bracket Mounts Q-RVEX18: Ford Expedition (2018+) Driver Center Passenger Side Side Q-RVF15: Ford F-150 (2015+) Driver Center Passenger Side Side Q-RVE11: Ford Explorer (2011-2019) Driver Center Passenger Side Side Q-RVE20: Ford Explorer (2020+) Driver Center Passenger...
  • Page 8 RAPTOR ® VISOR LIGHT BAR Mounting Bracket Contents Inspect contents of package before proceeding. Q-RVU Universal Bracket (Included) Q-RVxx Vehicle Specific Brackets (Sold Separately) Universal Brackets: Vehicle Specific Brackets: • (4) Universal long forked visor brackets • (1) Driver side bracket •...
  • Page 9 RAPTOR ® VISOR LIGHT BAR Base Bracket Mounting: NOTE: Mounting the light bar by attaching the forks directly to rear track may position the unit too far away from the windshield in certain vehicles. If this is the case for your vehicle, see below alternate mounting instructions using the (4) Base brackets: Take the (4) Philips pan head short bolts and attach the (4) Base brackets to the mounting holes on the bottom of the unit using the (4) flat large diameter washers and (4) large diameter split lock washers.
  • Page 10 RAPTOR ® VISOR LIGHT BAR Q-RVF15: Ford F-150 (2015+) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. Q-RVE11: Ford Explorer (2011-2019) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary.
  • Page 11 RAPTOR ® VISOR LIGHT BAR Q-RVEX18: Ford Expedition (2018+) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. Q-RVIT11: Ford Taurus/Interceptor (2011+) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary.
  • Page 12 RAPTOR ® VISOR LIGHT BAR Q-RVT15: Chevy Tahoe (2015-2020) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. Q-RVC11: Dodge Charger (2011+) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary.
  • Page 13 RAPTOR ® VISOR LIGHT BAR Q-RVE Raptor Visor Extender Installation (Sold Separately) Includes • Driver and Passenger side extenders • (8) Base screws • (2) Rubber strips • Double sided chatter guard tape squares NOTE: Take the visor extender and line up the wider side of the extender to the wider side of the Raptor. Slide the extender over the lip of the Raptor so the prongs are seated on the interior of the Raptor housing.
  • Page 14 About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the Light Bar is turned on. • Set the flash pattern by pushing the Flash Pattern button on the Cigarette Lighter Plug to cycle through the various patterns.

This manual is also suitable for:

B-rt10
