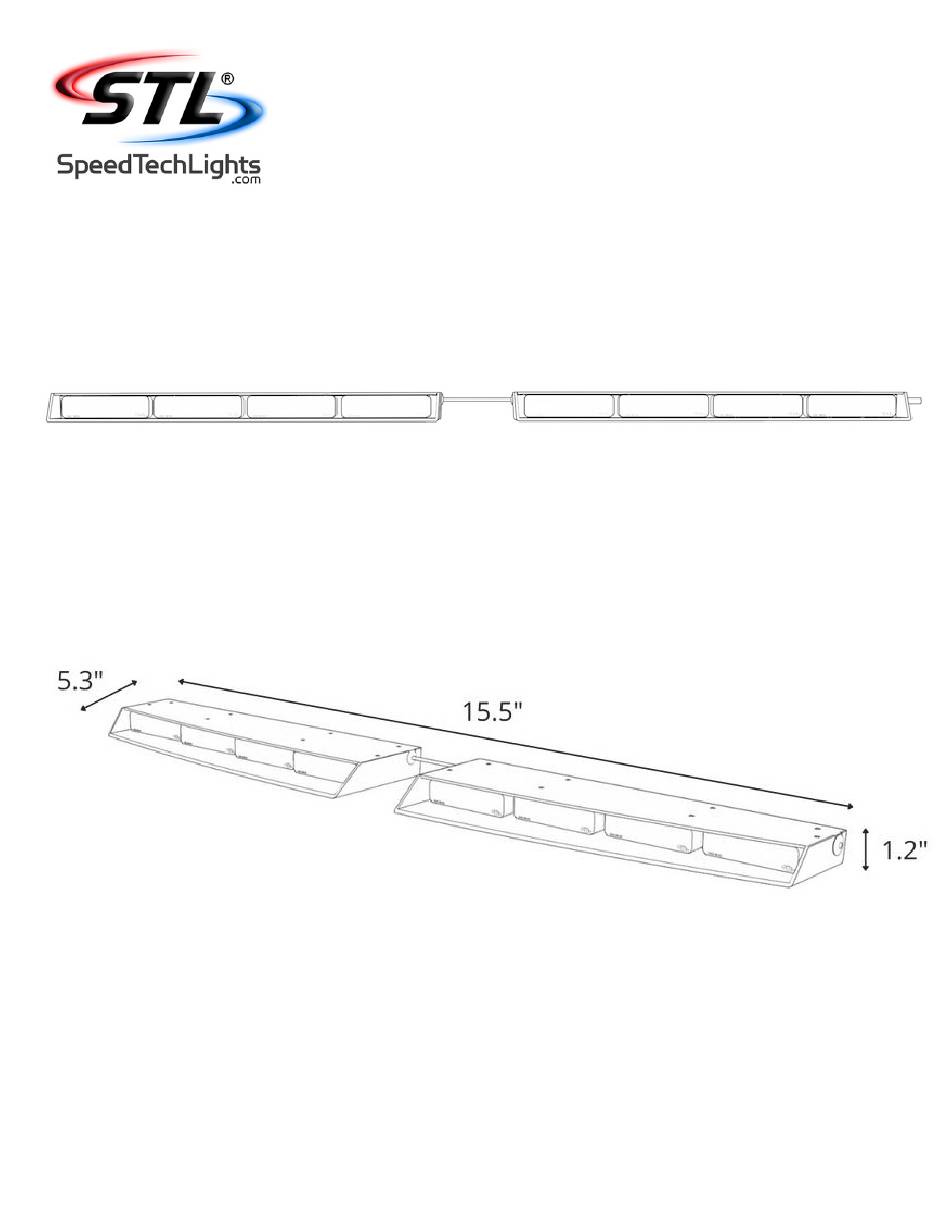

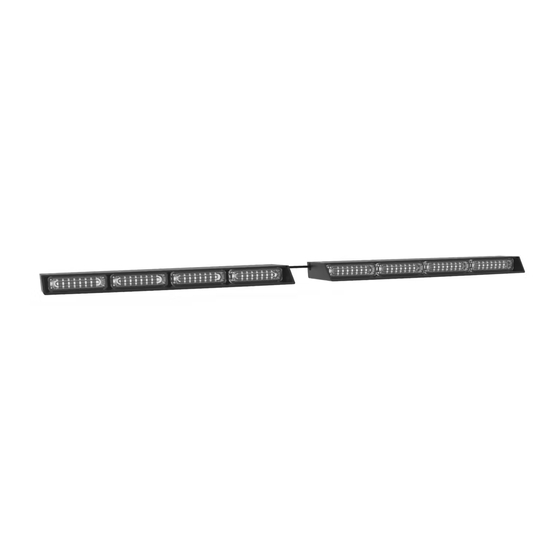

- Page 1 - X LINEAR RAPTOR ® MULTICOLOR VISOR LIGHT BAR B-RLXMC8 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2022...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
-
Page 3: Maintenance
Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products. -
Page 4: Specifications
- X LINEAR RAPTOR ® MULTICOLOR VISOR LIGHT BAR Wiring Diagram Wire Color Function Positive- Memory Mode 1 Red* Negative Black* Flash Pattern Yellow Positive- Memory Mode 2 Green * Indicates a main power cable. NOTE: All cables except Negative contact +12 VDC. Specifications Voltage 12 VDC... - Page 5 - X LINEAR RAPTOR ® MULTICOLOR VISOR LIGHT BAR Available Visor Bracket Mounts Center Passenger Side Center Passenger Side Center Passenger Side Center Passenger Side Center Passenger Side SpeedTech Lights, Inc © 2022...
- Page 6 - X LINEAR RAPTOR ® MULTICOLOR VISOR LIGHT BAR Available Visor Bracket Mounts Q-RVEX18: Ford Expedition (2018+) Driver Center Passenger Side Side Q-RVF15: Ford F-150 (2015+) Driver Center Passenger Side Side Q-RVE11: Ford Explorer (2011-2019) Driver Center Passenger Side Side Q-RVE20: Ford Explorer (2020+) Driver...
- Page 7 - X LINEAR RAPTOR ® MULTICOLOR VISOR LIGHT BAR Mounting Bracket Contents Inspect contents of package before proceeding. Q-RVU Universal Bracket (Included) Q-RVxx Vehicle Specific Brackets (Sold Separately) Universal Brackets: Vehicle Specific Brackets: • (4) Universal long forked visor brackets •...
- Page 8 - X LINEAR RAPTOR ® MULTICOLOR VISOR LIGHT BAR Base Bracket Mounting: NOTE: Mounting the light bar by attaching the forks directly to rear track may position the unit too far away from the windshield in certain vehicles. If this is the case for your vehicle, see below alternate mounting instructions using the (4) Base brackets: Take the (4) Philips pan head short bolts and attach the (4) Base brackets to the mounting holes on the bottom of the unit using the (4) flat large diameter washers and (4) large diameter split lock washers.
- Page 9 - X LINEAR RAPTOR ® MULTICOLOR VISOR LIGHT BAR Q-RVF15: Ford F-150 (2015+) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. Q-RVE11: Ford Explorer (2011-2019) Driver Side Center Center Passenger Side...
- Page 10 - X LINEAR RAPTOR ® MULTICOLOR VISOR LIGHT BAR Q-RVEX18: Ford Expedition (2018+) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. Q-RVIT11: Ford Taurus/Interceptor (2011+) Driver Side Center Center Passenger Side...
- Page 11 - X LINEAR RAPTOR ® MULTICOLOR VISOR LIGHT BAR Q-RVT15: Chevy Tahoe (2015-2020) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. Q-RVC11: Dodge Charger (2011+) Driver Side Center Center Passenger Side...
- Page 12 - X LINEAR RAPTOR ® MULTICOLOR VISOR LIGHT BAR Q-RVE Raptor Visor Extender Installation (Sold Separately) Includes • Driver and Passenger side extenders • (8) Base screws • (2) Rubber strips • Double sided chatter guard tape squares NOTE: Take the visor extender and line up the wider side of the extender to the wider side of the Raptor. Slide the extender over the lip of the Raptor so the prongs are seated on the interior of the Raptor housing.
- Page 13 About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the Light Bar is turned on. • Set the flash pattern by pushing the Flash Pattern button on the Grand Control Box to cycle through the various patterns.
