Öhlins BM 701 Mounting Instructions

F1
R1
R2
Bike on a stand. Bike on the ground.
Setup data
Shock absorber length 319 mm
Shock absorber stroke 82 mm
Spring pre-load 7 mm
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.
Phone +46 8 590 025 00. Fax +46 8 590 025 80.
F2
R3
Bike with rider on.
Checking sag and ride height
Front suspension
F1. Bike on a stand with the
suspension fully extended
F2. Bike on the ground without rider = ............
F3. Bike on the ground with rider
F1 - F2 = ............
Free sag
F1 - F3 = ............
Ride height
Rear suspension
R1.Bike on a stand with the
suspension fully extended
R2.Bike on the ground without rider = ........... .
R3.Bike on the ground with rider
R1 - R2 = ............
Free sag
R1 - R3 = ............
Ride height
www.ohlins.com
F3
= ............
= ............
= ............
= ............
© Öhlins Racing AB. All rights reserved. Any reprinting or unauthorized use without the

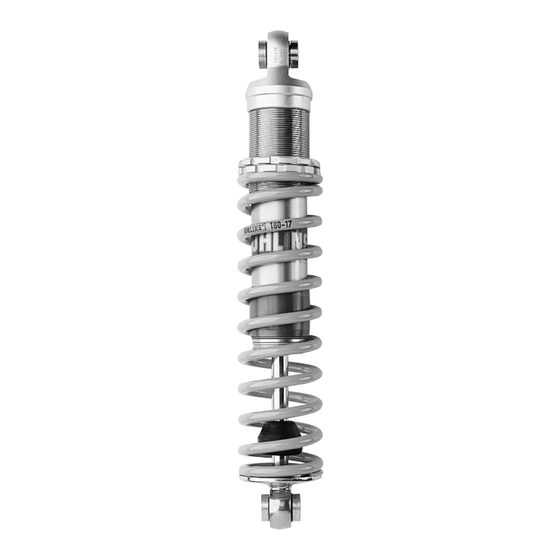

Mounting Instructions
Öhlins shock absorber kit BM 701
for BMW K 1200 RS, front
Öhlins shock absorber 36 D
Your Öhlins shock absorber type 36 D features
the following adjuster:
Spring
pre-load
Spring pre-load adjuster
adjuster
Adjustments are made by turning the threaded
ring on the shock absorber body. Use the tool
provided. Clockwise for harder adjustment,
counter clockwise to release the pre-load.
When delivered the Öhlins shock absorber is dialed
to recommended settings for the specific brand
and make of the vehicle. If you have changed the
settings, see Setup data on the last page.
written permission of Öhlins Racing AB is prohibited. Printed in Sweden.
NOTE!
