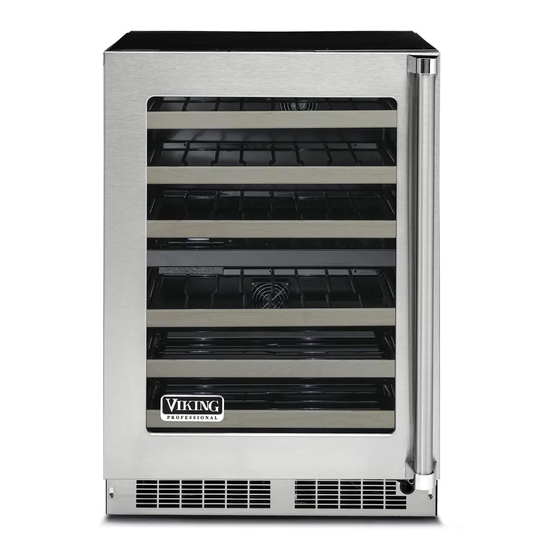

- Page 1 Install / Use & Care MANUAL 5 SERIES Professional Undercounter Wine Cellars VWUI5151 VWUI5241...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions Contents: Warnings and safety instructions appearing in this Safety information ...............2 guide are not meant to cover all possible conditions and Unpacking your appliance ..........3 situations that may occur. Common sense, caution, and Warranty registration .............3 care must be exercised when installing, maintaining, or Installing your appliance ............4 operating this appliance. -
Page 3: Unpacking Your Appliance
If there is damage, the packaging will be needed as proof of damage in transit. Afterwards please dispose of all items responsibly. VIKING RANGE, LLC GREENWOOD, MS 38930 WARNING XXXXXXXXXXXX... -
Page 4: Installing Your Appliance
Viking Range, LLC does not recom- Raise or lower the legs to the required dimension by turning mend the use of a custom made grille as air fl ow may be the legs. -
Page 5: Electrical Connection
INSTALLING YOUR APPLIANCE WARNING Electrical Shock Hazard Do not remove • Do not use an extension cord with this appliance. ground prong They can be hazardous and can degrade product performance. • This appliance should not, under any circumstanc- es, be installed to an un-grounded electrical supply. •... -
Page 6: Door Reversal
DOOR REVERSAL Door Reversing Instructions 1. Open door. 2. Loosen screw #1 and #2 using a Philips Screwdriver on top and bottom hinge. Slide door and remove the door from the unit. Figure 7 3. Once door is removed, using a Philips Screwdriver remove screws from magnet actuator located on inside and bottom of door. -
Page 7: Product Dimensions
⁄ " to 34 ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " VWUI5151 (38.1 cm) (86.4 to 88.9 cm) (37.8 cm) (85.7 to 88.3 cm) (60.2 cm) (66.6 cm) (95 cm) (44.3 cm) 24" **34" to 35" ⁄... - Page 8 PRODUCT DIMENSIONS PRODUCT DATA ELECTRICAL PRODUCT MODEL REQUIREMENTS # WEIGHT 105 lbs 115V/60HZ/15A VWUI5151 (47.6 kg) 140 lbs 115V/60HZ/15A VWUI5241 (63.6 kg) "H" # A grounded 15 amp dedicated circuit is required. Follow all local building codes when installing electrical and appliance.
-
Page 9: Using Your Electronic Control
• Close door to silence alert and reset etc. Viking recommends allowing the unit to reach set points before loading. High/Low Temp. Notifications When the compartment temperature exceeds the control setting for an extended amount of time: •... -
Page 10: Shelving Configurations
SHELVING CONFIGURATIONS Figure 14 VWUI5151: 15" (38.1 cm) Wide Models: (6) 4 bottle wire racks VWUI5241: 24" (61 cm) Wide Models: Upper Zone: (3) 8 bottle wire racks Lower Zone: (1) 8 bottle wire rack (2) 4 bottle half-depth wire racks... -
Page 11: Care And Cleaning
CARE AND CLEANING AND ENERGY SAVING TIPS The following suggestions will minimize the Front Grille cost of operating your refrigeration appliance. Be sure that nothing obstructs the required air fl ow open- ings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see 1. -
Page 12: Service Information
Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range, LLC at (888) 845-4641 or write to: VIKING RANGE, LLC... -
Page 13: Troubleshooting
TROUBLESHOOTING Before You Call for Service CAUTION If the appliance appears to be malfunctioning, read through this manual fi rst. If the problem persists, check the troubleshooting guide below. Locate the problem in the In the unlikely event you lose cooling in your unit, do not guide and refer to the cause and its remedy before calling unplug the product from the electric supply, but do call for service. -
Page 14: Warranty
Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the third through the sixth year from the date of original retail purchase. Viking Range, LLC, warranter, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period. - Page 16 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com 077778-000 (051921)
