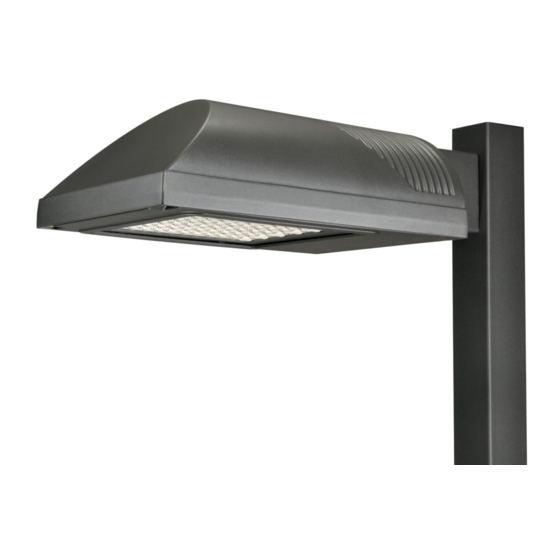

TALON A R E A L U M I N A I R E TABLE OF CONTENTS Performance + Versatility...3 Quality + Durability ...5 Control + Efficiency ...7 Specification Features ...11 Options + Accessories ...13 Photometrics...15 Ordering Information [TMU + TLU]...17 VERSATILE PERFORMANCE Talon’... - Page 3 S I T E + P A R K I N G IMPENETRABLE FORM Coupling precise mechanical design with premium quality materials, the Talon site light is constructed to sustain the rigors of outdoor operation. Thick wall die-cast aluminum construction and channel set silicone gasketing form an impenetrable IP65 barrier optimizing optical efficiency and fixture longevity in the harshest of environments.
-
Page 4: Performance + Versatility
PERFORMANCE + VERSATILITY OPTICAL VERSATILITY Never before has a single luminaire supported this magnitude of optical choices, touting four [4] distinct families of optical assemblies, all with compelling performance. Hydroformed, segmented, vertical and specialty application optical systems allow finely tuned site lighting solutions with unprecedented levels of uniformity and control. - Page 5 OPTICAL SOLUTIONS AS DIVERSE AS THE ENVIRONMENTS THEY ILLUMINATE. Exterior lighting requirements continue to grow more stringent with added emphasis on light control and system efficiency. Whether the goal of your site lighting design is safety, general illumination or highlighting prominent features, Talon offers application-specific optical solutions that provide the highest level of photometric performance and control.
-
Page 6: Quality + Durability
QUALITY + DURABILITY DURABLE CAST CONSTRUCTION Low-copper alloy die-cast aluminum construction offers corrosion resistance while precise tolerance control ensures tight nesting of the door and housing. Combining heat extracting reveal channels with independent optical and electrical chambers that isolate heat producing sources, the Talon’s housing design is both functionally relevant and aesthetically pleasing. - Page 7 CONFIDENCE-INSPIRING QUALITY BEYOND THE SUM OF ITS PARTS. From the stainless steel hinges to the rugged housing, every detail of the Talon construction is precisely designed with industry leading craftsmanship. Heavy-wall die-cast aluminum construction, premium TGIC [triglycidyl isocyanurate] polyester powder coat paint and an IP65 rated optical cavity ensure Talon can endure the harshest environments.
-
Page 8: Control + Efficiency
CONTROL + EFFICIENCY LUMINAIRE CLASSIFICATION The IESNA’ ’ s revised Luminaire Classification System [TM15-07 revised] creates a new basis of measurement for site lighting visibility and adjacent property interaction. This technical memorandum subdivides the luminaire distribution into smaller angular zones and subzones to more clearly represent how much light is emitted at various angles. - Page 9 STEPPING UP TO THE CHALLENGE. As visual research advances so too the core understanding of how light interacts with surrounding communities and nocturnal environments. Utilizing this knowledge, Federal programs, national organizations and industry leaders institute guidelines for illuminating an area safely and securely while reducing energy, eliminating spill light and minimizing glare.
-
Page 12: Specification Features
SPECIFICATION FEATURES MOUNTING Extruded 8" [TMU Talon Medium] or 10 1/2" [TLU Talon Large] aluminum arm includes internal bolt guides allowing for easy positioning of fixture during installation to pole or wall surface. Standard single carton packaging of housing, square pole arm and round pole adapter for contractor friendly arrival of product on site. - Page 13 Certifications IP65 Rated U.L. 1598 Listed ISO 9001 CSA Listed 25°C Ambient FINISH Housing and arm finished in a 5 stage premium TGIC polyester powder coat paint, 2.5 mil nominal thickness for Black superior protection against fade and wear. Standard colors include black, bronze, grey, white, dark platinum, and graphite metallic.
-
Page 14: Options + Accessories
OPTIONS + ACCESSORIES ARM MOUNT Standard 8" [TMU] or 10 1/2" [TLU] extruded aluminum arm features internal bolt guides for twin support rods. Round pole mounting accommodated by utilizing provided round pole adapter between the fixture arm and pole shaft. EXTERNAL MAST ARM ADAPTER [MS] Cast aluminum mast arm adapter secures fixture head to nominal 2"... - Page 15 [Tenon Adapter] DEEP DOOR [DD] Medium housing vertically lamped optics are shipped standard with Deep Door. For sites combining horizontal and vertical optics, specify the Deep Door [DD] option on horizontal lamp fixtures to maintain a uniform outward aesthetic. Reflector shifted downward toward the lens to maintain optimal photometric performance [TMU only].
- Page 16 PHOTOMETRICS [Complete IES files available at www.cooperlighting.com] B C D E B C D TMU10SXX3FF TMU15SXX4VS 100-Watt HPS 150-Watt HPS 9,500-Lumen Clear Lamp 16,000-Lumen Clear Lamp Type III Formed Type IV Vertical Flat Glass Sag Glass C D E TMU25SXX5FF TMU25SXXASS 250-Watt HPS 250-Watt HPS...
-
Page 17: Photometrics
PHOTOMETRICS [Complete IES files available at www.cooperlighting.com] A B C D E A B C D E TLU40SXX3VF TLU40MXX3FF 400-Watt HPS 400-Watt MH 50,000-Lumen Clear Lamp 36,000-Lumen Clear Lamp Type III Vertical Type III Formed Flat Glass Flat Glass A B C D E A B C TLU40SXXARF TLU40SXXSLF... -
Page 18: Ordering Information [Tmu + Tlu]
TMU TALON MEDIUM ORDERING INFORMATION SAMPLE NUMBER: TMU40SWW3SF LAMP TYPE PRODUCT LAMP FAMILY WATTAGE S=High TMU=Talon 70=70W Pressure Site 10=100W Sodium Medium 15=150W R=Super Metal Halide 17=175W 20=200W M=Metal Halide 25=250W 32=320W 3, 4 P=Pulse Start 35=350W 3, 4 Metal Halide 40=400W 24=250/400W wired 250W... - Page 19 ORDERING INFORMATION SAMPLE NUMBER: TLU91SWW3VF PRODUCT LAMP LAMP TYPE S=High FAMILY WATTAGE TLU=Talon 25=250W Pressure Sodium Site 32=320W Large 35=350W R=Super Metal Halide 40=400W 75=750W M=Metal Halide 87=875W 91=1000W P=Pulse Start Metal Halide OPTIONS + ACCESSORIES [must be ordered in alphanumeric order] OPTIONS [add as suffix] 1=Single Fuse [120, 277 or 347V] 2=Double Fuse [208, 240 or 480V]...
- Page 20 Peachtree City, Georgia Cooper Lighting, Streetworks, Talon and Accel Optics are valuable trademarks of Cooper Industries in the United States and other countries. You are not permitted to use the Cooper Trademarks without the prior written consent of Cooper Industries.
