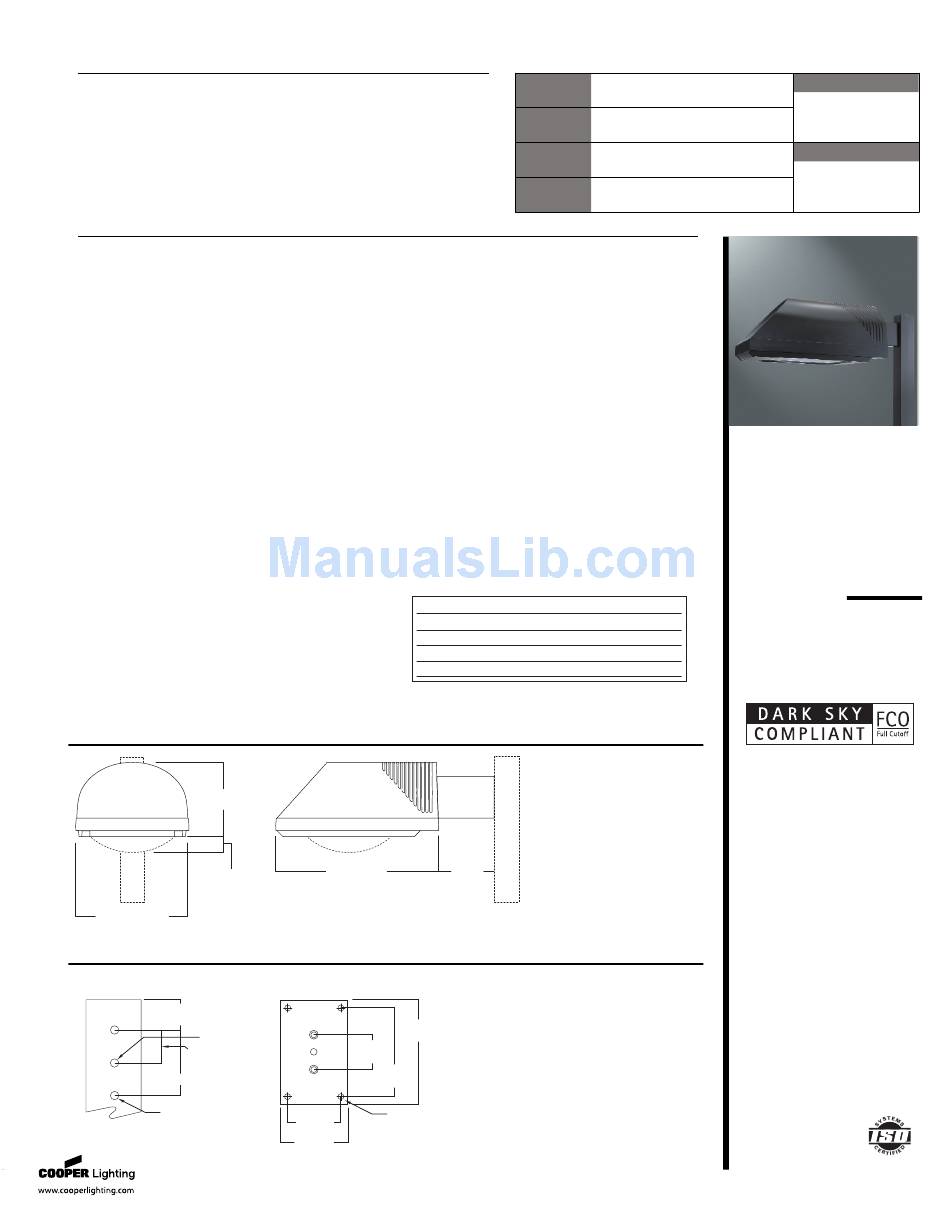

Cooper Lighting TLU Talon Large TL91SWW3VFG Specification

DESCRIPTION
The Streetworks Talon is the most versatile, functionally designed,
universally adaptable outdoor luminaire available. The Talon brings
outstanding performance to walkways, parking lots, roadways, loading
docks, building areas, and any security lighting application. U.L. listed and
CSA certified for wet locations. IP65 Rated.
SPECIFICATION FEATURES
Construction
One-piece heavy-wall, die-cast
aluminum construction with
integral reveal channels along top
surface of housing. Internal cast-in
wall separates optical and
electrical chambers allowing
components to operate cooler.
One-piece die-cast aluminum door
frame with integral cast-in gasket
channel seals optical chamber to
an IP65 rating. Stainless steel
latches and hinges allow for
toolless opening and removal of
door frame.
Reflector
Choice of 14 high efficiency optical
systems utilizing horizontal and
vertical lamp orientations. Optional
high efficiency segmented optical
systems constructed of premium
95% reflective anodized aluminum
sheet. Optical segments are rigidly
mounted inside a thick gauge
aluminum housing for superior
protection. All segment faces are
clean of rivet heads, tabs or other
means of attachment which may
cause streaking in the light
distribution.
DIMENSIONS
1 4 1/8"
[359mm]
3 1/8"
[79mm]
21 5/8" [549mm]
DRILLING PATTERNS
T Y P E " M "
2 5/16"
[59mm]
3/4" [20mm]
dia. hole
2 7/16" [124mm]
4 7/8" [124mm]
(2) 5/8" [16mm]
dia. holes
Standard with mogul-base socket.
All optical modules feature quick
disconnect wiring plugs and are
field rotatable in 90° increments.
Electrical
Electrical componentry mounted
on a swing-down galvanized steel
power tray with integral handle.
Electrical disconnects allow tray to
be completely removed from the
housing providing ample hand and
tool room for attachment of fixture
during installation.
LAMP TYPE
Metal Halide
Pulse Start Metal Halide 250, 320, 350, 400, 450, 750, 875, 1000W
Super Metal Halide
High Pressure Sodium
31" [787mm]
WA L L M O U N T
12"
[305mm]
4 7/8"
[124mm]
10 1/2"
[267mm]
6 1/2"
9/16" [14mm]
[165mm]
Dia. Hole (4)
8"
[203mm]
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Mounting
Extruded 10 1/2" aluminum arm
includes internal bolt guides
allowing for easy positioning of
fixture during installation to pole
or wall surface. Standard single
carton packaging of housing,
square pole arm and round pole
adapter for contractor friendly
arrival of product on site.
Finish
Housing and arm finished in a 5
stage premium TGIC polyester
powder coat paint, 2.5 mil nominal
thickness for superior protection
against fade and wear. Standard
colors include black, bronze, grey,
white, dark platinum, and graphite
metallic.
WATTAGE
250, 400, 1000W
250, 400, 750, 1000W
250, 400, 1000W
10 1/2"
[267mm]
STREETWORKS
Type
Date
TALON LARGE
250-1000W
High Pressure Sodium
Pulse Start Metal Halide
Super Metal Halide
AREA LUMINAIRE
E N E R G Y D ATA
CWI Ballast Input Watts
250W HPS HPF (300 Watts)
CWA Ballast Input Watts
250W MH HPF (295 Watts)
320W MP HPF (365 Watts)
350W MP HPF (400 Watts)
400W MP HPF (448 Watts)
400W MH HPF (455 Watts)
400W HPS HPF (465 Watts)
750W MP HPF (820 Watts)
875W MP HPF (940 Watts)
1000W HPS HPF (1100 Watts)
1000W MH HPF (1080 Watts)
E P A
Effective Projected Area: (Sq. Ft.)
Without Arm: 1.83
10 1/2" Arm: 0.68
S H I P P I N G D ATA
Approximate Net Weight:
400W 91 lbs. (41.36 kgs.)
1000W 98 lbs. (44.54 kgs.)
TLU_ADH081550
08/04/2008 6:08:05 PM
™
TLU
Metal Halide
