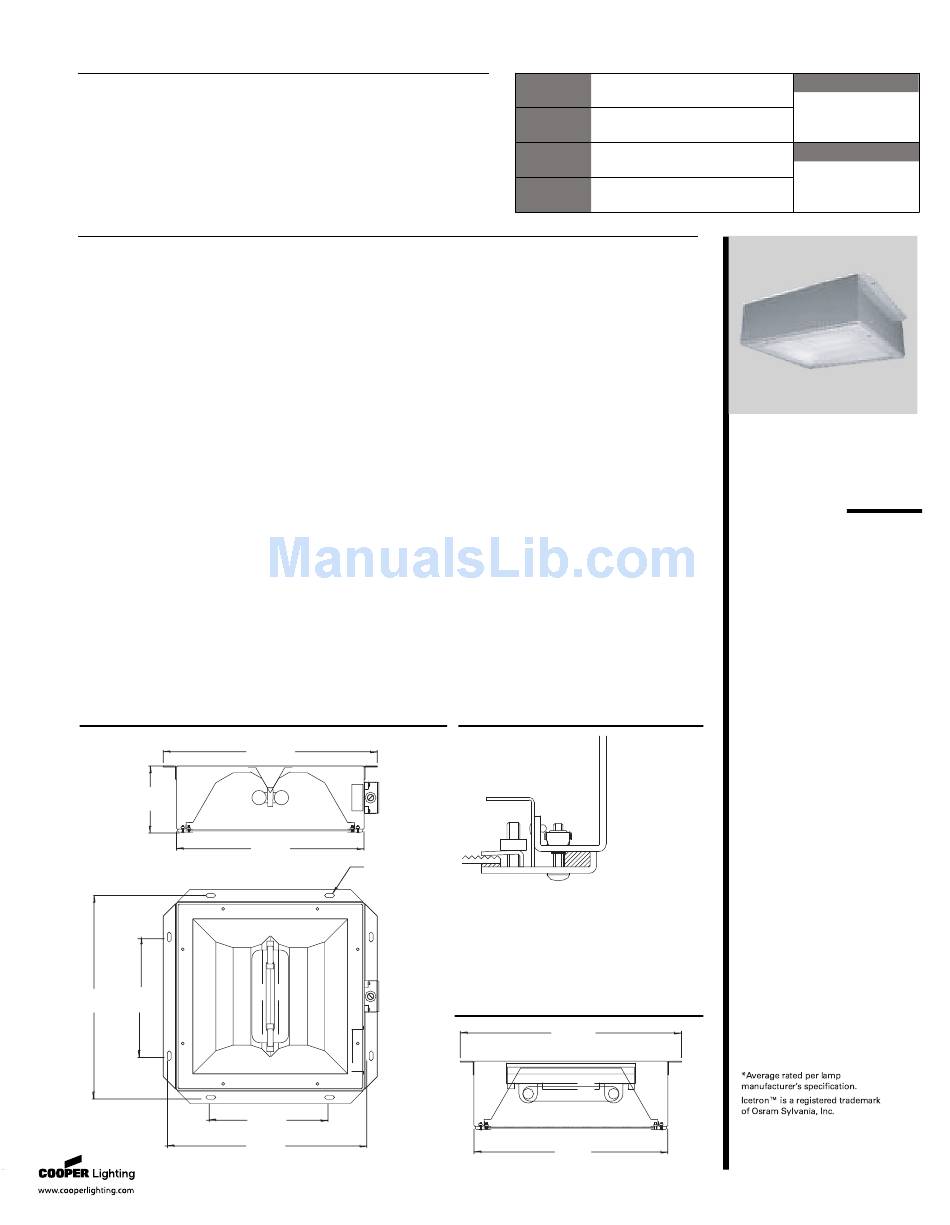

Cooper Lighting FAIL-SAFE TF28 Specification Sheet

DESCRIPTION
The TF28 fixture is designed for the most demanding and complex
environments your application has to offer. One-piece seam-welded
construction and energy efficient lamp technology make this fixture an ideal
candidate for applications ranging from the most hostile to the most fragile
environments. The TF28 provides a durable and long life installation. Long
lamp life means less re-lamping and less maintenance costs resulting in a
big payback. A durable and anti-corrosive construction ensures that your
investment is protected as expected through the end. UL listed and IP 65
rated.
SPECIFICATION FEATURES
A ... Lens
(To be specified.) Choice of glass
or polycarbonate; prismatic for
glare control or clear. Consult
ordering information.
B ... Housing
Available in die-formed 14 gauge
cold rolled steel, 14 gauge 304
brushed stainless steel or 1/8" thick
aluminum. Housing is continu-
ously welded with ground ends to
form a one-piece seamless
construction for maximum
resistance to the environment.
Specify aluminum construction for
high ambient applications.
C ... Door Frame
Material to match housing. Seam
welded with ground corners.
Aircraft grade safety cable lanyards
attaches doorframe to housing.
MOUNTING DIMENSIONS
31 13/16"
[808mm]
9 15/16"
[253mm]
27 7/8"
[708mm]
30"
17 5/8"
[762mm]
[448mm]
17 5/8"
[448mm]
[762mm]
Specifications and Dimensions subject to change without notice.
D ... Gasket
One-piece die-cut EPDM closed cell
sponge with pressure sensitive
adhesive.
E ... Fasteners
Stainless steel captive Philips Head
screws are used to fasten door-
frame to housing.
F ... Finish
Polyester powder coat finish is
standard on housing and
doorframe. Available colors are
utility gray, architectural bronze,
white or specify color. Paint
application is conveyorized, has a
multi-stage cleaning cycle, electro
statically applied, control baked
and cured.
G ... Reflector
Interior reflector is segmented,
95% specular aluminum and
scientifically designed for
maximum efficiency.
(8) 9/16" X 1 1/2"
[14mm X 38mm]
Mtg. Holes
30"
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
H ... Lamps
150W Induction Icetron(TM) Lamp
installed and fully secured in unit.
All fixtures are 100% factory tested
before shipping for quality
assurance.
I ... Ballast
High power factor, Universal 120V
through 277V.
J ... Wiring/Connections
Aluminum cast and fully sealed
wiring box fastened with through
bolts on exterior of unit. Supplied
with (4) 3/4" pipe threaded conduit
ports.
K ... Mounting
Surface mounted with bolts
through (4) exterior welded
flanges.
Labels
CUL Listed for Wet Locations.
Optional high-pressure hose down
available. High ambient rating is
available up to 45° C.
DOOR FRAME
DIMENSIONS
31 13/16"
[808mm]
27 7/8"
[708mm]
FAIL-SAFE
®
Type
Date
TF28
150W
Induction
SURFACE MOUNT
TRANSIT AND COMPLEX
ENVIRONMENT
LUMINAIRE
E N E R G Y D AT A
Input Watts:
(1) 150W Icetron™: 157W
ADC041739
04/10/2007 9:39:52 AM
