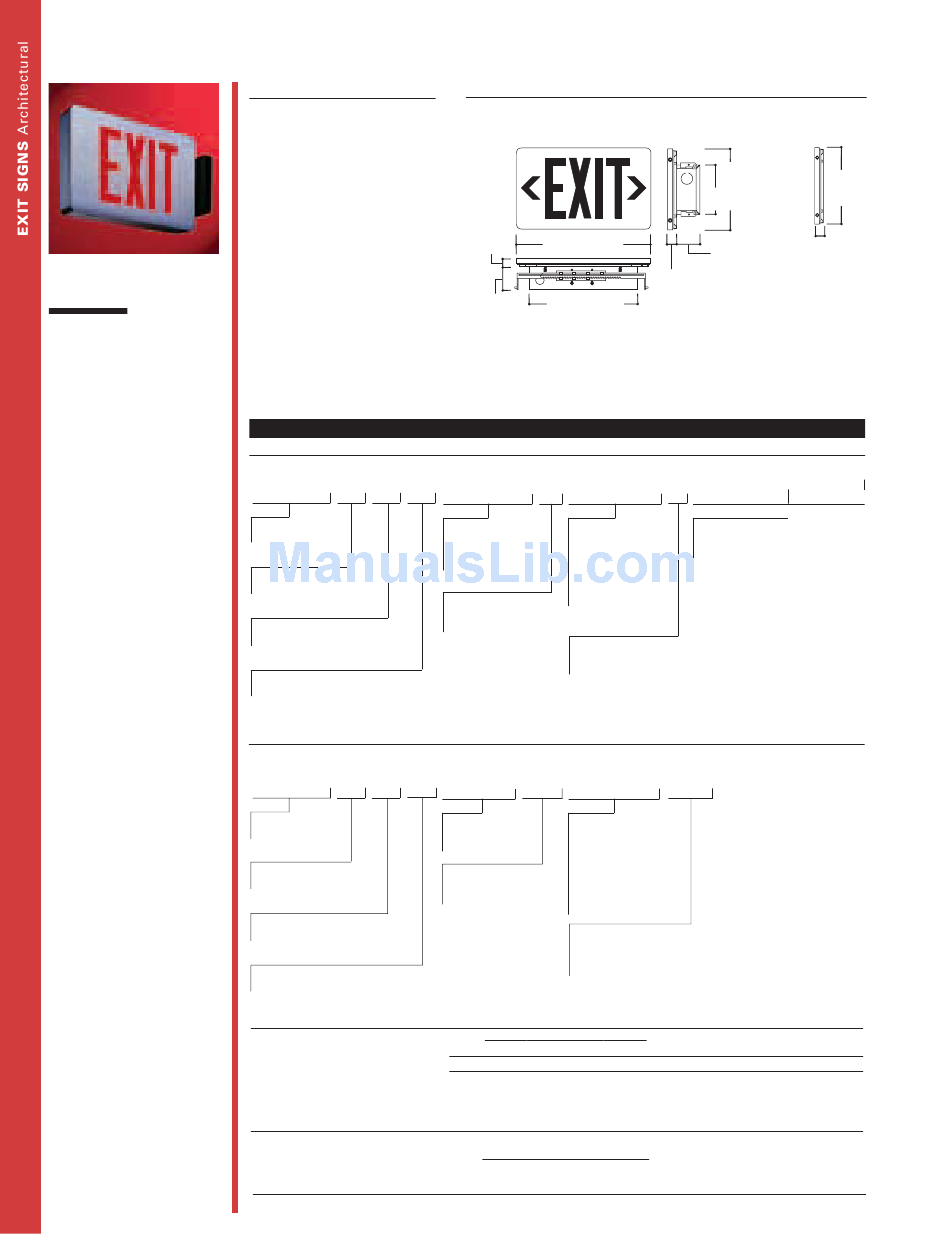

COOPER LIGHTING - SURE-LITES
TPX SERIES
D i e C a s t
A C O n l y
T h i n P r o f i l e
E X I T L I G H T I N G
• Dual-voltage input
120/277VAC, 60Hz
• Die cast aluminum
faceplate
• Overall exposed exit
thickness is only 3/4"
• LED lamping
• 20 gauge steel recessed
housing fits in 2x4
construction
• 18 gauge steel mounting
plate with universal
mounting pattern
• Adjustable hanger bars
• Centerpin Torx tamper
resistant screws on sides of
faceplate – no visible
mounting hardware on
front face
• NFPA compliant knockout
chevrons
• UL 924 Listed, Life Safety
NFPA 101, NEC/OSHA, UL
FTBR Listed (with "2C"
option), UL Listed as
suitable for floor proximity
installation, most state and
local codes
638
COOPER LIGHTING
D E S C R I P T I O N
The TPX Thin Profile Exit
Series combines the strength
of die cast aluminum, the
profile of recessed design
and the superior aesthetics of
Sure-Lites LED technology to
create an exit with optimum
versatility and aesthetics. The
TPX Series faceplate assembly
is only 3/4" thick, yielding a
sign with minimal off-wall
protrusion without requiring
the large wall opening of a
fully recessed exit.
The TPX Series also includes
a Remote Powered Exit which
can be powered from a TPX
Series AC Only or Self-
Powered Exit.
O R D E R I N G I N F O R M AT I O N - A C O N LY E X I T S
S A M P L E N U M B E R : T P X 6 1 0 0 0 0 R B
TPX
Family
TPX=Thin Profile
Exit
Series
6=AC Only, LED
Face Options
1=Single
Battery
00=AC Only, 120/277 VAC
O R D E R I N G I N F O R M AT I O N - R E M O T E P O W E R E D E X I T S (Satellite, must be powered from another unit.)
S A M P L E N U M B E R : T P X 8 1 0 0 0 0 R
Family
TPX=Thin Profile
Exit
Series
8=Remote, LED
Face Options
1=Single
Battery
00=Remote Powered
E n e r g y D a t a
Red Letters Single Face
Red Letters Single Face with Remote
Green Letters Single Face
Green Letters Single Face with Remote 9.5W
Red Letters Single Face
Green Letters Single Face
®
D I M E N S I O N S
A C O N LY
3/4"
13 5/8" (346mm)
(19mm)
2 1/4"
10 3/4" (273mm)
(57mm)
Factory
Faceplate Finishes
Options
Blank=Brushed
Aluminum Face
00=No Options
with Black Trim
95=AC Only Fire
W=White
Alarm Interface
B=Black
BZ=Bronze
Letter Colors
R=Red
G=Green
Factory
Options
2C= Two Circuit
Operation
Factory
Faceplate
Finishes
Options
00=No Options
Blank=Brushed
Aluminum Face
with Black Trim
Letter Colors
W=White
R=Red
B=Black
G=Green
BZ=Bronze
Accessories (Order Separately)
TPX61VS= Polycarbonate
Vandal Shield
0590A639SP= Tamper Resistant
Screwdriver Bit
Standard Power - LED Exits
Input Power:
Input Current (Max.): Power Factor:
120V
277V
120V
277V
5.6W
5.7W
.07A
.03A
7.3W
7.3W
.07A
.03A
6.7W
6.8W
.07A
.03A
9.7W
.09A
.04A
Remote Powered - LED Exits
Approximately 2.0 watts additional
Approximately 2.5 watts additional
R E M O T E
P O W E R E D
8 1/4"
8 1/4"
(210mm)
(210mm)
4 7/8"
(124mm)
3/4"
2 1/4"
(19mm)
(57mm)
3/4"
(19mm)
Accessories (Order Separately)
TPX61VS=Polycarbonate Vandal
Shield
0590A639SP=Tamper Resistant
Screwdriver Bit
T.H.D.:
120V 277V
120V 277V
>.71
>.71
<36% <36%
>.83
>.83
<33% <34%
>.79
>.79
<30% <31%
>.90
>.90
<26% <27%
