Cooper Lighting Metalux GC SERIES Specification Sheet

COOPER LIGHTING - METALUX
GC SERIES
1 ' x 4 ' , 2 ' x 2 ' , 2 ' x 4 '
2 0 " x 4 8 " Tr o f f e r
1 , 2 , 3 a n d 4 L a m p
D E E P S P E C I F I C AT I O N
G R A D E R E C E S S E D
S TAT I C T R O F F E R
• Equipped with energy
saving ballasts/complies
with federal energy
efficiency standards
• Reinforced quadrasealed
flat white steel door,
mitered corners
• Spring loaded latch
• Deep "V" raceway/ballast
cover distributes light
uniformly across lens
(6)
• Lamp to lens spacing
produces high comfort
photometrics
• Four auxiliary fixture end
suspension points provided
• End plate grid lock
feature
• For information on flanged
fixture, including ceiling
opening size, see Technical
Section.
• UL/CUL Listed. Suitable for
damp locations.
402
COOPER LIGHTING
D E S C R I P T I O N
The Specification GC Series
features a nominal 5-1/2" deep
(1x4), 4-1/2" deep (2x2, 2x4,
20x48), para-contoured fixture
housing, high reflectivity and
optimum lamp to lens spacing.
The Series produces total
uniformity of light in the luminous
area and is compatible with all of
today's popular ceiling systems.
The finish provides high
reflectance. The GC Series is an
excellent choice for commercial,
office spaces, schools, hospitals or
retail merchandising areas.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : 2 G C - 2 3 2 A - 1 2 0 V - E B 8 1 - U
Silver Finish
Width
SS=Silver-Lining
2'=2' width
Housing and
Blank=1' width
Ballast Cover
or 20" width
2048=20" Width x 48"
Trim Type
Length
G=Grid/Lay-in – Standard
G=Concealed T
Number of Lamps
(1)
G=Slot Grid
1, 2, 3, or 4 Lamps
F=Flange Trim
(Not included)
MZ=Modular Trim
EMZ=Modular Trim Wattage (Length)
(Extended Swing Arm)
U3=40W T12 (24")
U6T8=32W T8 (24")
20=20W T12 (24")
Series
17=17W T8 (24")
C=Specification Deep Troffer
U15/8=31W T8 (24")
BX40=40W Biax (24")
Doorframes
40=40W T12 (48")
Standard=Flat White Steel Door
32=32W T8 (48")
(Leave Blank)
FA=Flat White Extruded
Shielding
Aluminum Door
RA=3/8" Regressed White A=#12 PatternAcrylic
Extruded Aluminum Door
(See Lens and Louver Tables for additional
FAN=Flat Natural Extruded shielding options)
Aluminum Door
RAN=3/8" Regressed Natural
Voltage
Extruded Aluminum Door
120V=120 Volt
FAB=Flat Black Extruded
277V=277 Volt
Aluminum Door
347V=347 Volt
RAB=3/8" Regressed Black
UNV=Universal
Extruded Aluminum Door
Voltage 120-277
(1)
NOTES: An EQ Grid Clip is recommended for all 9/16" ceiling systems.
US voltages and frequencies for international markets.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
Representative for availability and ordering information.
®

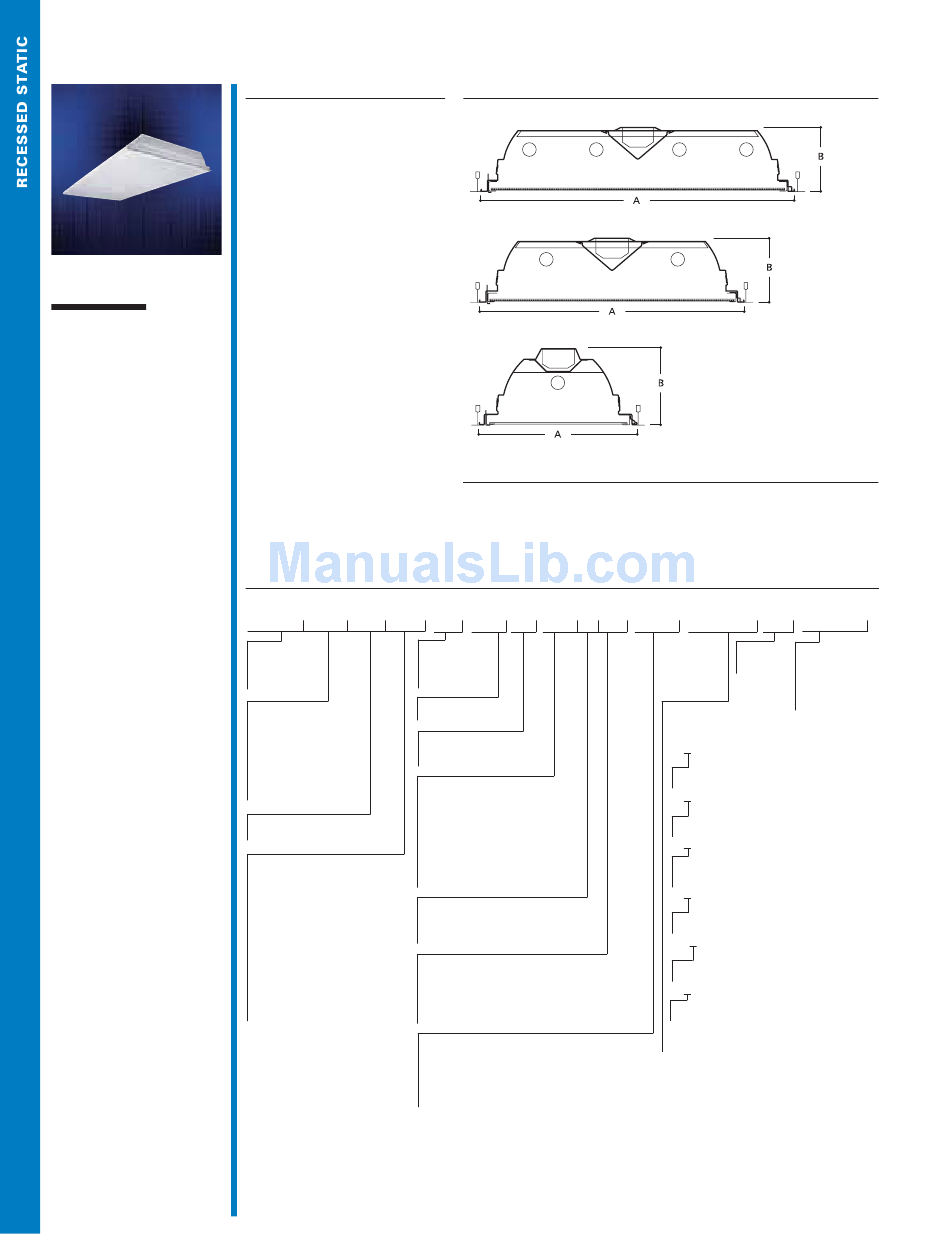

D I M E N S I O N S
2' x 2', 2' x 4'
20" x 48"
1' x 4'
NOMINAL SIZE A
1' x 4' 11-3/4" (298mm)
2' x 2' 23-3/4" (603mm)
2' x 4' 23-3/4" (603mm)
20" x 48" 19-3/4" (502mm)
(2)
(3)
(4)
Options
GL=Single Element Fuse
GM=Double Element Fuse
Lamps - for lamps installed, see lamp options table
Flex - for flex installed, see flex ordering table
Emergency - for EM installed, see EM options table
(2)
Standard off-center ballast compartment on 3-lamp fixtures.
(4)
Not available when specifying emergencies, voltage must be specific.
B
5-5/8" (143mm)
4-5/8" (116mm)
4-5/8" (116mm)
4-5/8" (116mm)
Options Packaging
(See Options
U=Unit Pack
Section)
PAL=Job Pack,
out of carton
PALC=Job
Pack, in carton
(3)
Ballast Type
Blank=Standard Magnetic Ballast (Biax & 20W)
LE3=T12 Magnetic Energy Saving
ER8 = T8 Electronic Program Rapid Start. Total
Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
EB8 = T8 Electronic Instant Start. Total Harmonic
Distortion < 10%
No. of Ballast
1, 2 or 3
EB8 /PLUS= T8 Electronic Instant Start. High
Ballast Factor >1.13. Total Harmonic
No. of
Distortion < 20%
Ballast
1, 2 or 3
EB5 = T5 Biax Electronic Instant Start. Total
Harmonic Distortion < 20%
No. of Ballast
1, 2 or 3
TEB5 =T5 Biax Electronic Instant Start. Total
Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
EB2 =T12 Electronic Rapid Start.
No. of Ballast
1 or 2
DLS=Digital Lighting System Dimming
(For complete details on generic or to specify
manufacturer's ballast see pg. 469)
(3)
Products also available in non-
