COOPER LIGHTING - SURE-LITES
VRX SERIES
T h i n P r o f i l e
H i g h - A b u s e
A C O n l y
S e l f - P o w e r e d
E X I T L I G H T I N G
• Dual-voltage input 120/277
VAC, 60 Hz
• Die cast aluminum
faceplate exposed unit
thickness is 1"
• 20 gauge recessed housing
fits in 2x4 construction
• 18 gauge mounting plate
with clearance holes for
1/4" fasteners
• LED lamp panel provides
uniform light output
• Convex .125"
polycarbonate Vandal
Shield standard
• Centerpin Torx tamper
resistant screws
• NFPA compliant knockout
chevrons allow quick
conversion to directional
signs
• Adjustable hanger bars
• EPDM shock-absorbing
gasket between mounting
plate and wall
• Self-powered Exits feature
line-latching, solid-state
voltage limited charger,
solid-state switching,
low-voltage disconnect,
brownout circuit,
overload/short-circuit
protection, test switch/
power indicator light
• UL 924 Listed, Life Safety
NFPA 101, NEC/OSHA, UL
Listed as suitable for floor
proximity installation, most
state and local codes
664
COOPER LIGHTING
D E S C R I P T I O N

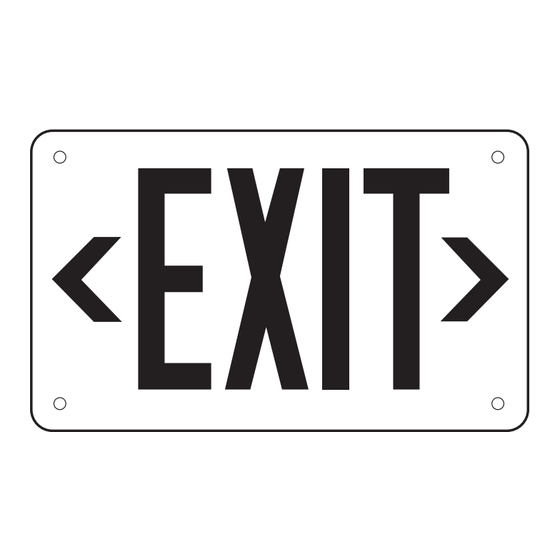

The VRX Thin Profile High-Abuse
Exit Series combines the
strength of die cast aluminum,
the profile of a recessed design
and the superior aesthetics of
Sure- Lites LED technology to
create an exit with optimum
versatility and aesthetics. The
VRX Series faceplate/mounting
plate/lens is only 1" thick,
yielding a sign with minimal
off-wall protrusion without
requiring the large wall opening
of a fully recessed exit. The VRX
Series also includes a Remote
Powered Exit which can be
powered from a VRX Series AC
Only or Self Powered Exit.
O R D E R I N G I N F O R M AT I O N - A C O N LY E X I T S / S E L F - P O W E R E D E X I T S
S A M P L E N U M B E R : V R X 6 1 0 0 0 0 R B
Product Family
Series
Face Options
VRX=Thin
6=AC Only,
1=Single
Profile,
LED
High
7=Self-
Abuse
Powered,
LED
O R D E R I N G I N F O R M AT I O N - R E M O T E P O W E R E D L E D E X I T S
S A M P L E N U M B E R : V R X 8 1 0 0 0 0 R B
Product Family
Series
Face Options
VRX=Thin
8=Remote,
1=Single
Profile,
LED
High-Abuse
E n e r g y D a t a
Red Letters Single Face
Red Letters Single Face with Remote
Green Letters Single Face
Green Letters Single Face with Remote 9.5W
Red Letters Single Face
Green Letters Single Face
E n e r g y D a t a
Sealed Nickel Cadmium Battery-LED Exit
Red Letters Single Face
Red Letters Single Face with Remote
Green Letters Single Face
Green Letters Single Face with Remote 11.4W
®
D I M E N S I O N S
A C O N LY / S E L F - P O W E R E D
8 11/16"
(221mm)
14" (356mm)
1"
(26mm)
1" (26mm)
2 1/4"
(57mm)
10 3/4" (273mm)
Battery
Factory
Letter Colors
Options
00=AC Only,
R=Red
00=No Options
120/277
G=Green
20=Flasher
(VRX6
(VRX7 only)
only)
30=Flasher/
70=Nickel
Buzzer
Cadmium
(VRX7 only)
Battery
90=DC Fire
(VRX7
Alarm
only)
Interface
(VRX7 only)
95=AC Only,
Fire Alarm
Interface
(VRX6 only)
Battery
Factory
Letter Colors
Options
00=Remote
R=Red
Powered
00=No Options
G=Green
LED EXITS-AC ONLY
Input Power;
Input Current (Max.):
120V
277V
120V
277V
5.6W
5.7W
.07A
.03A
7.3W
7.3W
.07A
.03A
6.7W
6.8W
.07A
.03A
9.7W
.09A
.04A
Remote Powered
2.0 watts additional
2.5 watts additional
Input Power;
Input Current (Max.):
120V
277V
120V
277V
7.4W
7.5W
.08A
.04A
9.3W
9.5W
.08A
.04A
8.5W
8.7W
.09A
.04A
11.7W
.11A
.05A
R E M O T E P O W E R E D
4 7/8"
(124mm)
2 1/4"
(57mm)
1"
(26mm)
Faceplate Finishes
Blank=Brushed
Aluminum Face
with Black Trim
W=White
B=Black
Faceplate Finishes
Blank=Brushed
Aluminum Face
with Black Trim
W=White
B=Black
Power Factor:
T.H.D.:
120V
277V
120V 277V
>.71
>.71
<36% <36%
>.83
>.83
<33% <34%
>.79
>.79
<30% <31%
>.90
>.90
<26% <27%
Power Factor:
T.H.D.:
120V
277V
120V 277V
>.72
>.72
<34% <34%
>.84
>.84
<31% <32%
>.79
>.79
<30% <31%
>.90
>.90
<26% <26%
1"
(26mm)
