ENGLISH
WARNING: The connection must be
made in compliance with the relevant appli-
cable legal requirements, and using appro-
priate and recommended materials.
WARNING:
The gas supply to appliances
must be linked to forced-air
ventilation systems.
The manufacturer has tested the appli-
ance with its own mains gas, identifi ed
by the sticker applied to the nameplate.
If the type of gas to connected is diff er-
ent from that used for testing, proceed
as follows.
Close the gas supply tap (A).
)
Replace the burner nozzle (see page
)
16).
Replace the pilot light nozzle (see
)
page 16).
Adjust the gas control valve (see page
)
14).
Remove the sticker from the name-
)
plate and apply the new one to high-
light the gas being used.
NOTE: After completing the
operation, check for any gas leaks or
faults.
12

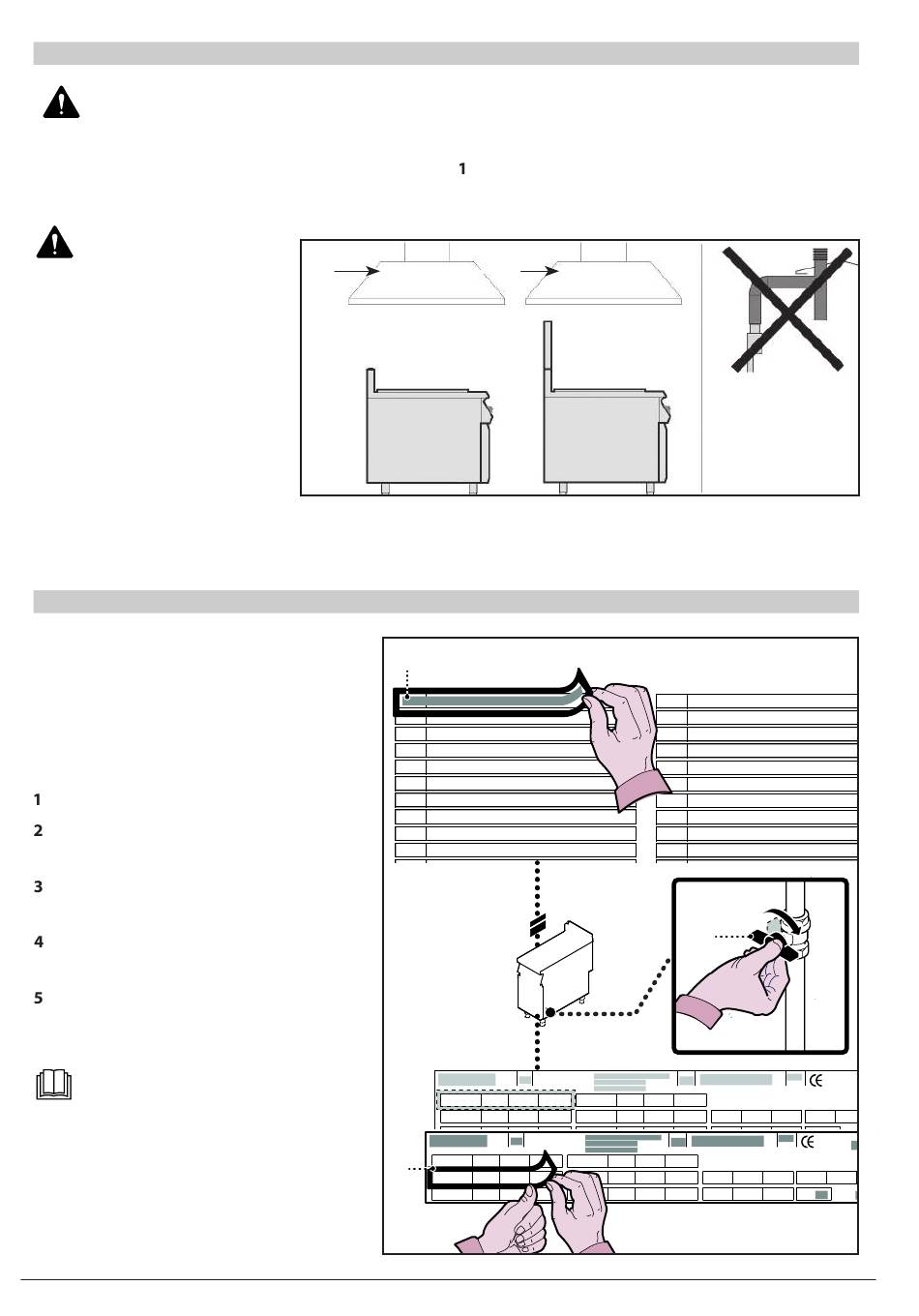

CONNECTION OF FUME EXHAUST VENT

A

CHANGING THE GAS SUPPLY

C
AL
AL
AT
AT
BE
BE
BE
BE
BG
BG
CH
B
HANDLING AND INSTALLATION
Connection to a fan extractor hood
To carry out this operation, proceed as follows.
Place the appliance underneath the hood (A)
)
(see fi gure).
A
II2H3B/P: G20/20mbar, G30/30mbar
II2H3+: G20/20mbar, G30-G31/28_30-37mbar
3P
II2H3B/P: G20/20mbar, G30/50mbar
II2H3P: G20/20mbar, G31/50mbar
II2E+3+: G20-G25/20-25mbar, G30-G31/28_30-37mbar
II2E+3B/P: G20-G25/20-25mbar, G30/30mbar
II2E+3P: G20-G25/20-25mbar, G31/37mbar
II2E+3B: G20-G25/20-25mbar, G30/30mbar
II2H3B/P: G20/20mbar, G30/30mbar
II2H3+: G20/20mbar, G30-G31/28_30-37mbar
II2H3+: G20/20mbar, G30-G31/28_30-37mbar
G20 m3/h G31
kW mbar
G25 m3/h
kW mbar
G30 mbar
kW Kg/h
G20 kW m3/h mbar G31
G25 kW m3/h mbar
G30 kW Kg/h mbar
IS II2H3B/P: G20/20mbar, G30/30mbar
IS II2H3+: G20/20mbar, G30-G31/28_30-37m
IT II2H3+: G20/20mbar, G30-G31/28_30-37m
IT II2H3B/P: G20/20mbar, G30/30mbar
IT II2H3P: G20/20mbar, G31/37mbar
LT II2H3+: G20/20mbar, G30-G31/28_30-37m
LT II2H3B/P: G20/20mbar, G30/30mbar
LT II2H3P: G20/20mbar, G31/37mbar
LU II2H3B/P: G20/20mbar, G30/30mbar
LU II2H3+: G20/20mbar, G30-G31/28_30-37m
LV II2H3B/P: G20/20mbar, G30/30mbar
A
kW mbar
Kg/h
~
~
kW mbar
Kg/h
~
~
