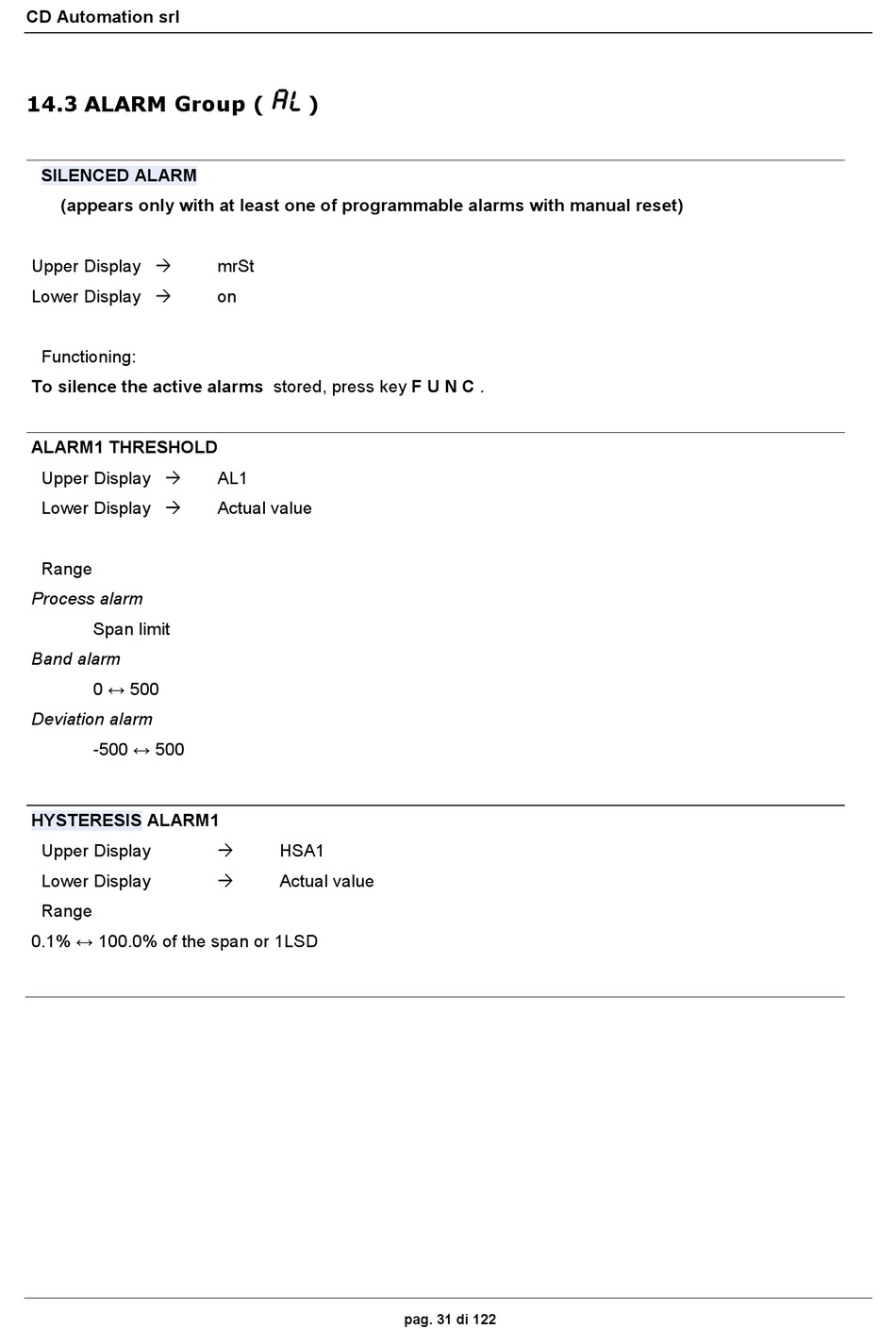

14.3 ALARM Group ( AL )

SILENCED ALARM
(appears only with at least one of programmable alarms with manual reset)
Upper Display
Lower Display
Functioning:
To silence the active alarms stored, press key F U N C .
ALARM1 THRESHOLD
Upper Display
Lower Display
Range
Process alarm
Span limit
Band alarm
0 ↔ 500
Deviation alarm
-500 ↔ 500
HYSTERESIS ALARM1
Upper Display
Lower Display
Range
0.1% ↔ 100.0% of the span or 1LSD
mrSt
on
AL1
Actual value
HSA1
Actual value
