CD Automation srl

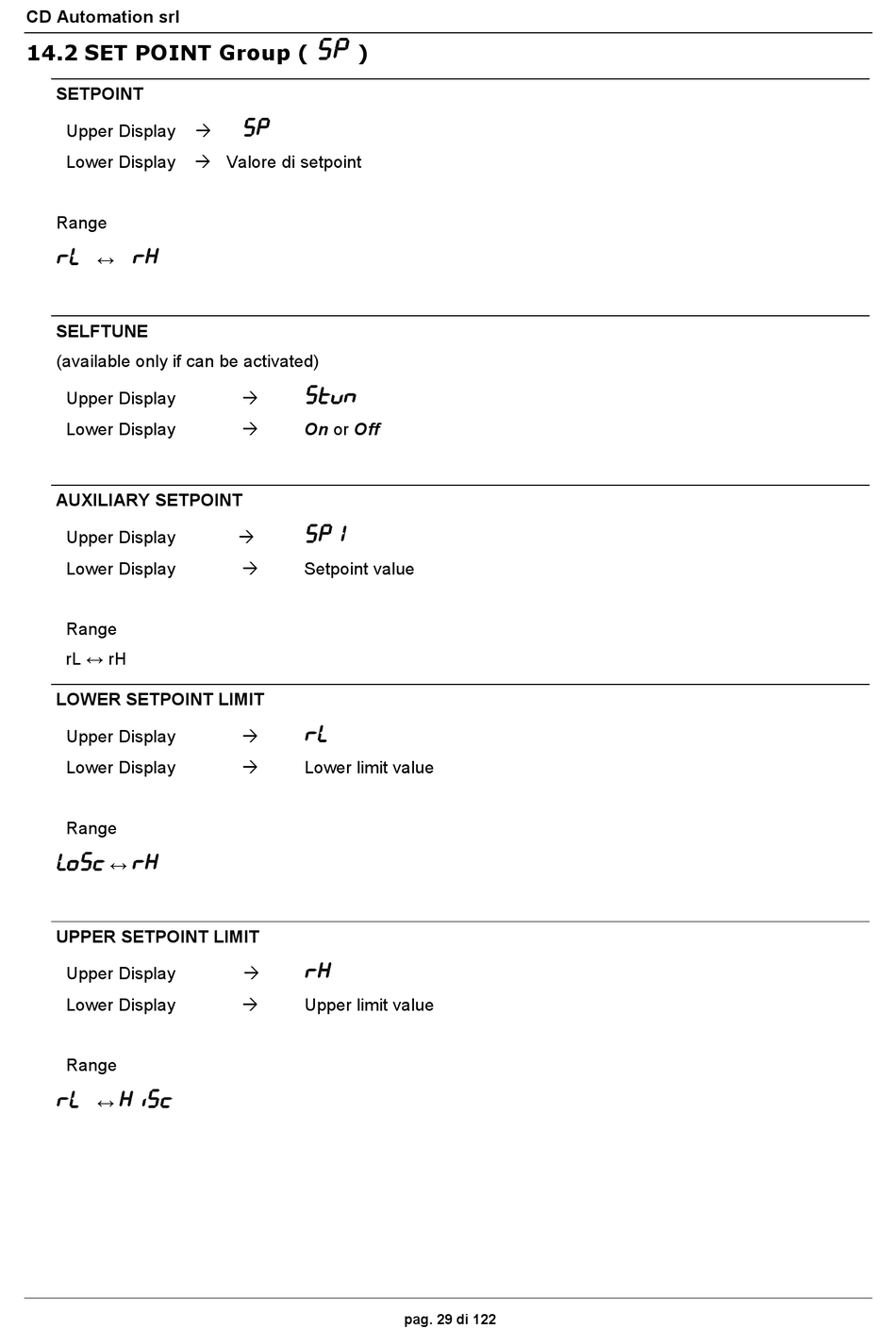

14.2 SET POINT Group ( SP )
SETPOINT
Upper Display
Lower Display
Range
rL
rH
↔
SELFTUNE
(available only if can be activated)
Upper Display
Lower Display
AUXILIARY SETPOINT
Upper Display
Lower Display
Range
rL ↔ rH
LOWER SETPOINT LIMIT
Upper Display
Lower Display
Range
LoSc
rH
↔
UPPER SETPOINT LIMIT
Upper Display
Lower Display
Range
rL
HiSc
↔
SP
Valore di setpoint
Stun
On or Off
SP1
Setpoint value
rL
Lower limit value
rH
Upper limit value
pag. 29 di 122
