Replacing the Topper Monitor

1 Open the main door and switch power off.
2 Ensure you can access the back of the topper. If necessary, unbolt the EGM and use a ladder.
3 Remove the upper monitor to access the area below the topper. See
4 Remove the middle cover from the topper by unfastening and removing four screws from the back of the
topper assembly and set it aside.

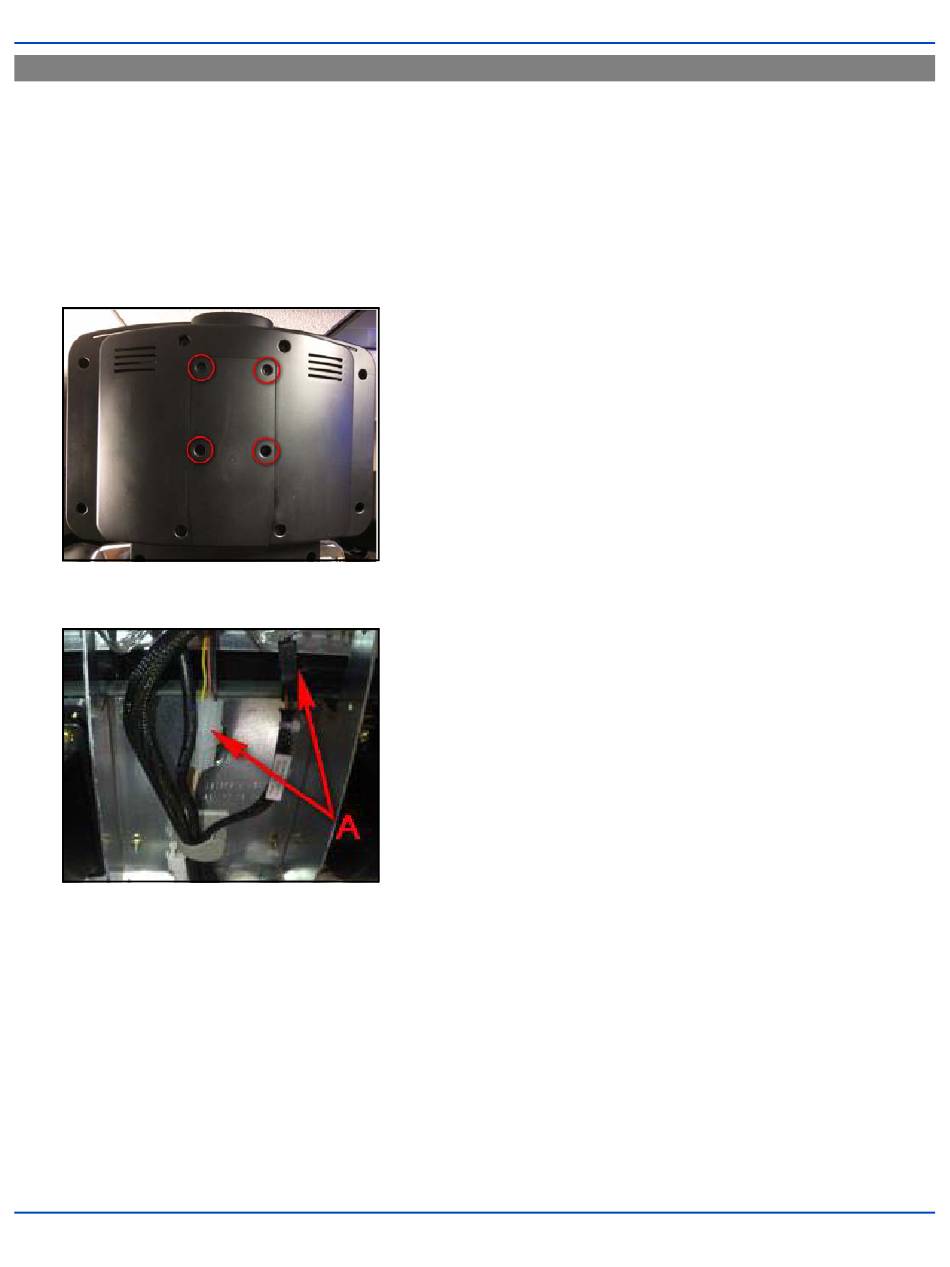

Figure 111 Removing the Middle Cover
5 Disconnect the cables from the super candle tower light inside of the cabinet below the topper.
Figure 112 Disconnecting the Super Candle Tower Light Cables
6 Remove the grounding straps located inside the cabinet below the topper.
