Replacing the Fan Tray
Use the following instructions to replace the fan tray:
1
Pull the fan tray assembly out of the fan housing by grasping the notched edge of the fan tray assembly.

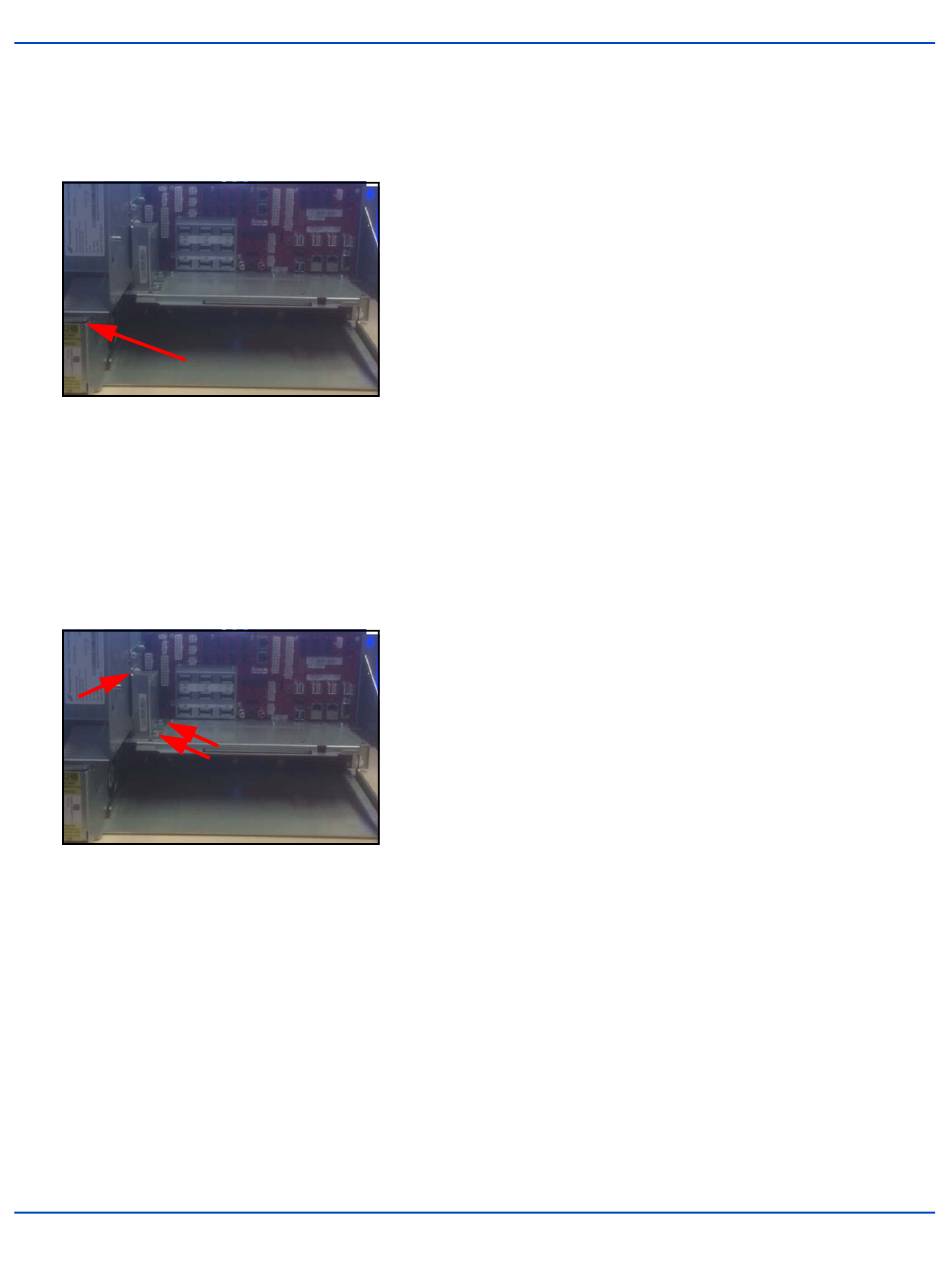

Figure 75 Removing the Fan Tray
2
Insert the new fan tray assembly into the fan housing.
3
Ensure the fan tray assembly is seated securely in the fan housing.
Replacing the DC Power Module
Use the following instructions to replace the DC power module:
1
Remove three 7mm nuts securing the DC power module by using nut driver. Save the nuts for future use.
2
Remove the DC power module.
Figure 76 Removing Three Nuts Securing the DC Power Module
3
Place the new DC power module on the three mounting pins on the right side of the power supply housing.
4
Fasten the DC power module to the power supply housing with three 7mm nuts by using a nut driver.
