Chapter 1
Cabinet
This section provides the following information:
Cabinet Overview on page 11
Cabinet Instructions on page 15
Cabinet Troubleshooting on page 20
NOTE
Machine configurations may vary. See your cabinet manuals for parts specific to
your machine.
Cabinet Overview
The cabinet is the housing which encloses the machine components. The cabinet is also a base for toppers and tower
lights.

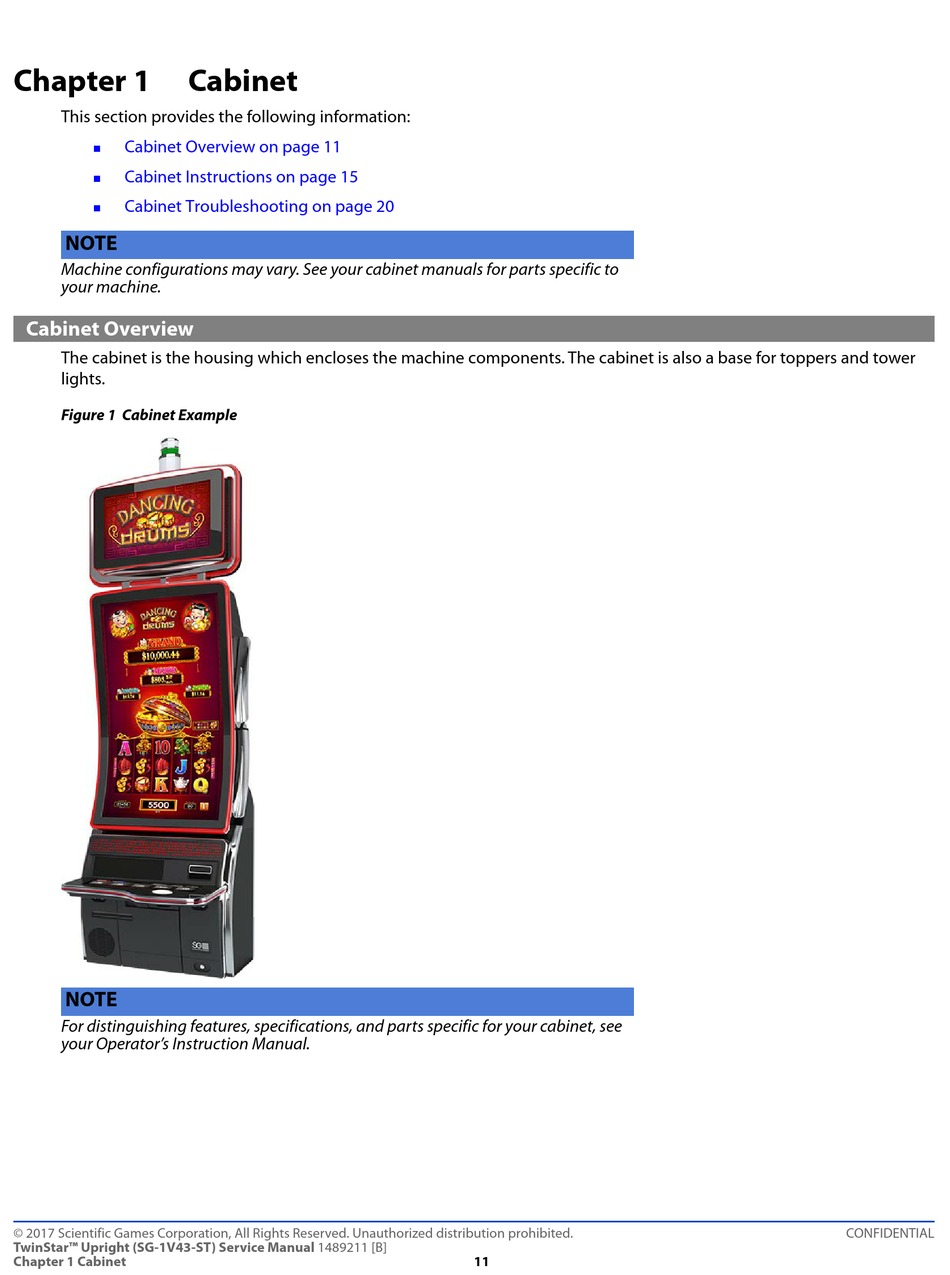

Figure 1 Cabinet Example
NOTE
For distinguishing features, specifications, and parts specific for your cabinet, see
your Operator's Instruction Manual.
© 2017 Scientific Games Corporation, All Rights Reserved. Unauthorized distribution prohibited.
TwinStar™ Upright (SG-1V43-ST) Service Manual 1489211 [B]
Chapter 1 Cabinet
11
CONFIDENTIAL
