Cooper Lighting FAIL-SAFE HVL12 Specification Sheet

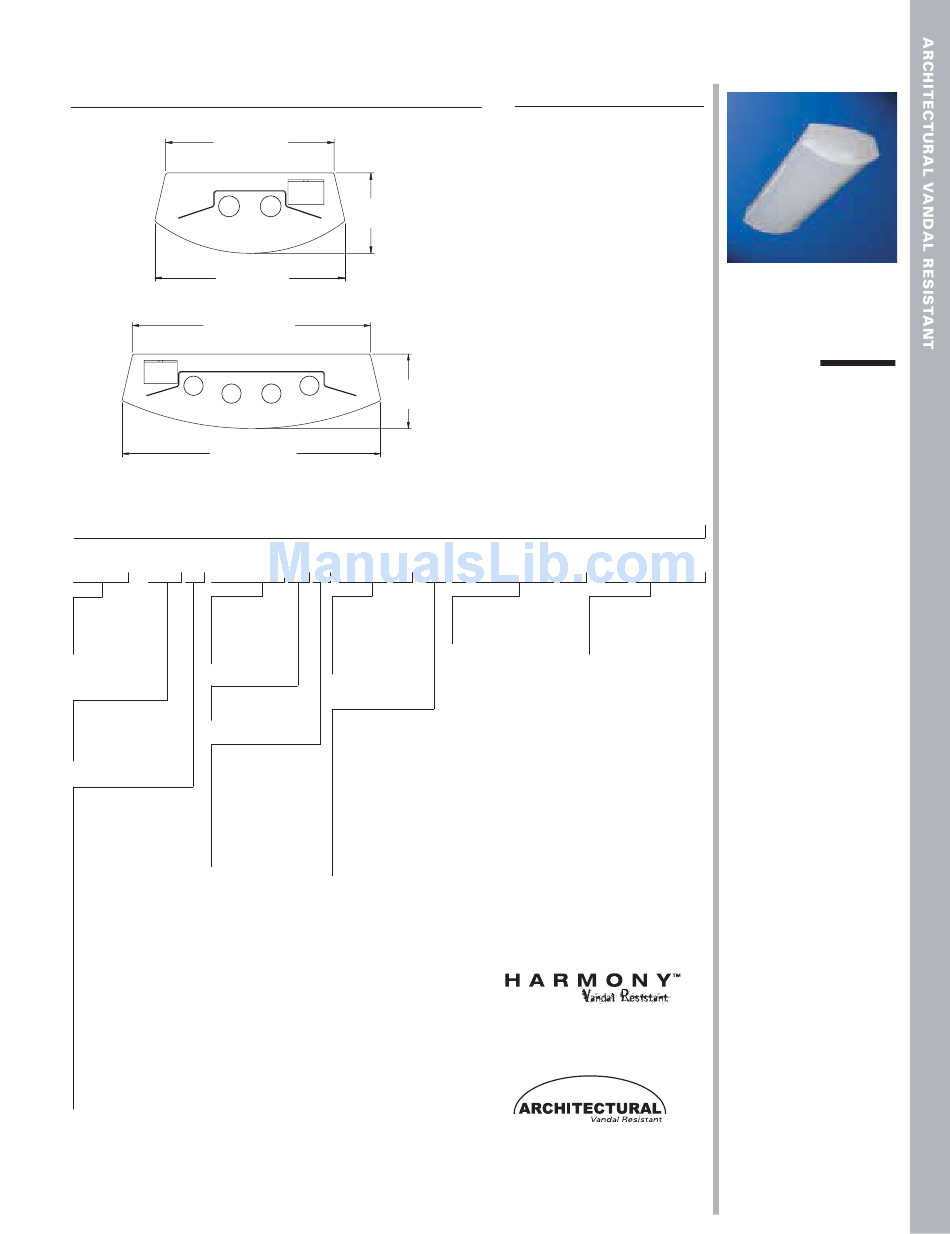

D I M E N S I O N S
8" [203mm]
9" [228mm]
12-3/16" [310mm]
13-7/32" [336mm]
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : H V L 8 B R - 3 3 2 - 1 2 0 V - O - E B 8 2 - S R W
Voltage
Product Family
120=120V
HVL8=Harmony
277=277V
VR Linear
347=347V
8" Width
UNV=120-277V
HVL12=Harmony
UNC=347-480V
VR Linear
12" Width
Lens Type
C=Clear Prismatic
Row/Node
O=Opal
Configuration 3
BR=Beginning
MR=Middle
Electronic Ballast
ER=End
EB81=(1) Ballast for
use with T8
lamp
Lamp Type
EB82=(2) Ballasts for
2' Length
use with T8
lamps
114=(1) 14W T5 Lamp 4
EB51=(1) Ballast for
214=(2) 14W T5 Lamps
use with T5
314=(3) 14W T5 Lamps 5
lamp
414=(4) 14W T5 Lamps 5
EB52=(2) Ballasts for
124=(1) 24W T5HO Lamp 4
use with T5
224=(2) 24W T5HO Lamps
lamp
324=(3) 24W T5HO Lamps 5
424=(4) 24W T5HO Lamps 5
117=(1) 17W T8 Lamp 4
217=(2) 17W T8 Lamps
317=(3) 17W T8 Lamps 5
417=(4) 17W T8 Lamps 5
4' Length
128=(1) 28W T5 Lamp 4
228=(2) 28W T5 Lamps
328=(3) 28W T5 Lamps 5
428=(4) 28W T5 Lamps 5
154=(1) 54W T5HO Lamp 4
254=(2) 54W T5HO Lamps
354=(3) 54W T5HO Lamps 5
5
454=(4) 54W T5HO Lamps
4
132=(1) 32W T8 Lamp
232=(2) 32W T8 Lamps
5
332=(3) 32W T8 Lamps
432=(4) 32W T8 Lamps 5
Notes: For additional options, consult your Cooper Lighting Representative. Specifications and dimensions subject to change without
notice. Products also available in non-US voltages and 50Hz for international markets.
1.Must specify voltage. 2. Stems must be ordered separately. 3. For Continuous Row Mount fixtures only. 4. For HVL8 fixtures only.
5. For HVL12 fixtures only.
D E S C R I P T I O N
The Fail-Safe Harmony VR
Linear Series provides
exceptional aesthetics with
remarkable strength. A wide
variety of lamp options and
connection configurations offer
3-13/16"
unmatched versatility for a
[97mm]
wide range of applications.
Die-Cast end caps, heavy
extruded aluminum body
provides strength and rigidity
for complex environments
while an extruded prismatic
polycarbonate lens obscures
the lamp image and spreads
light evenly. The Harmony VR
Linear Series is ideal for areas
where the need for aesthetics
3-13/16"
and protection from vandalism
[97mm]
are critical. Perfect for schools,
hospitals, corridors,
dormitories, public restrooms,
common areas, and transit
stations.
End Caps Finish
BLANK=No End Blank=Architectural White
Caps (Middle BK=Architectural Black
Units) 3 DP=Dark Platinum
D=Decorative End
Caps
S=Smooth End
Caps
Options
EBP=Emergency Battery
Pack 1
FNL=Fluorescent Night
Light
PM=Pendant Mount 2
GLR=Fuse and Holder
PI/CPI=Plug-In
(1,2, or 3) 3
TILW=Tandem Inline
Wiring 3
SRW=Single Raceway 3
DRW=Dual Raceway (2
3
Lamp Max)
UPL=Uplight
FAIL-SAFE
FLUORESCENT
1 4 W - 1 0 8 W ( H V L 8 )
2 8 W - 2 1 6 W ( H V L 1 2 )
P O LY C A R B O N AT E L I N E A R
F L U O R E S C E N T L U M I N A I R E
• Heavy duty extruded
aluminum rails and die-
cast end caps provide rigid
Accessories
construction
(Order Separately)
VRSD=TORX ®
Screwdriver • White finish standard.
VRSB=TORX ®
Optional architectural
Screwdriver Bit
colors available.
• One piec extruded UV
stabilized polycarbonate
with unique prismatic
design that provides even
light distribution while
obscuring lamp image and
direct glare.
• Stainless stell TORX
center reject pin and allen
head set screws provided
• 20 ga. CRS reflector with
white high polyester
powder coat finish
• Lamps by others
• Ballasts are standard
CBM/ETL Class P and
positively secured to
housing
• Pressure lock lampholders
• UL Listed and CSA
Certified Wet Location for
covered ceiling surface
mount. Damp location
standard for all other
mountings
COOPER LIGHTING
®
HVL
LINEAR
F l u o r e s c e n t
F l u o r e s c e n t
C L E A R P R I S M AT I C
O R O PA L
® with
