WIRE STRIPPING MACHINE
INSTRUCTION MANUA
L
We continue to be committed to providing you with tools at a competitive price. "Save Half",
"Half Price" or any other similar expressions used by us only represent an estimate of
savings you might benefit from buying certain tools with us compared to the major top brands
and do not necessarily mean to cover all categories of tools offered by us. You are kindly
reminded to verify carefully when placing an order with us if you are actually saving half
compared to the top major brands.
Advertisement
Related Manuals for VEVOR 038-MDA
Summary of Contents for VEVOR 038-MDA
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support WIRE STRIPPING MACHINE INSTRUCTION MANUA We continue to be committed to providing you with tools at a competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 3 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there technology or software updates on our product.
-
Page 4: Technical Parameter

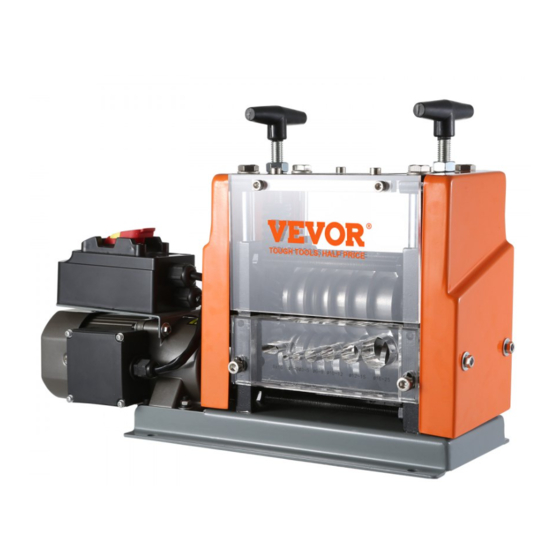

TECHNICAL PARAMETER Power Stripping Dimension Weight Model Voltage range （W） (L*W*H mm) (kg) (mm) 220V-240V~ 50Hz ∅1～∅25 038-MDA 480×165×310 15.5 110V~ 60Hz Note: this machine is not applicable to silicone rubber cables or armored cables - 3 -... - Page 5 Parts List 1. M12 Plastic screw 2. Nut for regulating blade up and down 3. Right cover 4. Transparent incoming Panel 5. Baseplate 6. Left cover 7. Motor 8. Front Panel - 4 -...
- Page 6 Accessories Details： 1. One blade 2. Plastic exhaust nut of reducer - 5 -...
- Page 7 Operation Instruction 1.Select the appropriate feeding hole according to the wire diameter. 2. During wire stripping, the center of the blade must be collinear with the center of the roller. - 6 -...
- Page 8 3.According to the thickness of the wire, adjust the distance between blade and rolling shaft so that the blade can cut the wire skin without damaging the copper core ,Adjust the M12 plastic handle screw to adjust the height of the blade through the spring assembly.It would be better to make the blade can cut the wire skin without damaging the copper core.
- Page 9 4. If the machine cannot strip the wire, there may be several reasons: ①The diameter of the stripped wire is too small.The center of the blade is not on the same line with center of the rolling shaft. - 8 -...
- Page 10 （6）Center adjustment block for blade （7）Remove the shield on both sides of the machine （8）Use a wrench to adjust the screw on the center adjustment block to make blade is on the same line of the center of rolling shaft ②The blade is not sharp.
-
Page 11: Environmental Protection
ENVIRONMENTAL PROTECTION This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked with this symbol cannot be discarded with normal household waste but must be taken to an electrical and electronic equipment collection point for recycling. - Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
