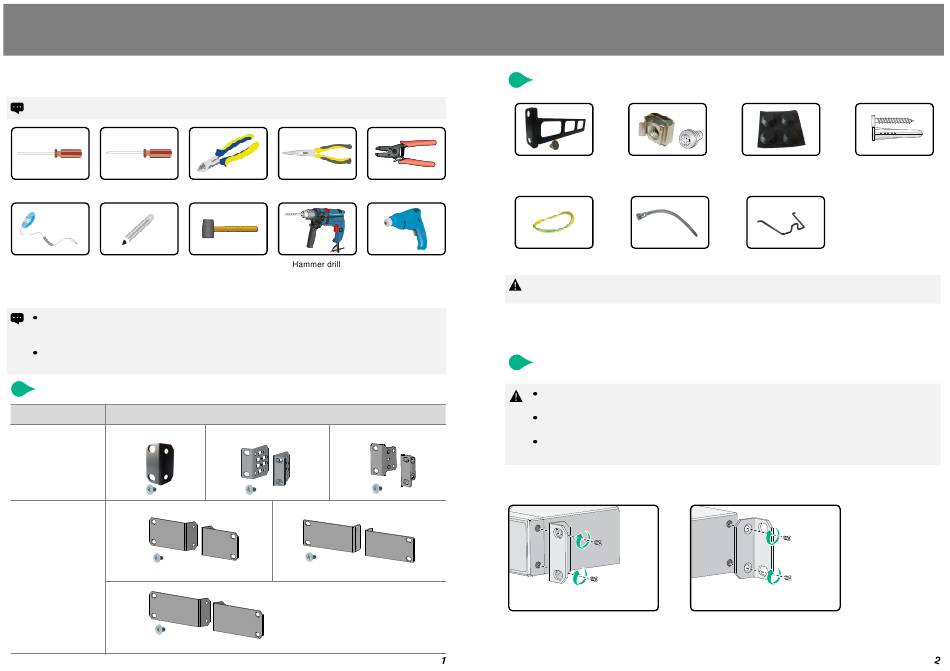

Installation tools

No installation tools are provided with the switch. Prepare them yourself as required.
Flathead screwdriver Phillips screwdriver
ESD wrist strap Marker

Installation accessories

The applicable installation accessories vary by switch model. The packing list describes the
accessories provided with the switch. For the accessories not provided with the switch, purchase
them yourself as required.
To rack-mount a switch not provided with mounting brackets, purchase mounting brackets from
H3C and prepare cage nuts and M6 screws yourself.
1
Front mounting brackets and M4 screw
Type of front
mounting brackets
(Type A)
Standard front
mounting brackets
(Type D)
Long front mounting
Product code: SOHO-SWITCH-FL-02
brackets
(Type F)
Product code: SOHO-SWITCH-FL-01
Diagonal pliers Needle-nose pliers
Rubber hammer
Figures
(Type B) (Type C)
(Type E)
Product code: LS5-FL-D
2
Other installation accessories
Rear mounting bracket
and shoulder screw
Wire stripper
Grounding cable
Heat gun
Wear an ESD wrist strap during the installation. Make sure the wrist strap makes good skin contact
!
and is reliably grounded.

Mounting the switch in a rack

1

Using front mounting brackets

This installation method is not applicable to a switch provided with both front and rear mounting
!
brackets.
The applicable front mounting brackets and the installation positions for the brackets vary by
switch model. Select an installation position for the mounting brackets as required.
Two screws are required to attach a Type A, Type C, Type D, Type E, or Type F front mounting
bracket. Four screws are required to attach a Type B front mounting bracket.
Attach the front mounting brackets to the switch
Attach a Type A front mounting bracket
near the port side
Cage nut and M6 screw Rubber feet
Releasable cable tie Power cord retaining clip
Attach a Type A front mounting bracket
near the power module side
Screw anchor and screw
