H3C S6800-32Q Installation, Quick Start

H3C S6800-32Q Switch Installation Quick Start-6W106
H3C S6800-32Q交换机 快速安装指南-6W106

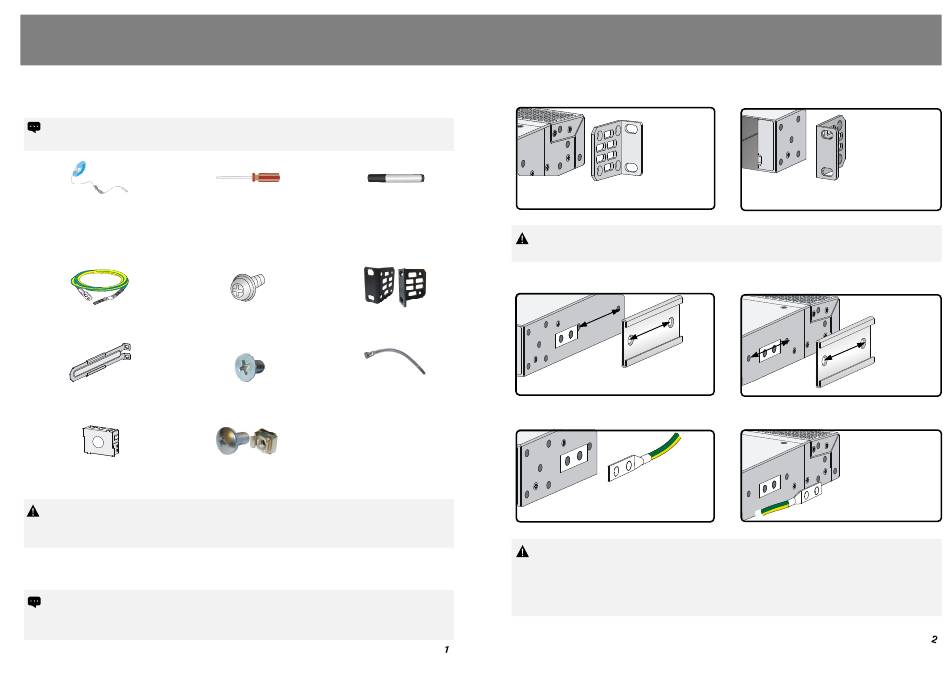

Tool list 工具参考
The installation tools are not provided with the switch. Prepare them yourself.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
ESD wrist strap
防静电腕带
Installation accessories 安装附件介绍
Grounding cable
接地线
Chassis rail and slide rail
滑道和导轨
Power module filler panel M6 screw and cage nut (user supplied)
电源假面板 M6 螺钉和浮动螺母（用户自备）
Wear an ESD wrist strap, and make sure the wrist strap makes good skin contact and is
!
reliably grounded. 操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防
静电腕带已经良好接地。
Installation positions for accessories 附件安装位置介绍
To install the slide rails, chassis rails, and mounting brackets to the switch, you can
choose the installation positions for these accessories. 利用滑道、滑道导轨配合挂耳
将交换机安装到19英寸机柜时，可以根据需要调整附件在交换机上的安装位置。
Phillips screwdriver Marker
十字螺丝刀 记号笔
Grounding screw Mounting brackets
接地螺钉 挂耳
M4 screw Removable cable tie
可拆卸式扎带
M4螺钉
Mounting bracket installation position (two options) 挂耳安装位（二选一）
Near the network ports
安装在靠近端口侧
The switch provides three holes for installing mounting brackets near the network ports.
!
端口侧的挂耳安装孔只有三个。
Chassis rail installation position (two options) 滑道导轨安装位（二选一）
Near the power modules
靠近电源侧
Grounding cable installation position (two options) 接地线安装位（二选一）
Primary grounding point
(near the power modules)
主接地点（靠近电源侧）
The S6800-32Q provides a grounding sign at the primary grounding point, but does not
!
provide it at the auxiliary grounding point. S6800-32Q主接地点标有接地标识，备用接地点
上无接地标识。
The two grounding screws at the primary grounding point also apply to the auxiliary
grounding point.S6800-32Q主接地点上的两个接地螺钉同样适用于备用接地点。
Near the power modules
安装在靠近电源侧
Near the network ports
靠近端口侧
Auxiliary grounding point
(near the network ports)
备用接地点（靠近端口侧）
