Selection:0
The WinCE system is updated and booted up successfully after booting
process is completed.
Note:
 By default SBC8140 boots from NAND Flash; pressing and holding BOOT button before
connecting power can make it boot from SD card.

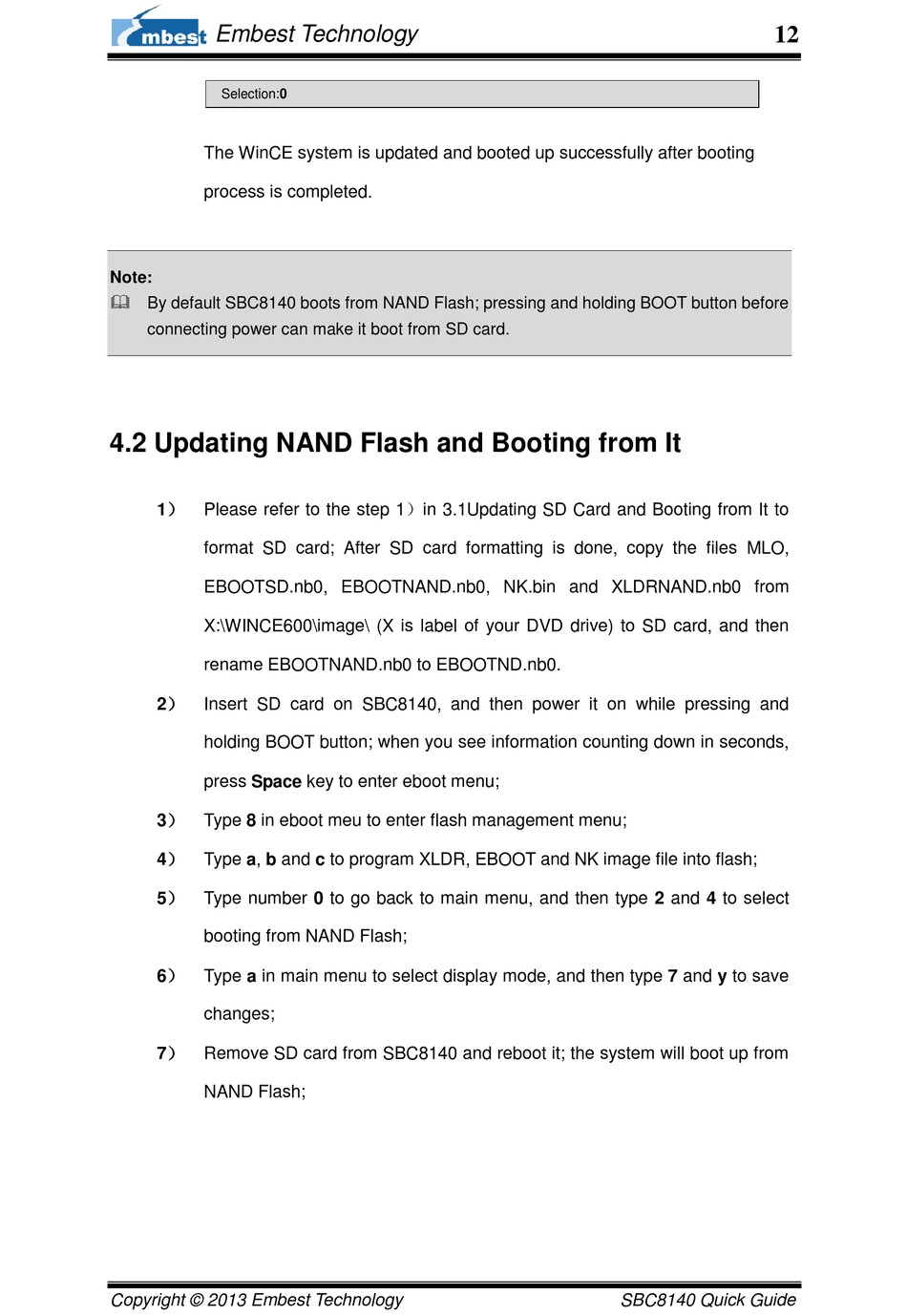

4.2 Updating NAND Flash and Booting from It

1） Please refer to the step 1）in 3.1Updating SD Card and Booting from It to
format SD card; After SD card formatting is done, copy the files MLO,
EBOOTSD.nb0, EBOOTNAND.nb0, NK.bin and XLDRNAND.nb0 from
X:\WINCE600\image\ (X is label of your DVD drive) to SD card, and then
rename EBOOTNAND.nb0 to EBOOTND.nb0.
2） Insert SD card on SBC8140, and then power it on while pressing and
holding BOOT button; when you see information counting down in seconds,
press Space key to enter eboot menu;
3） Type 8 in eboot meu to enter flash management menu;
4） Type a, b and c to program XLDR, EBOOT and NK image file into flash;
5） Type number 0 to go back to main menu, and then type 2 and 4 to select
booting from NAND Flash;
6） Type a in main menu to select display mode, and then type 7 and y to save
changes;
7） Remove SD card from SBC8140 and reboot it; the system will boot up from
NAND Flash;
