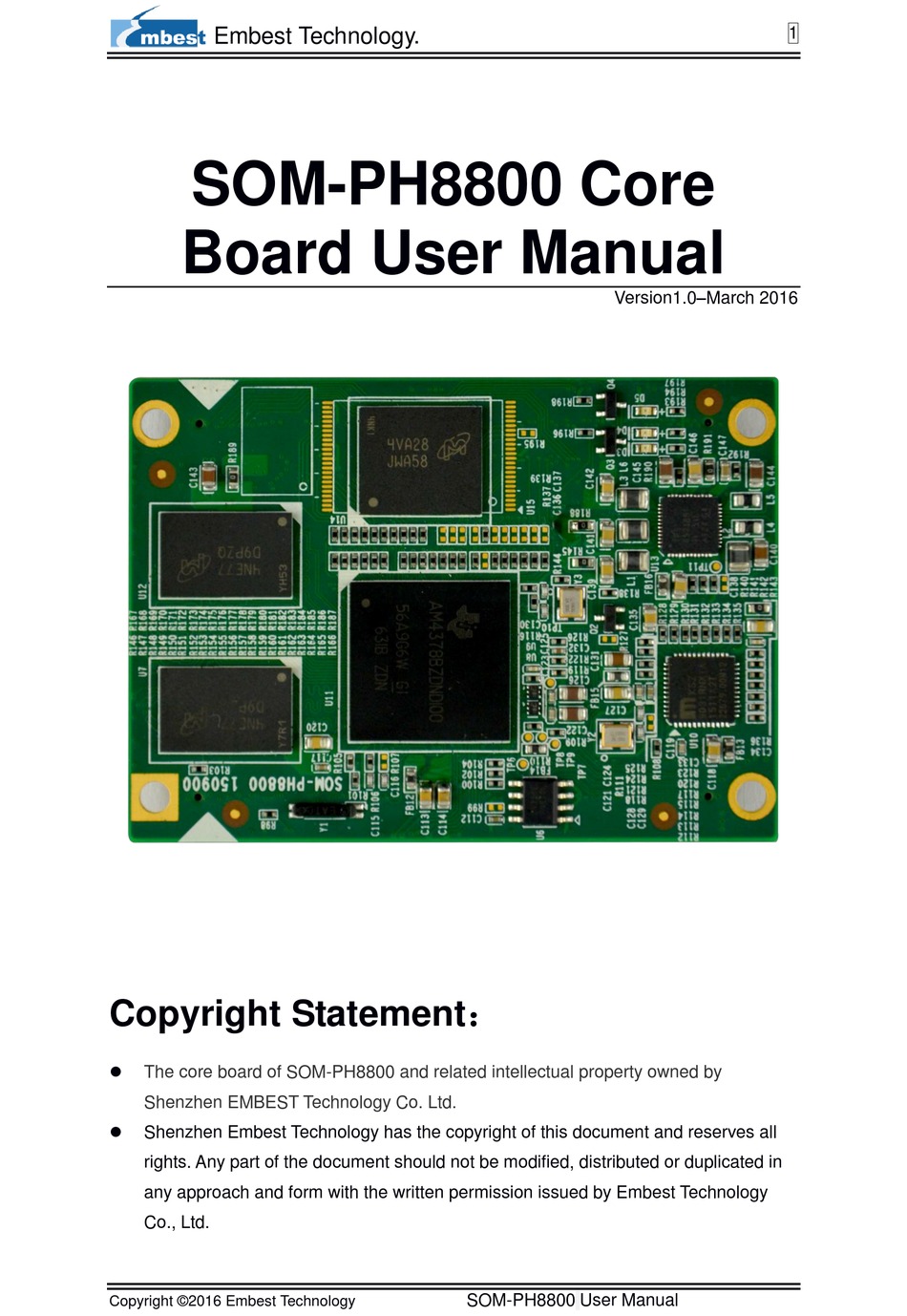

Embest Technology.
SOM-PH8800 Core
Board User Manual
Copyright Statement：
The core board of SOM-PH8800 and related intellectual property owned by
Shenzhen EMBEST Technology Co. Ltd.
Shenzhen Embest Technology has the copyright of this document and reserves all
rights. Any part of the document should not be modified, distributed or duplicated in
any approach and form with the written permission issued by Embest Technology
Co., Ltd.
Copyright ©2016 Embest Technology
Version1.0–March 2016
SOM-PH8800 User Manual
1
Advertisement
Table of Contents
Related Manuals for Embest SOM-PH8800
Summary of Contents for Embest SOM-PH8800
- Page 1 Board User Manual Version1.0–March 2016 Copyright Statement： The core board of SOM-PH8800 and related intellectual property owned by Shenzhen EMBEST Technology Co. Ltd. Shenzhen Embest Technology has the copyright of this document and reserves all rights. Any part of the document should not be modified, distributed or duplicated in any approach and form with the written permission issued by Embest Technology Co., Ltd.
- Page 2 Disclaimer： Shenzhen Embest Technology does not take warranty of any kind, either expressed or implied, as to the program source code, software and documents in the CD/DVD- ROMs provided along with the products, and including, but not limited to, warranties of fitness for a particular purpose;...
-
Page 3: Table Of Contents

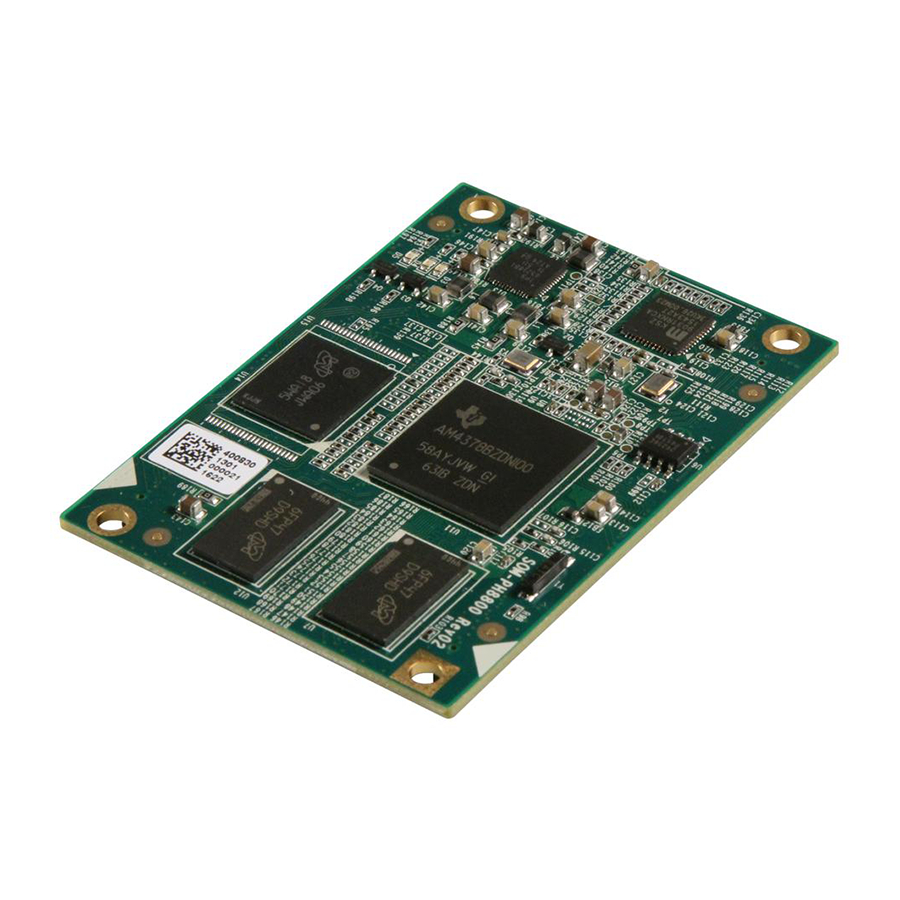

1 Chapter 1 Product Overview Brief Introduction SOM-PH8800 is developed by EMBEST Technology Co., Ltd. This SBC uses a core board based on Ti am437x and can be used in medical instruments, industrial control, communications and other fields.The processor is a 1GHz ARM Cortex –A9 chip and provides rich peripheral interfaces. -
Page 4: Packing List
32MB QSPI Flash Communication Interfaces： With two 90Pin 1.27mm pitch connectors（including I C, SPI, CAN, UART, MMC, I LCD, Camera, RGMII, GPIO, Power signal and so on） Debugging Interfaces Support UART serial debugging SOM-PH8800 User Manual Copyright ©2016 Embest Technology... -
Page 5: System Block Diagram
Embest Technology. System Block Diagram Figure 1-1 SOM-PH8800 System Block SOM-PH8800 User Manual Copyright ©2016 Embest Technology... -
Page 6: Product Dimensions (Unit：mm)
Embest Technology. Product Dimensions (unit：mm) Figure 1-2 Product Dimensions SOM-PH8800 User Manual Copyright ©2016 Embest Technology... -
Page 7: Chapter 2 Introduction To Hardware System
Embest Technology. Chapter 2 Introduction to Hardware System This chapter will introduce in detail the structure, expansion and peripheral interfaces of SOM-PH8800 hardware system. 1 Overview of CPU TI AM437x is a high performance processor based on ARM Cortex –A9 Core. -
Page 8: Introduction Of Peripheral Chips
2.2 Introduction of Peripheral Chips 2.2.1 DDR3 AM437x provides a memory controller for expanding external dynamic storage space. SOM-PH8800 board extended 2 Micron DDR3 particles (MT41K256M16HA-125), can provide 1GB RAM access to external space. SOM-PH8800 User Manual Copyright ©2016 Embest Technology... -
Page 9: Emmc Flash
If the QSPI Flash has been updated with Image, the SOM-PH8800 will boot the system from the Flash default, and we can get detailed introduction with the software manual. -
Page 10: Details Of Interfaces
Embest Technology. 2.4 Details of Interfaces SOM-PH8800 has two 1.27mm 90Pin connectors（as shown in Figure 2-2 J1 and J2） to extend, including take power from the outside,and allocate the CPU pin resource. Figure 2-2 The definition of two1.27mm 90Pin connectors as follows: Table 2-1 J1 Pin No. - Page 11 Pin Out PORZn Power on Reset 3.3V SYS_RESETn Warm Reset Input/Output 3.3V MCASP0_ACLKX McASP Transmit Bit Clock 3.3V MCASP0_ACLKR McASP Receive Bit Clock 3.3V MCASP0_AXR0 McASP Serial Data 3.3V MCASP0_AXR1 McASP Serial Data 3.3V SOM-PH8800 User Manual Copyright ©2016 Embest Technology...
- Page 12 MMC2_DAT0/ MMC/SD/SDIO Data Bus/ 3.3V AD22 CAM1_DATA4 Camera data MMC2_DAT2/ MMC/SD/SDIO Data Bus/ 3.3V AD23 CAM1_DATA6 Camera data CAM1_HD CCD Data Horizontal Detect 3.3V AD25 CAM1_PCLK CCD Data Pixel Clock 3.3V AE21 Ground SOM-PH8800 User Manual Copyright ©2016 Embest Technology...
- Page 13 GBE1_TRN2 GBE Data Minus KSZ9031 GBE1_TRP3 GBE Data Plus KSZ9031 GBE1_TRN3 GBE Data Minus KSZ9031 Ground USB0_DM USB0 Data Minus USB0_DP USB0 Data Plus Ground USB1_DM USB1 Data Minus USB1_DP USB0 Data Plus SOM-PH8800 User Manual Copyright ©2016 Embest Technology...
- Page 14 CAM0_PCLK CCD Data Pixel Clock 3.3V AC20 Ground CAM0_HSYNC CCD Data Horizontal Detect 3.3V AE17 CAM0_VSYNC CCD Data Vertical Detect 3.3V AD18 Ground GBE1_TRP0 GBE Data Plus KSZ9031 GBE1_TRN0 GBE Data Minus KSZ9031 SOM-PH8800 User Manual Copyright ©2016 Embest Technology...
-
Page 15: Technical Support And Warranty
Providing software and hardware resources related to the embedded products of Embest Technology; Helping customers properly compile and run the source code provided by Embest Technology; Providing technical support service if the embedded hardware products do not function properly under the circumstances that customers operate according to the instructions in the documents provided by Embest Technology;... - Page 16 Warranty Conditions 1） 12-month free warranty on the PCB under normal conditions of use since the sales of the product; 2） The following conditions are not covered by free services; Embest Technology will charge accordingly: Customers fail to provide valid purchase vouchers or the product identification tag is damaged, unreadable, altered or inconsistent with the products;...
- Page 17 2） Please contact technical support if there is any repair request. Note： Embest Technology will not take any responsibility on the products sent back without the permission of the company. Contact Information Technical Support Tel：+86-755-25635626-872/875/897...
