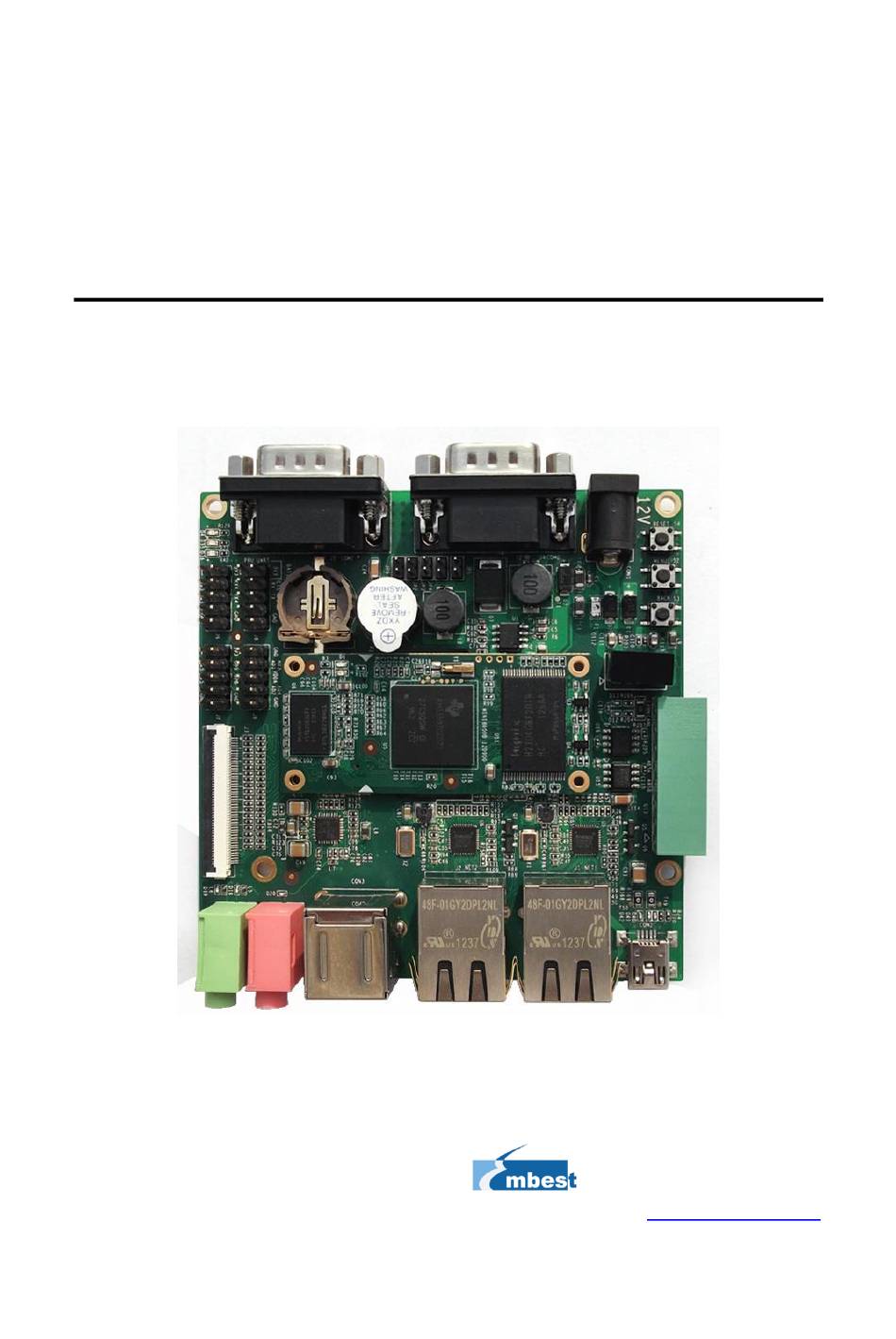

- Page 1 SBC8600B Quick Operation Guide Embest Technology www.embedinfo.com...
-
Page 2: Table Of Contents
Updating NAND Flash and Booting from It ............8 WinCE Operating System ....................10 Updating TF Card and Booting from It ............10 Updating NAND Flash and Booting from It ............. 13 Technical Support and Warranty ..................15 Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2... -

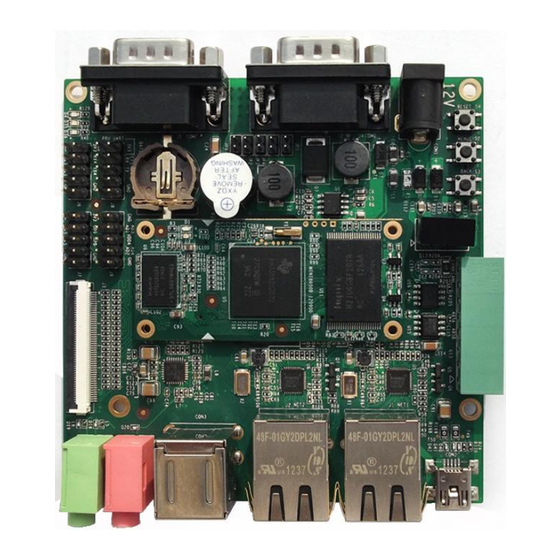

Page 3: Product Overview
4.3-inch LCD by default; If another display mode is required, please refer to the Display Mode Configurations in user manual. SBC8600B has no CR1220 battery installed on board; Please purchase it if necessary. SBC8600B Single Board Computer preferably boots from NAND Flash by default, if you want to boot from TF Card, you need to short the jumper JP5 on the board. -
Page 4: Preparations
Embest Technology Preparations 1. Setting Up HyperTerminal 1） Click Start > Programs > Accessories > Communications > HyperTerminal on your PC’s desktop; Figure 1 Start HyperTerminal Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2... - Page 5 2） Enter a name in the Name field and select an icon below, and then click OK; Figure 2 Enter a Name 3） Select the port to be used and click OK; Figure 3 Select Port Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2...
- Page 6 Embest Technology 4） Please configure the port you selected as shown in the following window, and then click OK; Figure 4 Configure Port Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2...
- Page 7 Embest Technology 5） HyperTerminal has been set up successfully. Figure 5 HyperTerminal Window Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2...
-
Page 8: Hardware Connects
2. Hardware Connects Figure 6 Hardware Connections Table 1 Connection Details Descriptions Descriptions If you want to boot from TF Connect a LCD card, short the jumper JP5 Connect a Serial Cable Connect a Power Adapter Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2... -
Page 9: Linux Operating System
Select FAT32 in the File system drop-down menu, and then click Start to format TF card. Note: It is not recommended to use other versions of HP USB Disk Storage Format Tool. HP USB Disk Storage Format Tool will erase the partitions of TF card. Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2... -
Page 10: Updating Nand Flash And Booting From It
2） Copy the files MLO, u-boot.img, zImage, embest-SBC-SBC8600.dtb and rootfs.tar.xz from \linux\image in the DVD-ROM to the TF card; 3） Insert the TF card on SBC8600B and short the jumper JP5 4） Power the board on; 5） When the LEDs on the board blink quickly, the update is in progress. - Page 11 7） U-boot configuration The system image has a default setting for 4.3-inch LCD. You can change the settings in UBOOT according to the detailed instructions contained in 3.10 Display Mode Configurations. Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2...
-
Page 12: Wince Operating System
It is not recommended to use other versions of HP USB Disk Storage Format Tool. HP USB Disk Storage Format Tool will erase the partitions of TF card. If partitions need to be retained, please use the format function of Windows system. Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2... - Page 13 2） After formatting is done, copy MLO, EBOOTSD.nb0 and NK.bin from \WINCE700\image of the DVD-ROM to TF card; 3） Insert the TF card on SBC8600B and short the jumper JP5, and then power it on; When you see information counting down in seconds in the HyperTerminal window, please press Space key on your PC’s keyboard to enter EBOOT menu.
- Page 14 [4] LCD 800x480 60Hz //For 7-inch LCD [5] DVI 800x600 60Hz(N/A) //For LVDS [6] DVI 800x600 56Hz(N/A) [7] VGA 1024x768 60Hz //For VGA [8] DVI 1280x720 60Hz(N/A) [0] Exit and Continue Selection (actual LCD 480x272 60Hz): 4 Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2...
-
Page 15: Updating Nand Flash And Booting From It
MLO, EBOOTSD.nb0, EBOOTND.nb0, NK.bin and XLDRNAND.nb0 from \WINCE700\image\ of the DVD-ROM to the TF card; 2） Insert the TF card on SBC8600B and short the jumper JP5, and then power it on; When you see information counting down in seconds, please press Space key on your PC’s keyboard to enter EBOOT menu. - Page 16 6） Type a under main menu to select display mode and then type 7 and y under main menu to save changes; 7） Remove the TF card and the jump cap from SBC8600B, and then reboot the system; Now it will boot up from NAND flash;...
-
Page 17: Technical Support And Warranty
Embest Technology Technical Support and Warranty Technical Support Embest Technology provides its product with one-year free technical support including: Providing software and hardware resources related to the embedded products of Embest Technology; Helping customers properly compile and run the source code provided by Embest Technology;... - Page 18 4） Please contact technical support if there is any repair request. Note: Embest Technology will not take any responsibility on the products sent back without the permission of the company. Copyright © 2017 Embest Technology...
- Page 19 Sales Information Tel: +86-755-25635626-863/865/866/867/868 Fax: +86-755-25616057 Email: globalsales@embest-tech.com Company Information Website: http://www.embest-tech.com Address: Tower B 4/F, Shanshui Building, Nanshan Yungu Innovation Industry Park, Liuxian Ave. No. 1183, Nanshan District, Shenzhen, Guangdong, China (518055) Copyright © 2017 Embest Technology SBC8600B-QSG-V1.2...
