4.1

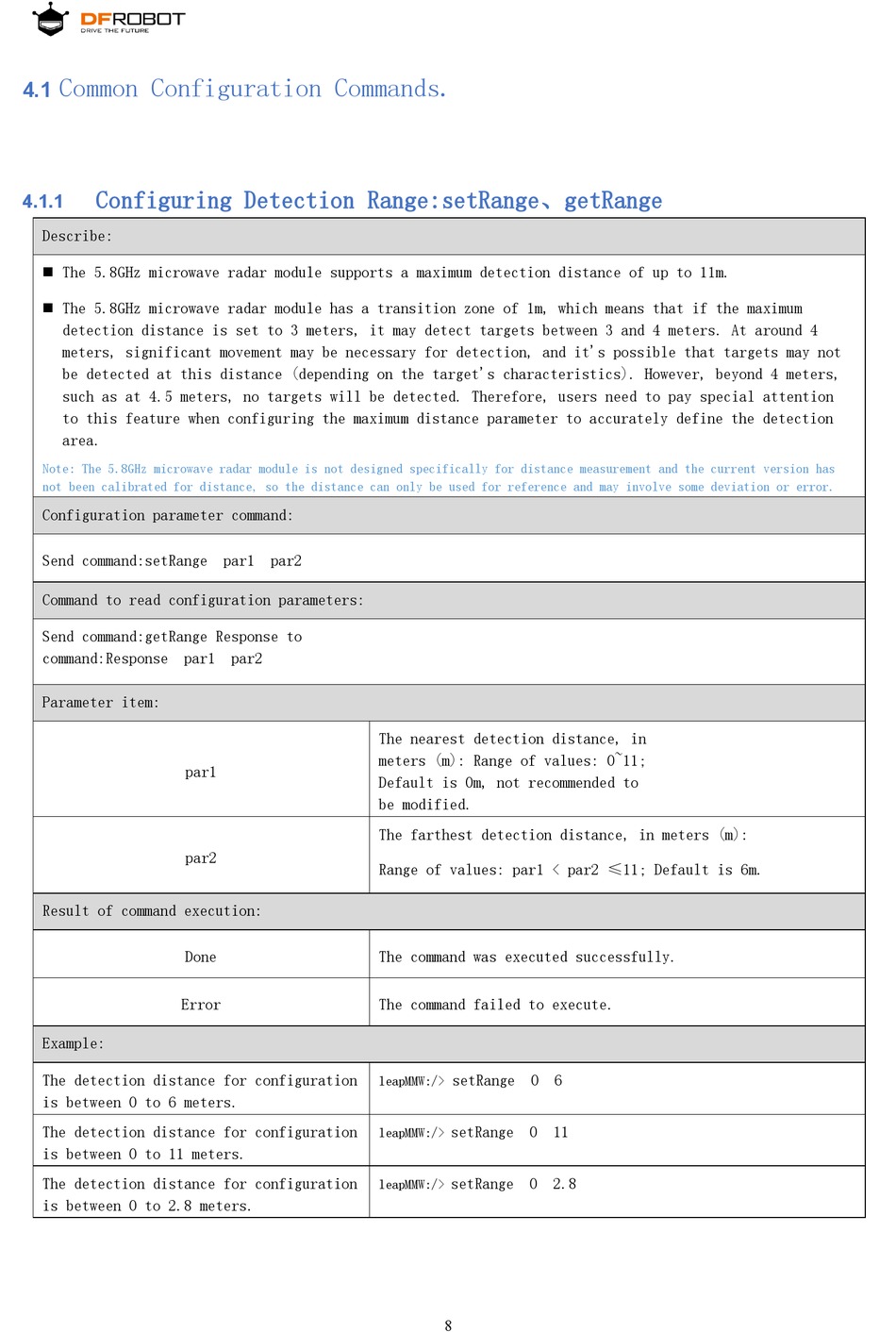

Common Configuration Commands.

Configuring Detection Range:setRange、getRange
4.1.1
Describe:
 The 5.8GHz microwave radar module supports a maximum detection distance of up to 11m.
 The 5.8GHz microwave radar module has a transition zone of 1m, which means that if the maximum
detection distance is set to 3 meters, it may detect targets between 3 and 4 meters. At around 4
meters, significant movement may be necessary for detection, and it's possible that targets may not
be detected at this distance (depending on the target's characteristics). However, beyond 4 meters,
such as at 4.5 meters, no targets will be detected. Therefore, users need to pay special attention
to this feature when configuring the maximum distance parameter to accurately define the detection
area.
Note: The 5.8GHz microwave radar module is not designed specifically for distance measurement and the current version has
not been calibrated for distance, so the distance can only be used for reference and may involve some deviation or error.
Configuration parameter command:
Send command:setRange par1 par2
Command to read configuration parameters:
Send command:getRange Response to
command:Response par1 par2
Parameter item:
par1
par2
Result of command execution:
Done
Error
Example:
The detection distance for configuration
is between 0 to 6 meters.
The detection distance for configuration
is between 0 to 11 meters.
The detection distance for configuration
is between 0 to 2.8 meters.
The nearest detection distance, in
meters (m): Range of values: 0~11;
Default is 0m, not recommended to
be modified.
The farthest detection distance, in meters (m):
Range of values: par1 < par2 ≤11; Default is 6m.
The command was executed successfully.
The command failed to execute.
setRange 0 6
leapMMW:/>
setRange 0 11
leapMMW:/>
setRange 0 2.8
leapMMW:/>
