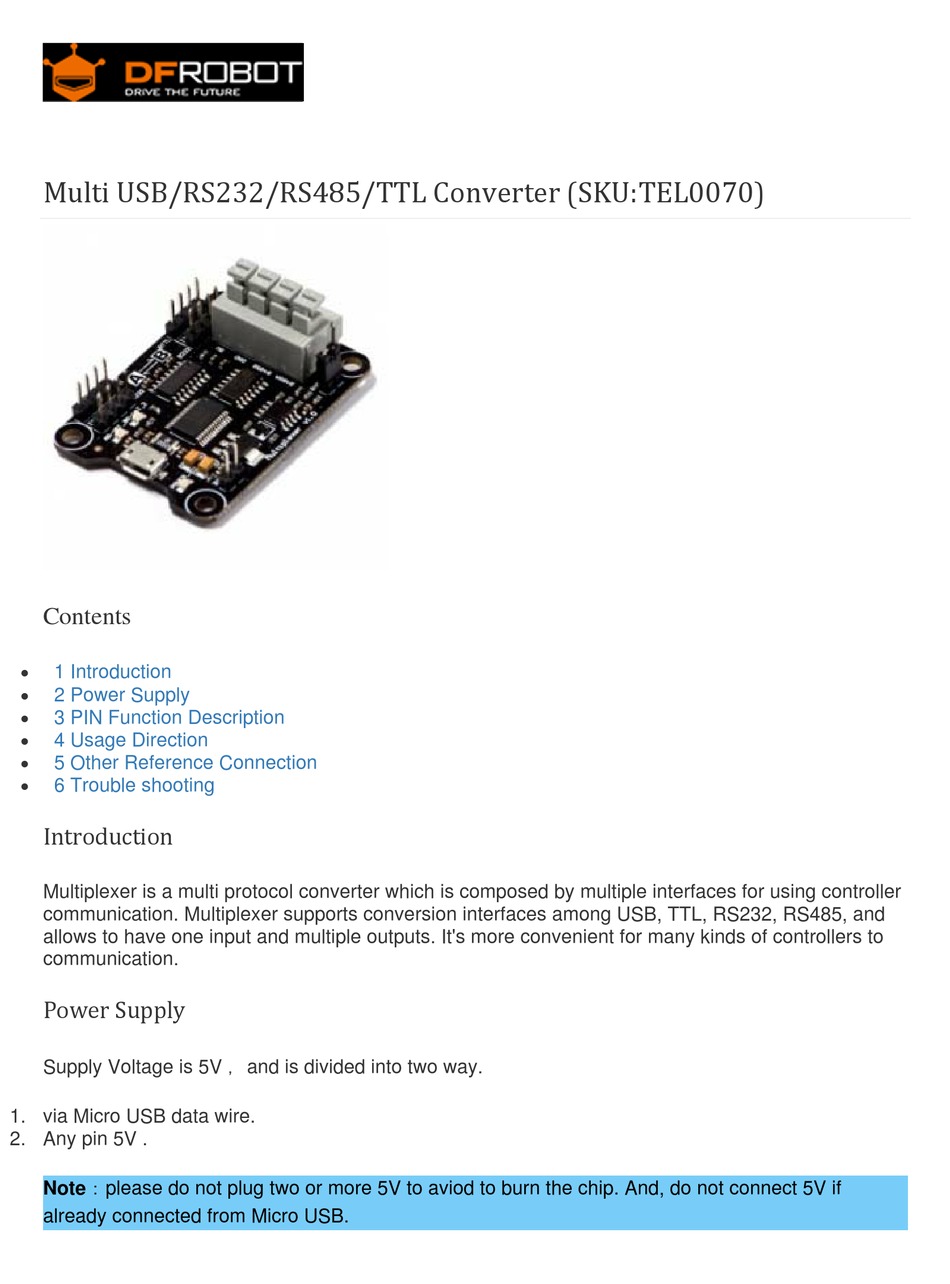

Multi USB/RS232/RS485/TTL Converter (SKU:TEL0070)
Contents
1 Introduction
2 Power Supply
3 PIN Function Description
4 Usage Direction
5 Other Reference Connection
6 Trouble shooting
Introduction
Multiplexer is a multi protocol converter which is composed by multiple interfaces for using controller
communication. Multiplexer supports conversion interfaces among USB, TTL, RS232, RS485, and
allows to have one input and multiple outputs. It's more convenient for many kinds of controllers to
communication.
Power Supply
Supply Voltage is 5V ，and is divided into two way.
1. via Micro USB data wire.
2. Any pin 5V .
Note：please do not plug two or more 5V to aviod to burn the chip. And, do not connect 5V if
already connected from Micro USB.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DFRobot TEL0070
Summary of Contents for DFRobot TEL0070
- Page 1 Multi USB/RS232/RS485/TTL Converter (SKU:TEL0070) Contents 1 Introduction 2 Power Supply 3 PIN Function Description 4 Usage Direction 5 Other Reference Connection 6 Trouble shooting Introduction Multiplexer is a multi protocol converter which is composed by multiple interfaces for using controller communication.
- Page 2 PIN Function Description Points to note: 1. Multiplexer board is divided into Area A and Area B. Area A includes Micro USB、ATTL and A232 interfaces. Area B includes BTTL、B232、B485 interfaces. The signal can be convertered between A and B. 2. The signal in the same area can't be convertered. For example, ATTL can't be converted to A232, but it can be convertered to B232.
- Page 3 2. Multiplexer need to install driver before you use. Driver installed completed, please open Control Panel -- Device Manager in your PC. You will see a new port. driver download http://www.ftdichip.com/Drivers/VCP.htm 3. According to the following connection diagram，connect it. 4.Plugin the A to B USB to UNO STEP 3: Program a sample code for your Arduino UNO Library installation https://www.arduino.cc/en/Guide/Libraries#.UxU8mdzF9H0...
- Page 4 Please set the baud rate to 115200 bps and com port.Back to the main interface, click Connection-- Send String, the following dialog will open. You can send the string in this dialog. The string received can be showed in the other port(UNO port).
- Page 5 Serial.begin(115200); void loop() Serial.print("Hello,DFRobot！"); Serial.println(); delay(500); Other Reference Connection 1.TTL to 232 converter PINRS-232 2.USB to 485 converter...
- Page 6 Trouble shooting More question and cool idea,visit DFRobot Forum Powered By DFRobot © 2008-2017...
