INVENTOR V2MC I-24 Installation Manual page 13

(Wall or obstacle)
>30cm
Air inlet
3. Centrifugal fan outdoor unit
a) In case that suspending in the ceiling
b)In case that installing on the floor
All the figures in this manual are for explanation
purpose only. They may be slightly different from the air
conditioner you purchased.

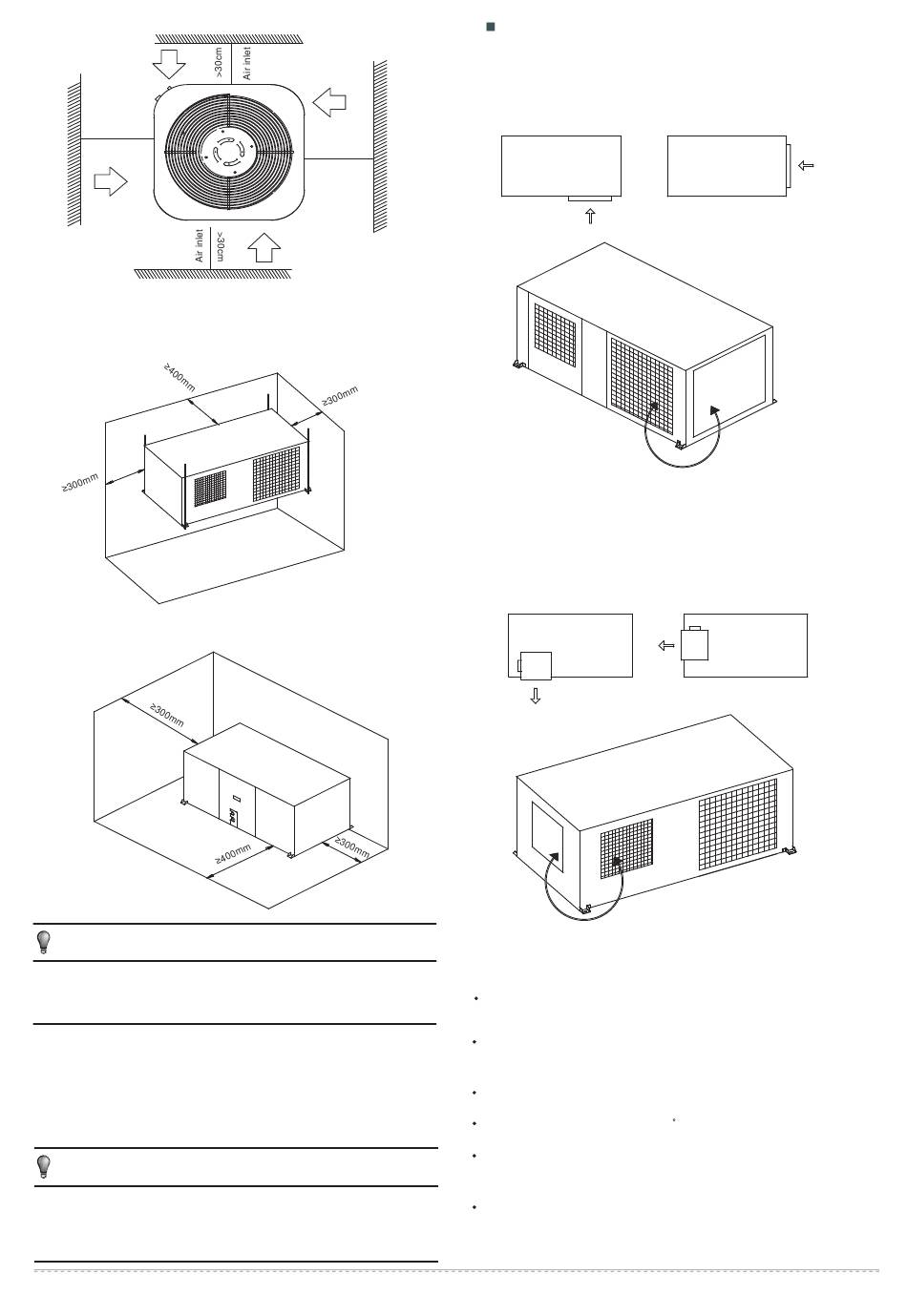

6.4 Available configuration
Four different configuration are available for oudoor unit only
changing the panels and fan position.
Keep in mind that fan unit weight is aprox 30kg ,the unit as
well as relevant equipment covered with the vinyl cover
during installation work.
>30cm
Air inlet
Fig.6-10
Fig.6-11
Fig.6-12
NOTE
The actual unit shall prevail.
NOTE
Air inlet modification
To change air inlet is only necessary to interchange the
indicated panels position. Both panels
to unit chas s is.
To change air outlet is necessary to interchange panels too.
Fan outlet panel is attached to fan structure, which must be
mounted as follow .
6.5 Moving and installation
Since the gravity center of the unit is not at its physical
center, so please be careful when lifting it with a sling.
Never hold the inlet of the outdoor unit to prevent it from
deforming.
Do not touch the fan with hands or other objects.
Do not lean it more than 45, and do not lay it sidelong.
Make concrete foundation accoding to the sepecif-ications of
the outdoor units.(Refer to Fig.6-15)
Fasten the feet of this unit with bolts firmly to prevent it from
collapsing in case of earthquake or strong wind.(Refer to
Fig.6-15)
use screws to be fixed
Change Panel
Fig6-13
Fig.6-14
