Zara
Bedside Table
Thank you for your purchase.
Please follow the instructions below for correct assembly
A
B
C
dowel
screw
bolt
locking
x4
x14
x10
nut x14
J
K
L
M
felt
wedge screw
bracket
x4
x2
x4
pad
x4
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend these are used to prevent your product tipping.
The fixing device provided should fit most wall types, but please note that different wall materials
may require different fixing devices from those supplied.
.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
D
E
G
F
screw
slide
slide
x26
rail x2
rail x2
N
O
P
cover
seal
bracket
x4
x2
x2

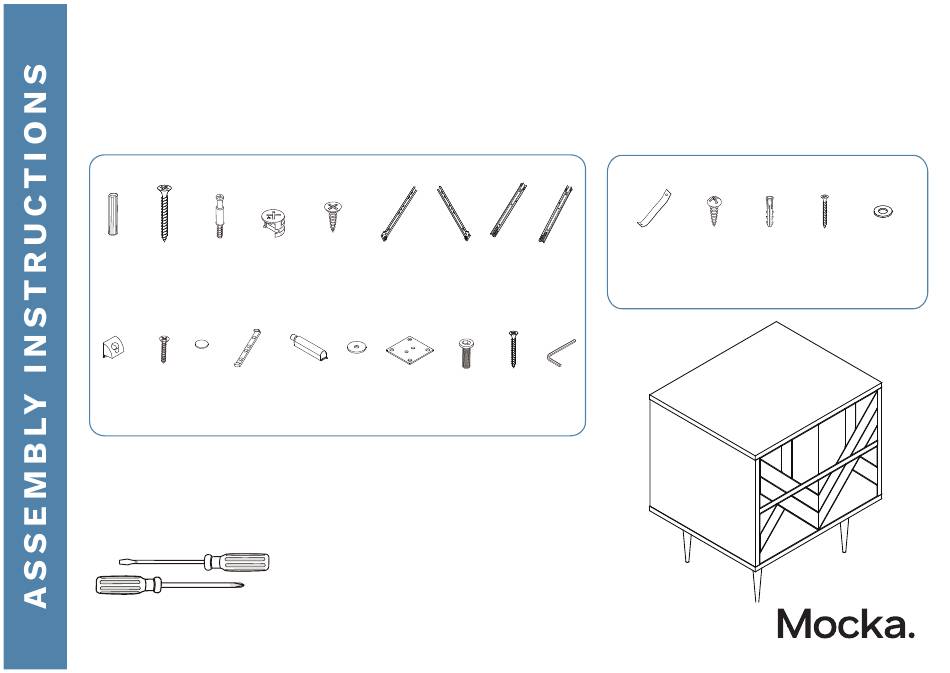

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required.
*We recommend using a Flathead screwdriver to tighten
all locking nuts 100% before first use.
H
I
slide
slide
strap x1
rail x2
rail x2
Q
R
S
bolt
screw
Allen
x16
x16
key
x1
V
W
X
safety
screw
wall
wall
x1
anchor
screw
x1
Wall Strap
Y
Z
washer
x2
x1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Zara and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mocka Zara

Summary of Contents for Mocka Zara

  • Page 1 fixing devices from those supplied. Phillips & Flathead screwdrivers and hammer required. *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 2 Attach 1x slide rail (F) and 1x slide rail (G) to panels [3] and [4] as shown and secure with 12x screws (E). Tighten with .a screwdriver. Insert 2x bolts (C) into panels [3] and [4]. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 3 Attach panel [4] and panel [3] to panel [5] with 2x dowels (A) and secure Tighten with a screwdriver. Place 1x cover (N) over the bracket (M) with 2x locking nuts (D). Tighten with a screwdriver. as shown. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 4 Attach panel [4] and panel [3] to panel [1] with 4x dowels (A) and secure with 4x Slide panel [6] down along the grooves between the panels [4] and [3] locking nuts (D). Tighten with a screwdriver. to form the back of the unit as shown. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 5 Attach 1x bracket (M) to panel [2] and secure with 2x screws (E). Tighten with (B). Tighten with a screwdriver. a screwdriver. Place 1x cover (N) over the bracket (M) as shown. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 6 Attach legs [7] to panel [2] using 16x bolt (Q) as shown. secure with 1x screw (E). Tighten with a screwdriver. Tighten with an Allen key (S). Attach 4x felt pads (L) to the ends of the legs. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 7 Slide panel [12] along the grooves between the side panels [10] and [11]. Attach panel [10] and panel [11] to panel [8]/[9] secure with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 8 Attach slide rail (I) and slide rail (H) to the underside of the side panels Tighten with a screwdriver. as shown. Secure with 4x screws (E) and tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 9 flush, twist the end of the cover (N) until it catches on the seal (O). to the top of the back side of the unit as shown using 1x washers (Z) and 1x screws (W). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 10 (V). Fasten to the wall using 1x washers (Z), 1x wall anchor (X) and 1x screws (Y). Ensure unit is balanced and steady before use. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
