Hiland BURN-2400-BRZ Manual

Hiland BURN-2400-BRZ Manual

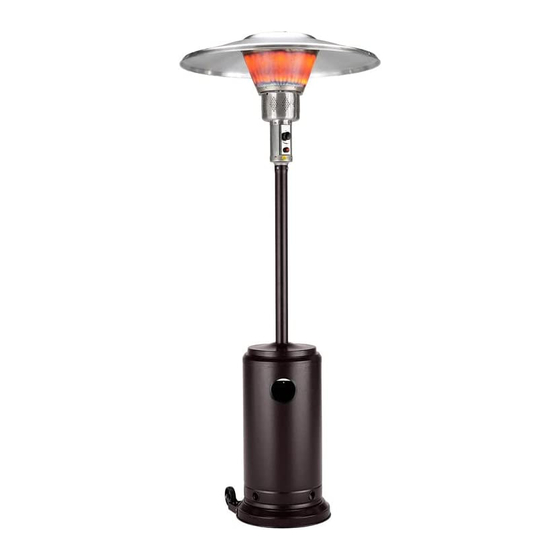

Outdoor commercial patio heater
Hide thumbs Also See for BURN-2400-BRZ:

Advertisement

Quick Links

Precaution!
The Powder Coating paint process has become the
most common widely used application in the outdoor
furniture category. Unfortunately powder coating is
extremely sensitive to Humidity and Moisture. A
simple process to protect your furniture, especially
flat surfaces is to apply a simple coat of good quality
car wax prior to using. If this process is done every
few months it will protect your furniture for years
to come.
ANS Z83.26:2020 Ed.3 • CSA 2.37:2020 Ed.3 Gas-Fired Outdoor Infrared Patio Heaters
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? For small parts please call 1-888-775-1330
for assistance , 8 a.m. - 4 p.m., MST, Monday - Friday.. For damaged product, you
may have to return to the retailer.
OUTDOOR COMMERCIAL
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
DANGER
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
Purchase Date
1
PATIO HEATER
DANGER
WARNING
WARNING:
For Outdoor Use Only
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or
home.
WARNING
BURN-2400-BRZ
BURN-2400-BLK
BURN-2650-SS
WH17/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BURN-2400-BRZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hiland BURN-2400-BRZ

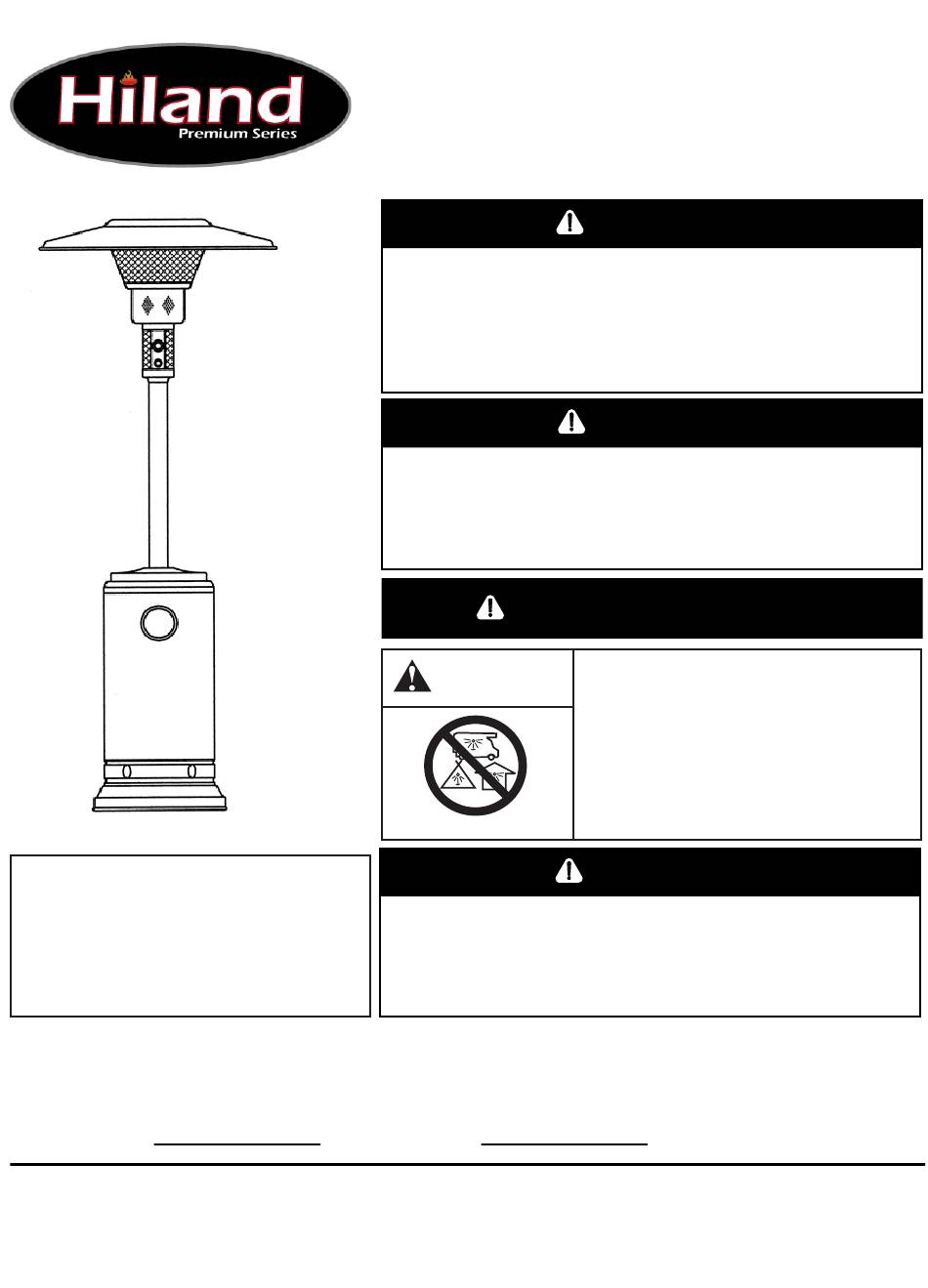

  • Page 1 OUTDOOR COMMERCIAL PATIO HEATER BURN-2400-BRZ BURN-2400-BLK BURN-2650-SS DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
  • Page 2: Package Contents

    PACKAGE CONTENTS QUANTITY Reflector Panel Burner Head Assembly Cylinder Housing Post Support Brackets Gas Hose Regulator Base with Weighted Plate Wheel Kit...
  • Page 3 M6×12mm...
  • Page 4: Safety Information

    SAFETY INFORMATION DANGER DANGER • CARBON MONOXIDE HAZARD • EXPLOSION - FIRE HAZARD • This heater is a combustion appliance. All • Keep solid combustibles, such as building combustion appliances produce carbon materials, paper or cardboard, a safe distance monoxide (CO) during the combustion away from the heater as recommended by the process.
  • Page 5: Burn Hazard

    SAFETY INFORMATION WARNING WARNING We cannot foresee every use that may be Do not store or use gasoline or other flammable made of our heaters. vapors and liquids in the vicinity of this or any Check with your local fire safety authority if you other appliance.An LP-cylinder not connected have questions about heater use.
  • Page 6: Service Safety

    SAFETY INFORMATION WARNING WARNING • This product is fueled by propane gas. Propane • Alert children and adults to the hazards of gas is invisible, odorless, and flammable. An high surface temperatures. Stay away from odorant is normally added to help detect leaks these surfaces to avoid burning skin or and can be described as a “rotten egg”...
  • Page 7 Assemble wheel s to the base with 8pcs bolt ( ) and 8pcs M6 Nut (BB) Assemble the wheels bolt ( and M8 Nut ( ) (see step 2). Assemble the other wheel in the same way. assembly completed as shown in figure 1 M6 Nut x 16 x 16...
  • Page 8 coupler of the burner head assembly(B) sit the burner head assembly(B) on the post. Note: The control knob on head assembly (B) should be above the decal on post (E). Place 3 washers(EE) on top of the burner reflector brackets. Line up the 1piece reflector panel(A) with the 3 burner reflector brackets and tighten using the 3 winged bolts(FF)
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 8 Slide cylinder housing upwards. Screw gas hose (F) and regulator (G) onto propane cylinder (not included). Do not cross-thread. Turn on the propane cylinder tank. Place the propane cylinder onto the base(H) and slide the cylinder housing (C) down. WARNING: Use a standard 20 lb.
  • Page 10 ASSEMBLY INSTRUCTIONS...
  • Page 11 OPERATION INSTRUCTIONS To check for a leak: WARNING 1. Make 2-3 oz. leak check solution (one part liquid dishwashing detergent and three parts • Perform all leak tests outdoors. water). • Extinguish all open flames. 2. Apply several drops of solution where •...
  • Page 12: Clearances From Combustibles

    OPERATION INSTRUCTIONS DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed.
  • Page 13 OPERATION INSTRUCTIONS Lighting: 1. Turn on the valve on the gas cylinder. 2. Press and turn the control knob to HIGH (maximum) position (anti-clockwise 90º). (Figure 1) 3. Holding down the control knob, press the igniter button several times until the main flame is ignited. Release the control knob 10 seconds after the ignition.
  • Page 14: Operation Checklist

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When Heater is ON: Emitter screen will become bright red due to intense heat.
  • Page 15: Care And Maintenance

    OPERATION INSTRUCTIONS Heater is away from gasoline or other flammable liquids or vapors. Heater is away from windows, air intake openings, sprinklers and other water sources. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials. Heater is on a hard and level surface.
  • Page 16 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Heater does NOT reach the desired temperature. Heater glow is excessively uneven. Heater makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use.
  • Page 17: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. Wait until the propane cylinder 1. Propane cylinder is frosted over warms up and becomes unfrosted Burner won’t light 2. Blockage in orifice 2. Clear blockage 3. Control knob is not in ON position 3.
  • Page 18: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-775-1330, 8 a.m. - 4 p.m., MST, Monday - Friday. PART DESCRIPTION QUANTITY Reflector Panel Burner Head Assembly Cylinder Housing Post Support Brackets Gas Hose Regulator Base with Weighted Plate Wheel Kit Printed in Taiwan...

This manual is also suitable for:

Premium seriesBurn-2400-blkBurn-2650-ssGs-2650-ng

Table of Contents
