- Page 1 -Txx (JA66/JA67) Wireless Intercom System with Transceiver Connection Operating Manual Rev. B Page 1...
- Page 2 Copyright 2014 Jupiter Avionics Corp. All rights reserved Jupiter Avionics Corporation (JAC) permits a single copy of this manual to be printed or downloaded for personal use. Any such electronic or printed copy of this manual must contain the complete text of this copyright notice. Any unauthorized commercial distribution of this manual is strictly prohibited.
-
Page 3: Table Of Contents
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Table of Contents Introduction ....................1 1.1 Unpacking ....................2 1.2 Verify Operating Region ................2 JA66-00x Headset Adapter (JA66) ............3 JA67-00x Transceiver Adapter (JA67) ............3 Controls, Annunciators and Connectors ..........4 (ON/OFF) Button –... - Page 4 wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual 6.4 wiJAC™ System Operation ..............12 6.4.1 System Overviews ................ 12 6.4.2 Listening Operation ..............12 6.4.3 VOX Speaking Operation ............. 12 6.4.4 TX PTT or ICS PTT Speaking Operation ........12 6.4.5 Live Speaking Operation ..............
-
Page 5: Introduction
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Introduction This manual contains the operating instructions for the wiJAC-Txx Wireless Intercom System with Transceiver Connection. The diagram below describes the naming method for the different systems. System Type: wiJAC-T x x T = Transceiver Operating Region: 1 = N America... -
Page 6: Unpacking
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Unpacking Unpack the wiJAC™ box carefully, and ensure that it contains the following: • one Wireless Aircraft Transceiver Adapter, JAC P/N JA67-00x • Two to four Wireless Aircraft Headset Adapters, JAC P/N JA66-00x •... -
Page 7: Ja66-00X Headset Adapter (Ja66)

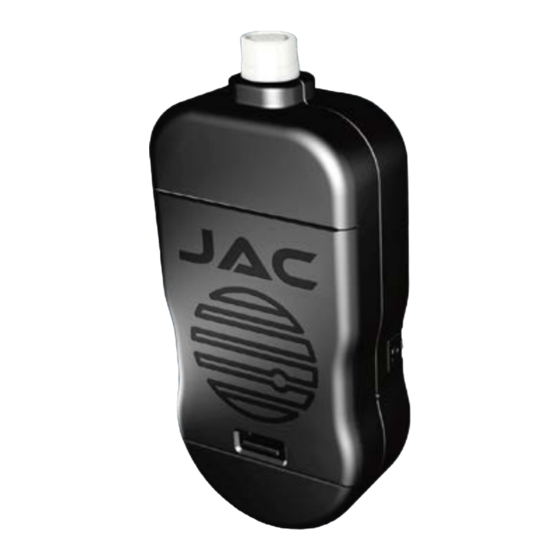

wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual JA66-00x Headset Adapter (JA66) Note: The units are shown in grey for clarity Push To Talk Buttons PWR ON Annunciator (green) ON/OFF Control LOW BATT Battery Lid Annunciator (red) Release Clothing Clip Configuration Port Charging Port... -
Page 8: Controls, Annunciators And Connectors
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Controls, Annunciators and Connectors (ON/OFF) Button – Both units The ON/OFF control is a push button switch marked with the symbol and is located on the left side of the unit. To turn the unit on, press the ON/OFF button once. -
Page 9: Headset Jack - Ja66
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Headset Jack – JA66 The headset jack is a TJT120 type connector on the top of the JA66 headset adapter. Insert a U-174/U or U93A/U type Headset plug into the JA66 Headset Adapter headset jack. -
Page 10: Other
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual 4.6.3 Battery Charge (not shown) The JA66 and JA67 each have two LED Battery Charge annunciators, one on each side of the charging port under the flexible dust cover marked PWR. The Fast Charge annunciator is a red light emitting diode (LED) that will illuminate when the batteries are being charged at the maximum charge current. -
Page 11: Pairing And Purging Process
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Pairing and Purging Process The wiJAC-Txx Wireless Intercom Systems consist of one JA67 Transceiver Adapter, and up to four factory-paired JA66 Headset Adapters. Any additional Headset Adapters must be paired with the Transceiver Adapter before the expanded system can function correctly. -
Page 12: Purging
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual The JA66 and JA67 indicate they have completed the pairing process when the Power Annunciator is on continuously. Purging A JA67 that has already been paired with four JA66 headset adapters must be purged to clear any existing pairings if it is necessary to replace one or more of the headset adapters. -
Page 13: Connecting The Wijac™ System
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Connecting the wiJAC™ System Note: The wiJAC-Txx Wireless Intercom System with Transceiver Connection consists of one JA67 Transceiver Adapter and up to four JA66 Headset Adapters. Only paired units will operate together (see section The JA67 Transceiver Adapter has a Female 6 Pin SR30-10R-6S (71) jack, and should be clipped to a suitable secure point. -
Page 14: Wijac-Txx System Connected To Aircraft Audio System
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual wiJAC-Txx System connected to Aircraft Audio System When connected to an aircraft audio system, the linked Headset Adapters are in an intercom loop which allows full duplex communication between the operators of each JA66. -
Page 15: Wijac™ Set-Up And Connection
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual wiJAC™ Set-up and Connection 6.3.1 Insert Batteries Ensure the batteries for all units are fully charged and installed in the battery compartment with the correct polarity, and the battery lid is secured (section 6). 6.3.2 Attach JA66 Headset Adapter and JA67 Transceiver Adapter Insert a headset with a U-174/U or U93A/U type plug into the JA66 Headset... -
Page 16: Wijac™ System Operation
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual wiJAC™ System Operation 6.4.1 System Overviews Refer to section 6.1 for a non-aircraft radio system overview, and to section 6.2 for an Aircraft audio system overview 6.4.2 Listening Operation The Headset Adapter's Phones Volume (VOL) controls the level of audio heard in the headset's ear phones. -
Page 17: Loss Of Audio
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual 6.4.8 Loss of Audio If there is no audio heard in the headset, check the PWR ON annunciator on the JA66 Headset Adapters and the JA67 Transceiver Adapter. If a unit is off, turn it on and verify connection and operation. -
Page 18: Batteries
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Batteries WARNING: Charging battery types other than NiMH or NiCad may cause the batteries to leak or explode and cause damage or injury. If non-NiMH or non-NiCad batteries are installed, do not connect the Charging Port to a USB power source. -
Page 19: Charging Operation - Via Battery Charger
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Charging Operation – via Battery Charger The batteries may be removed from the unit for charging in a separate battery charger. Removal of the batteries WILL NOT change any internal configuration of the unit. -
Page 20: Accessories
Wireless Intercom System with Transceiver Connection Operating Manual Accessories Adapter Cables The following adapter cables are available from Jupiter Avionics or through JAC dealers/distributors: Description JAC Part # JA67 - 6 pin Hirose plug to 6 pin MS plug – with TX key... -
Page 21: Specifications
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Specifications Mechanical JA66-00x JA67-00x Height 5.20 in (132.1 mm) max 4.85 in (123.2 mm) max Overall depth (excluding clip) 1.10 in (27.9 mm) max 1.10 in (27.9 mm) max Width 2.60 in (66.0 mm) max 2.07 in (52.6 mm) max Weight (with Batteries) 0.46 lb (209 g) max... -
Page 22: Warranty
• Turn the equipment off and remove from the aircraft audio system. Connect the headset to the aircraft audio system. • Consult Jupiter Avionics Corp or an experienced avionics technician for help. Note: Privacy of communications may not be ensured when using this equipment. - Page 23 Jupiter Avionics Corporation 1959 Kirschner Road Kelowna BC Canada V1Y 4N7 Tel: +1 778 478 2232 Toll-Free: 1 855 478 2232 www.jupiteravionics.com...
