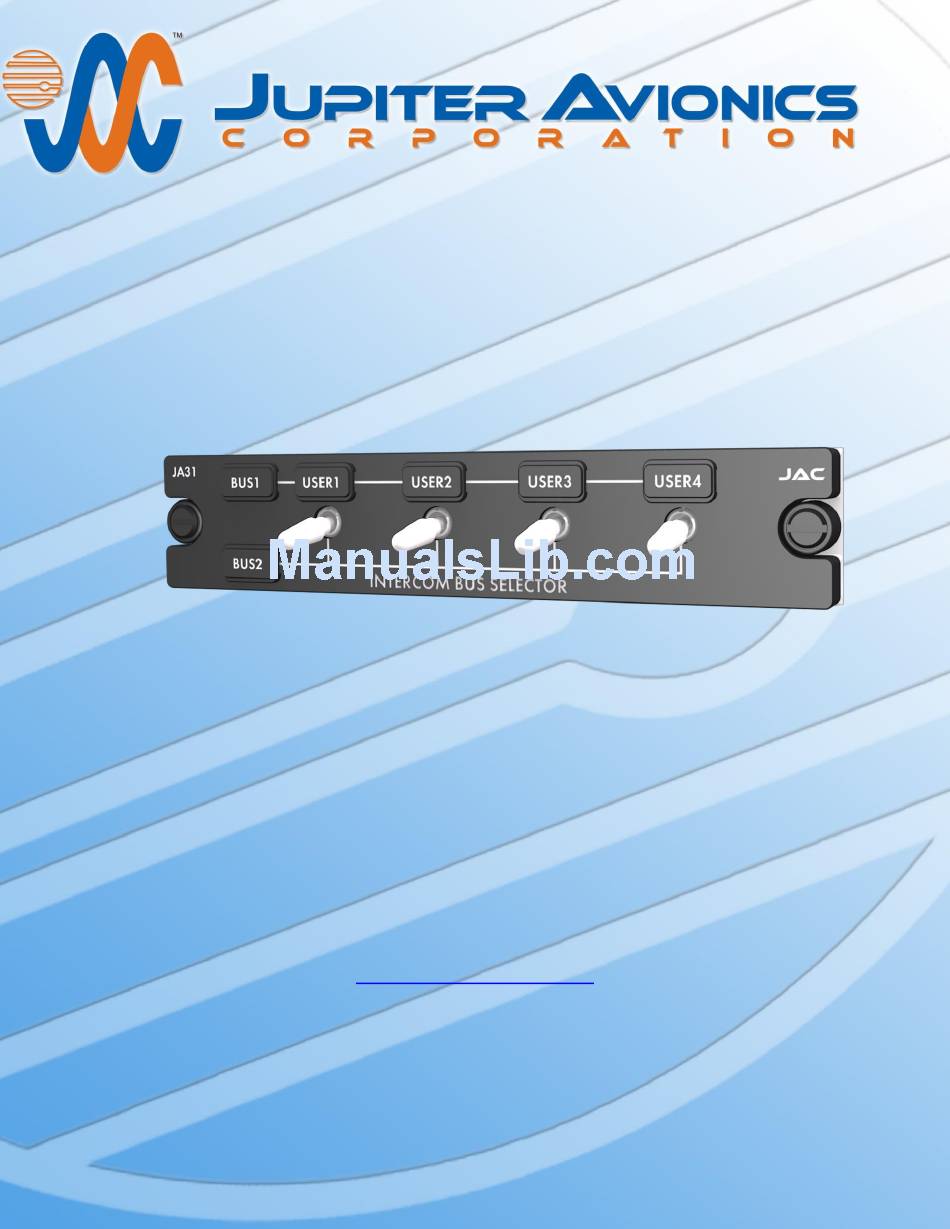

JA31-N01 Intercom Bus Selector - NVG Installation and Operating Manual Rev. A Jupiter Avionics Corporation 1959 Kirschner Road Kelowna BC Canada V1Y 4N7 Tel: +1 778 478 2232 Toll-Free: 1 855 478 2232 www.jupiteravionics.com Rev B Page i...
Page 2
All rights reserved Jupiter Avionics Corporation (JAC) permits a single copy of this manual to be printed or downloaded for the express use of an installing agency. Any such electronic or printed copy of this manual must contain the complete text of this copyright notice.
Overview The JA31-N01 Intercom Bus Selector - NVG provides the crew with the ability to manage the intercom amongst up to six audio controllers in the aircraft. The ICS TIE lines from three or four groups are connected to one of two intercom buses.
Helicopter - Random, unknown 8.8.3 Equipment tested to Category U2FF1 1.4.4 Flammability of Materials The JA31-N01 complies with the requirements of RTCA/DO-160G Sec 26.3.3 "Flammability", through equivalent flammability testing of materials and the Small Parts Exemption. Rev A Page 3...
Introduction This section contains unpacking and inspection procedures, installation information, and post-installation checks. Continued Airworthiness Maintenance of the JA31-N01 is on condition only. Scheduled inspection and/or periodic maintenance of this unit is not required. Unpacking and Inspecting Equipment Unpack the equipment carefully. Check for shipping damage and report any problems to the relevant carrier. Confirm that the Authorized Release Certificate or Certificate of Conformance is included.
2.4.3 Mechanical Installation The JA31-N01 can be mounted in any attitude and location with adequate space for the front panel and sufficient clearance for the connector and wiring harness. It requires no direct cooling. 2.4.4 Legend Replacement ‘Legend Replacement’...
Legend Text Selection using ProCS™ The JA31-N01 has no required adjustments, but the configuration program ProCS™ can be used to customize the text for each legend either at the time of ordering the unit, or if text changes are required after installation. The JA31- N01 need not be connected to a computer to select the legend text.
The interconnects and connector maps in Appendix A of this manual are generic drawings based on the standard version of the JA31-N01. However, if JAC’s ProCS™ software has been used to change switch legends, the software can be used to generate fully customized interconnects and connector maps for use by the installer.
JA31-N01 Intercom Bus Selector - NVG SECTION 3 – OPERATION Introduction This section contains the operating instructions for the JA31-N01. Front Panel Controls Note: The 6 NVIS Type I Class B compliant legends are removable and may be replaced with custom ordered parts.
JA31-N01 Intercom Bus Selector - NVG Installation and Operating Manual Operation Note: The JA31-N01 does not require power from the aircraft for operation. 3.3.1 Panel Lighting The legends will be illuminated and dim through the aircraft lighting bus. 3.3.2 BUS Selection (Talk Groups) When the USER switch is in the BUS 1 position, the USER’s ICS Tie Line will be connected to Bus 1.
Appendix A - Installation Drawings Introduction The drawings necessary for installation and troubleshooting of the JA31-N01 Intercom Bus Selector - NVG are in this Appendix, as listed below. Note: A fully customized set of Connector Maps and Interconnects can be created using the ProCS ProCS™...
Page 15
IF A SIXTH USER ICS TIE LINE IS CONNECTED IN PARALLEL WITH USER 4, PINS 7 AND 19 MUST BE SHORTED TOGETHER. WHEN CONNECTING JUPITER AVIONICS AUDIO CONTROLLERS TO A JA31, CONFIGURE THE AUDIO CONTROLLERS' ICS TIE LINE LOADS AS FOLLOWS: 2 TO 4 AUDIO CONTROLLERS, CONFIGURE AS THREE EXTERNAL LOADS.
Page 16
02-21-17 TITLE Intercom Bus Selector - NVG 4 User Interconnect APPROVED NCAGE CODE PART NO. SHEET 05-02-18 L00N3 JA31-N01 DOC NO. CONFIDENTIAL & PROPRIETARY TO JUPITER AVIONICS CORP. JA31-N01 Interconnect Rev A.dwg JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT...
Page 17
02-21-17 TITLE Intercom Bus Selector - NVG 3 User Interconnect APPROVED NCAGE CODE PART NO. SHEET 05-02-18 L00N3 JA31-N01 DOC NO. CONFIDENTIAL & PROPRIETARY TO JUPITER AVIONICS CORP. JA31-N01 Interconnect Rev A.dwg JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT...
Page 18
02-21-17 TITLE Intercom Bus Selector - NVG 5 User Interconnect APPROVED NCAGE CODE PART NO. SHEET 05-02-18 L00N3 JA31-N01 DOC NO. CONFIDENTIAL & PROPRIETARY TO JUPITER AVIONICS CORP. JA31-N01 Interconnect Rev A.dwg JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT...
Page 19
02-21-17 TITLE Intercom Bus Selector - NVG 6 User Interconnect APPROVED NCAGE CODE PART NO. SHEET 05-02-18 L00N3 JA31-N01 DOC NO. CONFIDENTIAL & PROPRIETARY TO JUPITER AVIONICS CORP. JA31-N01 Interconnect Rev A.dwg JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT...
Page 20
Intercom Bus Selector - NVG Pilot and Copilot Sharing Interconnect APPROVED NCAGE CODE PART NO. SHEET 05-02-18 L00N3 JA31-N01 DOC NO. CONFIDENTIAL & PROPRIETARY TO JUPITER AVIONICS CORP. JA31-N01 Interconnect Rev A.dwg JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT...
Page 21
02-21-17 TITLE Intercom Bus Selector - NVG 2 User Interconnect APPROVED NCAGE CODE PART NO. SHEET 05-02-18 L00N3 JA31-N01 DOC NO. CONFIDENTIAL & PROPRIETARY TO JUPITER AVIONICS CORP. JA31-N01 Interconnect Rev A.dwg JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT...
Page 23
Jupiter Avionics Corporation Audio Controllers Legend Replacement Field-Replaceable Legends Extractor tool Jupiter Avionics Corporation (JAC) products have field-replaceable illuminated recess legends. This permits easy customization, and allows the same units to be used in multiple different configurations with only minimal changes.
Installing Agency in preparing Instructions for Continued Airworthiness (ICA) when installing a Jupiter Avionics JA31-N01 Intercom Bus Selector - NVG. This sample may be modified appropriately for new installations. It is the installer’s responsibility to determine the applicability of the method used. Installations performed outside Canada must follow the applicable aviation authority’s regulations.
Page 26
Refer to the JA31-N01 Maintenance Manual. 7. Removal and Replacement Information Refer to Section 2 of this manual - the JA31-N01 Installation and Operating Manual. If the unit is removed and reinstalled, a functional check of the equipment should be conducted.
