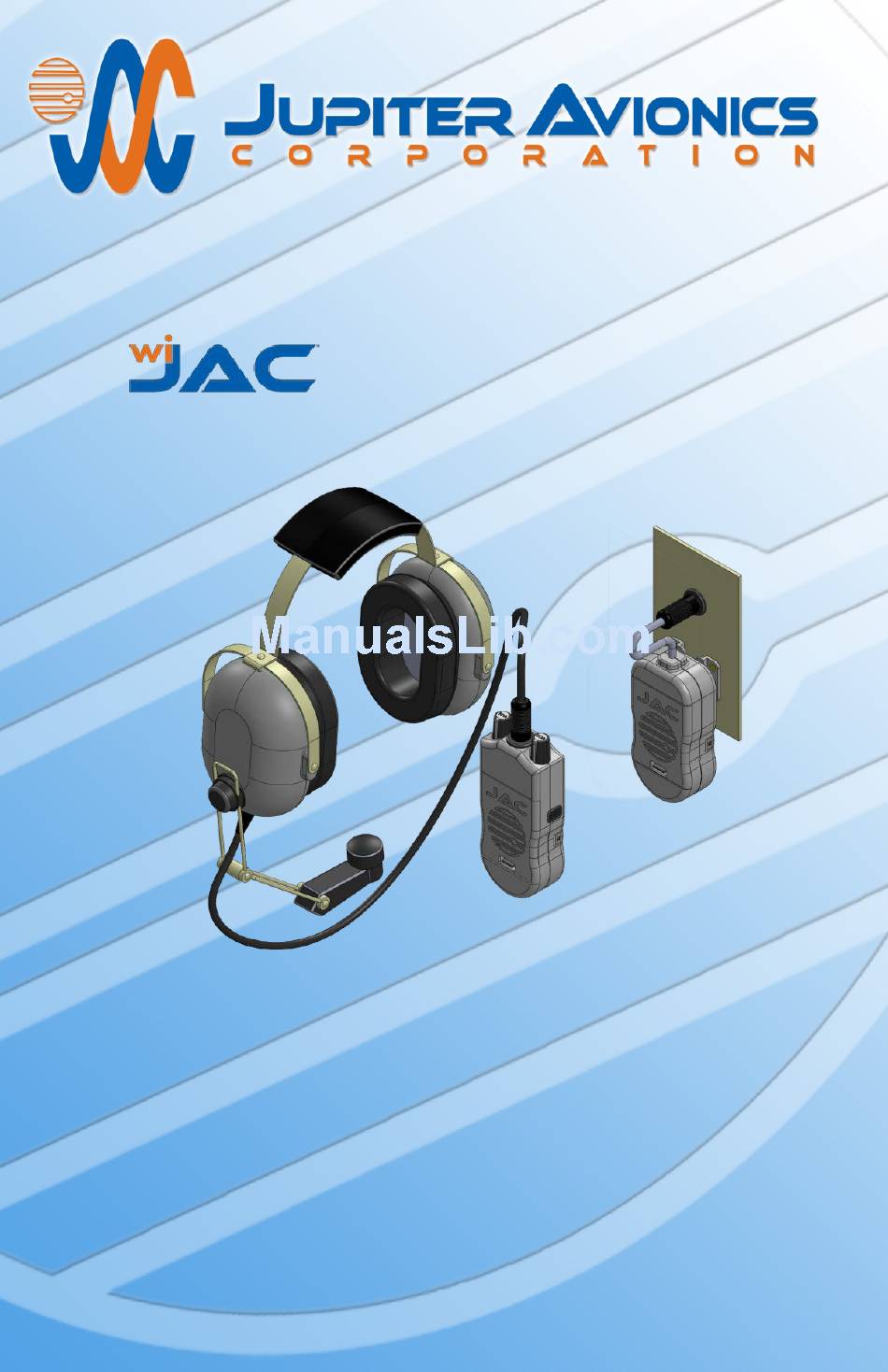

- Page 1 -0xx (JA60/JA61) Wireless Intercom System Operating Manual Rev. C Page 1...
- Page 2 Copyright 2013 Jupiter Avionics Corp. All rights reserved Jupiter Avionics Corporation (JAC) permits a single copy of this manual to be printed or downloaded for personal use. Any such electronic or printed copy of this manual must contain the complete text of this copyright notice.
-
Page 3: Table Of Contents
Introduction ....................1 Unpacking .................... 2 Verify Operating Region ............... 2 Verify Pairing Registration Number ............2 JA60-00x Headset Adapter (JA60) .............. 3 JA61-00x Intercom Adapter (JA61)............. 3 Controls, Annunciators and Connectors ........... 4 (ON/OFF) Button – Both units ............4 Controls –... - Page 4 Operating Region: 1 = N America Not Allocated 2 = Europe North America: The wiJAC-001 consists of one JA60-001 Wireless Aircraft Headset Adapter, and one JA61-001 Wireless Aircraft Intercom adapter. RF output power is 21dBm (125mW peak) Channel frequencies 23 = 1.921536 GHz...
-
Page 5: Unpacking
Verify Pairing Registration Number The wiJAC-00x Wireless Intercom System consists of one set of paired Adapters. The JA60-00x Headset Adapter must be paired with a JA61-00x Intercom Adapter. Ensure that the same three character Pairing Registration Number is marked on a label on the back of each unit. -
Page 6: Ja60-00X Headset Adapter (Ja60)
Registration Button Number Belt Clip Configuration Port PWR ON Charging Port Annunciator Fig 3-2, JA60 Left Side View Fig 3-1, JA60 Right Side View Headset Jack Microphone Voice Phones Volume Control Operated Switch Control Fig 3-3, JA60 Top View JA61-00x Intercom Adapter (JA61) -
Page 7: Controls, Annunciators And Connectors
JA61 Intercom Adapter, and the ICS Key output is activated. Headset Jack – JA60 The headset jack is a TJT120 type connector on the top of the JA60 headset adapter. Insert a U-174/U or U93A/U type Headset plug into the JA60 Headset Adapter headset jack. -
Page 8: Connectors - Both Units
When a unit is turned on, the LOW BATT annunciator will illuminate for 2 seconds. When the JA60 battery voltage is low the LOW BATT annunciator will flash once every 1.5 s and a low battery notification (a triple beep) will be heard in the headphones once every minute. -
Page 9: Other
(see section 6.1). 4.7.3 Clothing/Mounting Clip The clothing clip is on the rear of the JA60 Headset Adapter, and the mounting clip is on the rear of the JA61 Intercom Adapter. Ensure that the units are attached securely. -
Page 10: 5.1 Connecting The Wijac™ System
The JA61 Intercom Adapter has a plug that is inserted into a jack in the aircraft where the headset is normally connected. A headset is inserted into the jack on the JA60 Headset Adapter, which is clipped to the user's belt or placed in a pocket. Headset and audio panel are not included. -
Page 11: Wijac™ Set-Up And Connection
Attach Connectors to Aircraft and Headset Connect the JA61 Intercom Adapter plug to a MS3110 Flo-65 or equivalent connector. Insert a headset with a U-174/U or U93A/U type plug into the JA60 Headset Adapter jack. 5.1.3 Turn On Adapters and Verify Connection On the JA60 Headset Adapter, turn the VOL knob fully counterclockwise to minimum. -
Page 12: Wijac™System Operation
5.2.3 VOX Speaking Operation To use the JA60 Headset Adapter hands-free, adjust the VOX control so that the microphone audio is turned on when speaking in to the headset's microphone at a comfortable level, or at a level to keep the ambient noise from turning on the microphone audio. -
Page 13: Operation During Charging
Loss of Audio If there is no audio heard in the headset, check the PWR ON annunciator on the JA60 Headset Adapter and the JA61 Intercom Adapter. If a unit is off, turn it on and verify connection and operation. -
Page 14: Batteries
If non-NiMH or non-NiCad batteries are installed, do not connect the Charging Port to a USB power source. The JA60 and JA61 require three AAA batteries. JAC recommends Duracell 800 mAh (or higher) NiMH or Duracell alkaline batteries for use in the wiJAC™... -
Page 15: Charging Operation - Via Battery Charger
The batteries may be removed from the unit for charging in a separate battery charger. Removal of the batteries WILL NOT change any internal configuration of the unit. Note: The JA60 and JA61 will only charge the batteries when the internal temperature is within 0 to 40 °C Battery Cautions and Warnings CAUTION: Follow these guidelines to prolong battery life and minimize the risk of unit malfunction. -
Page 16: Accessories
wiJAC-00x Wireless Intercom System Operating Manual Accessories JA72-005 Glove Box with USB connector The JA72 Glove Box with USB Charger allows the aircraft owner/operator to utilize an empty portion of the instrument panel for storage. A USB 2.0 Type A receptacle is provided to supply 5 Vdc power up to 2 Amps, and a 3.5mm stereo jack can be connected to the aircraft's audio system. -
Page 17: Installation Of The Ja61 Mounting Bracket
wiJAC-00x Wireless Intercom System Operating Manual Installation of the JA61 Mounting Bracket Fig 8-1 - Bracket-mounted JA61 The JA61 Intercom Adapter is supplied with a mounting bracket (part number PLT-CLIP-0004) which may be used to mount the unit in the aircraft. The circular mounting clip on the JA61 slides into the mounting bracket and clicks into position. -
Page 18: Mechanical
Wireless Intercom System Operating Manual Specifications Mechanical JA60-00x JA61-00x Height 4.79 in (122 mm) max 8.15 in (207.0 mm) max Overall depth 1.10 in (27.9 mm) max 1.10 in (27.9 mm) max Width 2.05 in (52.1 mm) max 2.05 in (52.1 mm) max Weight (with Batteries) 0.39 lb (178 g) max... -
Page 19: Warranty
• Turn the equipment off and remove from the aircraft audio system. Connect the headset to the aircraft audio system. • Consult Jupiter Avionics Corp or an experienced avionics technician for help. Privacy of communications may not be ensured when using this equipment. - Page 20 Jupiter Avionics Corporation 1959 Kirschner Road Kelowna BC V1Y 4N7 Canada Tel: +1 778 478 2232 Toll-Free: 1 855 478 2232 www.jupiteravionics.com...
