Wireless Intercom System
with Transceiver Connection
Data Sheet
Description

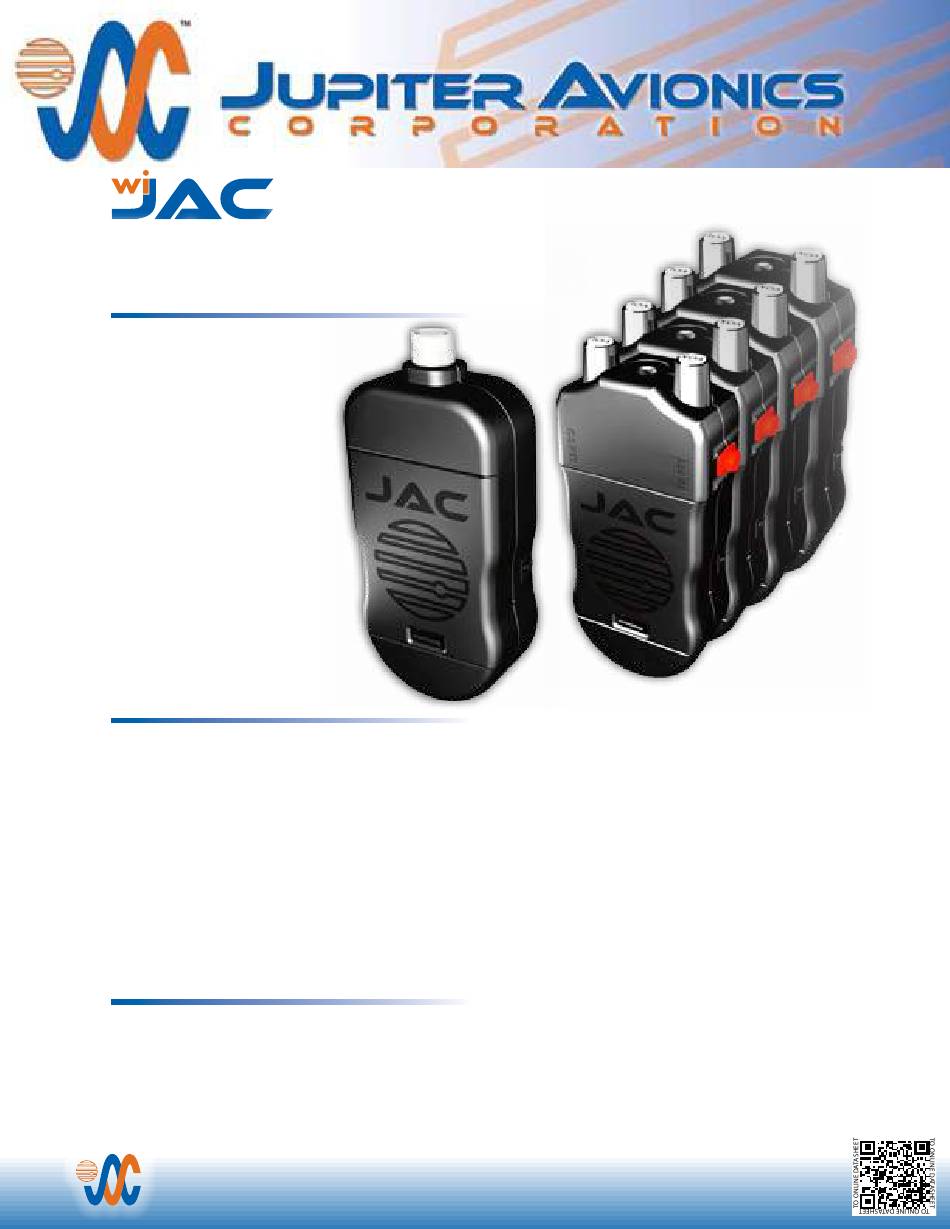

The wiJAC-Txx system is a Wireless Intercom System for up to four users plus connectivity to a
transceiver or smart phone. The system provides a wireless full-duplex, hands-free audio network, plus
PTT capability on the connected transceiver. The components connect to standard aircraft headsets and
attach to the users' belts, allowing operators free movement. Adapters are available for different headset
connector styles and impedances.
Communications range is typically 100 meters (200 meters for European model). The system features
only essential controls to ensure ease of operation. (VOX and Volume control knobs, On/Off, intercom
PTT and transmit PTT buttons)
The wiJAC™ system offers the user independence from traditional tethered audio systems without
sacrificing audio quality.
Features
• Suitable for most general aviation high impedance headsets.
• Phones/Mic Input/Output levels adjustable using ProCS™ programming software.
• RF communication link indicator light.
• USB charging cables and rechargable batteries included.
• An encrypted radio link ensures secure communications.
TM
DOC-DATA-TXX Artwork Rev C.pdf
TM
- Txx
JA67-00x
1959 Kirschner Rd, Kelowna, BC V1Y 4N7, Canada
Tel: +1 778-478-2232 Toll-Free 1 855-478-2232
www.jupiteravionics.com
JA66-00x's
TO ONLINE DATASHEET
Advertisement
Table of Contents
Related Manuals for Jupiter Avionics JA67-00 Series
Summary of Contents for Jupiter Avionics JA67-00 Series
- Page 1 - Txx Wireless Intercom System with Transceiver Connection Data Sheet JA66-00x’s JA67-00x Description The wiJAC-Txx system is a Wireless Intercom System for up to four users plus connectivity to a transceiver or smart phone. The system provides a wireless full-duplex, hands-free audio network, plus PTT capability on the connected transceiver.
- Page 2 DOC-DATA-TXX Artwork (JA68 Dimensions) Rev A.SLDDRW PREPARED FINISH: DIMENSIONS ARE IN INCHES DRAWING NOT TO SCALE ANGLES ARE IN DEGREES JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT Batteries AAA (3 per unit) Range wiJAC-Tx2 200 m (typical) TOLERANCES: 1 DEC PLACE:...
- Page 3 wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Rev. A DRAFT Page 1...
- Page 4 Copyright 2014 Jupiter Avionics Corp. All rights reserved Jupiter Avionics Corporation (JAC) permits a single copy of this manual to be printed or downloaded for personal use. Any such electronic or printed copy of this manual must contain the complete text of this copyright notice. Any unauthorized commercial distribution of this manual is strictly prohibited.
-
Page 5: Table Of Contents
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Table of Contents Introduction ....................1 1.1 Unpacking ....................1 1.2 Verify Operating Region ................1 JA66-00x Headset Adapter (JA66) ............... 2 JA67-00x Intercom Adapter (JA67) .............. 2 Controls, Annunciators and Connectors ............3 (ON/OFF) Button –... - Page 6 wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual 6.4.6 Low Battery Warning ..............11 6.4.7 Operation during Charging ............11 6.4.8 Loss of Audio ................12 6.4.9 Battery Life ................... 12 Batteries ..................... 13 7.1 Inserting or Replacing the Batteries............13 7.2 Charging Batteries in the Unit ..............
-
Page 7: Introduction
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Introduction This manual contains the operating instructions for the wiJAC-Txx Wireless Intercom Systems. The diagram below describes the naming method for the different systems. wiJAC-T x x Operating Region: 1 = N America Number of Headsets 2 = Europe in the System (2 –... -
Page 8: Ja66-00X Headset Adapter (Ja66)
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual JA66-00x Headset Adapter (JA66) Push To Talk Buttons PWR ON Annunciator (green) ON/OFF Control LOW BATT Battery Lid Annunciator (red) Release Clothing Clip Configuration Port Charging Port Fig 2-2, JA66 Left Side View Fig 2-1, JA66 Right Side View Headset Jack VOL (Phones... -
Page 9: Controls, Annunciators And Connectors
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Controls, Annunciators and Connectors (ON/OFF) Button – Both units The ON/OFF control is a push button switch marked with the symbol and is located on the left side of the unit. To turn the unit on, press the ON/OFF button once. -
Page 10: Headset Jack - Ja66
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Headset Jack – JA66 The headset jack is a TJT120 type connector on the top of the JA66 headset adapter. Insert a U-174/U or U93A/U type Headset plug into the JA66 Headset Adapter headset jack. -
Page 11: Other
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual 4.6.3 Battery Charge (not shown) The JA66 and JA67 Battery Charge annunciators are two LEDs, one on each side of the charging port under the flexible dust cover marked PWR. The Fast Charge annunciator is a red light emitting diode (LED) that will illuminate when the batteries are being charged at the maximum charge current. -
Page 12: Pairing And Purging Process
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Pairing and Purging Process The wiJAC-Txx Wireless Intercom Systems consist of one JA67 Intercom Adapter, and up to four factory-paired JA66 Headset Adapters. Any additional Headset Adapters must be paired with the Intercom Adapter before the expanded system can function correctly. -
Page 13: Purging
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Purging A JA67 that has already been paired with four JA66 headset adapters must be purged to clear any existing pairings if it is necessary to replace one or more of the headset adapters. -
Page 14: Connecting The Wijac™ System
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Connecting the wiJAC™ System Note: The wiJAC-Txx Wireless Intercom System with Transceiver Connection consists of one JA67 Intercom Adapter and up to four JA66 Headset Adapters. Only paired units will operate together (see section The JA67 Intercom Adapter has a Female 6 Pin SR30-10R-6S (71) jack, and should be clipped to a suitable secure point. -
Page 15: Wijac-Txx System Connected To Aircraft Audio System
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual wiJAC-Txx System connected to Aircraft Audio System When connected to an aircraft audio system, the linked Headset Adapters are in an intercom loop which allows full duplex communication between the operators of each JA66. -
Page 16: Wijac™ Set-Up And Connection
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual wiJAC™ Set-up and Connection 6.3.1 Insert Batteries Ensure the batteries for all units are fully charged and installed in the battery compartment with the correct polarity, and the battery lid is secured (section 6). 6.3.2 Attach JA66 Headset Adapter and JA67 Intercom Adapter Insert a headset with a U-174/U or U93A/U type plug into the JA66 Headset... -
Page 17: Wijac™System Operation
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual wiJAC™System Operation 6.4.1 System Overviews Refer to section 6.1 for a non-aircraft radio system overview, and to section 6.2 for an Aircraft audio system overview 6.4.2 Listening Operation The Headset Adapter's Phones Volume (VOL) controls the level of audio heard in the headset's ear phones. -
Page 18: Loss Of Audio
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual 6.4.8 Loss of Audio If there is no audio heard in the headset, check the PWR ON annunciator on the JA66 Headset Adapters and the JA67 Intercom Adapter. If a unit is off, turn it on and verify connection and operation. -
Page 19: Batteries
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Batteries WARNING: Charging battery types other than NiMH or NiCad may cause the batteries to leak or explode and cause damage or injury. If non-NiMH or non-NiCad batteries are installed, do not connect the Charging Port to a USB power source. -
Page 20: Charging Operation - Via Battery Charger
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Charging Operation – via Battery Charger The batteries may be removed from the unit for charging in a separate battery charger. Removal of the batteries WILL NOT change any internal configuration of the unit. -
Page 21: Accessories
wiJAC-Txx Wireless Intercom System with Transceiver Connection Operating Manual Accessories JA72-005 Glove Box with USB connector The JA72 Glove Box with USB Charger allows the aircraft owner/operator to utilize an empty portion of the instrument panel for storage. A USB 2.0 Type A receptacle is provided to supply 5 Vdc power up to 2 Amps, and a 3.5mm stereo jack can be connected to the aircraft's audio system. -
Page 22: Warranty
• Turn the equipment off and remove from the aircraft audio system. Connect the headset to the aircraft audio system. • Consult Jupiter Avionics Corp or an experienced avionics technician for help. Note: Privacy of communications may not be ensured when using this equipment. - Page 23 Jupiter Avionics Corporation 1959 Kirschner Road Kelowna BC Canada V1Y 4N7 Tel: +1 778 478 2232 Toll-Free: 1 855 478 2232 www.jupiteravionics.com...
