Summary of Contents for Jupiter Avionics wi JAC2-T32

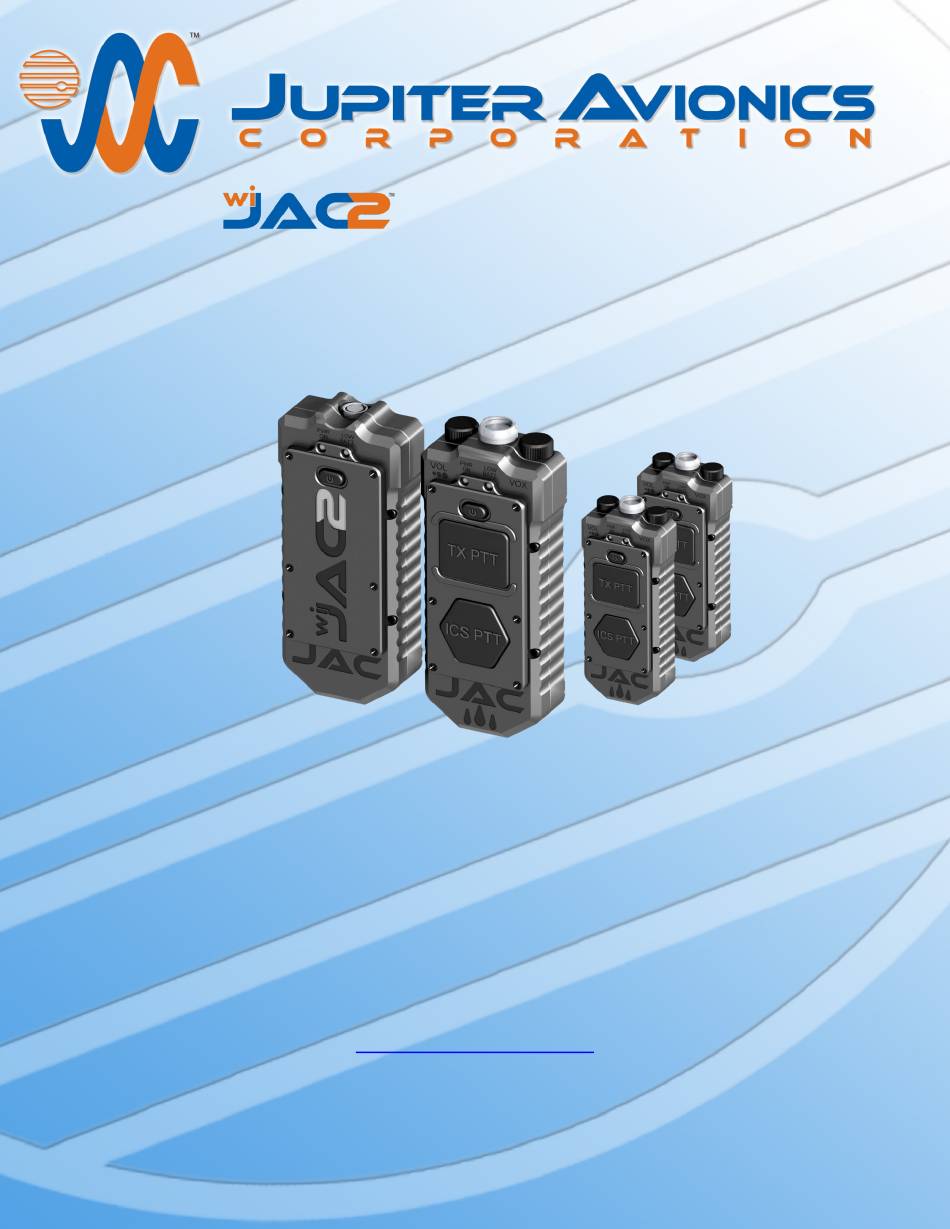

- Page 1 -T32 (JB66/JB67) Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual Rev A Jupiter Avionics Corporation 1959 Kirschner Road Kelowna BC Canada V1Y 4N7 Tel: +1 778 478 2232 Toll-Free: 1 855 478 2232 www.jupiteravionics.com Rev B...
- Page 2 All rights reserved Jupiter Avionics Corporation (JAC) permits a single copy of this manual to be printed or downloaded for the express use of an installing agency. Any such electronic or printed copy of this manual must contain the complete text of this copyright notice.
-
Page 3: Table Of Contents
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual Table of Contents Table of Contents ................................. iii Introduction ..................................1 Unpacking ................................1 Verify Operating Region ............................1 Verify Pairing Registration Number ......................... 2 The wiJAC2-T32 Components ............................2 JB66-002 Headset Adapter (JB66) ......................... -
Page 4: Introduction
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Introduction This manual contains the operating instructions for the wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe. The diagram below describes the naming method for the different systems. System Type: T = Transceiver wiJAC2-T 3 2... -
Page 5: Verify Pairing Registration Number
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual Verify Pairing Registration Number The wiJAC2-T32 Wireless Intercom Dropcord System consists of one JB66-002 Headset Adapter and up to three JB67-002 Intercom Adapters. Only paired units will operate together. Refer to the Pairing Instructions in section 3.4.1. -
Page 6: Jb66-002 Headset Adapter (Jb66)
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual JB66-002 Headset Adapter (JB66) JB66 Front View JB66 Back View VOX (Microphone Voice Operated (Phones Volume Switch Control) Control) Product Label LOW BATT PWR ON Annunciator Battery Lid Annunciator Release... -
Page 7: Jb66 Connectors
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual 2.1.1.3 VOL (Phones Volume Control) WARNING: Loud noise can cause hearing damage. Before using the headset, set the volume to minimum, and then slowly increase it to a comfortable listening level. The volume control is a rotary knob marked VOL (volume) located on the top left of the JB66 Headset Adapter. -
Page 8: Jb66 Internal Adjustments, Annunciators And Connectors
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual 2.1.4 JB66 Internal Adjustments, Annunciators and Connectors To reveal the internal adjustments, annunciators and connectors, remove the battery cover by unfastening the thumbscrew on the rear of the unit and raising the top of the cover until it can be lifted clear of the retaining tabs. CAUTION: To prevent potential damage or loss of function, the internal adjustments, controls and CONFIG port should only be used at initial set up. -
Page 9: Jb67-002 Intercom Adapter (Jb67)
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual JB67-002 Intercom Adapter (JB67) PWR ON Annunciator 10 Pin Hirose connector LOW BATT Annunciator ON/OFF Control Note: The unit is shown in grey for clarity. Battery Lid Release Belt Clip 2.2.1 JB67 Controls... -
Page 10: Jb67 Internal Adjustments, Annunciators And Connectors
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual When the JB67 battery voltage is low the LOW BATT annunciator will flash once every 1.5 s and output a low battery notification (a triple beep) in the headphones once every minute until the battery charge reaches critical voltage level.(A similar but lower pitched tone will be heard if the paired JB66 Headset Adapter battery charge is low.) Note: JAC recommends that the batteries should be charged or replaced immediately when the LOW BATT warning illuminates during use. -
Page 11: Other Features (Both Units)
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual 2.2.4.3 Controls These buttons are recessed to prevent accidental activation. The Boot (BT) and Reset (RST) buttons should only be adjusted by qualified technical personnel. The Pair (PR) button is used during the pairing process (section 3.4.1). 2.2.4.4 Connectors POWER (Charging Port) -
Page 12: Batteries (For Both Jb66 And Jb67)
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual Batteries (for both JB66 and JB67) WARNING: Charging battery types other than NiMH or NiCad may cause the batteries to leak or explode and cause damage or injury. If non-NiMH or non-NiCad batteries are installed, do not connect the Charging Port to a USB power source. -
Page 13: Rechargeable Battery Kit
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual 2.4.4 Rechargeable Battery Kit A rechargeable battery kit is available for this system (JAC P/N INST-JB6X). It contains: • two ea. USB A Male to Type M 2.1mm Plug USB Connector, 3ft Length, JAC P/N CAB-USB-0013 •... -
Page 14: Connecting The Wijac2™ System
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual Connecting the wiJAC2™ System Note: The wiJAC2-T32 Wireless Intercom Dropcord System consists of one JB66-002 Headset Adapter and up to three JB67-002 Intercom Adapters. Only paired units will operate together (see section 3.4.) The JB67 Intercom Adapter is connected via an adapter cable (see... -
Page 15: Wijac2-T32 System With A Transceiver
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual wiJAC2-T32 System with a Transceiver When connected to a transceiver, the linked Headset Adapters are in an intercom loop which allows full duplex communication between the operators of each JB66. Each operator can listen to the transceiver receive audio, and by pressing the JB66 TX PTT button can transmit on the transceiver. -
Page 16: Wijac2-T32 System Connected To Aircraft Audio System
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual wiJAC2-T32 System connected to Aircraft Audio System When connected to an aircraft audio system, the linked Headset Adapters are in an intercom loop which allows full duplex communication between the operators of each JB66. -
Page 17: Wijac2™ Set-Up And Connection
(ANR direct), or via a headset adapter (CAB-HSET-0001 helicopter headset to 6 pin adapter, included). 3.3.2.1 Adapter Cables The following adapter cables are available from Jupiter Avionics or through JAC dealers/distributors: Description JAC Part # JB67 - 10 pin Hirose plug to 6 pin MS plug – with TX &ICS key – MIC LO Ground CAB-WJ2-0002 JB67 - 10 pin Hirose plug to 6 pin MS plug –... -
Page 18: Wijac2™ Adjustments And Pairing
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual wiJAC2™ Adjustments and Pairing CAUTION: To prevent potential damage or loss of function, the internal adjustments, controls and CONFIG port should only be used by qualified technical personnel. Contact your installing agency for any required changes. -
Page 19: Purging Process
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual 3.4.2 Purging Process Purging the JB67 Transceiver Adapter removes the pairings of all JB66 Headset Adapters. The purging process is described in the following steps: 1. Turn off the JB67 Transceiver Adapter and all other JB66 Headset Adapters previously paired with the JB67. -
Page 20: Wijac2™System Operation
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual wiJAC2™System Operation Overview When both units are turned on and connected, phones audio from the aircraft audio system is transmitted from the Intercom Adapter, received by the Headset Adapter and output on the headset's phones. Microphone audio from the headset's microphone is transmitted from the Headset Adapter, received by the Intercom Adapter and output to the aircraft's audio system. -
Page 21: Battery Life
wiJAC2-T32 Wireless Intercom System with Transceiver Connection - 3 User - Europe Operating Manual If another aircraft system is experiencing a fault, turn off and remove the JB66 Headset Adapter and the JB67 Intercom Adapter and connect the headset directly to the audio panel. Do not use the JB66 Headset Adapter and the JB67 Intercom Adapter if they appear to be the cause of the fault.
