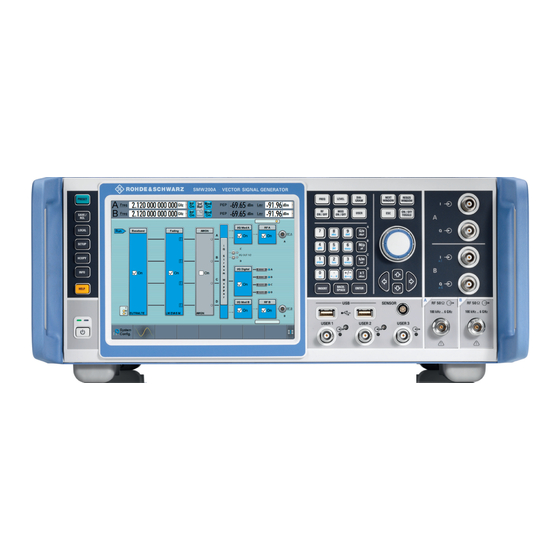

Rohde & Schwarz SMW-K141 User Manual

Ieee 802.11ad/ay
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
R&S
SMW-K141/-K177
IEEE 802.11ad/ay
User Manual
(;ÜJ92)
1178260902
Version 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMW-K141 and is the answer not in the manual?

Questions and answers

Related Manuals for Rohde & Schwarz SMW-K141

Summary of Contents for Rohde & Schwarz SMW-K141

  • Page 1 ® R&S SMW-K141/-K177 IEEE 802.11ad/ay User Manual (;ÜJ92) 1178260902 Version 13...
  • Page 2 This document describes the following software options: ● R&S ® SMW-K141 IEEE 802.11ad (1413.1333.xx) ● ® R&S SMW-K177 IEEE 802.11ay (1434.8191.xx) ® This manual describes firmware version FW 5.20.043.xx and later of the R&S SMW200A. © 2023 Rohde & Schwarz GmbH & Co. KG Muehldorfstr.

  • Page 3: Table Of Contents

    ® Contents R&S SMW-K141/-K177 Contents 1 Welcome to the IEEE 802.11ad/ay options.......... 7 Accessing the IEEE 802.11ad/ay dialog..............7 What's new........................8 Documentation overview....................8 1.3.1 Getting started manual....................8 1.3.2 User manuals and help....................8 1.3.3 Tutorials...........................9 1.3.4 Service manual....................... 9 1.3.5 Instrument security procedures..................9...
  • Page 4 ® Contents R&S SMW-K141/-K177 A-MPDU settings......................32 MAC header and FCS settings...................34 4 802.11ad configuration and settings..........39 PPDU configuration....................39 4.1.1 General settings......................39 4.1.2 Header settings......................42 5 802.11ay configuration and settings..........45 General settings......................45 PPDU configuration (frame block 1)................46 5.2.1...
  • Page 5 ® Contents R&S SMW-K141/-K177 7.6.3 Frame block MPDU configuration................. 93 7.6.4 MAC header configuration.................... 95 802.11ay frame configuration commands..............99 7.7.1 EDMG general commands..................101 7.7.2 L-Header commands....................102 7.7.3 EDMG-Header-A commands..................103 7.7.4 EDMG-Header-B commands..................108 7.7.5 User commands......................109 Glossary: List of terms and abbreviations........111 Glossary: IEEE 802.11ad/ay references...........
  • Page 6 ® Contents R&S SMW-K141/-K177 User Manual 1178.2609.02 ─ 13...

  • Page 7: Welcome To The Ieee 802.11Ad/Ay Options

    Accessing the IEEE 802.11ad/ay dialog 1 Welcome to the IEEE 802.11ad/ay options The options R&S SMW-K141 and R&S SMW-K177 are firmware applications that add functionality to generate signals in accordance with the wireless LAN standards IEEE 802.11ad and IEEE 802.11ay.

  • Page 8: What's New

    ® Welcome to the IEEE 802.11ad/ay options R&S SMW-K141/-K177 Documentation overview 1.2 What's new This manual describes firmware version FW 5.20.043.xx and later of the R&S ® SMW200A. Compared to the previous version, it provides the new features listed below: ●...

  • Page 9: Tutorials

    ® Welcome to the IEEE 802.11ad/ay options R&S SMW-K141/-K177 Documentation overview All user manuals are also available for download or for immediate display on the Inter- net. 1.3.3 Tutorials The R&S SMW provides interactive examples and demonstrations on operating the instrument in form of tutorials.

  • Page 10: Application Notes, Application Cards, White Papers, Etc

    ® Welcome to the IEEE 802.11ad/ay options R&S SMW-K141/-K177 Notes on screenshots www.rohde-schwarz.com/firmware/smw200a 1.3.9 Application notes, application cards, white papers, etc. These documents deal with special applications or background information on particu- lar topics. www.rohde-schwarz.com/application/smw200a www.rohde-schwarz.com/ manual/smw200a 1.3.10 Videos Find various videos on Rohde & Schwarz products and test and measurement topics on YouTube: https://www.youtube.com/@RohdeundSchwarz...
  • Page 11 ® Welcome to the IEEE 802.11ad/ay options R&S SMW-K141/-K177 Notes on screenshots possible interdependencies between parameters. The shown values may not represent realistic usage scenarios. The screenshots usually show a fully equipped product, that is: with all options instal- led. Thus, some functions shown in the screenshots may not be available in your par- ticular product configuration.

  • Page 12: About The Ieee 802.11Ad/Ay Options

    Requires option R&S SMW-K525. ● RF frequency 100 kHz to 67 GHz for RF path A (R&S SMW-B1067) ● Digital standard IEEE 802.11ad (R&S SMW-K141), per signal path ● Digital standard IEEE 802.11ay (R&S SMW-K177), per signal path Requires option R&S SMW-K141.

  • Page 13: About Ieee 802.11Ad

    This chapter provides basic information of the IEEE 802.11ad technology. For related information and further reading, see IEEE Std 802.11ad™-2012 standard specification. Directional multi-gigabit (DMG) PHY modes The R&S SMW-K141 option supports two modulation modes: ● DMG control PHY, see Chapter 2.2.1, "DMG control PHY mode", on page 14.

  • Page 14: Dmg Control Phy Mode

    ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ad ● Header The header is different for every PHY and contains additional important information for the receiver, such as the modulation mode (MCS), the length of the data field or a checksum.

  • Page 15: About Ieee 802.11Ay

    ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay Figure 2-3: Single carrier packet header The header of the SC PHY mode is 64 bits long and includes the following fields: ● Scrambler initialization: provides the start point for the scrambler ●...

  • Page 16: Edmg And Non-Edmg Format

    ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay 2.16+2.16 GHz and 4.32+4.32 GHz transmissions, the maximum number of spatial streams in each 2.16 GHz channel and 4.32 GHz channel, respectively, is four. ● EDMG and non-EDMG format................16 ●...
  • Page 17 ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay Field Description Remark EDMG- EDMG Header B field Defined in chapter "EDMG portion of EDMG format pre- Header-B amble" of the EDMG PHY specification. For EDMG MU PPDUs only.
  • Page 18 ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay Table 2-3: EDMG-Header-B field structure and definition Subfield Start bit Description bits Scrambler Seed PSDU Length Length of the PSDU field octets with range 1 to 4194302 - 1).
  • Page 19 ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay Subfield Start bit Description bits Spoofing Error Length If set to 0 in an EDMG OFDM PPDU, indicates that the Indicator spoofing error is smaller than T . This error is...

  • Page 20: Channelization

    ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay reported). The EDMG-Header-A field preceding a Data field defines the parameters of the PSDU transmitted in the Data field. 2.3.2 Channelization EDMG stations (STAs) use the channelization as in Figure 2-6.

  • Page 21: Edmg And Non-Edmg Control Mode

    ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay vice versa. You can also use the SU-MIMO beamforming protocol to enable transmit beamforming and receive beamforming operation. The beamforming operation is between the initiator and the responder. During beamforming operation, a single spatial stream is transmitted through multiple DMG antennas using the determined transmit antenna settings.
  • Page 22 ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay Figure 2-7: Non-EDMG PPDU transmission Figure 2-8: EDMG PPDU transmission You can generate EDMG and non-EDMG control mode PPDU transmissions using a transmitter consisting of the following blocks: ●...

  • Page 23: Edmg And Non-Edmg Sc Mode

    ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay ● Preamble builder builds π/2-BPSK modulated Ga and Gb Golay sequences com- prising the L-STF, L-CEF, and TRN units. ● Cyclic shift diversity (CSD) prevents the signal from unintentional beamforming.
  • Page 24 ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay Parameter 1.76 GHz 1.76 GHz 1.76 GHz 1.76 GHz 1.76 GHz 3.53 GHz 5.28 GHz 7.04 GHz c EDMG 0.57 ns 0.57 ns 0.57 ns 0.57 ns 0.57 ns 0.28 ns...
  • Page 25 ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay Figure 2-10: EDMG SC SU PPDU transmission Figure 2-11: EDMG SC MU PPDU transmission User Manual 1178.2609.02 ─ 13...
  • Page 26 ® About the IEEE 802.11ad/ay options R&S SMW-K141/-K177 About IEEE 802.11ay You can generate EDMG and non-EDMG SC PPDU transmissions using a transmitter consisting of the following blocks: ● Scrambler scrambles the data to reduce the probability of long sequences of 0s and 1s.

  • Page 27: 802.11Ad/Ay Common Settings

    ® 802.11ad/ay common settings R&S SMW-K141/-K177 General settings 3 802.11ad/ay common settings This chapter provides a description of settings that are common to 802.11ad and 802.11ay configuration. ● General settings...................... 27 ● Frame configuration....................30 ● Data settings......................31 ●...

  • Page 28: Set To Default

    ® 802.11ad/ay common settings R&S SMW-K141/-K177 General settings Remote command: on page 73 [:SOURce<hw>]:BB:WLAD:STATe Set to Default Calls the default settings. The values of the main parameters are listed in the following table. Parameter Value "State" Not affected by the "Set to Default"...

  • Page 29: Dmg Phy Mode/Edmg Phy Mode

    ® 802.11ad/ay common settings R&S SMW-K141/-K177 General settings Remote command: on page 71 [:SOURce<hw>]:BB:WLAD:FTYPe DMG PHY Mode/EDMG PHY Mode Selects the DMG or EDMG physical layer (PHY) mode. "DMG Control" DMG control PHY mode "DMG Single Carrier" DMG single carrier (SC) PHY mode "EDMG Single Carrier"...

  • Page 30: Frame Configuration

    ® 802.11ad/ay common settings R&S SMW-K141/-K177 Frame configuration Filter/Clipping Accesses the dialog for setting baseband filtering and clipping, see Chapter 6.1, "Filter/ clipping settings", on page 59. 3.2 Frame configuration Access: ► Select "IEEE 802.11ad/ay" > "Frame Configuration". The dialog provides settings to configure the frame parameters.

  • Page 31: Data Settings

    ® 802.11ad/ay common settings R&S SMW-K141/-K177 Data settings 3.3 Data settings Access: 1. Select "Frame Configuration" > "PPDU Configuration" 2. Select "Data". The dialog provides configure data settings of a PPDU. These settings are com- mon to 802.11ad and 802.11ay PPDUs.

  • Page 32: A-Mpdu Settings

    ® 802.11ad/ay common settings R&S SMW-K141/-K177 A-MPDU settings – Use the standard "File Manager" function to transfer external data lists to the instrument. See also: ● Section "Modulation Data" in the R&S SMW user manual. ● Section "File and Data Management" in the R&S SMW user manual.
  • Page 33 ® 802.11ad/ay common settings R&S SMW-K141/-K177 A-MPDU settings The dialog provides settings to configure A-MPDU parameters. Settings: Number of MPDUs......................33 A-MPDU Length......................33 A-MPDU data settings....................33 Data Length (bytes).......................33 Data/DList / Pattern.......................33 Number of MPDUs Determines the number of MPDUs in the frame.

  • Page 34: Mac Header And Fcs Settings

    ® 802.11ad/ay common settings R&S SMW-K141/-K177 MAC header and FCS settings – Use the "New" and "Edit" functions to create internally new data list or to edit an existing one. – Use the standard "File Manager" function to transfer external data lists to the instrument.
  • Page 35 ® 802.11ad/ay common settings R&S SMW-K141/-K177 MAC header and FCS settings Settings: Header......................... 35 (checksum)......................35 Duration Id........................35 Address........................ 35 Sequence Control......................36 Start Number (hex)......................36 Increment Every......................37 QoS Ctrl (hex)....................... 37 Frame Body........................37 FCS..........................37 Frame Control (hex)/MAC Frame Control Field............
  • Page 36 ® 802.11ad/ay common settings R&S SMW-K141/-K177 MAC header and FCS settings Sequence Control Activates the sequence control field. The sequence control field has a length of 2 bytes and is divided in two parts, the frag- ment number (4 bits) and the sequence number (12 bits) field. A long user data stream to be transmitted is first split up into MAC service data units (MSDU).
  • Page 37 ® 802.11ad/ay common settings R&S SMW-K141/-K177 MAC header and FCS settings Remote command: [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:SCONtrol:SEQuence:STARt on page 98 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:SCONtrol:FRAGment:STARt on page 97 Increment Every Defines the number of packets required to increment the counter of the fragment bits or the sequence bits of the sequence control.
  • Page 38 ® 802.11ad/ay common settings R&S SMW-K141/-K177 MAC header and FCS settings Remote command: on page 96 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:FCONtrol on page 96 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:FCONtrol:CFEXtension on page 96 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:FCONtrol:FDS on page 96 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:FCONtrol:MDATa on page 96 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:FCONtrol:MFRagments on page 96 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:FCONtrol:ORDer on page 96 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:FCONtrol:PFRame...

  • Page 39: 802.11Ad Configuration And Settings

    ® 802.11ad configuration and settings R&S SMW-K141/-K177 PPDU configuration 4 802.11ad configuration and settings Access: ► Select "Baseband" > "IEEE 802.11ad/ay". The remote commands required to define these settings are described in Chapter 7.6, "802.11ad frame configuration commands", on page 87.
  • Page 40 ® 802.11ad configuration and settings R&S SMW-K141/-K177 PPDU configuration The tab provides general settings to configure modulation and coding scheme of the 802.11ad PPDU. For the configuration of the stream settings, the modulation and coding scheme and the PSDU bit rate.
  • Page 41 ® 802.11ad configuration and settings R&S SMW-K141/-K177 PPDU configuration DMG PHY mode Modulation Repetition Code rate Data rate (Mbit/s) π/2 16QAM DMG Single Carrier 12.2 5390 π/2 64QAM DMG Single Carrier 12.3 5775 π/2 64QAM DMG Single Carrier 12.4 6390 π/2 64QAM...

  • Page 42: Header Settings

    ® 802.11ad configuration and settings R&S SMW-K141/-K177 PPDU configuration Scrambler Init (hex) Requires "Scrambler" > "On". Enters the initialization value for the scrambler, which is then identical in each gener- ated frame. Remote command: on page 92 [:SOURce<hw>]:BB:WLAD:PCONfig:SCRambler:PATTern 4.1.2 Header settings Access: 1.
  • Page 43 ® 802.11ad configuration and settings R&S SMW-K141/-K177 PPDU configuration Packet Type Displays or sets the packet type. Setting requires training length higher than zero, see "Training Length" on page 43. Selectable packet types depend on the PHY format: ● DMG format: Packet type is a receive training packet (TRN-R) or transmit training packet (TRN-T).
  • Page 44 ® 802.11ad configuration and settings R&S SMW-K141/-K177 PPDU configuration Where N is the number of data octets in the PSDU, and BaseLength1/BaseLength2 are values that vary according to the selected MCS. Remote command: on page 90 [:SOURce<hw>]:BB:WLAD:PCONfig:EMINdication User Manual 1178.2609.02 ─ 13...

  • Page 45: 802.11Ay Configuration And Settings

    ® 802.11ay configuration and settings R&S SMW-K141/-K177 General settings 5 802.11ay configuration and settings Access: ► Select "Baseband" > "IEEE 802.11ad/ay". The "IEEE 802.11ad/ay" dialog provides general settings, The remote commands required to define these settings are described in Chapter 7.7, "802.11ay frame configuration...

  • Page 46: Ppdu Configuration (Frame Block 1)

    ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration (frame block 1) Remote command: on page 104 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:BW 5.2 PPDU configuration (frame block 1) Access: 1. Select "IEEE 802.11ad/ay" > "General". 2. Select "EDMG PHY Mode" > "EDMG Single Carrier".
  • Page 47 ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration (frame block 1) 2. Select "EDMG General". The tab provides general settings of the EDMG PPDU for the first frame block. Settings: Spatial Streams......................47 Apply........................47 Minimum Duration of Data.................... 47 Aggregation......................47 Spatial Streams Displays the number of spatial streams that is one spatial stream.
  • Page 48 ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration (frame block 1) 5.2.1.2 EDMG L-Header settings Access: 1. Select "PPDU Configuration" > "General". 2. Select "EDMG L-Header". The tab provides settings of the L-Header field of the EDMG PPDU. Settings: Preamble/Header Active....................
  • Page 49 ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration (frame block 1) Selectable packet types depend on the PHY format: ● DMG format: Packet type is a receive training packet (TRN-R) or transmit training packet (TRN-T). ● EDMG format: Packet type is a receive training packet (TRN-R), transmit training packet (TRN-T) or receive/transmit training packet (TRN-R/T).
  • Page 50 ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration (frame block 1) If "Training Length = 0", the beam tracking request filed is reserved and it cannot be activated. Remote command: on page 88 [:SOURce<hw>]:BB:WLAD:PCONfig:BTRequest:STATe GI Type Selects the type of the guard interval (GI). You can select between GI types short, nor- mal or long.
  • Page 51 ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration (frame block 1) Primary Channel......................52 Beamformed........................52 Long LDPC........................52 STBC..........................52 PI/2-8-PSK Applied....................... 52 Superimposed Code..................... 53 First Path Training......................53 Dual Polarization TRN Training..................53 NUC..........................53 Training Length......................53 RX TRN-Units per Each TX TRN-Unit................
  • Page 52 ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration (frame block 1) Primary channel Channel configuration Channel bandwidth 2.16 GHz 20, 21 4.32 GHz 2.16 GHz 4.32 GHz See also "Bandwidth" on page 45. Remote command: on page 105 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:CCONfig...
  • Page 53 ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration (frame block 1) If activated, applies LDPC shortening code with rates 2/3 or 5/6 at the transmitter for MCS 12 or 13, as indicated within the EDMG-MCS field. The bit in the π/2-8-PSK Applied field is 1.
  • Page 54 ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration (frame block 1) Remote command: on page 93 [:SOURce<hw>]:BB:WLAD:PCONfig:TLENgth RX TRN-Units per Each TX TRN-Unit Sets the number of receive (RX) TRN units per transmit (TX) TRN unit. This field is an 8-bit field and is reserved, if the value of the EDMG TRN Length field is Otherwise, the value of this field plus one indicates the number of consecutive TRN- Units in the TRN field.

  • Page 55: User Configuration Settings

    ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration (frame block 1) For an EDMG SC mode PPDU, this field is reserved, if the value of the EDMG TRN Length field is 0. Otherwise, this subfield indicates the length of the Golay sequence used to transmit the TRN subfields present in the TRN field of the PPDU.

  • Page 56: Ppdu Configuration Per User

    ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration per user All MU-MIMO users share one resource unit (RU) using different space time streams. Remote command: on page 109 [:SOURce<hw>]:BB:WLAY:PCONfig:UCONfig:MIMO:STATe PPDU Accesses a dialog to configure individual PPDUs of the respective user.
  • Page 57 ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration per user 2. Select "PPDU Configuration" > "General". The tab provides settings to configure the modulation and coding scheme (MCS) of a SU PPDU. Settings: Base MCS........................57 Data Rate........................58 Modulation........................58...

  • Page 58: Data Settings

    ® 802.11ay configuration and settings R&S SMW-K141/-K177 PPDU configuration per user Base MCS Modulation Rep. Data rate (Mbit/s) code Short GI Normal GI Long GI π/2-16QAM ×3300 ×3080 ×2640 π/2-8PSK ×3300 ×3080 ×2640 π/2-64QAM ×4950 ×4620 ×3960 π/2-64NUC ×4950 ×4620 ×3960...

  • Page 59: Signal Generation Control

    ® Signal generation control R&S SMW-K141/-K177 Filter/clipping settings 6 Signal generation control This section lists settings for configuring the baseband filter, for defining the signal gen- eration start and for generating signals necessary for synchronization with other instru- ments. It covers the following topics: ●...
  • Page 60 ® Signal generation control R&S SMW-K141/-K177 Filter/clipping settings Settings: Filter..........................60 Rolloff Factor or BxT..................... 60 Cut Off Frequency Factor....................60 Cut Off Frequency Shift....................60 Chip Rate Variation....................... 60 Filter Selects the baseband filter. Remote command: on page 76 [:SOURce<hw>]:BB:WLAD:FILTer:TYPE Rolloff Factor or BxT Sets the filter parameter.

  • Page 61: Clipping Settings

    ® Signal generation control R&S SMW-K141/-K177 Filter/clipping settings The chip rate entry changes the output clock, the modulation bandwidth and synchroni- zation output signals. It does not affect the calculated chip sequence. Remote command: on page 77 [:SOURce<hw>]:BB:WLAD:SRATe:VARiation 6.1.2 Clipping settings Access: ►...

  • Page 62: Trigger Settings

    ® Signal generation control R&S SMW-K141/-K177 Trigger settings Clipping Mode Selects the clipping method. The dialog displays a graphical illustration on how this two methods work. ● "Vector | i + jq |" The limit is related to the amplitude | i + q |. The I and Q components are mapped together, the angle is retained.
  • Page 63 ® Signal generation control R&S SMW-K141/-K177 Trigger settings Routing and enabling a trigger The provided trigger signals are not dedicated to a particular connector. Trigger signals can be mapped to one or more USER x or T/M connectors. Use the...
  • Page 64 ® Signal generation control R&S SMW-K141/-K177 Trigger settings An "Arm" stops the signal generation. A subsequent trigger event (internal or exter- nal) causes a restart. ● "Armed Retrigger" The signal is generated only when a trigger event occurs. Then the signal is gener- ated continuously.
  • Page 65 ® Signal generation control R&S SMW-K141/-K177 Trigger settings Trigger Source ← Trigger Settings Common to All Basebands The following sources of the trigger signal are available: ● "Internal" The trigger event is executed manually by the "Execute Trigger". ● "Internal (Baseband A/B)"...
  • Page 66 ® Signal generation control R&S SMW-K141/-K177 Trigger settings Remote command: [:SOURce<hw>]:BB:WLAD:TRIGger:EXTernal:SYNChronize:OUTPut on page 78 External Inhibit/Trigger Inhibit ← Trigger Settings Common to All Basebands Applies for external trigger signal or trigger signal from the other path. Sets the duration with that any following trigger event is suppressed. In "Retrigger"...

  • Page 67: Marker Settings

    ® Signal generation control R&S SMW-K141/-K177 Marker settings 6.3 Marker settings Access: ► Select "IEEE 802.11ad/ay" > "Marker". The tab provides settings to select and configure the marker output signal, like marker mode and marker delay. This section focuses on the available settings.
  • Page 68 ® Signal generation control R&S SMW-K141/-K177 Marker settings "Frame Active Part / Frame Inactive Part" A marker signal is generated to mark every active part of each frame.The active data transfer part (PPDU) of a frame period is marked with high, the inactive part (idle time) with low. This marker can be used to decrease the carrier leakage during inactive signal parts by feeding it into the pulse modulator.

  • Page 69: Clock Settings

    ® Signal generation control R&S SMW-K141/-K177 Local and global connectors settings Variation of the parameter "Marker x Delay" causes signal recalculation. Remote command: on page 83 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:DELay 6.4 Clock settings Access: ► Select "IEEE 802.11ad/ay" > "Clock". The tab provides settings to select and configure the clock source.

  • Page 70: Remote-Control Commands

    ® Remote-control commands R&S SMW-K141/-K177 7 Remote-control commands The following commands are required to perform signal generation with the IEEE 802.11ad/ay options in a remote environment. We assume that the R&S SMW has already been set up for remote operation in a network as described in the R&S SMW documentation.

  • Page 71: General Commands

    ® Remote-control commands R&S SMW-K141/-K177 General commands 7.1 General commands Example: Saving the current configuration SOURce1:BB:WLAD:SETTing:STORe /var/user/wlanad_single_carrier // Reset all instrument settings. *RST // Or reset 802.11ad/ay specific settings within this digital standard. SOURce1:BB:WLAD:SETTing:PRESet SOURce1:BB:WLAD:SETTing:CATalog? // Response: "wlanad_single_carrier, wlanad_1" SOURce1:BB:WLAD:SETTing:LOAD /var/user/wlanad_single_carrier SOURce1:BB:WLAD:SLENgth? // Response in number of frames: "1"...
  • Page 72 ® Remote-control commands R&S SMW-K141/-K177 General commands Parameters: <FTYPE> DATA *RST: DATA Manual operation: "Frame Type" on page 28 [:SOURce<hw>]:BB:WLAD:PRESet Sets the parameters of the digital standard to their default values (*RST values speci- fied for the commands). Not affected is the state set with the command :BB:WLAD:STATe.
  • Page 73 ® Remote-control commands R&S SMW-K141/-K177 General commands The directory is set using the command MMEM:CDIRectory. A path can also be speci- fied, in which case the files in the specified directory are read. The file extension may be omitted. Only files with the file extension *.wlanad are loaded..

  • Page 74: Filter/Clipping Commands

    ® Remote-control commands R&S SMW-K141/-K177 Filter/clipping commands Example: MMEM:CDIR '/var/user/temp/waveform' Sets the default directory to /var/user/temp/waveform. BB:WLAD:WAV:CRE 'wlad_1' Creates the waveform file wlad_1.wv in the default directory. Usage: Setting only Manual operation: "Generate Waveform File" on page 28 7.2 Filter/clipping commands...
  • Page 75 ® Remote-control commands R&S SMW-K141/-K177 Filter/clipping commands ............76 [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:SPHase ................76 [:SOURce<hw>]:BB:WLAD:FILTer:TYPE ..............77 [:SOURce<hw>]:BB:WLAD:SRATe:VARiation [:SOURce<hw>]:BB:WLAD:CLIPping:LEVel <Level> Sets the limit for level clipping. This value indicates at what point the signal is clipped. It is specified as a percentage, relative to the highest level. 100% indicates that clip- ping does not take place.
  • Page 76 ® Remote-control commands R&S SMW-K141/-K177 Filter/clipping commands [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:APCO25 <Apco25> [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:COSine <Cosine> [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:COSine:COFS <CoFs> [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:GAUSs <Gauss> [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:LPASs <LPass> [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:LPASSEVM <LPassevm> [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:PGAuss <PGauss> [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:RCOSine <RCosine> [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:SPHase <SPhase> Sets filter parameters related to the filter type. The table below provides an overview. Filter type...

  • Page 77: Trigger Settings

    ® Remote-control commands R&S SMW-K141/-K177 Trigger settings Manual operation: "Filter" on page 60 [:SOURce<hw>]:BB:WLAD:SRATe:VARiation <Variation> Sets the sample rate variation. Parameters: <Variation> float Range: 4E2 to 3000E6 Increment: 1E-3 *RST: 1760E6 Example: Example"Configuring filter and clipping settings" on page 74.
  • Page 78 ® Remote-control commands R&S SMW-K141/-K177 Trigger settings ..............79 [:SOURce<hw>]:BB:WLAD:TRIGger:RMODe? ..............79 [:SOURce<hw>]:BB:WLAD:TRIGger:SLENgth ...............80 [:SOURce<hw>]:BB:WLAD:TRIGger:SLUNit ..............80 [:SOURce<hw>]:BB:WLAD:TRIGger:SOURce ............81 [:SOURce<hw>]:BB:WLAD:TRIGger[:EXTernal]:DELay ............81 [:SOURce<hw>]:BB:WLAD:TRIGger[:EXTernal]:INHibit ..............81 [:SOURce<hw>]:BB:WLAD[:TRIGger]:SEQuence [:SOURce<hw>]:BB:WLAD:TRIGger:ARM:EXECute Stops signal generation for trigger modes Armed_Auto and Armed_Retrigger. A subse- quent internal or external trigger event restart signal generation.
  • Page 79 ® Remote-control commands R&S SMW-K141/-K177 Trigger settings Parameters: <Delay> float Range: 0 to 65535 Increment: 0.01 *RST: Example: Example"Configure and enable triggering" on page 77. Manual operation: "Trigger Delay" on page 66 [:SOURce<hw>]:BB:WLAD:TRIGger:OBASeband:INHibit <Inhibit> Specifies the number of samples by which a restart is to be inhibited following a trigger event.
  • Page 80 ® Remote-control commands R&S SMW-K141/-K177 Trigger settings It is possible to output just part of the frame, an exact sequence of the frame, or a defined number of repetitions of the frame. Parameters: <Slength> integer Range: 1 to 4294967295 *RST: Example: Example"Configure and enable triggering"...
  • Page 81 ® Remote-control commands R&S SMW-K141/-K177 Trigger settings Parameters: <Source> INTB | INTernal | OBASeband | EGT1 | EGT2 | EGC1 | EGC2 | ELTRigger | INTA | ELCLock | BEXTernal | EXTernal | BBSY *RST: INTernal Example: Example"Configure and enable triggering"...

  • Page 82: Marker Settings

    ® Remote-control commands R&S SMW-K141/-K177 Marker settings AAUTo The modulation signal is generated only when a trigger event occurs. After the trigger event the signal is generated continu- ously. Signal generation is stopped with command SOUR:BB:WLAD:TRIG:ARM:EXEC and started again when a trigger event occurs.
  • Page 83 ® Remote-control commands R&S SMW-K141/-K177 Marker settings ............83 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:DELay ..........83 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:FESHift ..........83 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:FINDex ............84 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:MODE ..........85 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:ONTime ..........85 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:OFFTime ..........85 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:PATTern ........85 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:PULSe:DIVider .......86 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:PULSe:FREQuency? ..........86 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:RESHift [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:DELay <Delay> Defines the delay between the signal on the marker outputs and the start of the signal.
  • Page 84 ® Remote-control commands R&S SMW-K141/-K177 Marker settings [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:MODE <Mode> Sets the marker mode. Parameters: <Mode> RESTart | FBLock | FRAMe | FAPart | PULSe | PATTern | RATio | FIPart RESTart A marker signal is generated at the start of each signal sequence (period = all frame blocks).
  • Page 85 ® Remote-control commands R&S SMW-K141/-K177 Marker settings [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:ONTime <OnTime> [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:OFFTime <OffTime> Sets the duration during which the marker output is on or off. If R&S SMW-B9 is installed, the minimum marker duration depends on the sample/ symbol rate. See chapter "Basics on ..." in the R&S SMW user manual.

  • Page 86: Clock Commands

    ® Remote-control commands R&S SMW-K141/-K177 Clock commands Example: Example"Configure and enable pulse marker signals" on page 82. Manual operation: "Marker Mode" on page 67 [:SOURce<hw>]:BB:WLAD:TRIGger:OUTPut<ch>:PULSe:FREQuency? Queries the pulse frequency of the pulsed marker signal in the setting SOURce:BB:WLAD:TRIGger:OUTPut:MODE PULSe. The pulse frequency is derived by dividing the symbol rate by the divider.

  • Page 87: Ad Frame Configuration Commands

    ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands [:SOURce<hw>]:BB:WLAD:CLOCk:SOURce <Source> Selects the clock source. Parameters: <Source> INTernal INTernal The instrument uses its internal clock reference. *RST: INTernal Example: Example"Configuring clock settings" on page 86. Options: ELCLock requires R&S SMW-B10 Manual operation: "Clock Source"...

  • Page 88: Frame Block Ppdu Configuration

    ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands 7.6.2 Frame block PPDU configuration ............88 [:SOURce<hw>]:BB:WLAD:PCONfig:BTRequest:STATe ............88 [:SOURce<hw>]:BB:WLAD:PCONfig:CODing:RATE ............88 [:SOURce<hw>]:BB:WLAD:PCONfig:CODing:TYPE .................89 [:SOURce<hw>]:BB:WLAD:PCONfig:DATA ............89 [:SOURce<hw>]:BB:WLAD:PCONfig:DATA:DSELection ............89 [:SOURce<hw>]:BB:WLAD:PCONfig:DATA:LENGth ............90 [:SOURce<hw>]:BB:WLAD:PCONfig:DATA:PATTern ..............90 [:SOURce<hw>]:BB:WLAD:PCONfig:DATA:RATE? ..............90 [:SOURce<hw>]:BB:WLAD:PCONfig:EMINdication ................90 [:SOURce<hw>]:BB:WLAD:PCONfig:LRSSi ................91 [:SOURce<hw>]:BB:WLAD:PCONfig:MCS ..............
  • Page 89 ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands Parameters: <Type> LDPC LDPC Low-density parity-check (LDPC) coding *RST: LDPC Manual operation: "Channel Coding" on page 41 [:SOURce<hw>]:BB:WLAD:PCONfig:DATA <Data> Sets the data source. Parameters: <Data> ZERO | ONE | PATTern | PN9 | PN11 | PN15 | PN16 | PN20 |...
  • Page 90 ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands Parameters: <Length> integer Range: 1 to 262107 *RST: 1024 Manual operation: "Data Length" on page 32 "A-MPDU Length" on page 32 [:SOURce<hw>]:BB:WLAD:PCONfig:DATA:PATTern <Pattern>, <BitCount> Sets the data pattern if :BB:WLAD:PCON:DATA PATT.
  • Page 91 ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands Parameters: <LRssi> NA | M68 | M67 | M65 | M63 | M61 | M59 | M57 | M55 | M53 | M51 | M49 | M47 | M45 | M43 | M42...
  • Page 92 ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands ● EDMG format: Packet type is a receive training packet (TRN-R), transmit training packet (TRN-T) or receive/transmit training packet (TRN-R/T). Parameters: <PType> TRNR | TRNT | TRNTR TRNR Receive training packet. The data part of a packet is followed by one or more TRN-R subfields;...

  • Page 93: Frame Block Mpdu Configuration

    ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands <BitCount> integer Range: 1 to 4 *RST: Manual operation: "Scrambler Init (hex)" on page 42 [:SOURce<hw>]:BB:WLAD:PCONfig:TARound:STATe <TAround> Activates turnaround. Parameters: <TAround> 1 | ON | 0 | OFF *RST: Manual operation: "Turnaround"...
  • Page 94 ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands The lists are stored as files with the fixed file extensions *.dm_iqd in a directory of the user's choice. Parameters: <Filename> string Manual operation: "Data/DList / Pattern" on page 33 [:SOURce<hw>]:BB:WLAD:PCONfig:MPDU<st>:DATA:LENGth <Length>...

  • Page 95: Mac Header Configuration

    ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands PATTern Internal data is used. The bit pattern for the data is defined by the command BB:WLAD:FBL<ch>:MPDU<st>:DATA:PATT. *RST: Manual operation: "Data/DList / Pattern" on page 33 7.6.4 MAC header configuration ............ 95 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:ADDRess<st>...
  • Page 96 ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands Parameters: <State> 1 | ON | 0 | OFF *RST: Manual operation: "MAC Address" on page 35 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:DID <Did> Sets the value of the duration ID field. Depending on the frame type, the 2-byte field Duration/ID is used to transmit the association identity of the station transmitting the frame or it indicates the duration assigned to the frame type.
  • Page 97 ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:FCS:STATe <State> Activates/deactivates the calculation of the frame check sequence (FCS) . Parameters: <State> 1 | ON | 0 | OFF *RST: Manual operation: "FCS (checksum)" on page 35 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:QSControl <QsControl>...
  • Page 98 ® Remote-control commands R&S SMW-K141/-K177 802.11ad frame configuration commands [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:SCONtrol:SEQuence:INCRement <Increment> Sets the number of packets required to increment the counter of the sequence bits of the sequence control. Parameters: <Increment> integer Range: 0 to 1024 *RST: Manual operation: "Increment Every"...

  • Page 99: Ay Frame Configuration Commands

    ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands 7.7 802.11ay frame configuration commands Example: Configuring EDMG general settings // ***************************************************************************** // Set for EDMG SC PHY mode and configure general settings. // ***************************************************************************** SOURce1:BB:WLAD:DPMode ESINgle SOURce1:BB:WLAY:PCONfig:HDA:BW? // Response: "BW216"...
  • Page 100 ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands SOURce1:BB:WLAD:PCONfig:CODing:RATE? // Response: "CR1D2" // Code rate is 1/2. SOURce1:BB:WLAD:PCONfig:DATA:RATE? // Response in Mbit/s: "770" Example: Configuring user settings // ***************************************************************************** // Set for EDMG SC PHY mode and configure general settings.

  • Page 101: Edmg General Commands

    ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands 7.7.1 EDMG general commands ............. 101 [:SOURce<hw>]:BB:WLAY:PCONfig:BSBNumber ..............101 [:SOURce<hw>]:BB:WLAY:PCONfig:CSDState ...............101 [:SOURce<hw>]:BB:WLAY:PCONfig:PSK:STATe ..............101 [:SOURce<hw>]:BB:WLAY:PCONfig:SSNumber ............102 [:SOURce<hw>]:BB:WLAY:PCONfig:TRAGgregate [:SOURce<hw>]:BB:WLAY:PCONfig:BSBNumber <BrpMinScBlkNum> Sets the minimum duration of data. Parameters: <BrpMinScBlkNum> integer Range: 1 to 18...

  • Page 102: L-Header Commands

    ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands Parameters: <SSNum> integer Range: 1 to 8 *RST: Example: Example"Configuring EDMG general settings" on page 99. Manual operation: "Spatial Streams" on page 47 [:SOURce<hw>]:BB:WLAY:PCONfig:TRAGgregate <TrnAggregate> Sets the training (TRN) aggregation mode.

  • Page 103: Edmg-Header-A Commands

    ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands Manual operation: "Additional PPDU" on page 49 [:SOURce<hw>]:BB:WLAY:PCONfig:LHDR:GITYpe <GiType> Selects the type of the guard interval (GI). You can select between GI types short, nor- mal or long. Parameters: <GiType> SHORT | NORMAL | LONG...
  • Page 104 ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands Parameters: <Aggregate> 1 | ON | 0 | OFF *RST: Example: Example"Configuring EDMG header settings" on page 99. Manual operation: "Channel Aggregate" on page 51 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:BF:STATe <Beamforming> If activated, applies digital beamforming.
  • Page 105 ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:CCONfig <ChannelConfig> Sets the channel configuration that is the configuration 2.16 GHz and 4.32 GHz chan- nels. Parameters: <ChannelConfig> integer Range: 1 to 176 *RST: Example: Example"Configuring EDMG header settings" on page 99.
  • Page 106 ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:MU:STATe <MuState> Queries the multi-user (MU) format state that is off. Parameters: <MuState> 1 | ON | 0 | OFF *RST: Example: Example"Configuring EDMG header settings" on page 99. Manual operation: "MU Format"...
  • Page 107 ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:STBC:STATe <STBC> Queries the state of space-time block coding that is off. Parameters: <STBC> 1 | ON | 0 | OFF *RST: Example: Example"Configuring EDMG header settings" on page 99. Manual operation: "STBC"...

  • Page 108: Edmg-Header-B Commands

    ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:TSL <TrnSeqLen> Sets training sequence length as set with the 2-bit subfield "Sequence Length" of the TRN field. Parameters: <TrnSeqLen> NORMAL | LONG | SHORT NORMAL Normal sequence length of 128 × N with subfield value 0.

  • Page 109: User Commands

    ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands [:SOURce<hw>]:BB:WLAY:PCONfig:HDB:SIC:STATe <SuperimposedCod> If activated, applies superimposed code with LDPC codewords. Parameters: <SuperimposedCod> 1 | ON | 0 | OFF *RST: Example: Example"Configuring EDMG header settings" on page 99. Manual operation: "Superimposed Code"...
  • Page 110 ® Remote-control commands R&S SMW-K141/-K177 802.11ay frame configuration commands Parameters: <UsrStateId> integer Range: 1 to 2047 *RST: Example: Example"Configuring user settings" on page 100. Manual operation: "STA Id" on page 55 [:SOURce<hw>]:BB:WLAY:PCONfig:USRNumber <UsrNum> Queries the number of users. The maximum number of users equals the maximum number of spatial streams that is Parameters: <UsrNum>...

  • Page 111: Glossary: List Of Terms And Abbreviations

    ® Glossary: List of terms and abbreviations R&S SMW-K141/-K177 Glossary: List of terms and abbreviations A-MPDU: Aggregate MPDU DMG: Directional multi-gigabit DTP: Dynamic tone pairing EDMG: Enhanced directional multi-gigabit FEC: Forward error correction MAC: Media access control MCS: Modulation and coding scheme...

  • Page 112: Glossary: Ieee 802.11Ad/Ay References

    ® Glossary: IEEE 802.11ad/ay references R&S SMW-K141/-K177 Glossary: IEEE 802.11ad/ay references Symbols 1MA220: Rohde & Schwarz white paper "802.11ad - WLAN at 60 GHz A Technology Introduction": https://www.rohde-schwarz.com/appnote/1MA220.htm IEEE Std 802.11ad™-2012: "Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications"...

  • Page 113: List Of Commands

    ® List of commands R&S SMW-K141/-K177 List of commands [:SOURce<hw>]:BB:WLAD:CLIPping:LEVel....................75 [:SOURce<hw>]:BB:WLAD:CLIPping:MODE....................75 [:SOURce<hw>]:BB:WLAD:CLIPping:STATe....................75 [:SOURce<hw>]:BB:WLAD:CLOCk:SOURce....................87 [:SOURce<hw>]:BB:WLAD:DPMode.......................71 [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:APCO25................76 [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:COSine..................76 [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:COSine:COFS...............76 [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:GAUSs.................. 76 [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:LPASs..................76 [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:LPASSEVM................76 [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:PGAuss................. 76 [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:RCOSine................76 [:SOURce<hw>]:BB:WLAD:FILTer:PARameter:SPHase................. 76 [:SOURce<hw>]:BB:WLAD:FILTer:TYPE......................76 [:SOURce<hw>]:BB:WLAD:FTYPe........................71 [:SOURce<hw>]:BB:WLAD:ITIMe........................87 [:SOURce<hw>]:BB:WLAD:PCONfig:BTRequest:STATe................88 [:SOURce<hw>]:BB:WLAD:PCONfig:CODing:RATE..................88 [:SOURce<hw>]:BB:WLAD:PCONfig:CODing:TYPE..................88 [:SOURce<hw>]:BB:WLAD:PCONfig:DATA....................
  • Page 114 ® List of commands R&S SMW-K141/-K177 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:SCONtrol:FRAGment:STARt............97 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:SCONtrol:SEQuence:INCRement..........98 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:SCONtrol:SEQuence:STARt............98 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:SCONtrol:STATe................98 [:SOURce<hw>]:BB:WLAD:PCONfig:MAC:STATe..................98 [:SOURce<hw>]:BB:WLAD:PCONfig:MCS......................91 [:SOURce<hw>]:BB:WLAD:PCONfig:MPDU:COUNt..................93 [:SOURce<hw>]:BB:WLAD:PCONfig:MPDU<st>:DATA:DSELection..............93 [:SOURce<hw>]:BB:WLAD:PCONfig:MPDU<st>:DATA:LENGth..............94 [:SOURce<hw>]:BB:WLAD:PCONfig:MPDU<st>:DATA:PATTern..............94 [:SOURce<hw>]:BB:WLAD:PCONfig:MPDU<st>:DATA:SOURce..............94 [:SOURce<hw>]:BB:WLAD:PCONfig:MTYPe....................91 [:SOURce<hw>]:BB:WLAD:PCONfig:PREamble:STATe................. 91 [:SOURce<hw>]:BB:WLAD:PCONfig:PTYPe....................91 [:SOURce<hw>]:BB:WLAD:PCONfig:REPetition.....................92 [:SOURce<hw>]:BB:WLAD:PCONfig:SCRambler:MODE................92 [:SOURce<hw>]:BB:WLAD:PCONfig:SCRambler:PATTern................92 [:SOURce<hw>]:BB:WLAD:PCONfig:TARound:STATe................... 93 [:SOURce<hw>]:BB:WLAD:PCONfig:TLENgth....................93 [:SOURce<hw>]:BB:WLAD:PRESet........................ 72 [:SOURce<hw>]:BB:WLAD:SETTing:CATalog?....................72 [:SOURce<hw>]:BB:WLAD:SETTing:DELete....................72...
  • Page 115 ® List of commands R&S SMW-K141/-K177 [:SOURce<hw>]:BB:WLAY:PCONfig:BSBNumber..................101 [:SOURce<hw>]:BB:WLAY:PCONfig:CSDState.................... 101 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:AGGRegate:STATe..............103 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:BF:STATe..................104 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:BMCS..................104 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:BW....................104 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:CCONfig..................105 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:LLDPc:STATe................105 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:MCS:DPT:STATe.................105 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:MCS:FPT:STATe................. 105 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:MU:STATe...................106 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:NUC:STATe.................106 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:PCHannel?................. 106 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:RTPT..................106 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:STBC:STATe................107 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:TRNM..................107 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:TRNN..................107 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:TRNP..................107 [:SOURce<hw>]:BB:WLAY:PCONfig:HDA:TSL..................... 108 [:SOURce<hw>]:BB:WLAY:PCONfig:HDB:DMCS..................108 [:SOURce<hw>]:BB:WLAY:PCONfig:HDB:SCRS..................108 [:SOURce<hw>]:BB:WLAY:PCONfig:HDB:SIC:STATe.................. 109 [:SOURce<hw>]:BB:WLAY:PCONfig:LHDR:ADDP:STATe................102 [:SOURce<hw>]:BB:WLAY:PCONfig:LHDR:GITYpe..................

  • Page 116: Index

    ® Index R&S SMW-K141/-K177 Index Symbols 802.11ad PPDU Data sheets ................. 9 Data length ..............32 Default settings ..............28 Data settings ............31, 42 Delay Data source ..............31 Trigger .................66 MCS ................40 DMG Header 802.11ay Beam tracking request .......... 43, 49 EDMG SC SU PPDU ..........
  • Page 117 ® Index R&S SMW-K141/-K177 Frame control ..............37 Root raised cosine filter Frame type ................ 28 See Root Cosine ............60 RRC filter See Root Cosine filter ..........60 General 802.11ay Bandwidth ..............45 Generate Safety instructions ............... 9 Waveform file .............. 28 Save/Recall ...............
