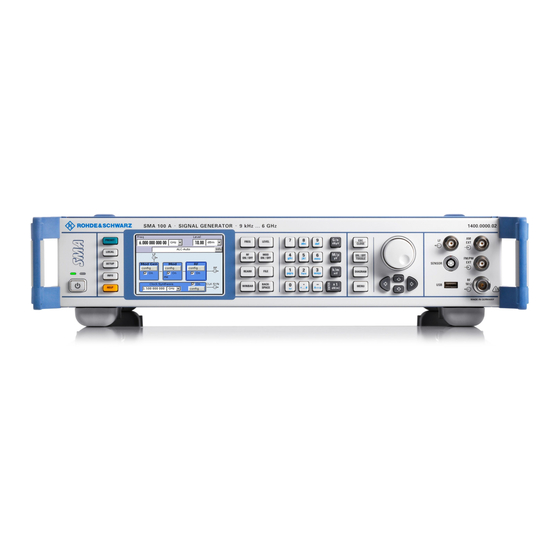

R&S
SMA100A
®
Signal Generator
Release Notes
Firmware Version 3.50.057.29
© 2016 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Munich, Germany
Phone: +49 89 41 29 - 0
Fax: +49 89 41 29 12 - 164
mailto:info@rohde-schwarz.com
E-mail:
http://www.rohde-schwarz.com
Internet:
Subject to change
®
R&S
is a registered trademark of Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners.
The firmware of the instrument makes use of several valuable open source software packages. For information, see the "Open Source Acknowledgment"
on the user documentation CD-ROM (included in delivery).
The following abbreviations are used throughout this document: R& S
®
SMA100A is abbreviated as R&S SMA100A.
Advertisement
Table of Contents
Related Manuals for Rohde & Schwarz R&S SMA100A
Summary of Contents for Rohde & Schwarz R&S SMA100A
- Page 1 R&S SMA100A ® Signal Generator Release Notes Firmware Version 3.50.057.29 © 2016 Rohde & Schwarz GmbH & Co. KG Muehldorfstr. 15, 81671 Munich, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 - 164 mailto:info@rohde-schwarz.com E-mail: http://www.rohde-schwarz.com Internet:...
-
Page 2: Table Of Contents
R&S SMA100A Table of Contents INFORMATION ON THE CURRENT VERSION AND HISTORY ..4 Special hints for particular instruments and firmware versions ..... 4 Version 3.50.057.29...................... 6 Version 3.01.102.20...................... 6 Version 3.01.102.17...................... 7 Version 3.01.102.14...................... 8 Version 3.01.102.11...................... 8 Version 2.20.470.33...................... 9 Version 2.20.470.30.................... - Page 3 R&S SMA100A 1.25 Version 2.04.299.02....................21 1.26 Version 2.02.149 ......................22 1.27 Version 2.02.136 ......................23 1.28 Version 2.02.102.01....................23 1.29 Version 2.02.91 ......................23 1.30 Version 2.02.76 ......................24 1.31 Version 2.01.11 ......................24 1.32 Version 2.00.43.01 ...................... 25 INFORMATION ON REMOTE CONTROL EMULATIONS .....
-
Page 4: Information On The Current Version And History
Information on the Current Version and History R&S SMA100A Information on the Current Version and History General information This document describes the procedure to apply a firmware update to the ® R&S SMA100A Signal Generator. It furthermore describes the differences between the several firmware versions. - Page 5 Information on the Current Version and History R&S SMA100A Instruments with firmware greater or equal than 3.01.102.11 The R&S® SMA100A firmware does not support the folder /var/sma furthermore. The folder will be deleted by the update process. All data stored in /var/sma will be moved to /var/user.
-
Page 6: Version 3.50.057.29
Information on the Current Version and History R&S SMA100A Furthermore, beginning with Version 2.05.68.13 the behavior of the key WINBAR changed. It now directly toggles between the open setting dialogs. It is not necessary to use the rotary knob. 1.2 Version 3.50.057.29 Released: August 2016 New Functionality ●... -
Page 7: Version 3.01.102.17
Information on the Current Version and History R&S SMA100A Right Frequency 0.5 Hz → 0.05 Hz COM/ID Frequency 0.1 Hz → 0.01 Hz MKR-BNC Modulation (R&S® SMA-K25): The resolution for the following parameters are increased: COM/ID Frequency 0.1 Hz → 0.01 Hz ... -
Page 8: Version 3.01.102.14
Information on the Current Version and History R&S SMA100A Fixed Issues ● DME Modulation (R&S® SMA-K26): Changing the pulse repetition rate has no effect, when DME mode is reply and squitter is on. ● In rare cases the level of the R&S® SMA100A is too high. Only if attenuator mode is set to High Power Mode and ALC state is set to off. -
Page 9: Version 2.20.470.33
Information on the Current Version and History R&S SMA100A – New selection Write Nonvolatile Memory: If it is set to disable, no data will be written to the mass memory storage of the device. – New selection User Interface: If it is set to disable, the display and the keyboard of the R&S®... -
Page 10: Version 2.20.470.30
Information on the Current Version and History R&S SMA100A 1.8 Version 2.20.470.30 Released: June 2013 Fixed Issues ● DME Modulation (R&S® SMA-K26) – The selection of the ICAO channels was too long. – The parameter Range Delay was wrong, if ICAO channels were selected. –... - Page 11 Information on the Current Version and History R&S SMA100A ● ILS-Loc/ILS-Gs Modulation (R&S® SMA-K25): The parameters are sorted in a different order for improved usability. ● DME Modulation (R&S® SMA-K26): The parameters are sorted in a different order for improved usability. ●...
-
Page 12: Version 2.15.185.25
Information on the Current Version and History R&S SMA100A ● IEEE488 GTL message potentially outruns last command header causing the instrument to re-enter the remote state (looks like GTL does not work) 1.10 Version 2.15.185.25 Released: September 2011 New Functionality ●... -
Page 13: Version 2.15.185.15
Information on the Current Version and History R&S SMA100A ● No valid DME pulse will be generated, if DME NRP trigger normalization failed due to missing connection between RF output and R&S® NRP-Z81 ● Wrong FM deviation, if the DME modulation was active before ●... - Page 14 Information on the Current Version and History R&S SMA100A ● Annotation of Frequency and Level displays can be disabled and enabled in SETUP Security ● Display can be deactivated to hide instrument settings. Configuration in SETUP Security or by SYSTem:DLOCk ON|OFF. ●...
-
Page 15: Version 2.10.001.31
Information on the Current Version and History R&S SMA100A ● The SCPI commands FREQ:CENT? MAX/MIN and FREQ:SPAN? MAX/MIN returns always the maximum/minimum RF frequency ● Level user step does not work correct as expected ● Remote control emulation Rohde & Schwarz SMGU: Ignore white spaces ●... -
Page 16: Version 2.10.001.22
Information on the Current Version and History R&S SMA100A Fixed Issues ● DME Modulation: ID Rate not correct 1.17 Version 2.10.001.22 Released: June 2009 New Functionality ● Pulse Train (Option R&S® SMA-K27) ● Remote control emulation Aeroflex 2023/2024 ● Remote control emulation Aeroflex 2050 ●... -
Page 17: Version 2.05.220.13
Information on the Current Version and History R&S SMA100A 1.18 Version 2.05.220.13 Released: December 2008 Fixed Issues ● File manger shows invalid directories ● Bugfix for selftest 1.19 Version 2.05.220.10 Released: November 2008 Modified Functionality ● Remote control emulation: The selected remote control emulation will be displayed in the info line Fixed Issues ●... -
Page 18: Version 2.05.68.18
Information on the Current Version and History R&S SMA100A ● New feature remote control emulation HP 8664/8665 Modified Functionality ● ILS-GS and ILS-LOC: New parameter DDM Polarity. In the default state this value is 90 Hz – 150 Hz ● All avionics modulation (Options R&S®... -
Page 19: Version 2.05.68.17
Information on the Current Version and History R&S SMA100A 1.22 Version 2.05.68.17 Released: May 2008 Fixed Issues ● Modulation ILS-GS/ILS-LOC: Entering DDM values less then -0.8 (ILS-GS) or less then -0.4 (ILS-LOC) crashes the software, if DMM is coupled to SDM 1.23 Version 2.05.68.13 Released: April 2008 New Functionality... -
Page 20: Version 2.05.04
Information on the Current Version and History R&S SMA100A ● New function “Factory Preset” (Setup-Menu) resets settings not covered by PRESET ● PRESET (*RST) does not affect reference oscillator settings any more Fixed Issues ● Remote Control: The command SOURce:POWer UP does not work ●... -
Page 21: Version 2.04.299.02
Information on the Current Version and History R&S SMA100A ● Modulation ILS: Resolution of ILS DDM changed from 1 µA to 0.1 µA (higher resolution) Fixed Issues ● The last selected remote control emulation, is not activated after startup ● Keyboard repetition rate to high ●... -
Page 22: Version 2.02.149
Information on the Current Version and History R&S SMA100A Fixed Issues ● Dialog ‘Reference Oscillator’: Input field for Adjustment DAC value too small ● Dialog ‘Frequency’: Rotary knob click on frequency crashes the firmware ● Dialog ‘Update’ doesn’t appears under setup menu ●... -
Page 23: Version 2.02.136
Information on the Current Version and History R&S SMA100A 1.27 Version 2.02.136 Released: October 2006 Fixed Issues ● An error message “Unhandled Interrupt …” occurred while executing adjustment ● Frequency steps from 2999.9 MHz to 3000.1 MHz with SMA-B20 are wrong ●... -
Page 24: Version 2.02.76
Information on the Current Version and History R&S SMA100A ● FM deviation: missing SCPI commands ● FM/PhiM: switching of input impedance incorrect ● CF-Cards could not be changed between different instruments 1.30 Version 2.02.76 Released: June 2006 New Functionality ● New sweep mode external start/stop Fixed Issues ●... -
Page 25: Version 2.00.43.01
Information on the Current Version and History R&S SMA100A Fixed Issues ● Problems with the merging of the ENTER and x1 key ● Input of Noise Bandwith (dialog LF Output) not possible with unit keys ● Level Sweep Dialog: The width of start freq and stop freq editbox increase ●... -
Page 26: Information On Remote Control Emulations
Information on remote control emulations R&S SMA100A Information on remote control emulations The R&S® SMA100A signal generators offer a remote control emulation feature that makes it possible to control the instrument by commands other than the built-in native SCPI commands. This feature allows the user to replace signal generators, e.g. from other manufacturers, with the R&S®... -
Page 27: Firmware Update
Firmware Update R&S SMA100A Firmware Update 3.1 Update Information The update procedure requires that the instrument is operational. There is no need to uninstall the current firmware. Instrument settings are preserved during the update, including user data and network settings. Rohde&Schwarz provides three different methods for applying a firmware update to the R&S®... - Page 28 Firmware Update R&S SMA100A Prepare Memory Stick Download update file to a PC. Connect USB stick to PC and copy the update file into the root directory. Wait until copy procedure has finished and remove USB stick. ®...
-
Page 29: Firmware Update Using R&S Firmware Update File Via Lan
Firmware Update R&S SMA100A Execute internal adjustments Risk of damage for device under test! During adjustment, assemblies without attenuator temporarily provide high power at the RF plug. This may cause damage to the device under test (DUT). Furthermore, those instruments require that the RF plug is terminated by 50 ohm during adjustment. So it is recommended to disconnect the DUT and replace it by a 50 ohm terminating resistor. - Page 30 Firmware Update R&S SMA100A The file manager shows several folders. Please copy the firmware update file to the folder Update. After copying the firmware update file to the folder Update. The update will be start automatically The update procedure may take several minutes. ...
-
Page 31: Firmware Update Using Iso Image
Firmware Update R&S SMA100A 3.4 Firmware update using ISO image Potential loss of data! User Data and user specific instrument settings will be lost during this procedure. Instrument serial number, software license keys and all adjustments requiring external measuring equipment are not affected. Required equipment Software: ... - Page 32 Firmware Update R&S SMA100A The instrument boots from external drive Follow the instructions on screen Disconnect the external USB device Reboot instrument If the CD refuses to boot please ensure that you have burned the ISO-image as an “image”...
-
Page 33: Customer Support
Customer Support R&S SMA100A Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz equipment, contact one of our Customer Support Centers. A team of highly qualified engineers provides telephone support and will work with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...
