Rohde & Schwarz SMBV-K52 Operating Manual

Rohde & Schwarz SMBV-K52 Operating Manual

Dvb-h digital standard for signal generators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

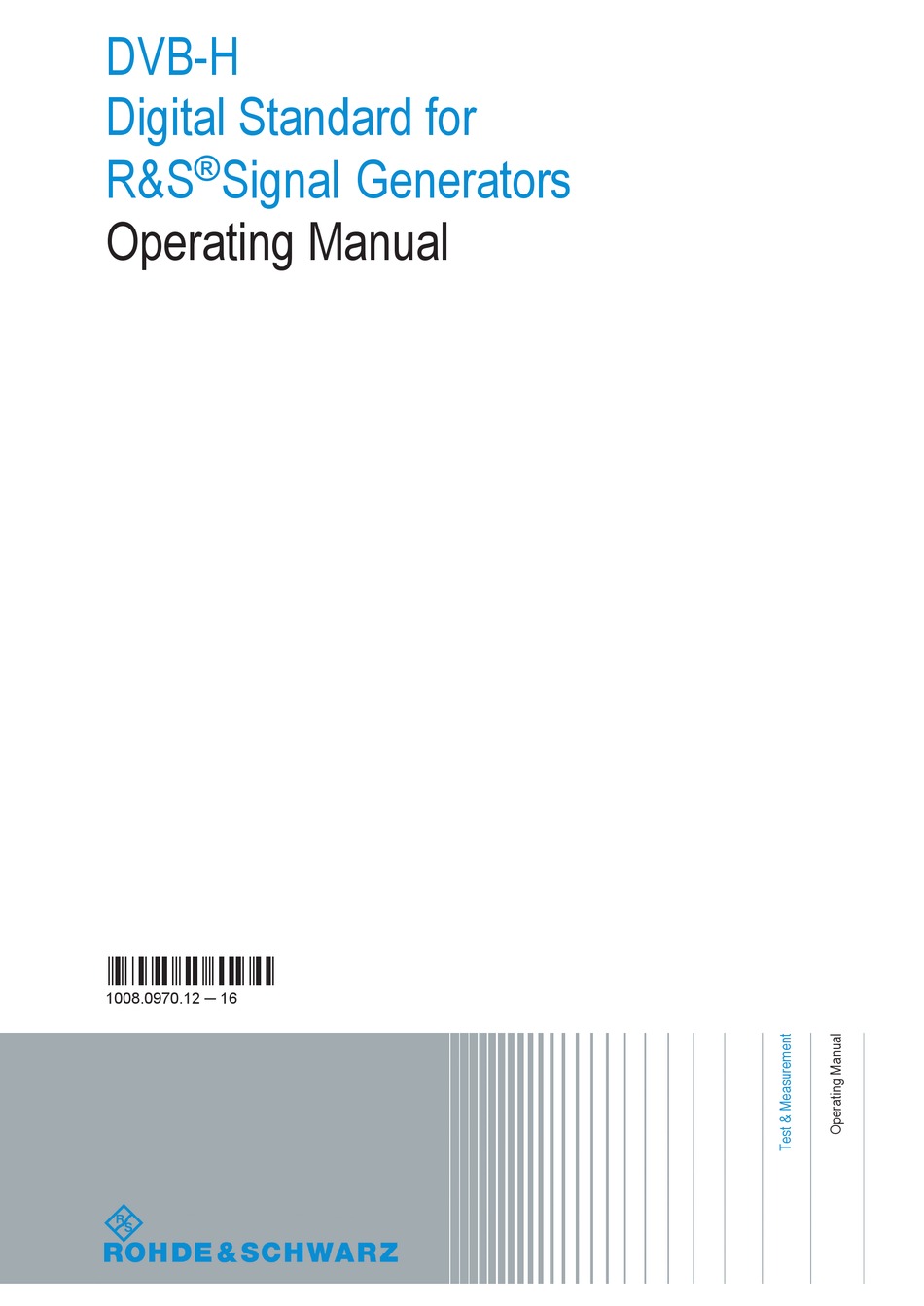

DVB-H
Digital Standard for
®
R&S
Signal Generators
Operating Manual
(:89Ô<)
1008.0970.12 ─ 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMBV-K52 and is the answer not in the manual?

Questions and answers

Related Manuals for Rohde & Schwarz SMBV-K52

Summary of Contents for Rohde & Schwarz SMBV-K52

  • Page 1 DVB-H Digital Standard for ® R&S Signal Generators Operating Manual (:89Ô<) 1008.0970.12 ─ 16...
  • Page 2 This document describes the following software options: ● R&S ® SMBV-K52 1415.8148.xx ● ® R&S SMU-K52 1408.7010.02 ● ® R&S AMU-K52 1402.9557.02 ● ® R&S SMATE-K52 1404.7800.02 ● ® R&S SMJ-K52 1404.2106.02 This manual version corresponds to firmware version: ®...

  • Page 3: Table Of Contents

    DVB-H Contents Contents 1 Preface....................5 Documentation Overview..................... 5 Conventions Used in the Documentation..............6 1.2.1 Typographical Conventions.....................6 1.2.2 Notes on Screenshots.....................7 1.2.3 Naming of Software Options................... 7 2 Introduction.................... 9 Modulation System DVB-H...................9 2.1.1 Pseudo Noise Scrambler....................9 2.1.2 Outer Coder........................10 2.1.3 Outer Interleaver......................
  • Page 4 DVB-H Contents 3.5.4 Clock Settings....................... 41 3.5.5 Global Settings......................43 4 Remote-control commands..............45 General Commands....................46 4.1.1 Primary Commands...................... 46 4.1.2 Filter Settings........................ 50 4.1.3 Clipping Settings......................54 4.1.4 Trigger Settings......................55 4.1.5 Marker Settings......................61 4.1.6 Clock Settings....................... 66 System Configuration....................68 TPS Settings........................

  • Page 5: Preface

    DVB-H Preface Documentation Overview 1 Preface 1.1 Documentation Overview The user documentation for the R&S Signal Generator consists of the following parts: ● Online Help system on the instrument, ● "Quick Start Guide" printed manual, ● Documentation CD-ROM with: – Online help system (*.chm) as a standalone help, –...

  • Page 6: Conventions Used In The Documentation

    DVB-H Preface Conventions Used in the Documentation Service Manual The Service Manual is available in PDF format - in printable form - on the Documenta- tion CD-ROM delivered with the instrument. It describes how to check compliance with rated specifications, on instrument function, repair, troubleshooting and fault elimina- tion.

  • Page 7: Notes On Screenshots

    DVB-H Preface Conventions Used in the Documentation Convention Description File names, commands, File names, commands, coding samples and screen output are distin- program code guished by their font. Input Input to be entered by the user is displayed in italics. Links Links that you can click are displayed in blue font.
  • Page 8 DVB-H Preface Conventions Used in the Documentation Operating Manual 1008.0970.12 ─ 16...

  • Page 9: Introduction

    DVB-H Introduction Modulation System DVB-H 2 Introduction The R&S Signal Generator enables you to generate signals in accordance with the DVB-H (Digital Video Broadcasting - Transmission System for Handheld Terminals) standard. To playback a signal from a waveform file created by the simulation software R&S WinIQSIM2, the corresponding R&S WinIQSIM2 digital standard option must be installed.

  • Page 10: Outer Coder

    DVB-H Introduction Modulation System DVB-H The data packets of the input stream are transformed to a Pseudo Random Binary Sequence (PRBS) in order to obtain a bit sequence that has a positive effect on the transmitted RF spectrum. The PRBS polynomial is specified as: 1 + x The PRBS generator is loaded with the sequence "100101010000000"...

  • Page 11: Inner Interleaver

    DVB-H Introduction Modulation System DVB-H The integrated puncturer removes bits from the redundant data stream. Puncturing slightly impairs the characteristics of the code. The code rates that can be set are 1/2, 2/3, 3/4, 5/6 and 7/8. The code rate can be selected according to the required trans- mission characteristics of the system.

  • Page 12: Mapper

    DVB-H Introduction Modulation System DVB-H Modulation Mode Sub-Stream v QPSK 16-QAM 64-QAM In hierachical mode, the high priority stream is demultiplexed into two sub-streams and the low priority stream is demultiplexed into v-2 sub-streams. The outputs of the v bit interleavers are grouped to form the digital data symbols, such that each symbol of v bits will consist of exactly one bit from each of the v interleavers.

  • Page 13: Frame Adaption

    DVB-H Introduction Modulation System DVB-H 2.1.7 Frame Adaption The transmitted signal is organized in super-frames. Each super-frame consists of 4 frames. Each frame contains scattered pilot cells, continual pilot carriers, and TPS carriers. The pilots can be used for frame synchronization, frequency synchronization, time synchro- nization, channel estimation, and transmission mode identification.

  • Page 14: Transport Parameter Signalling

    DVB-H Introduction Extensions to DVB-T 2.1.8 Transport Parameter Signalling The Transport Parameter Signalling (TPS) carriers are used to signalling parameters related to the transmission scheme. The TPS is transmitted parallel on 17 TPS carriers for the 2K mode, 34 carriers for the 4K mode, and 68 carriers for the 8K mode. Every TPS carrier in the same symbol conveys the same differentially encoded information bit.

  • Page 15: Time-Slicing

    DVB-H Introduction Extensions to DVB-T Fig. 2-4: In-Depth Interleaver for 2K and 4K Mode 2.2.2 Time-Slicing The time-slicing module provided with DVB-H reduces the average power consumption of the receiving handheld terminals and enables smooth and seamless service hand- over. IP datagramms are transmitted as data bursts in small time slots using a significantly higher instantaneous bit rate compared to traditional streaming bit rates.
  • Page 16 DVB-H Introduction Extensions to DVB-T Fig. 2-5: DVB-H Time-Slicing The point of time when the next burst is transmitted (delta_t) is indicated within the burst currently being received. Fig. 2-6: Next Burst Indication Time-slicing enables a handheld receiver to stay active only for a fraction of time, that is, when the burst is transmitted.

  • Page 17: Forward Error Correction For Multiprotocol Encapsulated Data (Mpe-Fec)

    DVB-H Introduction Extensions to DVB-T In addition, time-slicing allows to use the receiver to monitor neighbouring cells during the off times. Performing the cell switching during an off time enables a smooth and seamless service handover. Time-slicing is mandatory for DVB-H. 2.2.3 Forward Error Correction for Multiprotocol Encapsulated Data (MPE-FEC) The MPE-FEC module provided with DVB-H impoves the carrier-to-noise (C/N) per-...
  • Page 18 DVB-H Introduction Extensions to DVB-T Fig. 2-7: MPE-FEC Packet/Frame Structure Transmitting the IP datagramms and parity information data in separate sections allows the receiver to choose whether to use the MPE-FEC feature or not. If the MPE- FEC decoder is not implemented or if the feature is not activated in the receiver, the transmitted MPE-FEC sections with the parity information data are ignored, that is, only the payload with the IP datagramms is taken under consideration.

  • Page 19: Dvb-H User Interface

    DVB-H DVB-H User Interface General Settings 3 DVB-H User Interface The menu for setting the DVB-H digital standard is either called from the baseband block or from the menu tree under "Baseband." 3.1 General Settings The menu is split into several sections for configuring the standard. The upper menu section is where the DVB-H digital standard is selected, enabled, and reset, and where the generated waveform file can be selceted.
  • Page 20 DVB-H DVB-H User Interface General Settings State Activates the standard and deactivates all the other digital standards and digital modu- lation modes in the same path. Remote command: on page 48 [:SOURce<hw>]:BB:DVB:STATe Set To Default Calls the default settings. The values of the main parameters are listed in the following table.
  • Page 21 DVB-H DVB-H User Interface General Settings Save/Recall... Calls the "Save/Recall" dialog. From the "Save/Recall" dialog, the "File Select" windows for saving and recalling DVB- H configurations and the "File Manager" is called. DVB-H configurations are stored as files with the predefined file extension *.dvb. The file name and the directory they are stored in are user-definable.
  • Page 22 DVB-H DVB-H User Interface General Settings Number of Super Frames Sets the number of the transmitted super-frames. Each super-frame consists of four OFDM frames. Remote command: on page 50 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:SFRames Number of Samples Displays the number of the transmitted samples. Remote command: on page 50 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:SAMPle:LENGth?

  • Page 23: System Configuration

    DVB-H DVB-H User Interface System Configuration Trigger/Marker Calls the menu for selecting the trigger mode and trigger source, for configuring the marker signals, and for setting the time delay of an external trigger signal. This menu is described in chapter 3.5, "Trigger/Marker/Clock Settings", on page 34.
  • Page 24 DVB-H DVB-H User Interface System Configuration Hierarchy Mode Selects the hierarchy mode. "Hierarchical" Both inputs are used. The inputs are identical and simply differ in the prioritization. "Non-hierarchi- The high priority input is used. cal" Remote command: on page 69 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:HMODe HP/LP Source Selects the data source.
  • Page 25 DVB-H DVB-H User Interface System Configuration Outer Interleaver Activates/deactivates the outer convolutional interleaver. For details, refer to chap- ter 2.1.3, "Outer Interleaver", on page 10. Remote command: [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:OINTerleaver[:STATe] on page 71 Inner Coder Activates/deactivates the inner coder. The inner coder is a punctured convolutional error-correcting coder.

  • Page 26: Tps Settings

    DVB-H DVB-H User Interface TPS Settings Note: Transmission mode 4K is only available for DVB-H. Remote command: [:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol:TMODe on page 72 OFDM/RF Bandwidth Selects the system Bandwidth. Remote command: on page 73 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:BWIDth OFDM/RF Modulation Selects the constellation for the OFDM modulation. For details, refer to chapter 2.1.6, "Mapper", on page 12.
  • Page 27 DVB-H DVB-H User Interface TPS Settings Cell Identification Activates/deactivates the TPS cell identification. If activated, the cell from which the signal comes from is identified. Remote command: on page 74 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:TPS:ID:STATe ID [4 hex] Sets the cell ID for cell identification. The cell ID identifies the cell from which the signal is transmitted.
  • Page 28 DVB-H DVB-H User Interface TPS Settings For details, refer to chapter 2.2.3, "Forward Error Correction for Multiprotocol Encapsu- lated Data (MPE-FEC)", on page 17. Remote command: on page 74 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:TPS:MFEC[:STATe] TPS Table The TPS parameter bit table displays the status of the transmitted TPS parameter bits. Table 3-1: TPS signaling information transmitted in DVB-H Bit number Format...
  • Page 29 DVB-H DVB-H User Interface TPS Settings Bit number Format Purpose Frame 2 in the super-frame Frame 3 in the super-frame Frame 4 in the super-frame 25-26 Indicates the constellation QPSK 16-QAM 64-QAM Reserved Indicates the interleaver mode. The in-depth interlea- ver can be used for 2K and 4K transmission mode.
  • Page 30 DVB-H DVB-H User Interface TPS Settings Bit number Format Purpose reserved reserved reserved 36-37 Indicates the value for the guard interval 1/32 1/16 38-39 Indicates the transmission mode 2K mode 8K mode 4K mode reserved 40-47 Cell_id 32 bits are used for the cell ID. Every frame contains eight bits.

  • Page 31: Filter / Clipping Settings

    DVB-H DVB-H User Interface Filter / Clipping Settings 3.4 Filter / Clipping Settings ► To access this dialog, select "Main dialog > Filter/Clipping/ARB Settings". The dialog comprises the settings, necessary to configure the baseband filter and to enable clipping. 3.4.1 Filter Settings Provided are the following settings: Filter Selects the baseband filter.

  • Page 32: Clipping Settings

    DVB-H DVB-H User Interface Filter / Clipping Settings Cut Off Frequency Shift (available for filter parameter Cosine only) Sets the value for the cut off frequency shift. The cut off frequency of the cosine filter can be adjusted to reach spectrum mask requirements. Remote command: on page 51 [:SOURce<hw>]:BB:DVB:FILTer:PARameter:COSine:COFS...
  • Page 33 DVB-H DVB-H User Interface Filter / Clipping Settings Fig. 3-1: Constellation diagram of the signal without clipping, shows the level mapping Fig. 3-2: Constellation diagram with clipping level 10 %, vector mode (|i+jq|) Provided are the following settings: Clipping State Switches baseband clipping on and off.

  • Page 34: Trigger/Marker/Clock Settings

    DVB-H DVB-H User Interface Trigger/Marker/Clock Settings This value indicates at what point the signal is clipped. It is specified as a percentage, relative to the highest level. 100% indicates that clipping does not take place. Remote command: on page 54 [:SOURce<hw>]:BB:DVB:CLIPping:LEVel Clipping Mode Selects the clipping method.

  • Page 35: Trigger Settings

    DVB-H DVB-H User Interface Trigger/Marker/Clock Settings The "Marker Delay" section is where a marker signal delay can be defined, either without restriction or restricted to the dynamic section, i.e., the section in which it is possible to make settings without restarting signal and marker generation. The "Clock Settings"...
  • Page 36 DVB-H DVB-H User Interface Trigger/Marker/Clock Settings ● "Auto" The signal is generated continuously. ● "Retrigger" The signal is generated continuously. A trigger event (internal or external) causes a restart. ● "Armed_Auto" The signal is generated only when a trigger event occurs. Then the signal is gener- ated continuously.
  • Page 37 DVB-H DVB-H User Interface Trigger/Marker/Clock Settings Stops signal generation manually. This button appears only with "Running" signal gen- eration in the "Armed_Auto" and "Armed_Retrigger" trigger modes. Remote command: on page 56 [:SOURce<hw>]:BB:DVB:TRIGger:ARM:EXECute Execute Trigger Executes the trigger manually. A manual trigger can be executed only if an internal trig- ger source and a trigger mode other than "Auto"...
  • Page 38 DVB-H DVB-H User Interface Trigger/Marker/Clock Settings Table 3-2: Typical Applications System Trigger Application "Sync. Output to External Trig- ger" Common External Trigger event All instruments are synchronous for the master and the slave to the external trigger event instruments All instruments are synchronous among themselves but starting the signal from first symbol is more important than synchronicity...
  • Page 39 DVB-H DVB-H User Interface Trigger/Marker/Clock Settings "Off" The signal output begins after elapsing of the processing time and starts with sample 0, i.e. the complete signal is outputted. This mode is recommended for triggering of short signal sequences with signal duration comparable with the processing time of the instrument.

  • Page 40: Marker Mode

    DVB-H DVB-H User Interface Trigger/Marker/Clock Settings 3.5.2 Marker Mode The marker output signal for synchronizing external instruments is configured in the marker settings section "Marker Mode". The R&S SMBV supports only two markers. Marker Mode Selects a marker signal for the associated "MARKER" output. "Restart"...

  • Page 41: Clock Settings

    DVB-H DVB-H User Interface Trigger/Marker/Clock Settings Marker x Delay Enters the delay between the marker signal at the marker outputs and the start of the frame or slot. The input is expressed as a number of samples. If the setting "Fix marker delay to dynamic range"...
  • Page 42 DVB-H DVB-H User Interface Trigger/Marker/Clock Settings "Sync. Slave" The instrument receives the synchronisation and reference clock sig- nal from another instrument working in a master mode. Remote command: on page 68 [:SOURce<hw>]:BB:DVB:CLOCk:SYNChronization:MODE Set Synchronization Settings (for R&S SMBV only) Performs automatically adjustment of the instrument's settings required for the syn- chronization mode, selected with the parameter "Synchronization Mode".

  • Page 43: Global Settings

    DVB-H DVB-H User Interface Trigger/Marker/Clock Settings 3.5.5 Global Settings The buttons in this section lead to dialogs for general trigger, clock and mapping set- tings. Global Trigger/Clock Settings Calls the "Global Trigger/Clock/Input Settings" dialog. This dialog is used among other things for setting the trigger threshold, the input impe- dance and the polarity of the clock and trigger inputs.
  • Page 44 DVB-H DVB-H User Interface Trigger/Marker/Clock Settings Operating Manual 1008.0970.12 ─ 16...

  • Page 45: Remote-Control Commands

    DVB-H Remote-control commands 4 Remote-control commands The following commands are required to perform signal generation with the DVB options in a remote environment. We assume that the R&S Signal Generator has already been set up for remote operation in a network as described in the R&S Signal Generator documentation.

  • Page 46: General Commands

    DVB-H Remote-control commands General Commands Tasks (in manual or remote operation) that are also performed in the base unit in the same way are not described here. In particular, this includes: ● Managing settings and data lists, i.e. storing and loading settings, creating and accessing data lists, accessing files in a particular directory, etc.

  • Page 47: [:Source]:Bb:dvb:setting:catalog

    DVB-H Remote-control commands General Commands Usage: Event Manual operation: "Set To Default" on page 20 [:SOURce<hw>]:BB:DVB:SETTing:CATalog? This command reads out the files with DVB-H settings in the default directory. The default directory is set using command MMEM:CDIRectory. Only files with the file extension *.DVB will be listed.

  • Page 48: [:Source]:Bb:dvb:setting:store

    DVB-H Remote-control commands General Commands Example: BB:DVB:SETT:LOAD 'DVB_1' loads file 'DVB_1'. Usage: Setting only Manual operation: "Save/Recall..." on page 21 [:SOURce<hw>]:BB:DVB:SETTing:STORe <Filename> This command stores the current DVB-H settings into the selected file. The directory is set using command MMEM:CDIRectory. A path can also be specified, in which case the files in the specified directory are read.

  • Page 49: [:Source]:Bb:dvb:waveform:create

    DVB-H Remote-control commands General Commands Parameters: <State> 0 | 1 | OFF | ON *RST: Example: SOURce1:BB:DVB:STATe ON Manual operation: "State" on page 20 [:SOURce<hw>]:BB:DVB:WAVeform:CREate <Filename> This command creates a waveform using the current settings of the "DVB-H" menu. The file name is entered with the command. The file is stored with the predefined file extension *.wv.

  • Page 50: Filter Settings

    DVB-H Remote-control commands General Commands [:SOURce<hw>]:BB:DVB:DVBH|DVBT:SAMPle:LENGth? Queries the number of the transmitted samples. Return values: <Length> integer Example: BB:DVB:DVBH:SAMP:LENG? queries the number of the transmitted samples. Usage: Query only Manual operation: "Number of Samples" on page 22 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:SAMPle:RATE? The command queries the sample rate. Return values: <Rate>...
  • Page 51 DVB-H Remote-control commands General Commands ............53 [:SOURce<hw>]:BB:DVB:FILTer:PARameter:SPHase ................53 [:SOURce<hw>]:BB:DVB:FILTer:TYPE ............... 54 [:SOURce<hw>]:BB:DVB:SRATe:VARiation [:SOURce<hw>]:BB:DVB:FILTer:PARameter:APCO25 <Apco25> The command sets the roll-off factor for filter type APCO25. Parameters: <Apco25> float Range: 0.05 to 0.99 Increment: 0.01 *RST: 0.20 Example: BB:DVB:FILT:PAR:APCO25 0.2 sets the roll-off factor to 0.2 for filter type APCO25.
  • Page 52 DVB-H Remote-control commands General Commands Parameters: <Gauss> float Range: 0.15 to 2.5 Increment: 0.01 *RST: Example: BB:DVB:FILT:PAR:GAUS 0.5 sets B x T to 0.5 for the Gauss filter type. Manual operation: "Roll Off Factor or BxT" on page 31 [:SOURce<hw>]:BB:DVB:FILTer:PARameter:LPASs <LPass> The command sets the cut off frequency factor for the Lowpass (APC opt.) filter type.
  • Page 53 DVB-H Remote-control commands General Commands Example: BB:DVB:FILT:PAR:GAUS 0.5 sets B x T to 0.5 for the Pure Gauss filter type. Manual operation: "Roll Off Factor or BxT" on page 31 [:SOURce<hw>]:BB:DVB:FILTer:PARameter:RCOSine <RCosine> The command sets the roll-off factor for the Root Cosine filter type. Parameters: <RCosine>...

  • Page 54: Clipping Settings

    DVB-H Remote-control commands General Commands [:SOURce<hw>]:BB:DVB:SRATe:VARiation <Variation> The command enters the output sample rate. A variation of this parameter only affects the ARB clock rate, all other signal parame- ters remain unchanged. If the sampling rate in the frame configuration menu is changed, this parameter is reset to the chosen sampling rate.

  • Page 55: Trigger Settings

    DVB-H Remote-control commands General Commands Parameters: <Mode> VECTor | SCALar VECTor The reference level is the amplitude | i+jq |. SCALar The reference level is the absolute maximum of the I and Q val- ues. *RST: VECTor Example: BB:DVB:CLIP:MODE VECT sets the amplitude as reference level.
  • Page 56 DVB-H Remote-control commands General Commands [:SOURce<hw>]:BB:DVB:TRIGger:ARM:EXECute The command stops signal generation for trigger modes "Armed Auto" and "Armed Retrigger". A subsequent internal or external trigger event restart signal generation. Example: BB:DVB:TRIG:ARM:EXEC stops signal generation for trigger modes "Armed Auto" and "Armed Retrigger".
  • Page 57 DVB-H Remote-control commands General Commands Parameters: <Output> 0 | 1 | OFF | ON The signal calculation starts simultaneously with the external trigger event but because of the instrument’s processing time the first samples are cut off and no signal is outputted. After elapsing of the internal processing time, the output signal is syn- chronous to the trigger event.
  • Page 58 DVB-H Remote-control commands General Commands Example: BB:DVB:TRIG:SOUR OBAS BB:DVB:TRIG:INH 200 Manual operation: "Trigger Inhibit" on page 39 [:SOURce<hw>]:BB:DVB:TRIGger:RMODe? The command queries the current status of signal generation for all trigger modes with DVB-H modulation on. Return values: <RMode> STOP | RUN the signal is generated.
  • Page 59 DVB-H Remote-control commands General Commands The unit is defined with command SOUR:BB:DVB:TRIG:SLUNit. It is then possible to output deliberately just part of the frame, an exact sequence of the frame, or a defined number of repetitions of the frame. Parameters: <SLength>...
  • Page 60 DVB-H Remote-control commands General Commands Example: BB:DVB:TRIG:SOUR EXT BB:DVB:TRIG:DEL 50 Manual operation: "Trigger Delay" on page 39 [:SOURce<hw>]:BB:DVB:TRIGger[:EXTernal<ch>]:INHibit <Inhibit> Specifies the number of samples by which a restart is to be inhibited following a trigger event. This command applies only in the case of external triggering. The numeric suffix to EXTernal distinguishes between the external trigger via the TRIGGER 1 (suffix 1) and TRIGGER 2 (suffix 2) connector.

  • Page 61: Marker Settings

    DVB-H Remote-control commands General Commands Parameters: <Sequence> AUTO | RETRigger | AAUTo | ARETrigger | SINGle AUTO The modulation signal is generated continuously. RETRigger The modulation signal is generated continuously. A trigger event (internal or external) causes a restart. AAUTo The modulation signal is generated only when a trigger event occurs.
  • Page 62 DVB-H Remote-control commands General Commands [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut:DELay:FIXed <Fixed> The command restricts the marker delay setting range to the current range. In this range the delay can be set without restarting the marker and signal. If a delay is entered in setting ON but is outside this range, the maximum possible delay is set and an error message is generated.
  • Page 63 DVB-H Remote-control commands General Commands Example: BB:DVB:TRIG:OUTP:DEL:FIX ON restricts the marker signal delay setting range to the dynamic range. BB:DVB:TRIG:OUTP:DEL:MAX? queries the maximum of the dynamic range. Response: 20000 the maximum for the marker delay setting is 20000 samples. Usage: Query only Manual operation: "Current Range without Recalculation"...
  • Page 64 DVB-H Remote-control commands General Commands Parameters: <Mode> RESTart | SFRame | SFRAMe | FRAMe | PULSe | PATTern | RATio | TRIGger RESTart A marker signal is generated at the start of every sequence length loop. Restart mode is available only for ETI data source. SFRame A marker signal is generated at the start of every super-frame period.
  • Page 65 DVB-H Remote-control commands General Commands [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut<ch>:PATTern <Pattern> The command defines the bit pattern used to generate the marker signal. Parameters: <Pattern> 32 bit pattern *RST: Example: BB:DVB:TRIG:OUTP2:PATT #H39FE0000,32 sets the bit pattern. BB:DVB:TRIG:OUTP:MODE PATT activates the marker signal according to a bit pattern for the cor- responding marker signal.

  • Page 66: Clock Settings

    DVB-H Remote-control commands General Commands Example: BB:DVB:TRIG:OUTP2:PULS:DIV 2 sets the divider for the corresponding marker signal to the value BB:DVB:TRIG:OUTP2:MODE PULS enables the pulsed marker signal. BB:DVB:TRIG:OUTP:FREQ? queries the resulting pulse frequency of the marker signal. Response: 66 000 the resulting pulse frequency is 66 kHz. Usage: Query only Manual operation:...
  • Page 67 DVB-H Remote-control commands General Commands Parameters: <Multiplier> integer Range: 1 to 64 Increment: 1 *RST: Example: SOURce1:BB:DVB:CLOCk:SOURce EXTernal selects the external clock source. SOURce1:BB:DVB:CLOCk:MODE MSAMple selects clock type "Multiple Sample", i.e. the supplied clock has a rate which is a multiple of the sample rate. SOURce1:BB:DVB:CLOC:MULTiplier 12 the multiplier for the external clock rate is 12.

  • Page 68: System Configuration

    DVB-H Remote-control commands System Configuration [:SOURce<hw>]:BB:DVB:CLOCk:SYNChronization:EXECute Performs automatically adjustment of the instrument's settings required for the syn- chronization mode, set with the command BB:DVB:CLOC:SYNC:MODE. Example: BB:DVB:CLOC:SYNC:MODE MAST the instrument is configured to work as a master one. BB:DVB:CLOC:SYNC:EXEC all synchronization's settings are adjusted accordingly. Usage: Event Manual operation:...
  • Page 69 DVB-H Remote-control commands System Configuration ..............69 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:HMODe ............69 [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:DATA ........70 [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:DATA:DSELection ..........70 [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:ICODer:RATE .......... 70 [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:ICODer[:STATe] ........71 [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:OCODer[:STATe] ........71 [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:OINTerleaver[:STATe] ......... 71 [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:PNSCrambler[:STATe] ......... 71 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:BIT[:STATe] ........72 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol:MODE ........72 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol:TMODe ........72 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol[:STATe] ............72 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:ALPHa ............
  • Page 70 DVB-H Remote-control commands System Configuration Example: BB:DVB:DVBH:HP:DATA PN23 selects PN23 as data source. Manual operation: "HP/LP Source" on page 24 [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:DATA:DSELection <Dselection> The command selects the TS file for the data source selection. The lists are stored as files with the fixed file extensions *.gts, *.ts, or *.trp in a directory of the user's choice.
  • Page 71 DVB-H Remote-control commands System Configuration [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:OCODer[:STATe] <State> The command activates/deactivates the outer coder (RS). Parameters: <State> 0 | 1 | OFF | ON *RST: Example: BB:DVB:DVBH:HP:OCOD:STAT ON activates the outer coder. Manual operation: "Outer Coder (RS)" on page 24 [:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:OINTerleaver[:STATe] <State> The command activates/deactivates the outer interleaver.
  • Page 72 DVB-H Remote-control commands System Configuration [:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol:MODE <Mode> The command selects the inner interleaver mode. Parameters: <Mode> NATive | NATIve | IDEPth NATive The interleaver interleaves the bits over one OFDMA symbol. IDEPth The interleaver interleaves the bits over two (4K transmission mode) or four (2K transmission mode) OFDMA symbols.

  • Page 73: Tps Settings

    DVB-H Remote-control commands TPS Settings Example: BB:DVB:DVBH:OFDM:ALPH 1 sets the α value to 1. Manual operation: "OFDM/RF Alpha" on page 26 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:BWIDth <BWidth> The command selects the system bandwith. Parameters: <BWidth> 5 | 6 | 7 | 8 *RST: 8 MHz Example: BB:DVB:DVBH:OFDM:BWID 8 sets the OFDM bandwith to 8 MHz.
  • Page 74 DVB-H Remote-control commands TPS Settings ............. 74 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:TPS:ID:PATTern ............74 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:TPS:ID:STATe ..........74 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:TPS:MFEC[:STATe] ........... 74 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:TPS:TSLicing[:STATe]? [:SOURce<hw>]:BB:DVB:DVBH|DVBT:TPS:ID:PATTern <Pattern> The command sets the pattern for cell identification. Parameters: <Pattern> integer Range: 0000 to FFFF *RST: 0000 Example: BB:DVB:DVBH:TPS:ID:PATT 0000 sets the cell identification to 0000. Manual operation: "ID [4 hex]"...
  • Page 75 DVB-H Remote-control commands TPS Settings Return values: <State> 0 | 1 | OFF | ON always 1 for DVB-H always 0 for DVB-T Usage: Query only Manual operation: "Time Slicing" on page 27 Operating Manual 1008.0970.12 ─ 16...
  • Page 76 DVB-H Remote-control commands TPS Settings Operating Manual 1008.0970.12 ─ 16...

  • Page 77: List Of Commands

    DVB-H List of Commands List of Commands [:SOURce<hw>]:BB:DVB:CLIPping:LEVel...................... 54 [:SOURce<hw>]:BB:DVB:CLIPping:MODE..................... 54 [:SOURce<hw>]:BB:DVB:CLIPping:STATe.....................55 [:SOURce<hw>]:BB:DVB:CLOCk:MODE......................66 [:SOURce<hw>]:BB:DVB:CLOCk:MULTiplier....................66 [:SOURce<hw>]:BB:DVB:CLOCk:SOURce.....................67 [:SOURce<hw>]:BB:DVB:CLOCk:SYNChronization:EXECute................68 [:SOURce<hw>]:BB:DVB:CLOCk:SYNChronization:MODE................68 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:DRATe?.................... 49 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:DURation?..................49 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:HMODe..................... 69 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:BIT[:STATe]..............71 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol:MODE.............72 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol:TMODe............72 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol[:STATe]............72 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:ALPHa................... 72 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:BWIDth.................. 73 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:GINTerval................73 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:MODulation................73 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:SAMPle:LENGth?................50 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:SAMPle:RATE?.................50 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:SFRames..................50 [:SOURce<hw>]:BB:DVB:DVBH|DVBT:TPS:ID:PATTern................
  • Page 78 DVB-H List of Commands [:SOURce<hw>]:BB:DVB:SETTing:STORe.....................48 [:SOURce<hw>]:BB:DVB:SETTing:STORe:FAST...................48 [:SOURce<hw>]:BB:DVB:SRATe:VARiation....................54 [:SOURce<hw>]:BB:DVB:STANdard....................... 48 [:SOURce<hw>]:BB:DVB:STATe........................48 [:SOURce<hw>]:BB:DVB:TRIGger:ARM:EXECute..................56 [:SOURce<hw>]:BB:DVB:TRIGger:EXECute....................56 [:SOURce<hw>]:BB:DVB:TRIGger:EXTernal:SYNChronize:OUTPut............. 56 [:SOURce<hw>]:BB:DVB:TRIGger:OBASeband:DELay................. 57 [:SOURce<hw>]:BB:DVB:TRIGger:OBASeband:INHibit................. 57 [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut:DELay:FIXed................62 [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut<ch>:DELay................62 [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut<ch>:DELay:MAXimum?.............62 [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut<ch>:DELay:MINimum?..............63 [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut<ch>:MODE................63 [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut<ch>:OFFTime................64 [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut<ch>:ONTime................64 [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut<ch>:PATTern................65 [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut<ch>:PULSe:DIVider..............65 [:SOURce<hw>]:BB:DVB:TRIGger:OUTPut<ch>:PULSe:FREQuency?............65 [:SOURce<hw>]:BB:DVB:TRIGger:RMODe?....................58 [:SOURce<hw>]:BB:DVB:TRIGger:SLENgth....................58 [:SOURce<hw>]:BB:DVB:TRIGger:SLUNit......................58 [:SOURce<hw>]:BB:DVB:TRIGger:SOURce....................59 [:SOURce<hw>]:BB:DVB:TRIGger[:EXTernal<ch>]:DELay................59 [:SOURce<hw>]:BB:DVB:TRIGger[:EXTernal<ch>]:INHibit................

  • Page 79: Index

    DVB-H Index Index Fix marker delay to current range ........41 Fix marker to dynamic range ..........62 Activate DVB-H Standard ..........20 Frame Start Marker ............40 Alpha ................. 26 Arm Trigger ............23, 37, 56 Armed_Auto ..............60 Generate Waveform File ...........
  • Page 80 DVB-H Index Outer Interleaver ............... 25 Outer Interleaver - DVB-H ..........71 Pattern Marker ..............40 PN Scrambler ..............24 PN Scrambler - DVB-H ............. 71 Pulse Marker ..............40 Rate ...................25 Rate - DVB-H ..............70 Recall Configuration ............21 Recall DVB-H Settings ............
