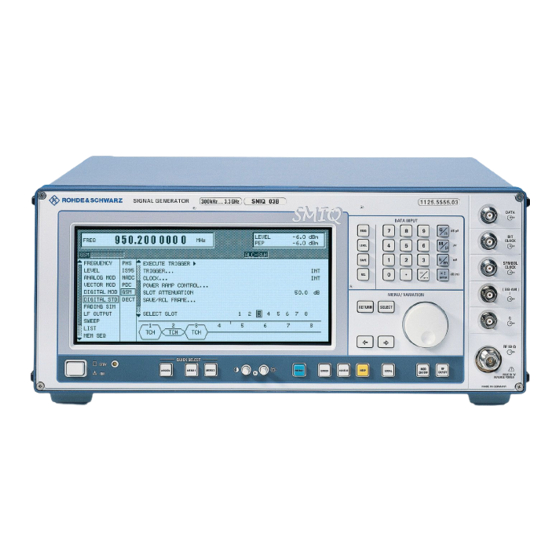

Rohde & Schwarz SMIQ02B Operating Manual

Vector signal generator
Hide thumbs Also See for SMIQ02B:
1
2
3
4
5
6
7
8
9
10
11
12
13
Table Of Contents
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual
VECTOR SIGNAL GENERATOR
SMIQ02B
1125.5555.02
SMIQ03B
1125.5555.03
SMIQ04B
1125.5555.04
SMIQ06B
1125.5555.06
Volume 2
This Operating Manual consists of 2 volumes
Printed in the Federal
Republic of Germany
1125.5610.12-09
Test and Measurement
Division
II

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMIQ02B and is the answer not in the manual?

Questions and answers

Related Manuals for Rohde & Schwarz SMIQ02B

Summary of Contents for Rohde & Schwarz SMIQ02B

  • Page 1 Test and Measurement Division Operating Manual VECTOR SIGNAL GENERATOR SMIQ02B 1125.5555.02 SMIQ03B 1125.5555.03 SMIQ04B 1125.5555.04 SMIQ06B 1125.5555.06 Volume 2 This Operating Manual consists of 2 volumes Printed in the Federal Republic of Germany 1125.5610.12-09...
  • Page 3 SMIQ Tabbed Divider Overview Tabbed Divider Overview Volume 1 How to Use this Manual Contents Data Sheet Supplement to Data Sheet Safety Instructions Certificate of quality EC Certificate of Conformity List of R & S Representatives Tabbed Divider Chapter 1: Preparation for Use Chapter 2: Manual Operation...
  • Page 4 SMIQ as well as all specifications of the unit and available options. The following models and options are described in this manual: • SMIQ02B – Vector Signal Generator 300 kHz to 2.2 GHz • SMIQ03B – Vector Signal Generator 300 kHz to 3.3 GHz •...
  • Page 5 SMIQ Introduction on how to use the manual Chapter 3 provides information on remote control of SMIQ. It informs about basics like IEC/IEEE bus, RS-232C interface, interface and device-dependent messages, command processing, status reporting system etc. It also includes an overview of each command system and describes all commands available in the unit and its options.
  • Page 7 SMIQ Contents Contents 1 Preparation for Use ..................... 1.2 Putting into Operation......................1.2 1.1.1 Supply Voltage ......................1.2 1.1.2 Switching On/Off the Instrument ................1.2 1.1.3 Initial Status......................1.3 1.1.4 Setting Contrast and Brightness of the Display............1.3 1.1.5 RAM with Battery Back-Up..................1.3 1.1.6 Preset Setting......................
  • Page 8 Contents SMIQ 2 Operation ......................2.1 Front and Rear Panel ......................2.1 2.1.1 Display........................2.1 2.1.2 Controls and Inputs/Outputs of the Front Panel............2.3 2.1.3 Elements of the Rear Panel ................... 2.13 Basic Operating Steps ......................2.22 2.2.1 Design of the Display ..................... 2.22 2.2.2 Calling the Menus....................
  • Page 9 SMIQ Contents 2.7.3.2 Preemphasis ................... 2.62 2.7.4 Phase Modulation....................2.63 2.7.4.1 PM Deviation Limits ................2.64 2.7.5 Pulse Modulation....................2.65 Vector Modulation ....................... 2.66 2.8.1 I/Q Impairment ....................... 2.69 Fading Simulation ....................... 2.70 2.9.1 Output Power with Fading ..................2.71 2.9.2 Two-Channel Fading ....................
  • Page 10 Contents SMIQ 2.12.4 Menu IS-95 CDMA Standard - Forward Link Signal..........2.136 2.12.5 Menu IS-95 CDMA Standard - Reverse Link Signal without Channel Coding ..2.146 2.12.6 Menu IS-95 CDMA Standard - Reverse Link Signal with Channel Coding ..2.148 2.13 Digital Standard W-CDMA (NTT DoCoMo/ARIB 0.0) ............
  • Page 11 SMIQ Contents 2.15 Enhanced Functions For Digital Standard 3GPP W-CDMA (FDD) ........2.236 2.15.1 Test Setup ......................2.236 2.15.2 Branching to Menus SMIQB48 of Digital Standard 3GPP WCDMA ....2.237 2.15.3 Enhanced Channels BS1/MS1................2.238 2.15.3.1 Downlink ....................2.240 2.15.3.1.1 P-CCPCH/BCH with System Frame Number...... 2.241 2.15.3.1.2 Channel Coding..............
  • Page 12 Contents SMIQ 2.21 Arbitrary Waveform Generator ARB ................2.341 2.21.1 Function........................ 2.341 2.19.1.1 Use of WinIQSIM .................. 2.344 2.21.2 ARB MOD Menu....................2.345 2.21.2.1 ARB MOD - TRIGGER Menu ............... 2.347 2.21.2.2 ARB MOD - SELECT WAVEFORM Menu ........... 2.349 2.21.2.3 ARB MOD - DELETE WAVEFORM Menu ...........
  • Page 13 SMIQ Contents 2.29 Utilities..........................2.410 2.29.1 IEC-Bus Address (SYSTEM-GPIB)..............2.410 2.29.2 Parameter of the RS232 Interface (SYSTEM-RS232) ......... 2.411 2.29.3 Parameter of the SER DATA Input (SYSTEM-SERDATA) ........2.412 2.29.4 Suppressing Indications and Deleting Memories (SYSTEM-SECURITY) ... 2.413 2.29.5 Indication of the IEC-Bus Language (LANGUAGE) ..........2.414 2.29.6 Reference Frequency Internal/External (REF OSC) ..........

  • Page 14: Table Of Contents

    Contents SMIQ 3 Remote Control....................3.1 Brief Instructions........................3.1 3.1.1 IEC-Bus........................3.1 3.1.2 RS-232 Interface......................3.2 Switchover to Remote Control..................... 3.2 3.2.1 Remote Control via IEC Bus ..................3.3 3.2.1.1 Setting the Device Address............... 3.3 3.2.1.2 Indications during Remote Control ............3.3 3.2.1.3 Return to Manual Operation..............
  • Page 15 SMIQ Contents 3.5.14.4 SOURce:DIST Subsystem..............3.61 3.5.14.5 SOURce:DM Subsystem ................ 3.65 Vector Modulation ................... 3.65 Digital Modulation ................... 3.67 3.5.14.6 SOURce:FM Subsystem................. 3.78 3.5.14.7 SOURce:FREQuency Subsystem ............3.80 3.5.14.8 SOURce:FSIM-Subsystem ..............3.82 3.5.14.9 SOURce:GPS Subsystem ..............3.93 3.5.14.10 SOURce:GSM Subsystem (Digital Standard GSM/EDGE) ....3.96 3.5.14.11 SOURce:IS95 Subsystem (Digital Standard IS-95 CDMA) ....
  • Page 16 Contents SMIQ 3.7.4 Application of the Status Reporting Systems............3.225 3.7.4.1 Service Request, Making Use of the Hierarchy Structure ....3.225 3.7.4.2 Serial Poll....................3.225 3.7.4.3 Parallel Poll ................... 3.226 3.7.4.4 Query by Means of Commands ............3.226 3.7.4.5 Error Queue Query ................3.226 3.7.5 Resetting Values of the Status Reporting Systems ..........
  • Page 17 SMIQ Contents 5 Checking the Rated Characteristics ..............5.2 Test Equipment and Test Assemblies................. 5.2 5.1.1 Measuring Equipment and Accessories..............5.2 5.1.2 Test Assemblies....................... 5.3 5.1.2.1 Standard Test Assembly for Analog Modulations ........5.3 5.1.2.2 Test Assembly for Analog Modulations with Audio Analyzer ....5.5 5.1.2.3 Test Assembly for Broadband FM ............
  • Page 18 Contents SMIQ 5.3.9.2 AM Distortion ..................5.35 5.3.9.3 AM Frequency Response ............... 5.35 5.3.9.4 Residual PhiM with AM ................5.36 5.3.9.5 Level Monitoring at Input EXT1............... 5.36 5.3.10 Broadband Amplitude Modulation ................5.37 5.3.11 Pulse Modulation....................5.37 5.3.11.1 ON/OFF Ratio ..................5.37 5.3.11.2 Dynamic Characteristics .................
  • Page 19 SMIQ Contents 5.3.20.2 3GPP W-CDMA with 8 Code Channels..........5.67 5.3.20.3 3GPP W-CDMA Test Model 1, 64 DPCH..........5.68 5.3.21 3GPP W-CDMA Enhanced Channels (SMIQB48) ..........5.69 5.3.21.1 External Power Control ................5.69 5.3.22 Bit Error Rate Test (Option SMIQB21)..............5.70 5.3.23 Fading Simulation (Option SMIQB14/SMIQB15) ...........
  • Page 20 Contents SMIQ C Annex C ........................C.1 List of Commands (with SCPI Conformity Information) ............C.1 D Annex D ........................D.1 Programming Examples .......................D.1 Including IEC-Bus Library for QuickBasic ..............D.1 Initialization and Default Status ................D.1 2.1. Initiate Controller ......................D.1 2.2. Initiate Instrument.....................D.1 Transmission of Instrument Setting Commands............D.2 Switchover to Manual Control ..................D.2 Reading out Instrument Settings ................D.2 List Management......................D.3...
  • Page 21 SMIQ Contents Tables Table 2-1 Input sockets for the different types of modulation............2.55 Table 2-2 Status messages in the case of a deviation from the rated value at the external modulation inputs EXT1 and EXT2..................... 2.56 Table 2-3 Parameter setting ranges ....................2.69 π...
  • Page 22 Contents SMIQ Figures Fig. 1-1 SMIQ, view from the top ....................1.5 Fig. 1-2 Module FSIM....................... 1.9 Fig. 1-3 Module NDSIM......................1.13 Fig. 1-4 Module MCOD ......................1.14 Fig. 2-1 Front panel view......................2.2 Fig. 2-2 Rear panel view ......................2.12 Fig.
  • Page 23 SMIQ Contents Fig. 2-46 Pulse on Oscilloscope ....................2.84 Fig. 2-47 Modulation coder in SMIQ ..................2.85 Fig. 2-48 Digital input signals of modulation coder ..............2.85 Fig. 2-49 Functional blocks Coding and Mapping..............2.86 Fig. 2-50 Constellation diagrams of BPSK, QPSK, 8PSK and 16QAM ........2.86 Fig.
  • Page 24 Contents SMIQ Fig. 2-81 Menu DIGITAL STD - IS-95 - MODE - FWD_LINK_18, equipped with options modulation coder SMIQB20, data generator SMIQB11 and SMIQB42 ....2.135 Fig. 2-82 Menu DIGITAL STD - IS-95 - MODULATION..., equipped with options modulation coder SMIQB20, data generator SMIQB11 and SMIQB42 ....2.137 Fig.
  • Page 25 SMIQ Contents Fig. 2-120 DIGITAL STD – WCDMA/3GPP – MS CONFIGURATION: DPCCH + DPDCH Mode menu......................2.200 Fig. 2-121 Dynamic change of channel power (continuous)............ 2.201 Fig. 2-122 DIGITAL STD – WCDMA/3GPP – BS CONFIGURATION / MULTI CHANNEL EDIT menu......................2.203 Fig.
  • Page 26 Contents SMIQ Fig. 2-168 DIGITAL STD - WCDMA/3GPP - OCNS CHANNELS menu ......... 2.246 Fig. 2-169 DIGITAL STD - WCDMA/3GPP ADDITIONAL MS STATE menu......2.249 Fig. 2-170 Menu DIGITAL STD - NADC, SMIQ equipped with Modulation Coder SMIQB20 and Data Generator SMIQB11 ................2.255 Fig.
  • Page 27 SMIQ Contents Fig. 2-197 Menu DIGITAL STD - GSM/EDGE - SELECT SLOT – ALL_DATA, SMIQ equipped with Modulation Coder SMIQB20 and Data Generator SMIQB11 ..2.304 Fig. 2-198 Menu DIGITAL STD - GSM/EDGE - SELECT SLOT – EDGE, SMIQ equipped with Modulation Coder SMIQB20 and Data Generator SMIQB11 ......
  • Page 28 Contents SMIQ Fig. 2-244 Menu MEM SEQ -OPERATION-page (preset setting) ........... 2.385 Fig. 2-245 Menu MEM SEQ - EDIT page ................2.386 Fig. 2-246 Menu UTILITIES -SYSTEM -GPIB ................. 2.387 Fig. 2-247 Menu UTILITIES - SYSTEM - RS232..............2.388 Fig. 2-248 Menu UTILITIES - SYSTEM - SERDATA...............

  • Page 29: Remote Control

    SMIQ Brief Instructions Remote Control The instrument is equipped with an IEC-bus interface according to standard IEC 625.1/IEEE 488.2 and a RS-232 interface. The connectors are located at the rear of the instrument and permit to connect a controller for remote control. The instrument supports the SCPI version 1994.0 (Standard Commands for Programmable Instruments).

  • Page 30: Interface

    Switchover to Remote Control SMIQ 3.1.2 RS-232 Interface It is assumed that the configuration of the RS-232 interface at the unit has not yet been changed. 1. Connect unit and controller using the 0-modem cable. 2. Enter the following command at the controller to configure the controller interface: mode com1: 9600, n, 8, 1 3.

  • Page 31: Remote Control Via Iec Bus

    SMIQ Switchover to Remote Control 3.2.1 Remote Control via IEC Bus 3.2.1.1 Setting the Device Address The IEC-bus address of the instrument is factory-set to 28. It can be changed manually in the UTILITIES-SYSTEM-GPIB-ADDRESS menu or via IEC bus. Addresses 0 to 30 are permissible. Manually: Ø...

  • Page 32: Remote Control Via Rs-232-Interface

    Messages SMIQ 3.2.2 Remote Control via RS-232-Interface 3.2.2.1 Setting the Transmission Parameters To enable an error-free and correct data transmission, the parameters of the unit and the controller should have the same setting. To prevent any problems during binary data transmission, the RS-232 interface is set for 8 data bits, no parity and 1 stop bit.

  • Page 33: Device Messages (Commands And Device Responses)

    SMIQ Structure and Syntax of the Device Messages 3.3.2 Device Messages (Commands and Device Responses) Device messages are transferred on the data lines of the IEC bus, the "ATN" control line not being active. ASCII code is used. The device messages are largely identical for the two interfaces (IEC bus and RS232) .

  • Page 34: Structure Of A Command

    Structure and Syntax of the Device Messages SMIQ 3.4.2 Structure of a Command The commands consist of a so-called header and, in most cases, one or more parameters. Header and parameter are separated by a "white space" (ASCII code 0 to 9, 11 to 32 decimal, e.g. blank). The headers may consist of several key words.
  • Page 35 SMIQ Structure and Syntax of the Device Messages Some key words occur in several levels within one command system. Their effect depends on the structure of the command, that is to say, at which position in the header of a command they are inserted. Example: SOURce:FM:POLarity NORMal This command contains key word POLarity in the third command level.

  • Page 36: Structure Of A Command Line

    Structure and Syntax of the Device Messages SMIQ 3.4.3 Structure of a Command Line A command line may consist of one or several commands. It is terminated by a <New Line>, a <New Line> with EOI or an EOI together with the last data byte. Quick BASIC automatically produces an EOI together with the last data byte.

  • Page 37: Parameter

    SMIQ Structure and Syntax of the Device Messages 3.4.5 Parameter Most commands require a parameter to be specified. The parameters must be separated from the header by a "white space". Permissible parameters are numerical values, Boolean parameters, text, character strings and block data. The type of parameter required for the respective command and the permissible range of values are specified in the command description (see Section 3.5).
  • Page 38 Structure and Syntax of the Device Messages SMIQ Block data Block data are a transmission format which is suitable for the transmission of large amounts of data. A command using a block data parameter has the following structure: Example: HEADer:HEADer #45168xxxxxxxx ASCII character # introduces the data block.

  • Page 39: Overview Of Syntax Elements

    SMIQ Structure and Syntax of the Device Messages 3.4.6 Overview of Syntax Elements The following survey offers an overview of the syntax elements. The colon separates the key words of a command. In a command line the separating semicolon marks the uppermost command level.

  • Page 40: Description Of Commands

    Description of Commands SMIQ Description of Commands 3.5.1 Notation In the following sections, all commands implemented in the instrument are first listed in tables and then described in detail, separated according to the command system. The notation corresponds to the one of the SCPI standards to a large extent.
  • Page 41 SMIQ Description of Commands Special characters A selection of key words with an identical effect exists for several commands. These key words are indicated in the same line, they are separated by a vertical stroke. Only one of these key words has to be indicated in the header of the command.

  • Page 42: Common Commands

    Description of Commands SMIQ 3.5.2 Common Commands The common commands are taken from the IEEE 488.2 (IEC 625-2) standard. Same commands have the same effect on different devices. The headers of these commands consist of an asterisk "*" followed by three letters. Many common commands refer to the status reporting system which is described in detail in Section 3.7.
  • Page 43 SMIQ Description of Commands &GTL GO TO LOCAL: The IEC bus (IEEE488) includes line message REN (remote enable). If the device is controlled via a serial interface (RS-232), a remote/local switchover is not possible with this line. This new command in line with IEEE1174 has been therefore introduced so that the device can be switched to local mode via remote control (in the same way as with the front-panel LOCAL key).
  • Page 44 Description of Commands SMIQ *PRE 0 to 255 PARALLEL POLL REGISTER ENABLE sets the parallel poll enable register to the value indicated. Query *PRE? returns the contents of the parallel poll enable register in decimal form. *PSC 0 | 1 POWER ON STATUS CLEAR determines whether the contents of the ENABle registers is maintained or reset in switching on.

  • Page 45: Abort System

    SMIQ ABORt System 3.5.3 ABORt System The ABORt system contains the commands to abort actions triggered. After an action has been aborted, it can be triggered again at once. All commands trigger an event, thus they have no *RST value. Further commands for the trigger system of the SMIQ can be found in the TRIGger system.

  • Page 46: Arb System

    ARB System SMIQ 3.5.4 ARB System Refer to chapter "ARB Waveform Format" following the information on the IEC/IEEE bus commands where explanation of waveform formats and tags is provided. Command Parameter Default Remarks unit :ARB :STATe ON | OFF :SEQuence AUTO | RETRigger | AAUTo | ARETrigger :WAVeform :SELect...
  • Page 47 SMIQ ARB System :ARB:SEQuence AUTO | RETRigger | AAUTo | ARETrigger This command configures the sequence control of the ARB mode. AUTO The waveform is repeated in cycles. RETRigger Cyclic repetition; new start upon trigger. AAUTo Armed Auto; starts after a trigger event, further triggers are ignored. ARETrigger Armed Retrigger;...
  • Page 48 ARB System SMIQ :ARB:WAVeform:FREE? This command requests for free memory space for further waveforms. Example: :ARB:WAV:FREE? :ARB:WAVeform:POINts? This command returns the number of samples contained in a waveform. Example: :ARB:WAV:POIN? :ARB:TRIGger:SOURce INTernal | EXTernal This command allows for configuration of the trigger source. Triggering via IEC/IEEE bus or using the Execute comment of manual control.
  • Page 49 SMIQ ARB System :ARB:TRIGger:OUTPut[1]|2:ONTime 0 to 524 255 This command sets the length of the active state of output trigger signals (indicated as number of samples). Setting is only possible, if :ARB:TRIG:OUTP:MODE is set to USER. Example: *RST value is 0 :ARB:TRIG:OUTP2:ONT 765 :ARB:TRIGger:OUTPut[1]|2:OFFTime 0 to 524 255 This command sets the length of the non-active state of output trigger signals (indicated as...
  • Page 50 ARB System SMIQ :ARB:CLOCk:SOURce INTernal | EXTernal This command is used to select the source for the sample clock. INTernal The internal clock generator is used. EXTernal The clock is applied externally at the socket. Example: *RST value is INT :ARB:CLOC:SOUR :ARB:CLOCk:DELay 0.0 to 0.99 This command is used to set the delay of the modulation signal against the clock signal.

  • Page 51: Arb Waveform Format

    SMIQ ARB System 3.5.4.1 ARB Waveform Format Waveform format The waveform format is used for transmission via the IEC/IEEE bus and the serial interface, it is packed in a binary block command. A tag-oriented format is used. Tags are self-contained information units. They Tags have the general format {Name: Data} or {Name-length: Data}...
  • Page 52 ARB System SMIQ {CLOCK: frequency} (indispensable) This tag specifies the clock frequency with which the waveform should be output. A query of ARB:CLOCk? after loading the waveform returns the values set by means of the {CLOCK:...} tag. {COMMENT: string} (Important for TYPE = WV_ADD) The tag contains a plain-text ASCII string of any length.

  • Page 53: Creating A Waveform „Manually

    SMIQ ARB System Different output levels are applied to the output connectors of the SMIQ: Binary value of the sample Asymmetric outputs at 50 Ω between identical with the value of amplitude V the waveform D/A converter inner and outer conductor of I and Q output Valid as Q output also! OUTP:I|Q FIX...
  • Page 54 ARB System SMIQ To be read by the SMIQ these waveform data must be coded binary and packed into an appropriate WAVEFORM information unit. The SMIQ recognizes a great variety of information units called tags. A tag consists of a name and a data set and is enclosed in curved brackets.
  • Page 55 SMIQ ARB System Step 3 The binary data must now be packed into a WAVEFORM tag with the following structure: {WAVEFORM-Length: Start,#IQIQIQIQIQIQIQIQIQI ... IQ} ÀÙ The WAVEFORM tag consists of the following characters and data: Opens each tag. WAVEFORM Name of the tag for waveform. Separates the name from the length indication.
  • Page 56 ARB System SMIQ C-program for creating the file SICO.TXT containing 20 sine and cosine pairs: #include <stdlib.h> Contents of the file #include <stdio.h> SICO.TXT: #include <math.h> Sinus (I) Cosinus (Q) void main (void) 0.000000 1.000000 0.309017 0.951057 0.587785 0.809017 #define SAMPLES 20 0.809017 0.587785 int i;...

  • Page 57: Converting A Waveform With The Application Software Amiq-K2

    SMIQ ARB System 3.5.4.3 Converting a Waveform with the Application Software AMIQ-K2 The application software AMIQ-K2 from R&S is distributed free of charge and allows to convert a large variety of I/Q data sets to SMIQ waveform. Moreover, AMIQ-K2 can be used to remote-control some important SMIQ functions, to load and to store waveforms.

  • Page 58: Bert System

    BERT System SMIQ 3.5.5 BERT System Command Parameter Default Unit Remark :BERT ON | OFF :STATe AUTO | SINGle :SEQuence :SETup 1 to 4294967294 :MCOunt 1 to 4294967294 :MERRor PRBS9 | PRBS11 | PRBS15 | PRBS16 | PRBS20 | :TYPE PRBS21 | PRBS23 :DATA NORMal | INVerted...
  • Page 59 SMIQ BERT System :BERT:SETup:MCOunt 1 to 4294967294 This command sets the total number of data bits to be measured (data excluded by :BERT:SETup:DENable do not count). When the internal data counter reaches or – in integrated BER test – exceeds this number, the single BER measurement is terminated. If this is followed by the query:BERT:RES?, the SMIQ signals with the fourth result that a BER measurement has been completed.
  • Page 60 BERT System SMIQ :BERT:SETup:DENable OFF | LOW | HIGH The SMIQ has an input (data enable) allowing the temporary suspension of the BER test for processing data bursts or data interrupted by other data. This command configures this input. Any signal applied to the input is ignored; all data are used for the BER measurement. HIGH If a high level signal is applied to the input, its data bits are counted and the bit errors detected and counted.
  • Page 61 SMIQ BERT System :BERT:RESult? This query refers to the result of the most recent BER measurement. The response consists of seven results separated by commas. In the first measurement following the start, intermediate results for the number of data bits, error bits and error rate are also queried. In the following measurements (only for :BERT:SEQ AUTO), only the final results of each single measurement are queried.

  • Page 62: Bler System

    BLER System SMIQ 3.5.6 BLER System Command Parameter Default Unit Remark :BLER :STATe ON | OFF :SEQuence AUTO | SINGle :SETup :MCOunt 1 to 4294967294 :MERRor 1 to 4294967294 → CRC16 :TYPE? Query only :DATA [:POLarity] NORMal | INVerted :CLOCk [:POLarity] RISing | FALLing :DENable...
  • Page 63 SMIQ BLER System This command sets the number of errors to be measured. When the internal block error counter reaches this number, the SMIQ responds to a :BLER:RES? query by signalling with the fourth result = 1 that a single BLER measurement has been terminated. Valid value range: 1 to 4294967295 (2 Example: *RST value is 100...
  • Page 64 BLER System SMIQ :BLER:RESult? This command queries the result of the most recent BLER measurement. The response consists of seven values separated by commas. In the first measurement after the start, intermediate results are also queried for the number of data blocks, errors and error rate. In the subsequent measurements (only :BLER:SEQ AUTO), only the final results of the single measurements are queried.

  • Page 65: Calibration System

    SMIQ CALibration System 3.5.7 CALibration System The CALibration system contains the commands to calibrate the SMIQ. On triggering the calibration by means of :MEASure , response "0" displays a faultless calibration, response "1" means that an error has occurred during calibration. As to the meaning of the data in the case of query :DATA?, cf. Chapter 2, Section "Calibration".
  • Page 66 CALibration System SMIQ :CALibration:LEVel This node provides the commands for the management of the level correction table. The corresponding data are permanently stored in the instrument and cannot be changed. The instrument includes different level correction tables. The tables to be used are selected depending on the set frequency and modulation type.
  • Page 67 SMIQ CALibration System :CALibration:VSUMmation The commands to determine the support values for the frequency setting are under this node. :CALibration:VSUMmation [:MEASure]? The command triggers a calibration measurement. The command triggers an event and thus has no *RST value. Example: Answer: 0 :CAL:VSUM:MEAS? :CALibration:VSUMmation:OFFS? :CALibration:VSUMmation:DAC?

  • Page 68: Diagnostic System

    DIAGnostic System SMIQ 3.5.8 DIAGnostic System The DIAGnostic system contains the commands for diagnostic test and service of the instrument. SCPI does not define DIAGnostic commands, the commands listed here are SMIQ-specific. All DIAGnostic commands are queries which are not influenced by *RST. Hence no default setting values are stated. Command Parameter Default...
  • Page 69 SMIQ DIAGnostic System :DIAGnostic:DLISt:CHECksum:CALculate This command calculates the checksum of the currently selected control list (see Digital Modulation DLISt). Example: :DIAG:DLIS:CHEC:CALC :DIAGnostic:DLISt:CHECksum:DATA? This command displays the checksum calculated before in hexadecimal representation (see above). Example: Response:1234567 :DIAG:DLIS:CHEC:DATA? :DIAGnostic:INFO The commands which can be used to query all information which does not require hardware measurement are under this node.
  • Page 70 DIAGnostic System SMIQ :DIAGnostic:INFO:OTIMe? The command reads out the internal operating-hours counter. The response supplies the number of hours the instrument has been in operation up to now. Example: Response: 19 :DIAG:INFO:OTIM? :DIAGnostic:INFO:SDATe? The command queries the date of software creation. The response is returned in the form month, day, year.

  • Page 71: Display System

    SMIQ DISPLAY System 3.5.9 DISPLAY System This system contains the commands to configure the screen. If system security is activated using command SYSTem:SECurity ON, the display cannot be switched on and off arbitrarily (cf. below) Command Parameter Default Remark Unit :DISPlay :ANNotation ON | OFF...

  • Page 72: Format System

    FORMat System SMIQ 3.5.10 FORMat System This system contains the commands determining the format of the data the SMIQ returns to the controller. All queries returning a list of numeric data or block data are concerned. With each of these commands, this connection is pointed to in the description.

  • Page 73: Memory System

    SMIQ MEMory System 3.5.11 MEMory System This system contains the commands for the memory management of the SMIQ. Command Parameter Default Remark Unit :MEMory Query only :NSTates? :MEMory:NSTates? The command returns the number of *SAV/*RCL memories available. The SMIQ has 50 *SAV/*RCL memories in total.

  • Page 74: Output System

    OUTPut System SMIQ 3.5.12 OUTPut System This system contains the commands specifying the characteristics of the RF output socket and the BLANk socket. The characteristics of the LF socket are specified in the OUTPut2 system. Command Parameter Default Remark Unit :OUTPut :AMODe AUTO | FIXed | ELECtronic...
  • Page 75 SMIQ OUTPut System :OUTPut:BLANk:POLarity NORMal | INVerted The command sets the polarity of the BLANk signal. NORMal The active BLANk state is indicated by the more positive or higher output voltage. INVers The active BLANk state is indicated by the more negative or lower output voltage. Example: RST value is NORM :OUTP:BLAN:POL NORM...

  • Page 76: Output2 System

    OUTPut2 System SMIQ 3.5.13 OUTPut2 System This system contains the commands specifying the characteristics of the LF output socket. Command Parameter Default Remark Unit :OUTPut2 ON | OFF [:STATe] 0 V to 4 V :VOLTage :OUTPut2[:STATe] ON | OFF The command switches the LF output on or off. *RST value is OFF Example: :OUTP2:STAT ON...

  • Page 77: Source System

    SMIQ SOURce System 3.5.14 SOURce System This system contains the commands to configure the RF signal source. Keyword SOURce is optional, i.e., it can be omitted. The LF signal source is configured in the SOURce2 system. The following subsystems are realized in the instrument: Subsystem Settings [:SOURce]...

  • Page 78: Source:am Subsystem

    SOURce:AM Subsystem SMIQ 3.5.14.1 SOURce:AM Subsystem This subsystem contains the commands to control the amplitude modulation. Part if the LF-generator settings is effected under SOURce2. Command Parameter Default Unit Remark [:SOURce] :BBANd [:STATe] ON | OFF [:DEPTh] 0 to 100 PCT :EXTernal :COUPling AC | DC...

  • Page 79: Source:correction Subsystem

    SMIQ SOURce:CORRection Subsystem 3.5.14.2 SOURce:CORRection Subsystem The CORRection subsystem permits a correction of the output level. The correction is effected by adding user-defined table values to the output level as a function of the RF frequency. In the SMIQ, this subsystem serves to select, transmit and switch on USER-CORRECTION tables (see Chapter 2, Section "User Correction (UCOR)"...
  • Page 80 SOURce:CORRection Subsystem SMIQ [:SOURce]:CORRection:CSET:DATA:POWer -40dB to 6dB {,-40dB to 6dB} command transmits level data table selected using :SOURce:CORRection:CSET. *RST does not influence data lists. Example: :SOUR:CORR:CSET:DATA:POWer 1dB, 0.8dB, 0.75dB,to [:SOURce]:CORRection:CSET:DELete "Name of table" The command deletes the table indicated from the instrument memory. This command triggers an event and hence has no *RST value.

  • Page 81: Source:dect Subsystem

    SMIQ SOURce:DECT Subsystem 3.5.14.3 SOURce:DECT Subsystem Note #B0 to #BF are characters which are entered in binary form manually. SCPI (and IEEE 488.2) also accept the entry of non-decimal characters in octal and hexadecimal such as #H|h <0 to 9, A|a to F|f>, #Q|q <0 to 7>...
  • Page 82 SOURce:DECT Subsystem SMIQ Command Parameter Default Remark Unit [:SOURce] :DECT :FLISt :PREDefined Þ name {,name}... :CATalog? query only :LOAD ‘name’ no query Þ name {,name}... :CATalog? query only :LOAD ‘name’ no query :STORe ‘name’ no query :DELete ‘name’ no query :DLISt Þ...
  • Page 83 SMIQ SOURce:DECT Subsystem [:SOURce]:DECT:FORMat GFSK | P4DQpsk The command selects the type of modulation. Example: *RST value is GFSK :SOUR:DECT:FORM P4DQ [:SOURce]:DECT:FSK:DEViation 1kHz to 1.2 MHz The command sets the modulation depth (only for DECT:FORMat GFSK). The range of values depends on the symbol rate (DECT:SRATe ×...
  • Page 84 SOURce:DECT Subsystem SMIQ [:SOURce]:DECT:TRIGger:INHibit 0 to 67.1E6 The command sets the retrigger inhibit duration (in number of symbols). Example: *RST value is 0 :SOUR:DECT:TRIG:INH 1000 [:SOURce]:DECT:TRIGger:DELay 0 to 65535 The command sets the trigger delay (in number of symbols). Example: *RST value is 0 :SOUR:DECT:TRIG:DEL 200 [:SOURce]:DECT:TRIGger:OUTPut[1|2]:DELay 0 to 11519...
  • Page 85 SMIQ SOURce:DECT Subsystem [:SOURce]:DECT:PRAMp:DELay -1.0 to +1.0 The command defines the shift of the envelope characteristic to the modulated signal. A positive value causes a delay of the envelope. Example: *RST value is 0 :SOUR:DECT:PRAM:DEL 0.2 [:SOURce]:DECT:PRAMp:SHAPe LINear | COSine The command selects the linear or cosine shape of the ramp-up and ramp-down (power burst).
  • Page 86 SOURce:DECT Subsystem SMIQ [:SOURce]:DECT:FLISt:CATalog? The command returns a list of all user-defined frames. Example: :SOUR:DECT:FLIS:CAT? [:SOURce]:DECT:FLISt:LOAD ‘name’ The command loads a user-defined frame. This command triggers an event and hence has no *RST value. Example: :SOUR:DECT:FLIS:LOAD ’test’ [:SOURce]:DECT:FLISt:STORe ‘name’ The command stores the current frame under a name. This command triggers an event and hence has no *RST value and no query.
  • Page 87 SMIQ SOURce:DECT Subsystem [:SOURce]:DECT:SLOT<i>:PRESet The command sets all the following parameters of the slot to the values defined by the standard as a function of the type set above. This command triggers an event and hence has no *RST value and no query. Example: :SOUR:DECT:SLOT2:PRES [:SOURce]:DECT:SLOT<i>:STSHift -9 to +9 (in bit)
  • Page 88 SOURce:DECT Subsystem SMIQ [:SOURce]:DECT:SLOT<i>[:SOURce]:BFIeld PN9 | PN11 | PN15 | PN16 | PN20 | PN21 | PN23 | DLISt | SDATa The command determines the data source for the B field. The data source set by means of this command is also used for SLOT:TYPE ADATa. It is either a PRBS generator (of different sequence length), a data list or the serial interface.

  • Page 89: Source:dist Subsystem

    SMIQ SOURce:DIST Subsystem 3.5.14.4 SOURce:DIST Subsystem Subsystem DISTortion comprises all commands for setting the distortion simulator. The NDSim subsystem under CALibrate is available for the offset calibration. Command Parameter Default Remark Unit [:SOURce] :DISTortion Not-SCPI [:STATe] ON | OFF :MODE POLYnomial | DATA :DATA Þ...
  • Page 90 SOURce:DIST Subsystem SMIQ [:SOURce]:DISTortion:DATA:CATalog? This command outputs a list with the names of all characteristics stored in the unit separated by commas. The command is a query and hence has no *RST value. Example: Answer e.g.: TWTA, USER, ..:SOUR:DIST:DATA:CAT? [:SOURce]:DISTortion:DATA:SELect '<name of characteristic>' This command selects the characteristic (data list) all other SOURCE:DIST:DATA:...
  • Page 91 SMIQ SOURce:DIST Subsystem [:SOURce]:DISTortion:DATA:AMBase:POINts? This command provides the length of the input-value list (x-axis) of AM/AM conversion in elements. The command is a query and hence has no *RST value. Example: Answer e.g.: 0 :SOUR:DIST:DATA:AMB:POINts? [:SOURce]:DISTortion:DATA:PM -180 degrees to +180 degrees {, -180 degrees to +180 degrees } | block data This command fills the output values (y-axis) for the AM/PM conversion of the selected characteristic with data.
  • Page 92 SOURce:DIST Subsystem SMIQ [:SOURce]:DISTortion:POLYnomial:AMPM:K<i> -60 deg to +60 deg The command sets the coefficients k2 to k5 for the AM-PM distortion. Example: *RST value is 0 deg :SOUR:DIST:POLY:AMPM:K4 12.8 deg [:SOURce]:DISTortion:POLYnomial:IFUNction ON | OFF The command switches on and off the inversion of the distortion characteristic to compensate an amplifier connected after the SMIQ.

  • Page 93: Source:dm Subsystem

    SMIQ SOURce:DM Subsystem 3.5.14.5 SOURce:DM Subsystem In this subsystem, the types of digital standard modulation as well as vector modulation (I/Q modulation) are checked. Vector Modulation Command Parameter Default Remark Unit [:SOURce] :STATe ON | OFF :CREStfactor 0 to 30 :PRAMp OFF | AEXTernal :IMPairment...
  • Page 94 SOURce:DM Subsystem SMIQ [:SOURce]:DM:IQ:FILTer The commands for the IQ filter settings are under this node. [:SOURce]:DM:IQ:FILTer:STATe ON | OFF This command switches the IQ filter ON or OFF. It is only available with option SMIQB47 - LOW ACP Filter. Example: *RST value: OFF :SOUR:DM:IQ:FILT:STAT ON [:SOURce]:DM:IQ:FILTer:FREQuency 850 kHz, 2.5 MHz, 5 MHz, 7.5 MHz...

  • Page 95: Digital Modulation

    SMIQ SOURce:DM Subsystem Digital Modulation Command Parameter Default Remark unit [:SOURce] :STATe ON | OFF :SEQuence AUTO | RETRigger | AAUTo | ARETrigger | SINGle :SOURce PRBS | PATTern | DLISt | SERial | PARallel | SDATa :PATTern ZERO | ONE | ALTernate :PRBS [:LENGth] 9 | 15 | 16 | 20 | 21 | 23...
  • Page 96 SOURce:DM Subsystem SMIQ Default Command Parameter Remark unit [:SOURce] :FORMat GMSK | GFSK | BPSK | QPSK | QIS95 | QICO | QWCDma only with QWCDma | QINMarsat | OQPSk | OIS95 | P4QPsk | option SMIQB47 P4DQpsk | PSK8 | PSKE8 | QAM16 to 256 | ASK | FSK2 | FSK4 | AFSK4 | USER Query only :MDELay?
  • Page 97 SMIQ SOURce:DM Subsystem [:SOURce]:DM:STATe ON | OFF The command switches the digital (user-defined, not stipulated by a standard) modulation on or off. Example: *RST value is OFF :SOUR:DM:STAT ON [:SOURce]:DM:SEQuence AUTO | RETRigger | AAUTo | ARETrigger | SINGle This command selects the trigger mode: AUTO The sequence is repeated cyclically.
  • Page 98 SOURce:DM Subsystem SMIQ [:SOURce]:DM:DLISt:DATA? [<start> [,<length>]] The command reads out the data list. If the query is enhanced by the two parameters start and length, the list will be read out in smaller parts. Start and length are given in bits. Without parameters the whole length will always be output from address 1.
  • Page 99 SMIQ SOURce:DM Subsystem [:SOURce]:DM:CLISt The commands for processing the control list are under this node. The control list contains the switching signals for the burst, the level, the modulation etc. The list index is with reference to the symbols in the data list and the list only contains the status changes. Control lists are not affected by *RST.
  • Page 100 SOURce:DM Subsystem SMIQ [:SOURce]:DM:CLISt:COPY ‘<name>‘ The command copies the selected list to the data list indicated by <name>. This command triggers an event and hence has no *RST value and no query. Example: :SOUR:DM:CLIS:COPY ’TEST2’ [:SOURce]:DM:CLISt:FREE? This command returns the available free space for the control data (lines consisting of 4 bytes) in elements.
  • Page 101 SMIQ SOURce:DM Subsystem [:SOURce]:DM:MLISt:CATalog? The command returns a list of mapping list names separated by commas. Example: :SOUR:DM:MLIS:CAT? [:SOURce]:DM:MLISt:SELect ‘<name>‘ The command selects the indicated user-defined mapping list. This list only becomes effective as modulation if the:DM:FORMat USER mode has been selected. The list can only be filled with values if it has been selected beforehand.
  • Page 102 SOURce:DM Subsystem SMIQ [:SOURce]:DM:FLISt:DELete ‘<name> The command deletes the filter list specified by <name>. This command triggers an event and hence has neither *RST value nor query. Example: :SOUR:DM:FLIS:DEL ’TEST2’ [:SOURce]:DM:FLISt:FREE? The command returns the free space available for filter data as a numeral. Example: :SOUR:DM:FLIS:FREE? [:SOURce]:DM:FLISt:POINts?
  • Page 103 SMIQ SOURce:DM Subsystem [:SOURce]:DM:FSK:DEViation 100 kHz to 2.5 MHz The command sets the deviation for FSK (only for DM:FORmat FSK2, FSK4 and GFSK). Example: *RST value is 4.5 kHz :SOUR:DM:FSK:DEV 9 kHz [:SOURce]:DM:SRATe 1kHz to 7 MHz The command sets the symbol rate. Example: *RST value is 24.3 kHz :SOUR:DM:SRAT 200 kHz...
  • Page 104 SOURce:DM Subsystem SMIQ [:SOURce]:DM:CLOCk:MODE BIT | SYMBol The command selects the clock mode for :DM:CLOCk:SOURce EXTernal Only the input D_CLOCK is used. SYMBol Only the input S_CLOCK is used. The bit and symbol clock only differ for modulations with more than two states, i.e. modulations for which more than one bit is required to code each state.
  • Page 105 SMIQ SOURce:DM Subsystem [:SOURce]:DM:PRAMp:SHAPe LINear | COSine The command selects the linear or cosine-square shape of the ramp-up and ramp-down (power burst). Example: *RST value is COS :SOUR:DM:PRAM:SHAP COS [:SOURce]:DM:PRAMp:ATTenuation 0 to 70 dB The command sets the level reduction value. Example: *RST value is 0 dB :SOUR:DM:PRAM:ATT 12 dB...

  • Page 106: Source:fm Subsystem

    SOURce:FM Subsystem SMIQ 3.5.14.6 SOURce:FM Subsystem This subsystem contains the commands to check the frequency modulation and to set the parameters of the modulation signal. The SMIQ can be equipped with two independent frequency modulators (option SM-B5). They are differentiated by a suffix after FM. SOURce:FM1 SOURce:FM2 Command...
  • Page 107 SMIQ SOURce:FM Subsystem [:SOURce]:FM1|2:INTernal:FREQuency 0.1 Hz to 1 MHz The command sets the modulation frequency. Example: *RST value is 1 kHz :SOUR:FM:INT:FREQ 10kHz [:SOURce]:FM1|2:PREemphasis 0 | 50us | 75us The command selects the preemphasis. No preemphasis 50 us 50 µs, European standard 50 µs 75 us 75 µs, American standard 75 µs *RST value is 0...

  • Page 108: Source:frequency Subsystem

    SOURce:FREQuency Subsystem SMIQ 3.5.14.7 SOURce:FREQuency Subsystem This subsystem contains the commands for the frequency settings of the RF source including the sweeps. Command Parameter Default Remark Unit [:SOURce] :FREQuency :CENTer 300 kHz to RF depends on model [:CW|:FIXed] 300 kHz to RF depends on model :RCL INCLude | EXCLude...
  • Page 109 SMIQ SOURce:FREQuency Subsystem [:SOURce]:FREQuency:MODE CW | FIXed | SWEep | LIST The command specifies the operating mode and hence also specifies which commands check the FREQuency subsystem. The following allocations are valid CW | FIXed CW and FIXed are synonyms. The output frequency is specified by means of :SOUR:FREQ:CW | FIX.

  • Page 110: Source:fsim-Subsystem

    SOURce:FSIM-Subsystem SMIQ 3.5.14.8 SOURce:FSIM-Subsystem The FSIM system comprises the commands for the fading simulator (options SMIQB14, SMIQB15, SMIQB49). Command Parameter Default- Remark Unit [:SOURce] :FSIMulator Option SMIQB14 [:STANdard] [:STATe] ON | OFF :CONFigure S6Path | S12Path | D6Path S12P/D6P only w. SMIQB15 :SEQuence RUN | STOP :RESet...
  • Page 111 SMIQ SOURce:FSIM-Subsystem With option SMIQB49 only Command Parameter Default Remarks unit [:SOURce] :FSIMulator Option SMIQB14 :FDELay FineDelay [:STATe] ON | OFF :STANdard G3C1 | G3C2 | G3C3 G3C4 | G3UEC1 | G3UEC2 | G3UEC3 | G3UEC4 | G3UEC5 | G3UEC6 :SPEed :UNIT MPS | KMPH | MPH...
  • Page 112 SOURce:FSIM-Subsystem SMIQ [:SOURce]:FSIMulator[] The standard settings for the fading simulator that are available without Option SMIQB49 are under this node. [:SOURce]:FSIMulator:ALL[:STATe] ON | OFF This command switches the fading simulator on or off. The switch-on states of subgroups Standard, FDELay, MDELay and BIRThdeath remain unchanged. If, however, one of the subgroups is switched on (...:STATE ON), ON is automatically set.
  • Page 113 SMIQ SOURce:FSIM-Subsystem [:SOURce]:FSIMulator[:STANdard CDMA8 | CDMA30 | ..Selects the fading standard. All subsequent FSIM commands are set to a predefined value. The parameters with a '6' as second character select the 6-path mode (this mode must be set if option SMIQB15, Second Fading Generator is not available).
  • Page 114 SOURce:FSIM-Subsystem SMIQ [:SOURce]:FSIMulator:SPEed:UNIT MPS | KMPH | MPH This command selects the speed unit. m/s, meter per second KMPH km/h, kilometer per hour miles per hour Example: *RST value: MPS :SOUR:FSIM:SPE:UNIT MPH [:SOURce]:FSIMulator:ILOSs:MODE NORMal | LACP This command sets the insertion loss of the fading simulator. NORMal The insertion loss is fixed to 18 dB, which is ideal for BER measurements.
  • Page 115 SMIQ SOURce:FSIM-Subsystem [:SOURce]:FSIMulator[:PATH<i> The following commands can be separately set for each path. The path is selected with the suffix <i>; <i> being assigned a value from 1 to 6 (one fading simulator) or 1 to 12 (two fading simulators). [:SOURce]:FSIMulator:PATH<i>:STATE ON | OFF This command switches the selected path on or off.
  • Page 116 SOURce:FSIM-Subsystem SMIQ [:SOURce]:FSIMulator:PATH<i>:DELay 0 to 1638.0E-6 This command sets the signal delay in the path. The resolution is 50 ns. *RST value is 0 Example: :SOUR:FSIM:PATH3:DEL 123E-6 [:SOURce]:FSIMulator:PATH<i>:CORRelation This node provides the commands for setting the correlation to another path (only with option SMIQB15).
  • Page 117 SMIQ SOURce:FSIM-Subsystem G3C4 3GPP_BS_4.1.0._Case4 (with SMIQ15 only) G3UEC1 3GPP_UE_4.1.0._Case1 G3UEC2 3GPP_UE_4.1.0._Case2 (with SMIQ15 only) G3UEC3 3GPP_UE_4.1.0._Case3 (with SMIQ15 only) G3UEC4 3GPP_UE_4.1.0._Case4 G3UEC5 3GPP_UE_4.1.0._Case5 G3UEC6 3GPP_UE_4.1.0._Case6( only with SMIQ15) Example: *RST value is G3C1 (G3C2 with SMIQB15) :SOUR:FSIM:FDEL:STAN G3C1 :SOUR:FSIM:FDEL:STAN G3UEC1 [:SOURce]:FSIMulator:FDELay:SPEed:UNIT MPS | KMPH | MPH This command sets the unit for the speed of fine delay simulation.
  • Page 118 SOURce:FSIM-Subsystem SMIQ [:SOURce]:FSIMulator:FDELay:PATH<i>:SPEed 0.005 to 27 777 (in MPS (m/s)) This command sets the speed of the moving receiver for the fine delay simulation. The unit is specified with the FSIM:SPEed:UNIT command and is not part of this command. Example: *RST value is 20 MPS :SOUR:FSIM:FDEL:PATH3:SPE 10.0 [:SOURce]:FSIMulator:FDELay:PATH<i>:FDOPpler 0.1 to 1600 Hz...
  • Page 119 SMIQ SOURce:FSIM-Subsystem [:SOURce]:FSIMulator:MDELay:MOVing:LOSS 0 to 50.0 dB This command enters the signal loss in the path for the moving delay simulation. The resolution is 0.1 dB. Example: *RST value is 0 :SOUR:FSIM:MDEL:MOV:LOSS 20 [:SOURce]:FSIMulator:MDELay:MOVing:DELay:MEAN 0.25us to 1637.8us This command enters the mean value of the moving path delay for the moving delay simulation. Example: *RST value is 5 us :SOUR:FSIM:MDEL:MOV:DEL:MEAN 123E-6...
  • Page 120 SOURce:FSIM-Subsystem SMIQ [:SOURce]:FSIMulator:BIRThdeath:PATH<i>:PROFile PDOPpler This command assigns the selected path a fading profile for the Birth-Death simulation. PDOPpler Pure Doppler profile Example: *RST value is PDOP :SOUR:FSIM:BIRT:PATH2:PROF PDOP [:SOURce]:FSIMulator:BIRThdeath:PATH<i>:FRATio -1.0 to +1.0 This command sets the frequency ratio for the Birth-Death simulation. The resolution is 0.1. Example: *RST value is 1 :SOUR:FSIM:BIRT:PATH2:FRAT 0.5...

  • Page 121: Source:gps Subsystem

    SMIQ SOURce:GPS Subsystem 3.5.14.9 SOURce:GPS Subsystem This subsystem contains the commands for simulating a GPS satellite. Command Parameter Default Remark unit [:SOURce] :GPS :STATe ON | OFF :PRESet :STANdard (without) (without) :SEQuence AUTO | RETRigger | AAUTo | ARETrigger | SINGle :TRIGger :SOURce INTernal | EXTernal...
  • Page 122 SOURce:GPS Subsystem SMIQ [:SOURce]:GPS:PRESet:RF The command sets the RF-parameter frequency to 1.57542 GHz and level to –125 dBm (the values of the GPS standard). This command triggers an event and hence has no *RST value and no query. Example: :SOUR:GPS:PRES:RF [:SOURce]:GPS:SEQuence AUTO | RETRigger | AAUTo | ARETrigger The command selects the trigger mode for the sequence.
  • Page 123 SMIQ SOURce:GPS Subsystem [:SOURce]:GPS:CURRent:SRATe? The command queries the resulting symbol rate. Example: :SOUR:GPS:CURR:SRAT? [:SOURce]:GPS:DSHift –10 kHz to 10 kHz The command sets the Doppler shift. Example: *RST value is 0 :SOUR:GPS:DSH -2.1 kHz [:SOURce]:GPS:SRATe 500000 to 1500000 The command sets the symbol rate (in symb/s) (without Doppler shift). Example: *RST value is 1023000 :SOUR:GPS:SRAT 1020000...

  • Page 124: Source:gsm Subsystem (Digital Standard Gsm/Edge)

    SOURce:GSM Subsystem (Digital Standard GSM/EDGE) SMIQ 3.5.14.10 SOURce:GSM Subsystem (Digital Standard GSM/EDGE) Note: #B0 to #B1 are characters which are entered in binary form manually. SCPI (and IEEE 488.2) also accept the entry of non-numeric characters in octal and hex such as #H|h <0 to 9, A|a to F|f>, #Q|q <0 to 7>...
  • Page 125 SMIQ SOURce:GSM Subsystem (Digital Standard GSM/EDGE) Command Parameter Default Remark unit [:SOURce] :GSM :DLISt Þ name {,name}... :CATalog? Query only :SLOT<i> i=0,[1],2 to 7 (Slot Selector) :TYPE NORMal | DUMMy | ADATa | EDGE :LEVel OFF | ATT | FULL :PRESet (without) :HOPPing...
  • Page 126 SOURce:GSM Subsystem (Digital Standard GSM/EDGE) SMIQ [:SOURce]:GSM:FILTer:PARameter 0.2 to 0.7 The command sets the filter parameter. Example: *RST value is 0.3 :SOUR:GSM:FILT:PAR 0.4 [:SOURce]:GSM:SEQuence AUTO | RETRigger | AAUTo | ARETrigger The command selects the trigger mode for the sequence. AAUTo is ARMED AUTO ARETrigger is...
  • Page 127 SMIQ SOURce:GSM Subsystem (Digital Standard GSM/EDGE) INTernal The internal clock generator is used and output via the clock outputs of the serial and parallel interface. EXTernal The clock is externally fed in via the serial interface and output via the parallel interface.
  • Page 128 SOURce:GSM Subsystem (Digital Standard GSM/EDGE) SMIQ [:SOURce]:GSM:FLISt The commands for storing and reading complete frames including their bursts (slots) are under this node. Predefined and user-generated frames have to be distinguished. [:SOURce]:GSM:FLISt:PREDefined:CATalog? The command returns a list of all predefined frames. Example: :SOUR:GSM:FLIS:PRED:CAT? [:SOURce]:GSM:FLISt:PREDefined:LOAD ‘name’...
  • Page 129 SMIQ SOURce:GSM Subsystem (Digital Standard GSM/EDGE) [:SOURce]:GSM:SLOT<i>:LEVel OFF | ATT | FULL The command determines the power stage of the slot. The slot is inactive The power is reduced by the amount defined by :GSM:SLOT:ATT FULL Full power (predefined by level setting) Example: Slot 0: *RST value is FULL :SOUR:GSM:SLOT2:LEV ATT...

  • Page 130: Source:is95 Subsystem (Digital Standard Is-95 Cdma)

    SOURce:IS95 Subsystem (Digital Standard IS-95 CDMA) SMIQ 3.5.14.11 SOURce:IS95 Subsystem (Digital Standard IS-95 CDMA) Command Parameter Default Remark unit [:SOURce] :IS95 :STATe ON | OFF :MODE FLINk18 | FLINk64 | RLINk :PRESet :CRATe 1 kHz to 7 MHz :FILTer :FTYPe SCOSine | COSine | IS95 | EIS95 | USER :RTYPe SCOSine | COSine | IS95 | EIS95 | USER...
  • Page 131 SMIQ SOURce:IS95 Subsystem (Digital Standard IS-95 CDMA) Command Parameter Default unit Remark [:SOURce] :IS95 :DLISt ‘name’ Þ name {,name}... :CATalog? query only :RLCoded :CTYPe TRAF14400 | TRAF7200 | TRAF3600 | TRAF1800 | ACC4800 | TRAF9600 | TRAF4800 | TRAF2400 | TRAF1200 :DATA PN9 | PN11| PN15 | PN16 | PN20 | PN21 | PN23 |...
  • Page 132 SOURce:IS95 Subsystem (Digital Standard IS-95 CDMA) SMIQ [:SOURce]:IS95:FILTer:FTYPe SCOSine | COSine | IS95 | EIS95 | USER The command selects the type of filter for the Forward Link Mode (IS95:FLINk18 or IS95:FLINk64). A filter list should be selected with :DECT:FILT:SEL 'name' for the filter type USER.
  • Page 133 SMIQ SOURce:IS95 Subsystem (Digital Standard IS-95 CDMA) [:SOURce]:IS95:SEQuence AUTO | RETRigger | AAUTo | ARETrigger The command selects the trigger mode for the sequence.. AUTO Continuously repeated RETRigger Continuously repeated; new start after a trigger AAUTo ARMED AUTO; waits for trigger, then switches over to AUTO and can no longer be triggered;...
  • Page 134 SOURce:IS95 Subsystem (Digital Standard IS-95 CDMA) SMIQ [:SOURce]:IS95:CLOCk The commands for setting the chip clock are under this node. [:SOURce]:IS95:CLOCk:MODE CHIP | CHIP4 | CHIP8 | CHIP16 The command sets the divider for the clock. With CHIP selected, the external clock is in the symbol mode, otherwise in the bit mode.
  • Page 135 SMIQ SOURce:IS95 Subsystem (Digital Standard IS-95 CDMA) [:SOURce]:IS95:MAPPing:LOAD ‘name’ The command loads a user-defined channel assignment and setting (mapping). The name may have a maximum of 7 characters. This command triggers an action and hence has no *RST value. Example: :SOUR:IS95:MAPP:LOAD ’test’...
  • Page 136 SOURce:IS95 Subsystem (Digital Standard IS-95 CDMA) SMIQ [:SOURce]:IS95:RATE FULL | HALF The command sets the data rate for operating mode Reverse Link (IS95:MODE RLINK). Example: *RST value is FULL :SOUR:IS95:RATE HALF [:SOURce]:IS95:RANDomizer[:STATe] ON | OFF The command switches the burst randomizer for operating mode Reverse Link (IS95:MODE RLINK) on or off.
  • Page 137 SMIQ SOURce:IS95 Subsystem (Digital Standard IS-95 CDMA) [:SOURce]:IS95:RLCoded:FQINdicator ON | OFF The command switches the frame quality indicator (a CRC of the data) on or off. If the frame quality indicator is switched off, only zeros are transmitted. The command is only available with ‘IS95:MODE RLCoded’...

  • Page 138: Source:list Subsystem

    SOURce:LIST Subsystem SMIQ 3.5.14.12 SOURce:LIST Subsystem This subsystem contains the commands for the LIST operating mode of the RF generator. The LIST mode is activated by command SOURce:FREQuency:MODE LIST. Processing the lists is controlled by the TRIGger:LIST subsystem. Each list consists of a FREQuency, POWer and DWELl content. The list contents must all be of the same length except for contents of length 1.
  • Page 139 SMIQ SOURce:LIST Subsystem [:SOURce]:LIST:FREQuency 300 kHz to RF {, 300 kHz to RF } | block data depending on model) The command fills the FREQuency part of the list selected with data. The data can either be indicated as a list of numbers (separated by commas) of arbitrary length or as binary block data. In the case of block data transmission, always 8 (4) bytes are interpreted as a floating-point number of double accuracy (cf.

  • Page 140: Source:marker Subsystem

    SOURce:MARKer Subsystem SMIQ 3.5.14.13 SOURce:MARKer Subsystem This subsystem contains the commands to check the marker generation with sweeps. The SMIQ has three markers each for frequency and level sweeps which are differentiated by a numeric suffix after MARKer. The settings for frequency sweep and level sweep marker are independent of each other. Command Parameter Default Unit...
  • Page 141 SMIQ SOURce:MARKer Subsystem [:SOURce]:MARKer1|2|3|4[:FSWeep][:STATe] ON | OFF The command switches the marker selected by the numeric suffix with MARKer on or off. Example: *RST value is OFF :SOUR:MARK1:FSW:STAT ON [:SOURce]:MARKer1|2|34:PSWeep The commands for the markers with level sweep are under this node (Power sweep). The three markers are differentiated by a numeric suffix after MARKer.

  • Page 142: Source:modulation Subsystem

    SOURce:MODulation Subsystem SMIQ 3.5.14.14 SOURce:MODulation Subsystem Command Parameter Default Remark unit [:SOURce] :MODulation [:ALL] :STATe ON | OFF [:SOURce]:MODulation[:ALL]:STATe ON | OFF This command deactivates all types of modulation with OFF. All analog, vector, digital, digital standard and ARB modulations are thus set to OFF if they were switched on before. This command can be used before switching on a new type of modulation in order to avoid the error message "settings conflict"...

  • Page 143: Source:nadc Subsystem

    SMIQ SOURce:NADC Subsystem 3.5.14.15 SOURce:NADC Subsystem Note #H0 to #HF are characters which are entered in alphanumeric Hex form manually. SCPI (and IEEE 488.2) also accept the entry of non-decimal characters in octal and binary such #H|h <0 to 9, A|a to F|f>, #Q|q <0 to 7>...
  • Page 144 SOURce:NADC Subsystem SMIQ Command Parameter Default Remark unit [:SOURce] :NADC :FLISt :PREDefined Þ name {,name}... :CATalog? query only :LOAD ‘name’ Þ name {,name}... :CATalog? query only :LOAD ‘name’ :STORe ‘name’ no query :DELete ‘name’ no query :DLISt Þ name {,name}... :CAtalog? query only :SLOT<i>...
  • Page 145 SMIQ SOURce:NADC Subsystem [:SOURce]:NADC:FILTer:TYPE SCOSine | COSine | USER The command selects the type of filter. A filter list should be selected with :NADC:FILT:SEL 'name' for the filter type USER. Example: *RST value is SCOS :SOUR:NADC:FILT:TYPE COS [:SOURce]:NADC:FILTer:SELect 'name' The command selects a named filter list. The list is used only if a user-defined filter is selected with :NADC:FILT:TYPE USER.
  • Page 146 SOURce:NADC Subsystem SMIQ [:SOURce]:NADC:TRIGgerOUTPut[2]:DELay 0 to 971 The command determines the delay of the signal at trigger output 2 in comparison with the start of the frames/slots in number of symbols. Example: *RST value is 0 :SOUR:NADC:TRIG:OUTP2:DEL 16 [:SOURce]:NADC:TRIGger:OUTPut[2]:PERiod 1 to 67.1E6 The command sets the repeat rate (in number of frames) of the signal at trigger output 2.
  • Page 147 SMIQ SOURce:NADC Subsystem Example: *RST value is 0 :SOUR:NADC:PRAM:DEL 0.2 [:SOURce]:NADC:PRAMp:SHAPe LINear | COSine The command selects the linear or cosine shape of the ramp-up and ramp-down (power burst). Example: *RST value is COS :SOUR:NADC:PRAM:SHAP COS [:SOURce]:NADC:PRAMp:ROFFset -9 to +9 The command determines the timing of the (‘R’ising) edge of a power burst to the beginning of the block.
  • Page 148 SOURce:NADC Subsystem SMIQ [:SOURce]:NADC:FLISt:PREDefined:CATalog? The command returns a list of all predefined frames. Example: :SOUR:NADC:FLIS:PRED:CAT? [:SOURce]:NADC:FLISt:PREDefined:LOAD ‘name’ The command selects one of the predefined (fixed) frames (c.f. Chapter 2). This command triggers an event and hence has no *RST value and no query. Example: :SOUR:NADC:FLIS:PRED:LOAD ’test’...
  • Page 149 SMIQ SOURce:NADC Subsystem [:SOURce]:NADC:SLOT<i>:TYPE TCH | SHORt | ADATa The command selects the type of burst (slot) defined in the standard. Normal communication channel with the fields defined by the standard. ADATa All data (without predefined SYNC, SACCh, CDVCc and RSVD fields) SHORt Only used for uplink to set up TCH.
  • Page 150 SOURce:NADC Subsystem SMIQ [:SOURce]:NADC:SLOT<i>[:SOURce]:DATA:DLISt ‘name’ The command selects a data list. This list will not be used unless it is set as a data source by means of the :NADC:SLOT:DATA DLIS command. This command triggers an event and hence has no *RST value. Example: :NADC:SLOT:DATA:DLIS ’test’...

  • Page 151: Source:noise Subsystem

    SMIQ SOURce:NOISe Subsystem 3.5.14.16 SOURce:NOISe Subsystem Subsystem NOISe comprises all commands for setting the noise generator. The NDSim subsystem under CALibrate is available for the offset calibration. In the DIAGnostic subsystem the noise or carrier signal can be switched off for C/N measurements (refer to chapter Performance Test in the Operating Manual).

  • Page 152: Source:pdc Subsystem

    SOURce:PDC Subsystem SMIQ 3.5.14.17 SOURce:PDC Subsystem Note: #H0 to #HF are characters which are entered in alphanumeric Hex form manually. SCPI (and IEEE 488.2) also accept the entry of non-numeric characters in octal and binary such as #H|h <0 to 9, A|a to F|f>, #Q|q <0 to 7>...
  • Page 153 SMIQ SOURce:PDC Subsystem Command Parameter Default Remark unit [:SOURce] :PDC :FLISt :PREDefined query only :CATalog? Þ name {,name}... :LOAD query only :CATalog? ‘name’ :LOAD ‘name’ no query :STORe ‘name’ no query :DELete ‘name’ :DLISt ‘name‘ query only :CATalog? :SLOT<i> :TYPE TCH | SYNC | VOX | ADATa :LEVel OFF | ATT | FULL...
  • Page 154 SOURce:PDC Subsystem SMIQ [:SOURce]:PDC:STANdard The commands sets all modulation parameters to the values of the PDC standard. I.e., all values that have been selected by the :PDC:SLOT... commands described in the following are not valid. This command triggers an event and hence has no *RST value and no query. Example: :SOUR:PDC:STAN [:SOURce]:PDC:SRATe 1kHz to 200 kHz...
  • Page 155 SMIQ SOURce:PDC Subsystem [:SOURce]:PDC:TRIGger:INHibit 0 to 67.1E6 The command sets the retrigger inhibit duration (in number of symbols). Example: *RST value is 0 :SOUR:PDC:TRIG:INH 1000 [:SOURce]:PDC:TRIGger:DELay 0 to 65535 The command sets the trigger delay (in number of symbols). Example: *RST value is 0 :SOUR:PDC:TRIG:DEL 200 [:SOURce]:PDC:TRIGgerOUTPut[2]:DELay 0 to 839...
  • Page 156 SOURce:PDC Subsystem SMIQ [:SOURce]:PDC:PRAMp The commands for the level control of the burst are under this node. [:SOURce]:PDC:PRAMp:PRESet This command sets the standard-stipulated values for the following commands of level control. It is an event and hence has no query and no *RST value. Example: :SOUR:PDC:PRAM:PRES [:SOURce]:PDC:PRAMp:TIME 0.25 to 16.0...
  • Page 157 SMIQ SOURce:PDC Subsystem [:SOURce]:PDC:RCONfiguration AHALf | FULL1 | FULL2 | FULL3 | FULL12 | FULL13 | FULL23 | AFUL This configuration setup determines how the FULL- and HALF-rate channels (slots) are distributed among the frames. This command is stored as a part of the :PDC:FLISt configurations (see below). AHALf All Half FULL0...
  • Page 158 SOURce:PDC Subsystem SMIQ [:SOURce]:PDC:DLISt:CATalog? The command returns an enumeration of all data lists. These data lists are selected by means of :PDC:SLOT:SACC:DLIS, ..:RCH:DLIS, ...SI:DLIS, or ...:DATA:DLIS ‘name’ and used if :PDC:SLOT:SACC, ...RCH, SI, or ...:DATA DLISt are set. Example: :SOUR:PDC:DLIS:CAT? [:SOURce]:PDC:SLOT<i>...
  • Page 159 SMIQ SOURce:PDC Subsystem [:SOURce]:PDC:SLOT<i>:SFRame:STATe ON | OFF This command switches the superframe on or off. When switched on, RCD data will be inserted instead of SACCH data in some slots and SYNC2 will be used instead of SYNC in the first slot of the superframe.
  • Page 160 SOURce:PDC Subsystem SMIQ [:SOURce]:PDC:SLOT<i>[:SOURce]:RCHannel:DLISt ‘name’ The command selects a data list. This list will not be used unless it is set as a data source by means of the :SOUR:PDC:SLOT:RCH DLIS command. This command triggers an event and hence has no *RST value. Example: :PDC:SLOT:RCH:DLIS ’test’...

  • Page 161: Source:phase Subsystem

    SMIQ SOURce:PHASe Subsystem 3.5.14.18 SOURce:PHASe Subsystem Command Parameter Default Remark Unit [:SOURce] :PHASe [:ADJust] -360 deg to +360 deg :REFerence No query [:SOURce]:PHASe[:ADJust] -360 deg to +360 deg The command indicates the phase between output signal and reference oscillator signal. This setting is only accepted using SOURce:PHASe:REFerence (cf.

  • Page 162: Source:phs Subsystem

    SOURce:PHS Subsystem SMIQ 3.5.14.19 SOURce:PHS Subsystem Note #H0 to #HF are characters which are entered in alphanumeric Hex form manually. SCPI (and IEEE 488.2) also accept the entry of non-decimal characters in octal and binary such as #H|h <0 to 9, A|a to F|f>, #Q|q <0 to 7>...
  • Page 163 SMIQ SOURce:PHS Subsystem Command Parameter Default Remark unit [:SOURce] :PHS :DLISt Þ name {,name}.. :CATalog? query only :SLOT<i> :TYPE TCHFull | TCHHalf | SYNC | VOX | ADATa :LEVel OFF | ATT | FULL :PRESet No query :SCRamble :STATe ON | OFF :CODE #H0 to #H3FF (10 bit) :ENCRyption...
  • Page 164 SOURce:PHS Subsystem SMIQ [:SOURce]:PHS:FILTer:SELect 'name' The command selects a named filter list. The list is used only if a user-defined filter is selected with :PHS:FILT:TYPE USER. To generate lists, cf. command [:SOURce]:DM:FLISt:SEL, to fill up lists, cf. command [:SOURce]:DM:FLISt:DATA. Example: *RST value is NONE :SOUR:PHS:FILT:SEL 'test' [:SOURce]:PHS:FILTer:PARameter 0.1 to 0.7...
  • Page 165 SMIQ SOURce:PHS Subsystem [:SOURce]:PHS:TRIGger:OUTPut[2]:PERiod 1 to 67.1E6 The command sets the repeat rate (in number of frames) of the signal at trigger output 2. Example: *RST value is 1 :SOUR:PHS:TRIG:OUTP:PER 8 [:SOURce]:PHS:CLOCk The commands for setting the data clock are under this node. [:SOURce]:PHS:CLOCk:SOURce INTernal | EXTernal The command selects the source for the DM data clock.
  • Page 166 SOURce:PHS Subsystem SMIQ [:SOURce]:PHS:PRAMp:SHAPe LINear | COSine The command selects the linear or cosine shape of the ramp-up and ramp-down (power burst). Example: *RST value is LIN :SOUR:PHS:PRAM:SHAP COS [:SOURce]:PHS:PRAMp:ROFFset -9 to +9 The command determines the timing of the (‘R’ising) edge of a power burst to the beginning of the slot. Example: *RST value is 0 :SOUR:PHS:PRAM:ROFF -3...
  • Page 167 SMIQ SOURce:PHS Subsystem [:SOURce]:PHS:FLISt:DELete ‘name’ The command deletes the indicated frame. This command triggers an event and hence has no *RST value and no query. Example: :SOUR:PHS:FLIS:DEL ’test1’ [:SOURce]:PHS:DLISt:CATalog? The command returns an enumeration of all data lists. These data lists are selected by means of :PHS:SLOT:SACC:DLIS ‘name’ and...:TCH:DLIS ‘name’...
  • Page 168 SOURce:PHS Subsystem SMIQ [:SOURce]:PHS:SLOT<i>:SCRamble:CODE #H0 to #H3FF The command sets the 10-bit scramble value. Example: *RST value is 0 :SOUR:PHS:SLOT2:SCR:CODE #H123 [:SOURce]:PHS:SLOT<i>:ENCRyption The commands to determine encryption are under this node. [:SOURce]:PHS:SLOT<i>:ENCRyption:STATe ON | OFF This command defines whether or not the data are to be encrypted according to the predefined method.
  • Page 169 SMIQ SOURce:PHS Subsystem [:SOURce]:PHS:SLOT<i>[:SOURce]:SACChannel:DLISt ‘name’ The command selects a data list. This list will not be used unless it is set as a data source by means of the :PHS:SLOT:SACC DLIS command. This command triggers an event and hence has no *RST value. Example: :PHS:SLOT:SACC:DLIS ’test’...

  • Page 170: Source:pm Subsystem

    SOURce:PM Subsystem SMIQ 3.5.14.20 SOURce:PM Subsystem This subsystem contains the commands to check the phase modulation and to set the parameters of the modulation signal. The SMIQ can be equipped with two independent phase modulators (option SM-B5). They are differentiated by a suffix after PM. SOURce:PM1 SOURce:PM2 Command...
  • Page 171 SMIQ SOURce:PM Subsystem [:SOURce]:PM1|2:INTernal:FREQuency 0.1 Hz to 1 MHz The command sets the modulation frequency. *RST value is 1 kHz Example: :SOUR:PM:INT:FREQ 10kHz [:SOURce]:PM1|2:SOURce INTernal | EXTernal1 | EXTernal2 The command selects the modulation source. A command without suffix is interpreted like a command with suffix 1.

  • Page 172: Source:power Subsystem

    SOURce:POWer Subsystem SMIQ 3.5.14.21 SOURce:POWer Subsystem This subsystem contains the commands to set the output level, the level control and the level correction of the RF signal. Other units can be used instead of dBm: – by indication directly after the numeric value (Example :POW 0.5V), –...
  • Page 173 SMIQ SOURce:POWer Subsystem [:SOURce]:POWer:ALC:SEARch ON | OFF | ONCE This command is only valid with level control switched off. Level control is switched on briefly after a level or frequency change (SAMPLE & HOLD). Level control is never switched on (TABLE mode). ONCE Level control is briefly switched on for calibration.
  • Page 174 SOURce:POWer Subsystem SMIQ [:SOURce]:POWer:MANual -144 to +16 dBm command sets level SWEep SOURce:POWer:MODE SOURce:SWEep:MODE to MANual. Only level values between START and STOP are permissible. (As to specified range, cf. :POWer). *RST value is -30 dBm Example: :SOUR:POW:MAN 1dBm [:SOURce]:POWer:MODE FIXed | SWEep | LIST The command specifies the operating mode and thus also by means of which commands the level setting is checked.

  • Page 175: Source:pulm Subsystem

    SMIQ SOURce:PULM Subsystem 3.5.14.22 SOURce:PULM Subsystem This subsystem contains the commands to check the external pulse modulation Command Parameter Default Remark Unit [:SOURce] :PULM :POLarity NORMal | INVerted :STATe ON | OFF [:SOURce]:PULM:POLarity NORMal | INVerted The command specifies the polarity between modulating and modulated signal. NORMal The RF signal is suppressed during the interpulse period.

  • Page 176: Source:roscillator Subsystem

    SOURce:ROSCillator Subsystem SMIQ 3.5.14.23 SOURce:ROSCillator Subsystem This subsystem contains the commands to set the external and internal reference oscillator. Command Parameter Default Remark Unit [:SOURce] :ROSCillator :EXTernal :FREQuency 1 to 16 MHz [:INTernal] :ADJust [:STATe] ON | OFF :VALue 0 to 4095 :SOURce INTernal | EXTernal [:SOURce]:ROSCillator:EXTernal...

  • Page 177: Source:sweep Subsystem

    SMIQ SOURce:SWEep Subsystem 3.5.14.24 SOURce:SWEep Subsystem This subsystem contains the commands to check the RF sweep, i.e., sweeps of the RF generators. Sweeps triggered principle. frequency sweep activated command SOURce:FREQuency:MODE SWEep, the level sweep by command SOURce:POWer:MODE SWEep. Command Parameter Default Remark Unit...
  • Page 178 SOURce:SWEep Subsystem SMIQ [:SOURce]:SWEep[:FREQuency]:POINts Number The command determines the number of steps in a sweep. Instead of this command, commands SOURce:SWEep:FREQuency:STEP:LINear and SOURce:SWEep:FREQuency:STEP:LOGarithmic should be used, as SOURce:SWEep :FREQuency:POINts has been adapted to the instrument characteristics in comparison to the SCPI command.
  • Page 179 SMIQ SOURce:SWEep Subsystem [:SOURce]:SWEep:POWer:MODE AUTO | MANual | STEP The command specifies the run of the sweep. AUTO Each trigger triggers exactly one entire sweep cycle. MANual Each level step of the sweep is triggered by means of manual control or a SOURce:POWer:MANual command, the trigger system is not active.

  • Page 180: Source:wcdma Subsystem (Ntt Docomo/Arib 0.0)

    SOURce:WCDMa Subsystem (NTT DoCoMo/ARIB 0.0) SMIQ 3.5.14.25 SOURce:WCDMa Subsystem (NTT DoCoMo/ARIB 0.0) Note: #H0 to #HF are numerals which are entered in alphanumerical hex syntax in manual operation. SCPI (and IEEE 488.2) allow the octal and binary entry for non-decimal numbers in the following form #H|h <0 to 9, A|a to F|f>, #Q|q <0 to 7>...
  • Page 181 SMIQ SOURce:WCDMa Subsystem (NTT DoCoMo/ARIB 0.0) Command Parameter Default Remark Unit Þ name {,name}... [:SOURce] :WCDMa :CHANnel<0..14> [:I] | :Q :TYPE PERCh | CCPCh | DPCH | DPDCh | DPCCh | ALLD :SRATe D16 | D32 | D64 | D128 | D256 | D512 | D1024 :SCODe 0 to 511 :LCODe...
  • Page 182 SOURce:WCDMa Subsystem (NTT DoCoMo/ARIB 0.0) SMIQ [:SOURce]:WCDMa:CRATe R4M | R8M The command sets the chip rate (4.096M or 8.192Mcps). R8M is possible only with a certain hardware configuration. Example: *RST value is R4M :SOUR:WCDM:CRAT R4M [:SOURce]:WCDMa:LINK DOWN | UP | UPMulti The command selects the mode of the transmitted signal.
  • Page 183 SMIQ SOURce:WCDMa Subsystem (NTT DoCoMo/ARIB 0.0) [:SOURce]:WCDMa:LDIStortion[:STATe] ON | OFF The command sets the reduced level for the low-distortion mode. Low-distortion mode Normal level Example: *RST value is OFF :SOUR:WCDM:LDIS ON [:SOURce]:WCDMa:SEQuence AUTO | RETRigger | AAUTo | ARETrigger The command selects the trigger mode for the W-CDMA sequence. AUTO Continuously repeated RETRigger...
  • Page 184 SOURce:WCDMa Subsystem (NTT DoCoMo/ARIB 0.0) SMIQ [:SOURce]:WCDMa:TRIGger:OUTPut[1]|2:DELay 0 to 40959 (81919) The command defines the delay of trigger signals in chips. Example: *RST value is 0 :SOUR:WCDM:TRIG:OUTP2:DEL 50 [:SOURce]:WCDMa:CLOCk:SOURce INTernal | EXTernal The command selects the clock source. INTernal The internal clock generator is used. EXTernal The clock is fed externally via connector SYMBOL CLOCK.
  • Page 185 SMIQ SOURce:WCDMa Subsystem (NTT DoCoMo/ARIB 0.0) [:SOURce]:WCDMa:CHANnel<0...14>[:I]|:Q The commands for determining the channel configuration are under this node. For the sense of transmission DOWN (:WCDM:LINK DOWN) the settings cannot be separately set to I and Q component; :I and :Q need not be specified. Example: :WCDM:CHAN2:TYPE PERC For UP, however, there is the multiplex setting (UPMulti) with which settings are distinguished between I and Q.
  • Page 186 SOURce:WCDMa Subsystem (NTT DoCoMo/ARIB 0.0) SMIQ [:SOURce]:WCDMa:CHANnel<0...14>:SCODe:LMS #H0 to #HFF The command determines the short code index used for the spreading of the long code mask symbols (LMS). Example: *RST value is #H1 :SOUR:WCDM:CHAN2:SCOD:LMS #H3F [:SOURce]:WCDMa:CHANnel<0...14>[:I]|:Q:POWer -30dB to 0dB The command determines the power of a channel in relation to the power indication on the level display.

  • Page 187: Source:w3Gpp-Subsystem

    SMIQ SOURce:W3GPp-Subsystem 3.5.14.26 SOURce:W3GPp-Subsystem Note: #H0 to #HF are numerals which are entered in alphanumerical hex syntax in manual operation. #B0|1 are numerals in binary syntax. SCPI (and IEEE 488.2) allow entries of all forms for non-decimal numbers #H|h <0 to 9, A|a to F|f>, #Q|q <0 to 7>...
  • Page 188 SOURce:W3GPp-Subsystem SMIQ Command Parameter Default Remark Unit [:SOURce] :W3GPp :COPY :SOURce 1 to 4 :DESTination 1 to 4 :COFFset 0 to 511 Only for LINK DOWN :EXECute (without) :SEQuence AUTO | RETRigger | AAUTo | ARETrigger :TRIGger :SOURce EXTernal | INTernal :DELay 0 to 38399 (chips)
  • Page 189 SMIQ SOURce:W3GPp-Subsystem Command Parameter Default Remark Unit [:SOURce] :W3GPp :MCHannel Multichannel :TIMing :OFFSet 0 to 149 :STEP 0 to 149 :TPC ZERO | ONE | PATTern :PATTern #B0 to B111..1, 1 to 24 :MCODe ON | OFF :STATe ON | OFF :BSTation<i>...
  • Page 190 SOURce:W3GPp-Subsystem SMIQ Command Parameter Default Remark Unit [:SOURce] :W3GPp :MSTation<i> with i = [1] | 2 | 3 | 4 Mobile station :PRACh :DATA PN9 | PN11 | PN15 | PN16 | ZERO | ONE | PATTern :PATTern #B0 to B111..1, 1 to 24 :TFCI 0 to 1023 :PCPCh...
  • Page 191 SMIQ SOURce:W3GPp-Subsystem Note: The calculation of the W-CDMA sequences is rather time-consuming and should be re- started for any new setting. The WCDMA modulation is therefore switched off for each command (autom. :SOUR:W3GP:STAT OFF performed). The user can then perform several settings without any delay and has to switch on again the WCDMA modulation (with :SOUR:W3GP:STAT ON).
  • Page 192 SOURce:W3GPp-Subsystem SMIQ [:SOURce]:W3GPp:SETTing:DELete ‘name of sequence’ The command deletes the specified sequence configuration. This command triggers an action and so has no *RST value and no query. Example: :SOUR:W3GP:SETT:DEL ’test1’ [:SOURce]:W3GPp:SETTing:TMODel The commands for default setting (test models) are under this node. [:SOURce]:W3GPp:SETTing:TMODel[:BST] 'name' The command loads a default setting (test model) defined in 3GPP standard TS25.141 for the base station, i.e.
  • Page 193 SMIQ SOURce:W3GPp-Subsystem [:SOURce]:W3GPp:LINK FORWard | REVerse The command selects the mode of the transmitted signal (sense of transmission). The signal either corresponds to that of a base station (FORWard, alias DOWN) or a mobile station (REVerse, alias UP). Example: *RST value is FORW :SOUR:W3GP:LINK REV [:SOURce]:W3GPp:SLENgth 1 to 13 The command defines the length of the calculated chip sequence as a number of frames.
  • Page 194 SOURce:W3GPp-Subsystem SMIQ [:SOURce]:W3GPp:FILTer:MODE LACP | LEVM This command selects one of the "L"ow filter modes (LACP: lowest adjacent channel power, LEVM: lowest error vector). Example: *RST value is LACP :SOUR:W3GP:FILT:MODE LEVM [:SOURce]:W3GPp:CRATe:VARiation 100 Hz to 18 MHz (cps) The command selects the variation for the chip rate frequency (as against that set with :SOUR:W3GP:CRAT).
  • Page 195 SMIQ SOURce:W3GPp-Subsystem [:SOURce]:W3GPp:COPY The commands for copying the setting of a mobile or base station to the data record of another are under this node. The :SOUR:W3GP:COPY:EXEC command starts copying. [:SOURce]:W3GPp:COPY:SOURce 1 to 4 The command selects the station whose data are to be copied. Example: :SOUR:W3GP:COPY:SOUR 2 [:SOURce]:W3GPp:COPY:DESTination 1 to 4...
  • Page 196 SOURce:W3GPp-Subsystem SMIQ [:SOURce]:W3GPp:TRIGger:OUTPut[1]|2 SLOT | RFRame | CSPeriod | ECSPeriod | SFNR The command defines the output signal at trigger output 1 or 2. The following times can be selected: SLOT Time slot clock RFRame Radio Frame (frame clock) CSPeriod Chip Sequence Period ECSPeriod Enhanced Chip Sequence Period (only with option SMIQB48)
  • Page 197 SMIQ SOURce:W3GPp-Subsystem [:SOURce]:W3GPp:BSTation<i>:STATe ON | OFF The command activates the station with ON and deactivates it with OFF. Example: *RST value is OFF :SOUR:W3GP:BST2:STAT ON [:SOURce]:W3GPp:BSTation<i>:SCODe #H0 to #H5FFF The command sets the scrambling coder of a station. Example: *RST value is #H0 :SOUR:W3GP:BST:SCOD #H1234 [:SOURce]:W3GPp:BSTation<i>:SCODe:STATe #H0 to #H5FFF The command sets the Scrambling Code of a station.
  • Page 198 SOURce:W3GPp-Subsystem SMIQ [:SOURce]:W3GPp:BSTation<i>:TRANsmit:DIVersity OFF | ANT1 | ANT2 This command sets the calculation of the signal without transmit diversity (OFF) or for antenna 1, or antenna 2 (SCH channels with TSTD mode, other channels with STTD mode). Example: *RST value is OFF :SOUR:W3GP:BST:TRAN:DIV ANT2 [:SOURce]:W3GPp:BSTation:PINDicator:COUNt D18 | D36 | D72 | D144 The command sets the number of PI in the page indicator channel (PICH).
  • Page 199 SMIQ SOURce:W3GPp-Subsystem [:SOURce]:W3GPp:MCHannel:POWer:STEP –60 dB to +60 dB The step width for the power of a channel compared to the powers of other channels is determined. Example: *RST value is 0 dB :SOUR:W3GP:MCH:POW:STEP -22DB [:SOURce]:W3GPp:MCHannel:DATA PN9 | PN11 | PN15 | PN16 | ZERO | ONE | PATTern This command defines the data source for the data field.
  • Page 200 SOURce:W3GPp-Subsystem SMIQ [:SOURce]:W3GPp:BSTation<i>:MCHannel:EXECute All channels with the numbers between start and stop are simultaneously set to the value of the above :SOUR:W3GP:MCH commands. Example: :SOUR:W3GP:BST3:MCH:EXEC [:SOURce]:W3GPp:BSTation<i>:ENHanced..The commands for setting the enhanced functions for the 3GPP W-CDMA standard are under this node.
  • Page 201 SMIQ SOURce:W3GPp-Subsystem [:SOURce]:W3GPp:BSTation<i>:CHANnel<n>:TOFFset 0 to 149 This command sets the timing offset. It offsets the modulation data with respect to the scrambling code. Example: *RST value is 0 :SOUR:W3GP:BST2:CHAN6:TOFF 345 [:SOURce]:W3GPp:BSTation<i>:CHANnel<n>:TPC ZERO | ONE | PATTern This command defines the data source for the TPC field in DPCH. ZERO 0000..., sequence of zeroes 1111..., sequence of ones...
  • Page 202 SOURce:W3GPp-Subsystem SMIQ [:SOURce]:W3GPp:MSTation<i>:SCODe #H0 to #HFFFFFF The command sets the scrambling code generator. Example: *RST value is #H0 :SOUR:W3GP:MST3:SCOD #H1234 [:SOURce]:W3GPp:MSTation<i>:SCODe:MODE LONG | SHORt | OFF The command sets the mode of the scrambling code generator. SHORt can only be set under :W3GP:MST:MODE DPCD.
  • Page 203 SMIQ SOURce:W3GPp-Subsystem [:SOURce]:W3GPp:MSTation<i>:PRACh:CPOWer -60 to 0 dB The command sets the power of the control part. Example: *RST value is 0.0 :SOUR:W3GP:MST3:PRAC:CPOW -20 [:SOURce]:W3GPp:MSTation<i>:PRACh:MLENgth 1 | 2 The command sets the length of the message parts. Example: *RST value is 1 :SOUR:W3GP:MST3:PRAC:MLEN 2 [:SOURce]:W3GPp:MSTation<i>:PRACh:SIGNature 0 to 15 The command sets the signature.
  • Page 204 SOURce:W3GPp-Subsystem SMIQ [:SOURce]:W3GPp:MSTation<i>:PCPCh:PPOWer -60 to 0 dB The command sets the power of the preamble part. Example: *RST value is 0.0 :SOUR:W3GP:MST3:PCPC:PPOW –3.0 [:SOURce]:W3GPp:MSTation<i>:PCPCh:PPOWer:STEP 0 to 10 dB The command sets the step width for the power of the preamble part by which it is increased from repetition to repetition.
  • Page 205 SMIQ SOURce:W3GPp-Subsystem [:SOURce]:W3GPp:MSTation<i>:PCPCh:FBI:PATTern #B0 to B111..1, 1 to 24 This command sets the bit pattern. It is only used if :W3GP:MST:PCPC:FBI:DATA PATT is set. The first parameter sets the bit pattern (optionally Hex, Oct or Bin syntax), the second one indicates the number of bits to be used.
  • Page 206 SOURce:W3GPp-Subsystem SMIQ [:SOURce]:W3GPp:MSTation<i>:DPCCh:TFCI:STATe ON | OFF The command activates the TFCI field (ON) or deactivates it (OFF). Example: *RST value is OFF :SOUR:W3GP:MST3:DPCC:TFCI:STAT ON [:SOURce]:W3GPp:MSTation<i>:DPCCh:FBI:MODE OFF | D1B | D2B The command sets the number of bits (1 or 2) for the feedback information. The field is not used with OFF.
  • Page 207 SMIQ SOURce:W3GPp-Subsystem [:SOURce]:W3GPp:MSTation<i>:DPDCh:ORATe D15K | D30K | D60K | D120K | D240K | D480K | D960K | X2 | X3 | X4 | X5 | X6 The command sets the overall symbol rate. It determines the structure of the channel table, the symbol rate of channels and the channelization codes.

  • Page 208: Source:w3Gpp:enhanced/Ocns/Additional Subsystems

    SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems SMIQ 3.5.14.27 SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems The commands for generating an extended 3 GPP W-CDMA signal are contained in these subsystems. They are only available with option SMIQB48 installed. Note: #H0 to #HF are numerals which are entered in alphanumerical hex syntax manually. #B0|1 are numerals of binary syntax.
  • Page 209 SMIQ SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems Command Parameter Default Remark Unit [:SOURce]:W3GPp :BSTation Base station :ENHanced :CONTrol OFF | UP | DOWN :DATA PN9 | PN11 | PN15 | PN16 | ZERO | ONE | PATTern | DLISt #B0 to B111..1, 1 to 24 :PATTern 'name' :DSELect...
  • Page 210 SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems SMIQ Command Parameter Default Remark Unit [:SOURce]:W3GPp Mobile station :MSTation ENHanced :DPCCh :STATe ON | OFF :POWer :DPCCh -60.0 to 0.0 :DPDCh -60.0 to 0.0 Insert bit errors in data :DERRor ON | OFF :STATe 1E-1 to 1E-7 :RATE :BIT Þ...
  • Page 211 SMIQ SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems [:SOURce]:W3GPp:BSTation:ENHanced... The commands for generating an enhanced 3 GPP W-CDMA signal for the base stations are under this node. They are only available with option SMIQB48 installed. They are only effective if the link direction is set to FORW ( ) and are only valid for base station 1 SOUR:W3GP:LINK FORW (suffix 2, 3 or 4 after BSTation –...
  • Page 212 SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems SMIQ [:SOURce]:W3GPp:BSTation:ENHanced:EPOWer:RANGe:UP 0 to 30.0 dB The command sets the dynamic range for ranging up the channel power. Example: *RST value is 10.0 :SOUR:W3GP:BST:ENH:EPOW:RANG:UP 6.0 [:SOURce]:W3GPp:BSTation:ENHanced:EPOWer:RANGe:DOWN 0 to 30.0 dB The command sets the dynamic range for ranging down the channel power. Example: *RST value is 10.0 :SOUR:W3GP:BST:ENH:EPOW:RANG:DOWN 3.0...
  • Page 213 SMIQ SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems [:SOURce]:W3GPp:BSTation:ENHanced:DERRor:BIT:DTCH? The command queries the resulting bit error rate of the DTCHs since the rate desired by the user cannot be precisely calculated. Example: :SOUR:W3GP:BST:ENH:DERR:BIT:DTCH? [:SOURce]:W3GPp:BSTation:ENHanced:DERRor:BIT:DCCH? The command queries the resulting bit error rate of the DCCHs since the rate desired by the user cannot be precisely calculated.
  • Page 214 SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems SMIQ [:SOURce]:W3GPp:BSTation:ENHanced:CHANnel<i>:POWer:CONTrol OFF | UP | DOWN The command sets the direction of the STEP for the external power control mechanism for the corresponding channel. Example: *RST value is OFF :SOUR:W3GP:BST:ENH:CHAN11:POW:CONT UP [:SOURce]:W3GPp:BSTation:ENHanced:CHANnel<i>:DATA PN9 | PN11 | PN15 | PN16 | ZERO | ONE | PATTern | DLISt The command selects the data source for the data fields of the corresponding channel.
  • Page 215 SMIQ SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems ZERO all bits set to 0 all bits set to 1 PATTern bit pattern selected with :W3GP:BST:ENH:CHAN12:DCCH:PATT DLISt data list selected with :W3GP:BST:ENH:CHAN12:DCCH:DSEL Example: *RST value is PN15 :SOUR:W3GP:BST:ENH:CHAN12:DCCH PN11 [:SOURce]:W3GPp:BSTation:ENHanced:CHANnel<i>:DCCH:PATTern #B0 to #B111..1, 1 to 24 The command defines a bit pattern for the data of the DCCH channel.
  • Page 216 SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems SMIQ [:SOURce]:W3GPp:BSTation:OCNS:COUNt 1 to (508) The command sets the number of OCNS channels that are added in addition to the enhanced channels. The maximum number depends on the OCNS symbol rate. Example: *RST value is 10 :SOUR:W3GP:BST:OCNS:COUN 6 [:SOURce]:W3GPp:BSTation:OCNS:SRATe D7K5 | D15K | D30K | D60K | D120K | D240K | D480K | D960K The command sets the symbol rate of all OCNS channels.
  • Page 217 SMIQ SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems [:SOURce]:W3GPp:MSTation:ENHanced:CCODing The commands for the channel coding of all enhanced channels are under this node. [:SOURce]:W3GPp:MSTation:ENHanced:CCODing:STATe ON | OFF The command activates or deactivates the channel coding of all enhanced channels. Example: *RST value is OFF :SOUR:W3GP:MST:ENH:CCOD:STAT ON [:SOURce]:W3GPp:MSTation:ENHanced:CCODing:TYPE M12K2 | M64K | M144K | M384K | AMR The command sets one of four measurement channel coding types that are predefined by 3GPP and differ in the data bit rate to be processed.
  • Page 218 SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems SMIQ [:SOURce]:W3GPp:MSTation:ENHanced:ORATe D15K | D30K | D60K | D120K | D240K | D480K | D960K | X2 | X3 | X4 | X5 | X6 The command sets the overall symbol rate of the enhanced channels. Example: *RST value is D30K :SOUR:W3GP:MST:ENH:ORAT D120K [:SOURce]:W3GPp:MSTation:ENHanced:DPCCh:STATe ON | OFF This command switches the calculation mode for the DPCCH.
  • Page 219 SMIQ SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems [:SOURce]:W3GPp:MSTation:ENHanced:DERRor:BLOCk:DTCH? The command queries the resulting bit error rate of the DTCHs since the rate desired by the user cannot be precisely calculated. Example: :SOUR:W3GP:MST:ENH:DERR:BLOCk:DTCH? [:SOURce]:W3GPp:MSTation:ENHanced:DERRor:BLOCk:DCCH? The command queries the resulting bit error rate of the DCCHs since the rate desired by the user cannot be precisely calculated.
  • Page 220 SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems SMIQ [:SOURce]:W3GPp:MSTation:ENHanced:CHANnel<i>:DTCH PN9 | PN11 | PN15 | PN16 | ZERO | ONE | PATTern | DLISt The command selects the data source for the DTCH channel. pseudo random sequence of length x ZERO all bits set to 0 all bits set to 1 PATTern bit pattern selected with :W3GP:MST:ENH:CHAN2:DTCH:PATT...
  • Page 221 SMIQ SOURce:W3GPp:ENHanced/OCNS/ADDitional Subsystems [:SOURce]:W3GPp:MSTation:ADDitional:COUNt 1 to 50 The command determines the number of additional mobile stations. Example: *RST value is 4 :SOUR:W3GP:MST:ADD:COUN 6 [:SOURce]:W3GPp:MSTation:ADDitional:SCODe:STEP #H1 to #H1000 The command sets the initialization increment of the scrambling code – relative to mobile station 4. Example: *RST value is #H1 :SOUR:W3GP:MST:ADD:SCOD:STEP #H55...

  • Page 222: Source2 System

    SOURce2:FREQuency Subsystem SMIQ 3.5.15 SOURce2 System The SOURce2 system contains the commands to configure the LF signal source. It is designated as INT if used as a modulation source (cf. command SOURce:AM:SOURce INT, e.g.). The commands to set the output voltage of the LF generators are in the OUTPut2 system. Subsystems Settings :SOURce2...
  • Page 223 SMIQ SOURce2:FREQuency Subsystem :SOURce2:FREQuency:MODE CW|FIXed | SWEep The command specifies the operating mode and hence by means of which commands the FREQuency subsystem is checked. The following allocations are valid: CW |FIXed CW and FIXed are synonyms. The output frequency is specified by means of SOURce2:FREQuency:CW |FIXed.

  • Page 224: Source2:Marker Subsystem

    SOURce2:MARKer Subsystem SMIQ 3.5.15.2 SOURce2:MARKer Subsystem This subsystem contains the commands to check the marker generation in the case of LF sweeps. The three markers existing are differentiated by a numeric suffix after marker. Command Parameter Default Remark Unit Option SM-B2/B6 :SOURce2 :MARKer1|2|3 [:FSWeep]...

  • Page 225: Source2:Sweep Subsystem

    SMIQ SOURce2:SWEep Subsystem 3.5.15.3 SOURce2:SWEep Subsystem This subsystem contains the commands to check the LF sweep of SOURce2. Sweeps are triggered on principle. Command Parameter Default Remark Unit Option SM-B2 :SOURce2 :SWEep NORMal | LONG :BTIMe [:FREQuency] 1 ms to 1 s :DWELl AUTO | MANual | STEP :MODE...
  • Page 226 SOURce2:SWEep Subsystem SMIQ :SOURce2:SWEep[:FREQuency]:POINts Number The command determines the number of steps in a sweep. Instead of this command, commands :SOURce2:FREQuency:STEP:LINear and :SOURce2 :FREQuency:STEP:LOGarithmic should be used, as :SOURce2:SWEep:FREQuency: POINts has been adapted to the instrument characteristics in comparison to the SCPI command. The value of POINts depends on SPAN and STEP according to the following formulas.

  • Page 227: Status System

    SMIQ STATus System 3.5.16 STATus System This system contains the commands for the status reporting system (c.f. Section "Status Reporting System"). *RST has no influence on the status registers. Command Parameter Default Remark Unit :STATus :OPERation Query only [:EVENt]? Query only :CONDition? 0 to 32767 :PTRansition...
  • Page 228 STATus System SMIQ :STATus:OPERation:ENABle 0 to 32767 The command sets the bits of the ENABle register. This register selectively enables the individual events of the appropriate status event register for the sum bit in the status byte. Example: :STAT:OPER:ENAB 1 :STATus:PRESet The command resets the edge detectors and ENABle parts of all registers to a defined value.

  • Page 229: System System

    SMIQ SYSTem System 3.5.17 SYSTem System In this system, a number of commands for general functions which are not immediately related to signal generation, are combined. Command Parameter Default Remark Unit :SYSTem :BEEPer :STATe ON | OFF :COMMunicate :GPIB :LTERminator EOI | STANdard [:SELF] :ADDRess...
  • Page 230 SYSTem System SMIQ :SYSTem:BEEPer:STATe ON | OFF This node contains the commands to set the beeper fitted. *RST value is OFF Example: :SYST:BEEP:STAT OFF :SYSTem:COMMunicate:GPIB The commands to check the IEC bus are under this node (GPIB = General Purpose Interface Bus) :SYSTem:COMMunicate:GPIB:LTERminator EOI | STANdard The command activates the delimiter identification mode.
  • Page 231 SMIQ SYSTem System :SYSTem:COMMunicate:SERial:PACE XON | NONE The command sets the software handshake. *RST has no influnence on this parameter. Software handshake using the ASCII codes 11h (XON) and 13h (XOFF). Note: This mode is not recommended for binary data and for baud rates above 9600 bauds.
  • Page 232 SYSTem System SMIQ :SYSTem:MSEQuence:DELete "Name of sequence" The command deletes the memory sequence indicated. Example: :SYST:MSEQ:DEL "SEQ1" :SYSTem:MSEQuence:DELete:ALL The command deletes all memory sequences. The memory-sequence mode must be switched off as a selected sequence cannot be deleted (SYSTem:MODE FIXed). Example: :SYST:MSEQ:DEL:ALL :SYSTem:MSEQuence:DWELl 50 ms to 60 s{,50 ms to 60 s}...
  • Page 233 SMIQ SYSTem System :SYSTem:MSEQuence[:RCL]:POINts? The command queries the length of the RCL list selected. The RCL list is user-defined and of variable length. maximal length list queried means :SYSTem:MSEQence:FREE? (addition of the two values).. Example: Response: 17 :SYST:MSEQ:RCL:POIN? :SYSTem:MSEQuence:SELect "Name of sequence" The command selects a memory sequence.
  • Page 234 SYSTem System SMIQ :SYSTem:SERRor? This command returns a list of all errors existing at the point of time of the query. This list corresponds to the indication on the ERROR page with manual control (cf. Section Error Messages). Example: :SYST:SERR? Response: -221, "Settings conflict", 153, "Input voltage out of range"...

  • Page 235: Test System

    SMIQ TEST System 3.5.18 TEST System This system contains the commands to execute the selftest routines (RAM?, ROM? FSIM?, MCOD?, BERT? and BATTery?) as well as to directly manipulate the hardware modules (:TEST:DIRect). The selftests return a "0" if the test has been executed successfully, otherwise a value unequal to "0". All commands of this system do not have an *RST value.
  • Page 236 TEST System SMIQ :TEST:DIRect:ATTC Subaddress, hex data string The command directly acts on module ATTC. A subaddress (0 or 1) must be indicated as a parameter. The data are indicated as a <string> (i.e., an ASCII character string enclosed in quotation marks) representing hexadecimal numbers.
  • Page 237 SMIQ TEST System :TEST:MCOD? The command triggers a test of the modulation coder. :TEST:BERT? The command triggers a test of BERT. :TEST:FSIM? The command triggers a test of the fading simulator. :TEST:RAM? The command triggers a test of the RAM. :TEST:ROM? The command triggers a test of the EPROM.

  • Page 238: Trigger System

    TRIGger System SMIQ 3.5.19 TRIGger System The TRIGger system contains the commands to select the trigger source and to configure the external trigger socket. The suffix is only important for the SWEEP subsystem: TRIGger1 = RF generator TRIGger2 = LFGEN The trigger system of the SMIQ is a simplified implementation of the SCPI trigger system.
  • Page 239 SMIQ TRIGger System :TRIGger1|2[:SWEep]:SOURce AUTO | SINGle | EXTernal The command specifies the trigger source. The naming of the parameters directly corresponds to the different settings with manual control. SCPI uses other designations for the parameters the instrument accepts as well. These designations are to be preferred if compatibility is important. The following table provides an overview.
  • Page 240 TRIGger System SMIQ :TRIGger1|2:LIST:SOURce AUTO | SINGle | EXTernal | HOP The command specifies the trigger source. The naming of the parameters corresponds to the one with sweep mode. SCPI uses other designations for the parameters the instrument accepts as well.
  • Page 241 SMIQ TRIGger System :TRIGger:MSEQuence This node contains all commands to trigger a memory sequence. The commands are only valid for TRIGger1. :TRIGger:MSEQuence[:IMMediate] The command immediately starts a memory sequence. It corresponds to the EXECUTE SINGLE MODE command of the manual control in the MEMORY SEQUENCE menu. This command is an event and thus has no *RST value.

  • Page 242: Unit System

    UNIT System SMIQ 3.5.20 UNIT System This system contains the commands specifying which units are valid if no unit is indicated in a command. These settings are valid for the entire instrument. Command Parameter Default Remark Unit :UNIT DEGRee| DEGree | RADian :ANGLe DBM | DBW | DBMW | DBUW | DBV | DBMV | DBUV | V :POWer...

  • Page 243: Instrument Model And Command Processing

    SMIQ Instrument Model and Command Processing Instrument Model and Command Processing The instrument model shown in Fig. 3-2 has been made viewed from the standpoint of the servicing of IEC-bus commands. The individual components work independently of each other and simultaneously. They communicate by means of so-called "messages".

  • Page 244: Command Recognition

    Instrument Model and Command Processing SMIQ 3.6.2 Command Recognition The command recognition analyses the data received from the input unit. It proceeds in the order in which it receives the data. Only a DCL is serviced with priority, a GET (Group Execute Trigger), e.g., is only executed after the commands received before as well.

  • Page 245: Output Unit

    SMIQ Instrument Model and Command Processing 3.6.5 Output Unit The output unit collects the information requested by the controller, which it receives from the data set management. It processes it according to the SCPI rules and makes it available in the output buffer. The output buffer has a size of 1024 characters.
  • Page 246 Status Reporting System SMIQ Status Reporting System The status reporting system (cf. Fig. 3-4) stores all information on the present operating state of the instrument, e.g. that the instrument presently carries out an AUTORANGE and on errors which have occurred. This information is stored in the status registers and in the error queue. The status registers and the error queue can be queried via IEC bus.
  • Page 247 SMIQ Status Reporting System CONDition part The CONDition part is directly written into by the hardware or the sum bit of the next lower register. Its contents reflects the current instrument status. This register part can only be read, but not written into or cleared. Its contents is not affected by reading.

  • Page 248: Status Reporting System

    Status Reporting System SMIQ 3.7.2 Overview of the Status Registers -&- not used -&- vacant vacant -&- vacant -&- -&- vacant -&- Recording MSEQuencing -&- LEARning -&- vacant -&- -&- vacant -&- W aiting for Trigger MEASuring -&- -&- SW Eeping vacant -&- SETTling...

  • Page 249: Description Of The Status Registers

    SMIQ Status Reporting System 3.7.3 Description of the Status Registers 3.7.3.1 Status Byte (STB) and Service Request Enable Register (SRE) The STB is already defined in IEEE 488.2. It provides a rough overview of the instrument status by collecting the pieces of information of the lower registers. It can thus be compared with the CONDition part of an SCPI register and assumes the highest level within the SCPI hierarchy.

  • Page 250: Ist Flag And Parallel Poll Enable Register (Ppe)

    Status Reporting System SMIQ 3.7.3.2 IST Flag and Parallel Poll Enable Register (PPE) By analogy with the SRQ, the IST flag combines the entire status information in a single bit. It can be queried by means of a parallel poll or using command "*IST?". The parallel poll enable register (PPE) determines which bits of the STB contribute to the IST flag.

  • Page 251: Status:operation Register

    SMIQ Status Reporting System 3.7.3.4 STATus:OPERation Register In the CONDition part, this register contains information on which actions the instrument is being executing or, in the EVENt part, information on which actions the instrument has executed since the last reading. read using commands...

  • Page 252: Status:questionable Register

    Status Reporting System SMIQ 3.7.3.5 STATus:QUEStionable Register This register contains information on questionable instrument states. They can occur, e.g. if the instrument operated specifications. queried using commands "STATus:QUEStionable:CONDition?" or "STATus:QUEStionable[:EVENt]?". Table 3-7 Meaning of the bits used in the STATus:QUEStionable register Bit-No.
  • Page 253 SMIQ Status Reporting System 3.7.4 Application of the Status Reporting Systems In order to be able to effectively use the status reporting system, the information contained there must be transmitted to the controller and further processed there. There are several methods which are represented in the following.
  • Page 254 Status Reporting System SMIQ 3.7.4.3 Parallel Poll In a parallel poll, up to eight instruments are simultaneously requested by the controller by means of a single command to transmit 1 bit of information each on the data lines, i.e., to set the data line allocated to each instrument to logically "0"...
  • Page 255 SMIQ Status Reporting System 3.7.5 Resetting Values of the Status Reporting Systems Table 3-8 comprises the different commands and events causing the status reporting system to be reset. None of the commands, except for *RST and SYSTem:PRESet influences the functional instrument settings.
  • Page 256 Fast Restore Mode SMIQ Fast Restore Mode Device settings can be saved and recalled very quickly via the IEC/IEEE bus using the commands described below. 1000 memory locations are available. In contrast to the SAVE/RECALL function, not the unit parameters but only the setting data of the modules are stored in the Fast Restore mode.
  • Page 257 SMIQ Fast Restore Mode 3.8.2 Call-Up and Termination of Operating Mode After a RESTORE, the database does no longer reflect the device setting which means that - the displayed values are no longer relevant, - the desired result is not obtained by a query of setup values. - normal setting commands may not be executed properly (see below 'Alternative ...) It is therefore recommended either to use the *RST command or...
  • Page 258 Fast Restore Mode SMIQ 3.8.4 Alternative Use with Other IEC/IEEE-Bus Commands The alternative use of the RESTORE commands (':SYSTem:SREStore' or '!..') and normal IEC/IEEE-bus commands is • useful in case of digital modulation: First, the baseband signal is configured by means of normal commands and digital modulation is switched on.
  • Page 259 SMIQ Maintenance and Troubleshooting Maintenance and Troubleshooting The instrument does not need a periodic maintenance. What is necessary is essentially the cleaning of the instrument. However, it is recommended to check the rated data from time to time. Maintenance 4.1.1 Cleaning the Outside The outside of the instrument is suitably cleaned using a soft, line-free dustcloth.
  • Page 260 Maintenance and Troubleshooting SMIQ Access to the tests is offered by the UTILITIES - TEST menu. Menu selection: UTILITIES - TEST - 30.0 100. 000 000 0 LEVEL FREQ SYSTEM TEST EPROM FREQUENCY REF OSC TEST RAM LEVEL PHASE ANALOG MOD RAM BATTERY PROTECT VECTOR MOD...

  • Page 261: Checking The Rated Characteristics

    Industry standard PC/XT/AT with PSM17 1116.5004.70 IEC-625 interface Signal generator of high 0.1 MHz to RF SMIQ02B to 06B 1125.5555.02 to 06 spectral purity SSB noise level <-126 dBc at 1 GHz/20 kHz Phase noise test assembly Mixer: 10 MHz to RF branching filter 2 MHz, preamplifier with gain of approx.

  • Page 262: Test Assemblies

    Test Equipment and Test Assemblies SMIQ Item Type of Instrument Required Characteristics Suitable Instrument R&S Order No. AC/DC voltmeter 10 Hz to 8 MHz URE3 350.5315.03 Broadband FM Delay line discriminator, demodulator input frequency 50 MHz, electrical line length 15 m, demodulation bandwidth 10 MHz RF attenuator DC to RF...

  • Page 263: Test Assembly For Analog Modulations With Audio Analyzer

    SMIQ Test Equipment and Test Assemblies 5.1.2.2 Test Assembly for Analog Modulations with Audio Analyzer Test equipment Modulation analyzer (Table 5-1, item 15) Audio analyzer (Table 5-1, item 14) Test setup Audio analyzer EXT1/EXT2 SMIQ SMIQ Analyzer ï ð 5.1.2.3 Test Assembly for Broadband FM Test equipment Second signal generator (Table 5-1, item 5)

  • Page 264: Test Assembly For Pulse Modulation

    Test Equipment and Test Assemblies SMIQ 5.1.2.4 Test Assembly for Pulse Modulation Test equipment Second signal generator (Table 5-1, item 5) Oscilloscope (Table 5-1, item 7) Mixer (Table 5-1, item 16) Pulse generator (Table 5-1, item 17) RF attenuator (Table 5-1, item 21) Lowpass filter (Table 5-1, item 22) Test setup Pu lse generator...

  • Page 265: Test Assembly For Ssb Phase Noise

    SMIQ Test Equipment and Test Assemblies 5.1.2.6 Test Assembly for SSB Phase Noise Test equipment Second signal generator (Table 5-1 item 5), Phase noise test assembly consisting of mixer with lowpass filter and preamplifier (Table 5-1 item 6) Oscilloscope (Table 5-1 item 7) Spectrum analyzer (Table 5-1 item 2) Test setup Signal generator...

  • Page 266: Test Assembly With Spectrum Analyzer For Fading Simulation

    Test Equipment and Test Assemblies SMIQ 5.1.2.8 Test Assembly with Spectrum Analyzer for Fading Simulation Test equipment Arbitrary waveform generator (Table 5-1, item 24) Spectrum analyzer (Table 5-1, item 2) Test setup ARB generator SMIQ ï ð Spectrum analyzer 10-MHz reference 5.1.2.9 Test Assembly with Sampling Oscilloscope for Fading Simulation Test equipment...

  • Page 267: Preparation, Recommended Test Frequencies And Levels

    SMIQ Preparation, Recommended Test Frequencies and Levels Preparation, Recommended Test Frequencies and Levels To ensure that rated specifications are maintained and to prevent setting errors, the following preparations must be made prior to checking the rated characteristics: • At least 30 minutes warmup period. •...

  • Page 268: Test Procedures

    Test Procedures SMIQ Test Procedures 5.3.1 Display and Keyboard Ø Switch instrument on. Checking the display ð The basic menu is displayed after several seconds. Ø Rotate contrast control (lefthand potentiometer below the display). ð The contrast is varied from dark to bright. Ø...

  • Page 269: Settling Time

    SMIQ Test Procedures 5.3.2.2 Settling Time Test assembly See chapter Test Equipment and Test Assemblies. Test method The spectrum analyzer is operated as an edge demodulator with a 0 Hz span. A controller transmits the start and the stop frequency via the IEC bus.
  • Page 270 Test Procedures SMIQ Þ Measure the following steps in both directions: Test Setting F1/MHz F2/MHz Step synthesis Digital synthesis 1 350.2 1 351.4 Mixer range 1 099 Doubler, oscillator change 2201 1099 CW/VM synthesis, 3rd filter 2999 3 001 1st/2nd filter VM max.

  • Page 271: Setting Time List Mode

    SMIQ Test Procedures 5.3.2.3 Setting Time LIST MODE Test assembly See section Test Assemblies. Test method The spectrum analyzer is operated as a fast level meter with a 0 Hz span. The storage oscilloscope is connected to the video output of the analyzer and triggered by the positive edge of the pulse generator.

  • Page 272: Reference Frequency

    Test Procedures SMIQ 5.3.3 Reference Frequency 5.3.3.1 Output of Internal Reference Important: Allow the SMIQ to warm up for at least 2 hours before the measurement. Test equipment RF power meter (Table 5-1, item 8), frequency counter (Table 5-1, item 1) Test setup Connect an RF power meter to the REF output (socket on rear panel).
  • Page 273 SMIQ Test Procedures Recommended test levels , Pcw and from Pcw in -5 dB steps to the measurement limit of the power meter Recommeded test frequencies 300k, 1M, 3M, 5M, 9M, 15M, every 10M up to 1495M, 1500M, from for the level frequency 1500M every 20M up to 6400M (all in Hz) response measurement Recommended test...

  • Page 274: Output Impedance

    Test Procedures SMIQ 5.3.4.2 Output Impedance Test assembly See section "Test Assemblies". Test method Since the VSWR of a source must be measured, a purely passive measurement using the VSWR bridge is only possible with levels where the VSWR is determined by the output impedance of the mechanical attenuator only.

  • Page 275: Settling Time

    SMIQ Test Procedures Ø Settings on SMIQ: Passive measurement of VSWR with output levels of - Test level SMIQ below -30 dBm - Frequency far from test frequency, unmodulated Ø Settings on second signal generator: - Test frequency - Level 10 dBm Ø...
  • Page 276 Test Procedures SMIQ Setting Start level Stop level Remarks –140 dBm With mechanical attenuator, in direction of stop level only CW, FM 10 kHz –35 With mechanical attenuator CW, FM 10 kHz Without mechanical attenuator AM 30% –35 With mechanical attenuator AM 30% Without mechanical attenuator QuickBasic program for the controller...

  • Page 277: Non-Interrupting Level Setting (Attenuator Mode Fixed)

    SMIQ Test Procedures 5.3.4.4 Non-Interrupting Level Setting (ATTENUATOR MODE FIXED) Test equipment Spectrum analyzer (Table 5-1, item 2) Ø Connect the analyzer to the RF output of the SMIQ. Test setup Ø Settings on SMIQ: Measurement - Recommended test frequencies: 5, 100, 1000, 1500, 2200, 3300, 3301, 4400, 5000, 6400 MHz, unmodulated - Level Pcw - Select FIXED in the menu LEVEL/LEVEL ATTENUATOR MODE.

  • Page 278: Overvoltage Protection (If Provided)

    Test Procedures SMIQ 5.3.4.5 Overvoltage Protection (if provided) Test equipment Adjustable DC voltage source (Table 5-1, item 12) Signal generator (Table 5-1, item 5) Power amplifier (Table 5-1, item 13) Ø Connect an adjustable DC voltage source to the RF output socket of Test setup the SMIQ via a 50 Ω...

  • Page 279: Subharmonics

    SMIQ Test Procedures 5.3.5.2 Subharmonics Test equipment Same as for harmonics suppression Test setup Same as for harmonics suppression Recommended frequencies 1501 MHz to 3039 MHz in 10-steps Ø First the level of the fundamental is measured as reference, then a Measurement signal is searched for at the 0.5*test frequency and 1.5*test frequency.
  • Page 280 Test Procedures SMIQ Nonharmonics of summing circuit at test level Pcw , unmodulated Setting on SMIQ Analyzer frequency Corresponds to Frequency in MHz in MHz spacing df in Hz 1412.9 1413.2 300.0k 1305.4 1305.7 300.0k 1197.9 1198.2 300.0k 1090.4 1090.7 300.0k 838.25 838.3676...
  • Page 281 SMIQ Test Procedures Nonharmonics of output mixer IQMOD at test level Pvm , VM at max. level Setting on SMIQ Analyzer frequency in MHz Frequency in MHz 749.99 900.02 Nonharmonics of module E6GHZ at test level Pcw , unmodulated Setting on SMIQ Analyzer frequency in MHz Frequency in MHz 3301, 3350, 50 MHz steps up to 6400 MHz...

  • Page 282: Broadband Noise

    Test Procedures SMIQ 5.3.5.4 Broadband Noise Test assembly Connect spectrum analyzer to RF socket of the SMIQ. Test method Operate the spectrum analyzer in the CHANNEL POWER mode. Set SPAN to 400 kHz, channel bandwidth to 350 kHz, detector to SAMPLE, attenuator to LOW NOISE, and PLL bandwidth with COUPLING/MAIN PLL BANDWIDTH to LOW.

  • Page 283: Ssb Phase Noise

    SMIQ Test Procedures 5.3.5.5 SSB Phase Noise Test assembly See section "Test Assemblies" Test method The two signal generators are set to the test frequency and synchronized with a phase offset of 90° (phase quadrature). Mixing to 0 Hz suppresses the RF carrier, and due to the phase quadrature the mixer supplies a voltage corresponding to the phase difference between the input signals.

  • Page 284: Residual Fm

    Test Procedures SMIQ 5.3.5.6 Residual FM Note: The measurement of SSB phase noise usually makes a measurement of residual FM superfluous as it is more sensitive. Test assembly See section "Test Assemblies", standard test assembly for analog modulations Ø Settings on SMIQ: Measurement - Frequency 1 GHz - Level Pcw...

  • Page 285: Internal Modulation Generator

    SMIQ Test Procedures 5.3.7 Internal Modulation Generator Test equipment Audio analyzer (Table 5-1, item 14) Ø Connect the audio analyzer to the LF socket of the SMIQ. Test setup For frequency measurements above 100 kHz, connect the spectrum analyzer. Ø Settings on SMIQ: Measurement of frequency settings and distortion - LF OUTPUT menu:...

  • Page 286: Vector Modulation

    Test Procedures SMIQ 5.3.8 Vector Modulation 5.3.8.1 Input Impedance (VSWR) Test equipment Test assembly for output impedance Ø Connect the test port to the I or Q input instead of the RF output. Test setup Ø Settings on SMIQ: Measurement - Level 0 dBm - Carrier frequency 900 MHz - Switch on vector modulation.

  • Page 287: Error Vector

    SMIQ Test Procedures 5.3.8.3 Error Vector Test assembly See section "Test Assemblies", vector modulation Instead of a static measurement, an equivalent dynamic measurement Measurement with a low symbol rate is carried out. Ø Settings on SMIQ: - Level 0 dBm - Select STATE ON in the menu VECTOR MOD.

  • Page 288: Residual Carrier And Leakage

    Test Procedures SMIQ Ø Settings on SMIQ: Measurement - Test level 0 dBm, test frequency > 100 MHz - Select STATE ON in the menu VECTOR MOD. Ø Setting on signal generator: - Level 0.5 V (V ) corresponding to 4 dBm peak Ø...

  • Page 289: I/Q Imbalance

    SMIQ Test Procedures 5.3.8.6 I/Q Imbalance Measurement of imbalance Test equipment Spectrum analyzer (Table 5-1, item 2) Adjustable DC voltage source (Table 5-1, item 12) Ø Connect the spectrum analyzer to the RF output of the SMIQ. Test setup Ø Connect the DC voltage source to the I or the Q input. Ø...

  • Page 290: Level Control Pow Ramp

    Test Procedures SMIQ 5.3.8.7 Level Control POW RAMP Test equipment Spectrum analyzer (Table 5-1, item 2) 2 adjustable DC voltage sources (Table 5-1, item 12) Function generator (Table 5-1, item 18 or 24) Digital storage oscilloscope (Table 5-1, item 3) Ø...

  • Page 291: Amplitude Modulation

    SMIQ Test Procedures 5.3.9 Amplitude Modulation 5.3.9.1 Modulation Depth Setting Test assembly See section "Test Assemblies", standard test assembly for analog modulations Ø Settings on SMIQ: Measurement - Level 0 dBm - Select INT in the menu ANALOG MOD/AM/AM SOURCE INT, Modulation depth 0.1% to 80% Modulation frequency 1 kHz Ø...
  • Page 292 Test Procedures SMIQ 5.3.9.4 Residual PhiM with AM Test assembly See section "Test Assemblies", standard test assembly for analog modulations Ø Settings on SMIQ: Measurement - Level 0 dBm - Select INT in the menu ANALOG MOD/AM/AM SOURCE INT. - Modulation depth 30% - Modulation frequency 1 kHz Ø...
  • Page 293 SMIQ Test Procedures 5.3.10 Broadband Amplitude Modulation Test equipment Spectrum analyzer (Table 5-1, item 2) Signal generator (Table 5-1, item 5) Ø Connect the RF output of the SMIQ to the spectrum analyzer, con- Test setup nect the signal generator to the I (broadband AM) input of the SMIQ. Ø...
  • Page 294 Test Procedures SMIQ 5.3.11.2 Dynamic Characteristics Test assembly See section "Test Assemblies", test assembly for pulse modulation Ø On the dual-trace oscilloscope, simultaneously display the input Measurement signal from the pulse generator and the (downconverted) output signal with triggering on the input signal. Ø...
  • Page 295 SMIQ Test Procedures 5.3.12.3 FM Frequency Response FM frequency response up to 100 kHz Test assembly See section "Test Assemblies", standard test assembly for analog modulations with audio analyzer Ø Settings on SMIQ: Measurement - Test frequencies 100, 750.1, 1099, 1101, 1499 MHz - Level 0 dBm - Select EXT1 in the menu ANALOG MOD/FM/FM1 SOURCE, deviation each: ¼...
  • Page 296 Test Procedures SMIQ 5.3.12.4 FM Preemphasis (optional) Test assembly See section "Test Assemblies", standard test assembly for analog modulations Ø Settings on SMIQ: Measurement - Carrier frequency 100 MHz - Select INT in the menu ANALOG MOD/FM/FM1 SOURCE. - Deviation 25 kHz - LFGEN FREQ 15 kHz Ø...
  • Page 297 SMIQ Test Procedures 5.3.12.7 Level Monitoring at Input EXT2 Test assembly See section "Test Assemblies", standard test assembly for analog modulations with audio analyzer Ø Connect the generator output of the audio analyzer to the external Test setup modulation input EXT2. Ø...
  • Page 298 Test Procedures SMIQ 5.3.13.3 PhiM Frequency Response Test assembly See section "Test Assemblies", standard test assembly for analog modulations with audio analyzer Ø Settings on SMIQ: Measurement - Carrier frequency 1000 MHz - Level 0 dBm - Select EXT1 in the menu MODULATION/PM/PM1 SOURCE. - Deviation 5 rad Ø...
  • Page 299 SMIQ Test Procedures 5.3.14.2 Analog Outputs with Digital Modulation Test equipment AC voltmeter (Table 5-1, item 2), feed-through termination (Table 5-1, item 28). Test setup Connect AC voltmeter with feed-through termination to the I or Q socket of the SMIQ. Ø...
  • Page 300 Test Procedures SMIQ 5.3.14.5 Deviation Error with GFSK Test equipment Demodulator for digital modulation (Table 5-1, item 23) Ø Settings on SMIQ: Measurement - Level 0 dBm, RF 1 GHz - Switch on digital modulation GFSK - Symbol rate 1300 kHz, deviation 650 kHz - Filter GAUSS 0.7 - Data source PRBS, length 23 bits Ø...
  • Page 301 SMIQ Test Procedures 5.3.15 Data Generator and Memory Extension (Option SMIQB11/SMIQB12) 5.3.15.1 Battery Test Ø Setting to be made on SMIQ Measurement UTILITIES:TEST:DGEN RAM BATTERY Ø As result of the test triggered by pressing the SELECT key, "test passed" should be displayed. 5.3.15.2 Function Test Test equipment...
  • Page 302 Test Procedures SMIQ Ø Connect the storage oscilloscope to outputs DATA-D0 to D7, BURST, LEVATT, CW, HOP, TRIGGER OUT 1 to 3, SYMBCLK and input TRIGIN of rear-panel connector PARDATA. Trigger to the rising edge of the signal TRIGGER OUT 3. Ø...
  • Page 303 SMIQ Test Procedures SELECT CONTROL LIST... CURRENT: CLIST0 EDIT CONTROL LIST... FREE 00104080 LEN 00000019 -SYMBOL----------BGATE-LATT--CW----HOP---TRIG2-TRIG1-- 00000001 00000002 00000003 00000004 00000005 00000006 00000007 00000008 00000010 00000012 00000018 00000019 Ø The bit clock measured at the BIT CLK output must have a frequency of 8 MHz and HCT level: Ø...
  • Page 304 Test Procedures SMIQ 5.3.15.4 Memory Test (including SMIQB12) Test method The DATA editing function FILL may be used for the simple generation of a DATA sequence occupying the whole memory. Sufficient free space is to be available for this test. If this is not the case, existing DATA and CONTROL lists must be deleted or the test sequence shortened.
  • Page 305 SMIQ Test Procedures 5.3.16 Digital Standards (Options) 5.3.16.1 Adjacent-Channel Power Measurement with Higher Resolution 5.3.16.1.1 Broadband Systems Especially in measurements using the LOW-ACP filter (option SMIQB47), results are influenced by the inherent noise components of the analyzer. The procedure described below allows the measurement limit to be extended beyond that of standard settings.
  • Page 306 Test Procedures SMIQ 5.3.16.1.2 Narrowband Systems Ø With the systems NADC, TETRA and PDC implemented as standard, the contribution of the analyzer can be eliminated by way of calculation in a similar way. The noise, however, is derived from the synthesis of the analyzer (phase noise), so that it disappears on switching off the input signal.
  • Page 307 SMIQ Test Procedures Ø The initial state is restored on the SMIQ with SAVE/RECALL EDGE measurement FRAME...GET PREDEFINED FRAME...NB0 for the EDGE measurement. Then SLOT LEVEL ATTEN is set in SLOT 0 and SLOT 4 is selected with BURST TYPE EDGE and SLOT LEVEL FULL.
  • Page 308 Test Procedures SMIQ 5.3.16.4 NADC Test equipment Demodulator for digital modulation (Table 5-1, item 23) Ø Settings on SMIQ: Measurement Level 0 dBm, RF 824/894/1900 MHz Switch on digital standard NADC DOWNLINK. Select FILTER MODE LOW_EVM for error vector measurement and LOW_ACP for ACP measurement.
  • Page 309 SMIQ Test Procedures Ø The adjacent-channel measurement is implemented as standard in the FSIQ LEVEL REF to –5 dBm ATTEN AUTO LOW NOISE MARKER/ POWER MEAS SETTINGS/ SET NO. OF ADJ CHANNELS 2 Select ACP STANDARD TETRA MARKER/ ADJACENT CHANNEL POWER MARKER/ ADJUST CP SETTINGS Note: The measured values depend on the analyzer used.
  • Page 310 Test Procedures SMIQ 5.3.16.7 Test equipment Demodulator for digital modulation (Table 5-1, item 23) Ø Settings on SMIQ: Measurement Level 0 dBm, RF 1900 MHz Switch on digital standard PHS. Select FILTER MODE LOW_EVM for error vector measurement and LOW_ACP for ACP measurement. Ø...
  • Page 311 SMIQ Test Procedures 5.3.17 IS-95 CDMA (Option SMIQB42) Rho factor Test equipment Demodulator for digital modulation (Table 5-1, item 23) Ø Settings on SMIQ: Measurement 1st measurement - Level -15 dBm, RF 824/894/1900 MHz - Switch on digital modulation IS95 CDMA. - Select MODE FWD_LINK_18.
  • Page 312 Test Procedures SMIQ 5.3.18 W-CDMA - NTT DoCoMo/ARIB 0.0 (Option SMIQB43) Error vector Test equipment Demodulator for digital modulation (Table 5-1, item 23) Ø Settings on SMIQ: Measurement - Level -10 dBm - RF 1800/2000/2200 MHz - Select digital standard W-CDMA with the following settings: - SET DEFAULT - MODE 4CHAN - CHIP RATE 4.096 M...
  • Page 313 SMIQ Test Procedures 5.3.19 3GPP W-CDMA for SMIQ with firmware version up to 5.20 (Options SMIQB20 and SMIQB45) 5.3.19.1 3GPP W-CDMA with 1 Code Channel Test equipment RF spectrum analyzer (Table 5-1, item 2) Ø General settings on SMIQ Measurement - Level (PEP) Pvm and Pvm - RF 1800, 2000 and 2200 MHz...
  • Page 314 Test Procedures SMIQ - EXECUTE Ø The following settings result from this selection: - BS 1 ON, all other channels BS OFF Ø Menu Select BS/MS: BS1 Ø Channel table: - CHNO 2 - TYPE DPCH - SYMB RATE 32k - SPREAD.
  • Page 315 SMIQ Test Procedures Ø Settings on demodulator for error vector measurements - REF LEVEL same as PEP on SMIQ - DIGITAL STANDARDS W-CDMA FWD CH – Evaluation over 600 symbols Ø Measure EVM (observe data in data sheet), filter mode LOW_EVM, for SMIQB47 without and with filter 2.5 MHz.
  • Page 316 Test Procedures SMIQ Ø The following settings result from this selection: - BS 1 ON, all other channels BS OFF Ø Menu Select BS/MS: BS1 Ø Channel table: CHNO 2 to 9: CHNO SPREAD. CODE OFFS Common parameter TYPE DPCH SYMB RATE 32k POWER 0 dB, DATA PN 15...
  • Page 317 SMIQ Test Procedures Ø For 5 MHz offset, select LOW DISTORTION in the LEVEL/LEVEL/OUTPUT MODE menu and for 10 MHz select LOW NOISE. Ø Measure the adjacent-channel power (ACPR) (cf. section "Adjacent- Channel Power Measurement with Higher Resolution, Broadband Systems" above), filter mode LOW_ACP, bandwith of channel and adjacent channel 4.096 MHz, for SMIQB47 without and with filter 2.5 MHz.
  • Page 318 Test Procedures SMIQ Ø Menu PARA. PREDEF (all parameters and channel tables of the base station are automatically set) - CHANNELS FOR SYNC OF MOBILE OFF - S-CCPCH OFF - NUMBER OF DPCH 1 - SYMBOL RATE 30 ksps - CREST MINIMUM - EXECUTE Ø...
  • Page 319 SMIQ Test Procedures Ø Channel table: - CHNO 11 - TYPE DPCH - SYMB RATE 30 ksps - CHAN. CODE 0 - POWER 0dB - DATA PN 15 - T OFFS 0 - PILOT LENGTH 4 - TPC PATTERN ("0011") - MC STATE OFF, STATE ON Ø...
  • Page 320 Test Procedures SMIQ 5.3.20.2 3GPP W-CDMA with 8 Code Channels Test equipment RF spectrum analyzer (Table 5-1, item 2) Ø General settings on SMIQ Measurement - Level (PEP) Pvm and Pvm - RF 1800, 2000 and 2200 MHz Ø Modulation settings on SMIQ (same as 3GPP W-CDMA with 1 code channel): - SET DEFAULT (confirm with SELECT) - 3GPP VERSION (current version is displayed)
  • Page 321 SMIQ Test Procedures CHNO CHAN. CODE T OFFS Common parameter TYPE DPCH SYMB RATE 30ksps POWER 0 dB, DATA PN 15 PILOT LENGTH 4 TPC PATTERN ("0011") MC STATE OFF STATE ON Ø All other channels: STATE OFF Ø Measure adjacent-channel power (ACPR) (cf. section "Adjacent-Chan- nel Power Measurement with Higher Resolution, Broadband Systems"...
  • Page 322 Test Procedures SMIQ Ø Measure adjacent-channel power (ACPR) (cf. section "Adjacent- Channel Power Measurement with Higher Resolution, Broadband Systems", filter mode LOW_ACP, bandwidth for channel and adjacent channel 3.84 MHz, when SMIQB47 is used without and with 2.5 MHz filter. For 5 MHz offset, select LOW DISTORTION in the LEVEL/LEVEL/OUTPUT MODE menu and for 10 MHz select LOW NOISE.
  • Page 323 SMIQ Test Procedures Ø Menu Select BS/MS: BS1 - BS1 ON Ø Menu WCDMA/3GPP: - STATE ON Settings on the spectrum analyzer for the channel power measurement: Ø REF LEVEL as PEP at the SMIQ - CENTER FREQUENCY test frequency - POWER MEAS SETTINGS/ACP STANDARD/WCDMA-FWD, - CHANNEL POWER, CP/ACP ABS Ø...
  • Page 324 Test Procedures SMIQ 5.3.23 Fading Simulation (Option SMIQB14/SMIQB15) The basic functioning of the module can be checked by calling up the built-in test. To do this, select UTILITIES/TEST TEST FSIM in the menu. No fault messages should occur. 5.3.23.1 Frequency Response Test equipment Spectrum analyzer (Table 5-1, item 2) Signal generator (Table 5-1, item 5)
  • Page 325 SMIQ Test Procedures 5.3.23.2 Additional Modulation Frequency Response Test equipment, setup and method as above Ø Two frequency response measurements are made, the first one Testing with the fading simulator switched off and the second with bandwidth measurement setting. ð The additional frequency response is the difference between the first and second measurement.
  • Page 326 Test Procedures SMIQ Settings if R&S generator ADS is to be used Channel Waveform Sine Sine Mode Cont Cont Frequency 4 MHz 4 MHz Level 1.0 V 1.0 V Offset 0.0 V 0.0 V Phase 0° -90° Filter Output Make the following settings on SMIQ. Frequency: 1 GHz Level (PEP):...
  • Page 327 SMIQ Test Procedures Ø The result is a spectrum consisting of carrier leakage, image- frequency bands and the sought spectrum. The line of a channel is offset by the DOPPLER FREQ * FREQ RATIO with reference to the theoretical, undistorted line at the distance of the I/Q input frequency (in this case 1004 MHz).
  • Page 328 Test Procedures SMIQ 5.3.23.5 Path Delay (optional) Preliminary remark Since the delay between various paths of the fading simulator is implemented fully digitally, a test is not necessarily required. The required setting accuracy is guaranteed by the digital hardware and software design. Test assembly Test assembly with sampling oscilloscope for fading simulation connected to the outputs I-FADED and Q-FADED.
  • Page 329 SMIQ Test Procedures 5.3.23.6 Doppler Shift (optional) Preliminary remark Because the Doppler shift is fully digital in the fading simulator, no checking is required if the path attenuation has been successfully measured. The digital hardware and software ensures setting accuracy. Test set Test set with spectrum analyzer for fading simulation;...
  • Page 330 Test Procedures SMIQ 5.3.24 Noise Generation and Distortion Simulation (Option SMIQB17) The basic functioning of the module can be checked by calling up the built-in test. To do this, select UTILITIES/TEST TEST NDSIM in the menu. No fault messages should occur. 5.1.1.1 RF Bandwidth Test equipment...
  • Page 331 SMIQ Test Procedures 5.3.24.2 Additional Modulation Frequency Response Test equipment, test setup and test method as above Ø Two frequency response measurements are performed, Measurement the first one with DISTORTION OFF, the second with the bandwidth measurement setting. ð The additional frequency response sought is the difference between the first and second measurement.
  • Page 332 Test Procedures SMIQ 5.3.24.4 Frequency Response through to I-FADED, Q-FADED Outputs Test equipment Spectrum analyzer (Table 5-1, item 2) Signal generator (Table 5-1, item 5) Ø Connect the signal generator to the I input of the SMIQ. Connect Test setup the I-FADED output on the rear panel of the SMIQ to the spectrum analyzer.
  • Page 333 SMIQ Test Procedures 5.3.24.5 Signal/Noise Ratio (Carrier/Noise Ratio) Test equipment RF spectrum analyzer (table 5-1, pos. 2). Ø Connect analyzer to RF output of the SMIQ. Test setup Test method Since carrier signal (C) and noise signal (N) are superimposed, a menu has been generated with :UTILITIES:DIAG:CN/MEAS in which either the carrier signal or the noise signal alone can be switched on.
  • Page 334 Test Procedures SMIQ Ø Settings on SMIQ: Measurements FREQ 1.472 GHz LEVEL -10 dBm NOISE/DIST NOISE ON CARRIER/NOISE RATIO 10 dB SYSTEM BANDWIDTH 1 MHz Ø Measure C/N with channel bandwidth and system bandwidth 1 MHz. Ø Settings on SMIQ: FREQ 1.472 GHz VECTOR MOD: STATE: ON Apply full-scale level (0.500 V) to I input,...
  • Page 335 SMIQ Test Procedures 5.3.24.6 Signal/Noise Ratio (Carrier/Noise Ratio) Worldspace Test equipment See above Test setup See above Test method See above Ø Measurement Settings on SMIQ: LEVEL -15 dBm FREQ 1.472 GHz Switch on digital modulation standard WORLDSPACE. Switch on filter mode LOW_EVM. Data source PRBS Switch on noise with C/N = -5 dB / 4 dB / 20 dB and SYSTEM BANDWITH = 1.84 MHz.
  • Page 336 Test Procedures SMIQ 5.3.24.8 Noise Frequency Response Test equipment Spectrum analyzer (Table 5-1, item 2) Ø Connect the spectrum analyzer to the RF output of the SMIQ. Test setup Ø Terminate the I and the Q input with 50 Ω. Measurement Ø...
  • Page 337 SMIQ Test Procedures 5.3.25 Arbitrary Waveform Generator (ARB, Option SMIQB60) 5.3.25.1 Frequency Response Test equipment RF spectrum analyzer (Table 5-1, item 2) PC with WinIQSIM version 3.30 or higher and IEEE/IEC bus connection to the SMIQ Ø Connect spectrum analyzer to I/Q socket on front panel of the Test setup SMIQ.
  • Page 338 Test Procedures SMIQ 5.3.25.2 DC Voltage Offset Ø Connect AC/DC voltmeter to I/Q socket on front panel of the Test setup SMIQ. Ø Measurement sequence Measurement of DC voltage offset - Switch on 100 Hz input lowpass of voltmeter. - Measure DC voltage at I - Measure DC voltage at Q - Calculate offset: æ...
  • Page 339 SMIQ Test Procedures 5.3.25.4 Level Difference of Channels Test equipment AC/DC voltmeter (Table 5-1, item 19) PC with WinIQSIM version 3.30 or higher and IEEE/IEC bus connection to the SMIQ. Ø Connect AC/DC voltmeter to I/Q socket on front panel of the Test setup SMIQ.
  • Page 340 Test Procedures SMIQ 5.3.26 Additional Measurements for SMIQ03S SMIQ03S is a variant of SMIQ03B for the XM-radio project. In addition to basic unit SMIQ03B, the following modules are installed: Data Generator SMIQB11 with large memory (SMIQB12) Modulation Coder SMIQB20 COFDM Coder 2072.6895.10 model 10. All test specifications for SMIQ03B are applicable, the measurements described here are to be performed in addition.
  • Page 341 SMIQ Test Procedures Example of a measurement: 1125.5555.03 5.81...
  • Page 342 Performance Test Report SMIQ Performance Test Report ROHDE&SCHWARZ VECTOR SIGNAL GENERATOR 1125.5555.02/03/04/06 SMIQ02B/03B/04B/06B Serial number: Person testing: Date: Signature: For nominal data and limit values refer to the data sheet supplied with the instrument. Section Characteristic Min. Actual Max. Unit 5.3.1...
  • Page 343 SMIQ Performance Test Report Section Characteristic Min. Actual Max. Unit 5.3.5.2 Spurious, CW, offset >10 kHz 0.3 MHz to 450 MHz 5.3.5.3 > 450 MHz to 1500 MHz > 1500 MHz to 3040 MHz > 3040 MHz to 3300 MHz Offset 10 kHz to <...
  • Page 344 Performance Test Report SMIQ Section Characteristic Min. Actual Max. Unit 5.3.8 Vector modulation Input impedance I Input impedance Q Max. level Error vector rms value peak value Modulation frequency response Residual carrier 0% Residual carrier 10% Imbalance (I≠Q) Quadrature error POW RAMP level error POW RAMP on/off ratio µs...
  • Page 345 SMIQ Performance Test Report Section Characteristic Min. Actual Max. Unit 5.3.13.1 PhiM deviation setting at 30 mrad mrad at 0.1 rad at 0.3 rad at 1.0 rad at 3.0 rad at 10 rad 5.3.13.2 PhiM distortion 5.3.13.3 PhiM frequency response EXT1 EXT2 5.3.14...
  • Page 346 Performance Test Report SMIQ Section Characteristic Min. Actual Max. Unit 5.3.18 W-CDMA (SMIQB43), error vector ACP 5 MHz ACP 10 MHz 5.3.19 3GPP W-CDMA (B45, 1 code channel), Error vector ACP 5 MHz ACP 10 MHz W-CDMA (B45, test model 1, 64 DPCH), ACP 5 MHz ACP 10 MHz 5.3.20...
  • Page 347 SMIQ IEC/IEEE Bus Interface Annex A IEC/IEEE Bus Interface The instrument is equipped with an IEC/IEEE-bus connection as a standard. The mating connector according to IEEE 488 is at the rear of the instrument. A controller for remote control can be connected via the interface.
  • Page 348 IEC/IEEE Bus Interface SMIQ 2. Control bus with 5 lines. IFC (Interface Clear), active low resets the interfaces of the instruments connected to the default setting. ATN (Attention), active low signals the transmission of interface messages inactive high signals the transmission of device-dependent messages. SRQ (Service Request), active low enables a device connected to send a service request to the controller.
  • Page 349 SMIQ IEC/IEEE Bus Interface A.1.4 Interface Messages Interface messages are transmitted to the instrument on the data lines, with the attention line being active (LOW). They serve to communicate between instrument and controller. Universal Commands The universal commands are encoded in the range 10 through 1F hex. They are effective for all instruments connected to the bus without addressing them before.
  • Page 350 RS-232-C Interface SMIQ RS-232-C Interface The instrument is fitted with an RS-232-C interface as standard. The 9-pin connector is at the rear panel. A controller can be connected via this interface for remote control. A.2.1 Interface characteristics Ÿ Serial data transmission in asynchronous mode Ÿ...
  • Page 351 SMIQ RS-232-C Interface A.2.2.1 Transmission parameters To ensure an error-free and correct data transmission, the parameters of the instrument and the controller should have the same settings. The parameters are set in menu UTILITIES-SYSTEM-RS232. Transmission rate The following baud rates can be set in the instrument: (baud rate) 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200.
  • Page 352 RS-232-C Interface SMIQ A.2.3.1 Handshake Software handshake The software handshake with the XON/XOFF protocol controls data transmission. If the receiver wishes to inhibit data entry, it sends XOFF to the transmitter. The transmitter then interrupts the data output until it receives a XON. The same function is provided at the transmitter side (controller). Note: Software handshake is not suitable for transmission of binary data.
  • Page 353 SMIQ Asynchronous Interface SERDATA Asynchronous Interface SERDATA The SERDATA interface on the rear of SMIQ serves for the asynchronous serial transmission of modulation data. It is a RS-232-C interface with the following characteristics: • Data transmission to SMIQ in one direction only via RxD line (Receive Data). •...
  • Page 355 SMIQ List of Error Messages Annex B List of Error Messages The following list contains all error messages for errors occurring in the instrument. The meaning of negative error codes is defined in SCPI, positive error codes mark errors specific of the instrument. The table contains the error code in the left-hand column.
  • Page 356 List of Error Messages SMIQ Continuation: Command Error Error code Error text in the case of queue poll Error explanation Program mnemonic too long -112 The header contains more than 12 signs. Undefined header -113 The header is not defined for the instrument. Example: *XYZ is undefined for every instrument.
  • Page 357 SMIQ List of Error Messages Execution Error - Error in executing the command; sets bit 4 in the ESR register Error code Error text in the case of queue poll Error explanation Command protected -203 The desired command could not be executed as it was protected with a password. Use command SYSTem:PROTect1|2|3 OFF, <password>...
  • Page 358 List of Error Messages SMIQ Device Specific Error - sets bit 3 in the ESR register. Error code Error text in the case of queue poll Error explanation System error -310 This error message suggests an error within the instrument. Please inform the R&S Service. Memory error -311 Error in the instrument memory.
  • Page 359 SMIQ List of Error Messages B.1.2 SMIQ-Specific Error Messages Device-dependent Error - device-specific error; sets bit 3 in the ESR register. Error code Error text in the case of queue poll Error explanation IEC:No Listener AMIQ cannot be driven, check IEC/IEEE-bus cable and address setting. IEC:No Talker AMIQ requests data although it is not addressed as a talker.
  • Page 360 List of Error Messages SMIQ Continuation: Device-dependent Error Error code Error text in the case of queue poll Error explanation Input voltage out of range; EXT2 too high The input voltage at the EXT2 socket is too high. Input voltage out of range; EXT2 too low The input voltage at the EXT2 socket is too low.
  • Page 361 SMIQ List of Error Messages Continuation: Device-dependent Error Error code Error text in the case of queue poll Error explanation Summing loop unlocked The PLL of the summing loop has not been synchronized. Digital synthesis buffer VCO unlocked The VCO of the buffer loop has not been synchronized. 2.4 GHz LO loop unlocked The 2.4 GHz local oszillator of the IQMOD module has not been synchronized.
  • Page 362 List of Error Messages SMIQ Continuation: Device-dependent Error Error code Error text in the case of queue poll Error explanation Hop list index exceeds list range The index of a hop list exceeds its defined range. The index should not be used or the list should be extended.
  • Page 363 SMIQ List of Error Messages Continuation: Device-dependent Error Error code Error text in the case of queue poll Error explanation MCOD: modulation bandwidth exceeds IQ or Nyquist bandwidth The modulation bandwidth exceeds the IQ or Nyquist bandwidth, the modulation accuracy is reduced. A narrowband filtering or a lower symbol rate should be selected.
  • Page 365 SMIQ List of Commands Annex C List of Commands (with SCPI Conformity Information) The SMIQ supports SCPI version 1994.0. For remote control, commands which were specified or accepted in this SCPI version have been used to a large extent. Commands which are not part of the SCPI specification are marked "not-SCPI"...
  • Page 366 List of Commands SMIQ Command Parameter SCPI Info Page :BERT:SETup:TYPE PRBS9 | PRBS11 | PRBS15 | PRBS16 | not-SCPI 3.31 PRBS20 | PRBS21 | PRBS23 :BERT:SETup:DATA[:POLarity] NORM | INVerted not-SCPI 3.31 :BERT:SETup:CLOCk[:POLarity] RISing | FALLing not-SCPI 3.31 :BERT:SETup:RESTart INTernal | EXTernal not-SCPI 3.31 :BERT:SETup:DENable...
  • Page 367 SMIQ List of Commands Command Parameter SCPI Info Page :DIAGnostic:INFO:MODules? 3.41 :DIAGnostic:INFO:OTIMe? 3.42 :DIAGnostic:INFO:SDATe? 3.42 :DIAGnostic[:MEASure]:POINt? 3.42 :DISPlay:ANNotation[:ALL] ON | OFF 3.43 :DISPlay:ANNotation:AMPLitude ON | OFF 3.43 :DISPlay:ANNotation:FREQuency ON | OFF 3.43 :FORMat[:DATA] ASCii | PACKed 3.44 :FORMat:BORDer NORMal | SWAPped 3.44 :MEMory:NSTates? 3.45...
  • Page 368 List of Commands SMIQ Command Parameter SCPI Info Page [:SOURce]:DECT:TRIGger:OUTPut[2]:PERiod 1 to 67.1E6 not-SCPI 3.56 [:SOURce]:DECT:CLOCk:SOURce INTernal | EXTernal 3.56 [:SOURce]:DECT:CLOCk:DELay 0 to 1.0 not-SCPI 3.56 [:SOURce]:DECT:PRAMp:PRESet not-SCPI 3.56 [:SOURce]:DECT:PRAMp:TIME 0.25 to 16.0 not-SCPI 3.56 [:SOURce]:DECT:PRAMp:SHAPe LINear | COSine not-SCPI 3.57 [:SOURce]:DECT:PRAMp:ROFFset -9 to +9...
  • Page 369 SMIQ List of Commands Command Parameter SCPI Info Page [:SOURce]:DISTortion:DATA:AMBase:POINTs? not-SCPI 3.63 [:SOURce]:DISTortion:DATA:PM '-180 Grad to +180 Grad {, -180 Grad to not-SCPI 3.63 +180 Grad} | Blockdaten' [:SOURce]:DISTortion:DATA:PM:FREE? not-SCPI 3.63 [:SOURce]:DISTortion:DATA:PM:POINTs? not-SCPI 3.63 [:SOURce]:DISTortion:DATA:PMBase '-100 dB to 0 dB {, -100 dB to 0 dB} | not-SCPI 3.63 block data...
  • Page 370 List of Commands SMIQ Command Parameter SCPI Info Page [:SOURce]:DM:CLISt:FREE? not-SCPI 3.72 [:SOURce]:DM:CLISt:POINts? not-SCPI 3.72 [:SOURce]:DM:MLISt:DATA A,B,C,D,E,F,I1,Q1,I2,Q2.. not-SCPI 3.72 [:SOURce]:DM:MLISt:CATalog? not-SCPI 3.73 [:SOURce]:DM:MLISt:SELect <name> not-SCPI 3.73 [:SOURce]:DM:MLISt:DELete <name> not-SCPI 3.73 [:SOURce]:DM:MLISt:FREE? not-SCPI 3.73 [:SOURce]:DM:MLISt:POINts? not-SCPI 3.73 [:SOURce]:DM:FLISt:DATA A,B,C,D,I1,Q1,I2,Q2.. not-SCPI 3.73 [:SOURce]:DM:FLISt:CATalog? not-SCPI 3.73...
  • Page 371 SMIQ List of Commands Command Parameter SCPI Info Page [:SOURce]:DM:TRIGger:DELay 0 to 65535 not-SCPI 3.77 [:SOURce]:DM:TRIGger:SLOPe POSitive | NEGative not-SCPI 3.77 [:SOURce]:DM:THReshold[:ALL] -2,5 to 2,5 V 3.77 [:SOURce]:DM:INPut:IMPedance G1K | G50 | ECL not-SCPI 3.77 [:SOURce]:FM1|2[:DEViation] 0 to 1 MHz 3.78 [:SOURce]:FM1|2:EXTernal1|2:COUPling AC | DC...
  • Page 372 List of Commands SMIQ Command Parameter SCPI Info Page [:SOURce]:FSIMulator:PATH<i>:LOSS 0 to 50.0 dB not-SCPI 3.87 [:SOURce]:FSIMulator:PATH<i>:DELay 0 to 1638.0 E-6S not-SCPI 3.88 [:SOURce]:FSIMulator:PATH<i>:CORRelation:PATH 0 | 7 to 12 not-SCPI 3.88 [:SOURce]:FSIMulator:PATH<i>:CORRelation:COEFficent 0 to 1.0 not-SCPI 3.88 [:SOURce]:FSIMulator:PATH<i>:CORRelation:PHASe 0 to 359 DEG not-SCPI 3.88 [:SOURce]:FSIMulator:PATH<i>:LOGNormal:STATe...
  • Page 373 SMIQ List of Commands Command Parameter SCPI Info Page [:SOURce]:GPS:TRIGger:OUTPut[1]|2:DELay CODE | NBIT | NWORd | SFRame | FRAMe not-SCPI 3.94 [:SOURce]:GPS:TRIGger:OUTPut[1]|2:POLarity POSitive | NEGative not-SCPI 3.94 [:SOURce]:GPS:TRIGger:OUTPut[1]|2:DELay 0 to 6137999 not-SCPI 3.94 [:SOURce]:GPS:CURRent: :FREQuency? not-SCPI 3.94 [:SOURce]:GPS:CURRent:SRATe? 1kHz to 200 kHz not-SCPI 3.95 [:SOURce]:GPS:DSHift...
  • Page 374 List of Commands SMIQ Command Parameter SCPI Info Page [:SOURce]:GSM:SLOT<i>:HOPPing:TRIGger ON | OFF not-SCPI 3.101 [:SOURce]:GSM:SLOT<i>[:SOURce]:DATA PN9 | PN11 | PN15 | PN16 | PN20 | PN21 | not-SCPI 3.101 PN23 | DLISt | SDATa [:SOURce]:GSM:SLOT<i>[:SOURce]:DATA:DLISt ‘name’ not-SCPI 3.101 [:SOURce]:GSM:SLOT<i>:SF 0 | 1 not-SCPI 3.101...
  • Page 375 SMIQ List of Commands Command Parameter SCPI Info Page [:SOURce]:IS95:RLCoded:CType TRAF14400 | TRAF7200 | TRAF3600 | not-SCPI 3.108 TRAF1800 | ACC4800 | TRAF9600 | TRAF4800 | TRAF2400 | TRAF1200 [:SOURce]:IS95:RLCoded:DATA PN9 | PN11 | PN15 | PN16 | PN20 | PN 21 | not-SCPI 3.108 PN23 | DLISt...
  • Page 376 List of Commands SMIQ Command Parameter SCPI Info Page [:SOURce]:NADC:CLOCk:SOURce INTernal | EXTernal 3.118 [:SOURce]:NADC:CLOCk:MODE BIT | SYMBol not-SCPI 3.118 [:SOURce]:NADC:CLOCk:DELay 0 to 1.0 not-SCPI 3.118 [:SOURce]:NADC:PRAMp:PRESet not-SCPI 3.118 [:SOURce]:NADC:PRAMp:TIME 0.25 to 16.0 not-SCPI 3.118 [:SOURce]:NADC:PRAMp:DELay -1.0 to +1.0 not-SCPI 3.118 [:SOURce]:NADC:PRAMp:SHAPe LINear | COSine...
  • Page 377 SMIQ List of Commands Command Parameter SCPI Info Page [:SOURce]:PDC:TRIGger:OUTPut[1]|2:DELay 0 to 839 not-SCPI 3.127 [:SOURce]:PDC:TRIGger:OUTPut[2]:PERiod 1 to 67.1E6 not-SCPI 3.127 [:SOURce]:PDC:CLOCk:SOURce INTernal | EXTernal 3.127 [:SOURce]:PDC:CLOCk:MODE BIT | SYMBol not-SCPI 3.127 [:SOURce]:PDC:CLOCk:DELay 0 to 1.0 not-SCPI 3.127 [:SOURce]:PDC:PRAMp:PRESet not-SCPI 3.127 [:SOURce]:PDC:PRAMp:TIME 0.25 to 16.0...
  • Page 378 List of Commands SMIQ Command Parameter SCPI Info Page [:SOURce]:PHASe[:ADJust] -360 deg to +360 deg 3.133 [:SOURce]:PHASe:REFerence 3.133 [:SOURce]:PHS:STATe ON | OFF not-SCPI 3.135 [:SOURce]:PHS:STANdard not-SCPI 3.135 [:SOURce]:PHS:SRATe 1kHz to 200 kHz not-SCPI 3.135 [:SOURce]:PHS:FILTer:TYPE SCOSine | COSine | USER not-SCPI 3.135 [:SOURce]:PHS:FILTer:SELect...
  • Page 379 SMIQ List of Commands Command Parameter SCPI Info Page PN23 | DLISt | SDATa [:SOURce]:PHS:SLOT<i>[:SOURce]:SACChannel:DLISt 'name’ not-SCPI 3.141 [:SOURce]:PHS:SLOT<i>[:SOURce]:TCHannel PN9 | PN11 | PN15 | PN16 | PN20 | PN21 | not-SCPI 3.141 PN23 | DLISt | SDATa [:SOURce]:PHS:SLOT<i>[:SOURce]:TCHannel:DLISt 'name' not-SCPI 3.141 [:SOURce]:PM1|2[:DEViation]...
  • Page 380 List of Commands SMIQ Command Parameter SCPI Info Page [:SOURce]:WCDMa:CRATe:VARiation 100cps to 7.5Mcps not-SCPI 3.154 [:SOURce]:WCDMa:FILTer:TYPe SCOSine | COSine | WCDMa | USER not-SCPI 3.154 [:SOURce]:WCDMa:FILTer:SELect 'name' not-SCPI 3.154 [:SOURce]:WCDMa:FILTer:PARameter 0.1 to 0.7 not-SCPI 3.154 [:SOURce]:WCDMa:FILTer:MODE LACP | LEVM not-SCPI 3.154 [:SOURce]:WCDMa:LDIStortion[:STATe] ON | OFF...
  • Page 381 SMIQ List of Commands Command Parameter SCPI Info Page [:SOURce]:W3GPp:CRATe? not-SCPI 3.164 [:SOURce]:W3GPp:LINK FORWard | REVerse not-SCPI 3.165 [:SOURce]:W3GPp:SLENgth 1 to 13 not-SCPI 3.165 [:SOURce]:W3GPp:CLIPping:LEVel 1 to 100PCT not-SCPI 3.165 [:SOURce]:W3GPp:FILTer:TYPe SCOSine | COSine | WCDMa | USER not-SCPI 3.165 [:SOURce]:W3GPp:FILTer:SELect 'name' not-SCPI...
  • Page 382 List of Commands SMIQ Command Parameter SCPI Info Page [:SOURce]:W3GPp:MCHannel:STOP 11 to 138 not-SCPI 3.170 [:SOURce]:W3GPp:MCHannel:SRATe D7K5 | D15K | D30K | D60K | D120K | not-SCPI 3.170 D240K | D480K | D960K [:SOURce]:W3GPp:MCHannel:STOP Bit2 | Bit4 | Bit8 | Bit16 not-SCPI 3.170 [:SOURce]:W3GPp:MCHannel:CCODe...
  • Page 383 SMIQ List of Commands Command Parameter SCPI Info Page [:SOURce]:W3GPp:MSTation<i>:PRACh:DATA PN9 | PN11 | PN15 | PN16 | ZERO | ONE | not-SCPI 3.175 PATTern [:SOURce]:W3GPp:MSTation<i>:PRACh:PATTern #B0 to #B111..1, 1 to 24 not-SCPI 3.175 [:SOURce]:W3GPp:MSTation<i>:PRACh:TFCI 0 to 1023 not-SCPI 3.175 [:SOURce]:W3GPp:MSTation<i>:PCPCh:PREPetition 0 to 10 not-SCPI...
  • Page 384 List of Commands SMIQ Command Parameter SCPI Info Page aver2 [:SOURce]:W3GPp:BSTation:ENHanced:EPOWer:STATe ON | OFF not-SCPI 3.183 [:SOURce]:W3GPp:BSTation:ENHanced:EPOWer:STEP 0 to 6.0 dB not-SCPI 3.183 [:SOURce]:W3GPp:BSTation:ENHanced:EPOWer:RANGe: 0 to 30.0 dB not-SCPI 3.184 [:SOURce]:W3GPp:BSTation:ENHanced:EPOWer:RANGe: 0 to 30.0 dB not-SCPI 3.184 DOWN [:SOURce]:W3GPp:BSTation:ENHanced:SLENgth 1 to (800) not-SCPI 3.184 [:SOURce]:W3GPp:BSTation:ENHanced:SLENgth:FREE?
  • Page 385 SMIQ List of Commands Command Parameter SCPI Info Page [:SOURce]:W3GPp:BSTation:ENHanced:CHANnel<i>:TPC ZERO | ONE | PATTern | DLISt not-SCPI 3.187 [:SOURce]:W3GPp:BSTation:ENHanced:CHANnel<i>:TPC #B0 to #B111..1, 1 to 24 not-SCPI 3.187 :PATTern [:SOURce]:W3GPp:BSTation:ENHanced:CHANnel<i>:TPC 'name' not-SCPI 3.187 :DSELect [:SOURce]:W3GPp:BSTation:ENHanced:CHANnel<i>:MCODe ON | OFF not-SCPI 3.187 [:SOURce]:W3GPp:BSTation:OCNS:STATe ON | OFF not-SCPI...
  • Page 386 List of Commands SMIQ Command Parameter SCPI Info Page [:SOURce]:W3GPp:MSTation:ENHanced:CHANnel<i>:SRATe? not-SCPI 3.191 [:SOURce]:W3GPp:MSTation:ENHanced:CHANnel<i> not-SCPI 3.191 :CHNCode? [:SOURce]:W3GPp:MSTation:ENHanced:CHANnel<i> PN9 | PN11 | PN15 | PN16 | ZERO | ONE | not-SCPI 3.191 :DATA PATTern | DLISt [:SOURce]:W3GPp:MSTation:ENHanced:CHANnel<i>:DATA:PA #B0 to #B111..1, 1 to 24 not-SCPI 3.191 TTern...
  • Page 387 SMIQ List of Commands Command Parameter SCPI Info Page :STATus:QUEStionable:PTRansition 0 to 32767 3.200 :STATus:QUEStionable:NTRansition 0 to 32767 3.200 :STATus:QUEStionable:ENABle 0 to 32767 3.200 :STATus:QUEue [:NEXT]? 3.200 :SYSTem:BEEPer:STATe ON | OFF 3.202 :SYSTem:COMMunicate:GPIB:LTERminator EOI | STANdard 3.202 :SYSTem:COMMunicate:GPIB[:SELF]:ADDRess 1 to 30 3.202 :SYSTem:COMMunicate:SDATa:BAUD 1200| 2400| 4800| 9600| 19200| 38400|...
  • Page 388 List of Commands SMIQ Command Parameter SCPI Info Page :TEST:DIRect:SUM Subaddress {,hex data string} 3.208 :TEST:MCOD? 3.209 :TEST:BERT? 3.209 :TEST:FSIM? 3.209 :TEST:RAM? 3.209 :TEST:ROM? 3.209 :TEST:BATTery[:RAM]? 3.209 :TEST:BATTery:DGEN? 3.209 :TRIGger1|2[:SWEep][:IMMediate] not-SCPI 3.210 :TRIGger1|2[:SWEep]:SOURce AUTO | SINGle | EXTernal not-SCPI 3.211 :TRIGger:BERT[:IMMediate] not-SCPI 3.211...
  • Page 389 SMIQ Programming Examples Annex D Programming Examples The examples explain the programming of the instrument and can serve as a basis to solve more complex programming tasks. QuickBASIC has been used as programming language. However, the programs can be translated into other languages.
  • Page 390 Programming Examples SMIQ Transmission of Instrument Setting Commands Output frequency, output level and AM modulation are set in this example. The settings correspond to the sample setting for first users in manual control. By analogy to the step width setting of the rotary knob, the step width is additionally set for the alteration of the RF frequency in the case of UP and DOWN.
  • Page 391 SMIQ Programming Examples List Management REM ----------------------------- Example of list management -------------------------CALL IBWRT(generator%, "SYST:MSEQ:SELECT "+CHR$(34)+"MSEQ1"+CHR$(34)) 'Select list "MSEQ1", is generated if necessary CALL IBWRT(generator%, "SYST:MSEQ: 1,3,7,2,5,7,7) 'Fill RCL list with values CALL IBWRT(generator%, "SYST:MSEQ:DWELL 0.2") '200ms per step CALL IBWRT(generator%, "TRIGGER:MSEQ:SOURCE AUTO") 'Permanently repeat MSEQ automatically CALL IBWRT(generator%, "SYST:MODE MSEQ") 'Switch over instrument to MSEQ mode...
  • Page 392 Programming Examples SMIQ Service Request The service request routine requires an extended initialization of the instrument in which the respective bits of the transition and enable registers are set. In order to be able to use the service request function in conjugation with a National Instruments GPIB driver, the setting "Disable Auto Serial Poll"...
  • Page 393 SMIQ Programming Examples Reading out the status event registers, the output buffer and the error/event queue is effected in subroutines. REM ---------------- Subroutines for the individual STB bits -------------- Outputqueue: 'Reading the output buffer Message$ = SPACE$(100) 'Make space for response CALL IBRD(generator%, Message$) PRINT "Message in output buffer :";...
  • Page 395 SMIQ Index Index PHS ................. 2.115 W-CDMA..............2.150 π /4DQPSK modulation............2.88 Baseband filter 3GPP W-CDMA ..........2.182, 3.165 GSM/EDGE ............... 3.97 W-CDMA............2.157, 3.154 Battery test data generator.............. 4.2 A field (DECT) ............2.332, 3.59 RAM................4.2 Abort actions triggered............3.17 Test procedure............5.41 Active edge (external trigger)...
  • Page 396 Index SMIQ value range ............... 2.380 Characteristics Boolean parameter .............3.9 distortion ..............2.387 Brief instructions ..............3.1 Check Brightness rated characteristics............. 5.1 control (oscilloscope)..........2.395 Checksum display ..............1.2, 2.11 control list............3.41, 4.2 Broadband amplitude modulation (BB-AM) ....2.60, 3.50 data list ...............
  • Page 397 SMIQ Index Counter..............2.427, 3.42 NADC ............2.269, 3.118 Coupled parameters ..........2.74, 3.86 PDC............2.286, 3.127 Coupling PHS ............2.122, 3.136 EXT1 (AM) ............2.59, 3.50 trigger EXT1/2 3GPP W-CDMA ......2.185, 2.336, 3.167 FM............... 2.61, 3.78 ARB ............2.347, 3.20 PM ............2.63, 3.142 CDMA ............2.141, 3.105 DECT............
  • Page 398 Index SMIQ Display mobile station............3.188 brightness..............2.11 Multicode ..............3.187 contrast ..............2.11 OCNS channels ............3.187 test procedure ..............5.8 Overall symbol rate in uplink ........2.255 Distortion characteristics..........2.387 overall symbol rate uplink......... 3.190 calculation from polynomial equations ...... 2.390 sequence length............
  • Page 399 SMIQ Index Profile ......2.75, 2.80, 2.84, 3.87, 3.89, 3.92 Pseudo Noise Generator ........2.73, 3.84 GET (Group Execute Trigger) ........3.216 Rayleigh fading........ 2.75, 2.80, 3.87, 3.89 GPS................. 3.93 Ricean fading ............ 2.75, 3.87 GSM/EDGE............2.301, 3.96 Signal delay...2.76, 2.80, 2.82, 2.84, 3.88, 3.90, 3.92 test procedure ............
  • Page 400 Index SMIQ [M/ µ] ................2.5 BIT CLOCK ............2.7, 2.95 buffer................ 3.215 [MENU 1/2] ............2.11, 2.25 correction ..............2.27 [MOD ON/OFF] .........2.9, 2.58, 2.428 CW ................2.15 [PRESET] ............. 1.3, 2.9 data ................2.13 [RCL] ..............2.3, 2.43 DATA ..............2.7, 2.96 [RETURN]............
  • Page 401 SMIQ Index dwell (LIST) ........... 2.404, 3.110 BIRTH-DEATH............2.83 dwell (MSEQ) ..........2.406, 3.204 call................2.25 edit ................2.35 cursor................. 2.23 fill................2.36 DIGITAL MOD............2.101 frequency (LIST)..........2.401, 3.111 DIGITAL STD - DECT ..........2.322 function LEARN..........2.404, 3.111 DIGITAL STD - GSM/EDGE ........2.305 generate ..............2.33 DIGITAL STD - IS-95- MODE - FWD_LINK_18..
  • Page 402 Index SMIQ additional..............3.192 Numeric CDMA............... 2.130 input field ..............2.3 configuration (3GPP W-CDMA) ........ 2.199 suffix ................3.7 Enhanced ..............3.188 values ..............2.3, 3.9 W-CDMA ..............2.150 Nyquist filter Modulation 3GPP W-CDMA ..........2.182, 3.165 AM..............2.59, 3.50 CDMA ..........2.138, 2.139, 3.104 analog DECT ..............
  • Page 403 SMIQ Index SYMBOL CLOCK ............2.7 slot................. 1.5 TRIGOUT ..............2.15 Polarity voltage............. 2.391, 3.48 BLANK signal..........2.429, 3.47 X_AXIS ............2.21, 2.394 marker signal ........2.429, 3.113, 3.196 Output impedance pulse modulation ..........2.65, 3.147 test assembly ...............5.5 signal OVEN COLD ..............1.2 3GPP W-CDMA ..........
  • Page 404 Index SMIQ QAM modulation ...............2.87 Quadrature error Same data (3GPP W-CDMA) ......... 2.226 vector modulation ............5.29 Sample setting ..............2.27 Quadrature offset............. 2.67, 3.66 Sample-and-hold mode ............ 2.50 Queries ................3.5 Save responses..............3.8 frame (DECT)..........2.329, 3.58 Question ................3.11 frame (GSM/EDGE) ........2.311, 3.100 Quick selection frame (NADC) ..........2.272, 3.120 menu ................2.25...
  • Page 405 SMIQ Index Modulation subsystem..........3.114 test procedure ............5.24 Source resistance.............2.54 trigger.............2.394, 3.210 Span (RF sweep)........... 2.396, 3.81 Switchover to remote control ..........3.2 SYMBCLK input/output ........... 2.13, 2.97 Special characters ............3.13 Spectral purity............2.62, 2.64 Symbol ................2.25 test procedure ............5.18 Symbol clock Spectrum of a W-CDMA signal ........
  • Page 406 Index SMIQ broadband AM............5.33 MSEQ ..............3.214 data generator ............5.41 NADC.............2.267, 3.117 DC voltage offset............5.78 OFF TIME (ARB) ..........2.348, 3.21 ON TIME (ARB) ..........2.348, 3.21 DECT .................5.47 digital modulation............5.38 oscilloscope ...........2.394, 3.112 digital standards ............5.45 PDC ...............2.284, 3.126 Enhanced Channels ...........5.62 PHS ............2.116, 2.120, 3.136 Sequence control (ARB) .........
  • Page 407 SMIQ Index Walsh code (CDMA) ..........2.145, 3.107 X field (DECT) ..............2.333 Waveform memory (3GPP W-CDMA)......2.183 X_AXIS output ............2.21, 2.394 W-CDMA ................ 2.150 XY recorder............2.394, 3.149 Multicode..............3.156 test procedure ............5.52 Trigger..............2.158 W-CDMA 3GPP........... 2.169, 3.159 Additional ..............
