HARBOR BREEZE and logo design are
trademarks or registered trademarks of
LF, LLC. All rights reserved.
Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at
also contact us at partsplus@lowes.com.
SS22004
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could
1

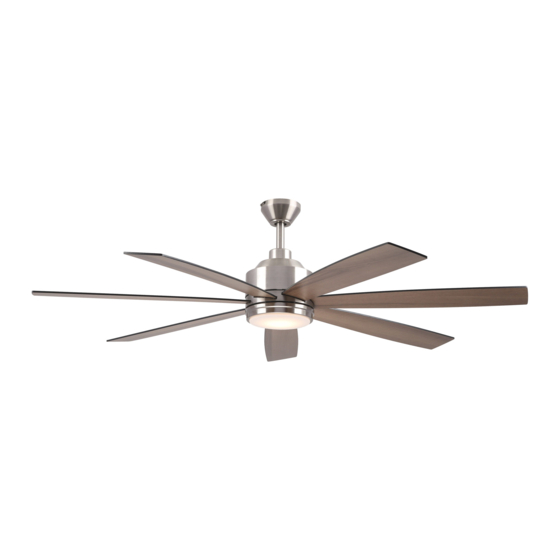

COGDELL CEILING FAN
ITEM #5127844
MODEL #COG60BNK7LR
Español p. 20
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
4007498
APPROVED FOR USE IN
DAMP LOCATIONS
Advertisement
Table of Contents
Related Manuals for Harbor Breeze COGDELL COG60BNK7LR
Summary of Contents for Harbor Breeze COGDELL COG60BNK7LR
- Page 1 ITEM #5127844 COGDELL CEILING FAN MODEL #COG60BNK7LR Español p. 20 HARBOR BREEZE and logo design are trademarks or registered trademarks of ATTACH YOUR RECEIPT HERE LF, LLC. All rights reserved. ADJUNTE SU RECIBO AQUÍ 4007498 APPROVED FOR USE IN Purchase Date...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ........................2 Package Contents ........................5 Hardware Contents .......................6 Preparation ...........................6 Initial Installation ........................6 Downrod-Style Fan Mounting ....................8 Closemount-Style Fan Mounting ..................10 Wiring ..........................11 Final Installation ........................12 Operating Instructions ......................16 Care and Maintenance .......................18 Troubleshooting........................18 Limited Lifetime Warranty ....................19 Replacement Parts List ......................19 SAFETY INFORMATION CAUTION: Changes or modifications not approved by the party responsible for compliance could... - Page 3 SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS • Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs, it must be shipped in its original packaging to ensure proper protection against damage that might exceed the initial cause for return.
- Page 4 SAFETY INFORMATION WARNING To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing or balancing them, or cleaning the fan. Do not insert objects between the rotating fan blades. To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts OTHER than those provided with this fan will void the warranty.
-
Page 5: Package Contents
PACKAGE CONTENTS COLOR PART DESCRIPTION PART DESCRIPTION QUANTITY QUANTITY Fitter Plate Mounting Bracket Motor Plate Screw Canopy Mounting Screw (preassembled) (preassembled) Fitter Plate Screw Downrod (preassembled) Pin (preassembled) LED Light Kit Clip (preassembled) Shade Canopy Blade Remote Pack Remote Control Receiver Yoke Cover Motor Housing IMPORTANT REMINDER: You must use the... -
Page 6: Hardware Contents
HARDWARE CONTENTS (shown actual size) Blade Wire Fiber Screw Connector Blade Washer Qty. 21 Qty. 3 + 1 extra + 1 extra Qty. 21 + 1 extra PREPARATION Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on foam to avoid damage to finish. - Page 7 INITIAL INSTALLATION 2. Determine mounting method to use. A. Downrod mount (standard or angled ceiling) B. Closemount (standard ceiling only) 15° max. IMPORTANT: If using the angle mount, ensure the ceiling angle is not steeper than 15°. *Helpful Hint: Downrod-style mounting is best suited for ceilings 8 ft.
-
Page 8: Downrod-Style Fan Mounting
DOWNROD-STYLE FAN MOUNTING Remove pin (D) and clip (E) from downrod (C). Partially loosen preassembled set screws and nut in yoke at top of motor housing (I). Set Screw Yoke 2. Insert downrod (C) through canopy (F) and yoke cover (H). Then, thread wiring from motor housing (I) through downrod (C). - Page 9 DOWNROD-STYLE FAN MOUNTING Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead 8 in. wires, it is suggested you do so in the following manner: Hanging Take the lead wires and make sure you have...
-
Page 10: Closemount-Style Fan Mounting
CLOSEMOUNT-STYLE FAN MOUNTING Remove preassembled canopy cover from bottom of canopy (F). NOTE: To remove canopy cover from canopy (F), twist canopy cover until the two small protrusions on the inner lip of the canopy cover align with the two notches on the bottom of the canopy (F). -
Page 11: Wiring
WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use. -
Page 12: Final Installation
WIRING Wrap electrical tape (not included) around each individual wire connector from remote pack (G); Wire wrap down to the wire. Connector WARNING: Make sure no bare wire or wire Wire Connector strands are visible after making connections. Place GREEN and WHITE connections on opposite side of the outlet box from the BLACK and BLUE (if Wire applicable) connections. - Page 13 FINAL INSTALLATION DANGER: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades (O). If screws are overtightened, blades (O) may crack and break. Insert the blade (O) through the slot on the band of the motor housing (I).
- Page 14 FINAL INSTALLATION 5. Connect WHITE wire from LED light kit (M) to WHITE wire from motor housing (I). Connect BLUE wire from LED light kit (M) to BLUE (or BLACK) wire from motor housing (I). Make sure molex connections snap together securely. WHITE BLUE (or BLACK) WHITE...
- Page 15 FINAL INSTALLATION If you wish to use the remote control bracket from remote pack (G) on a wood surface, install bracket screws from remote pack (G) through bracket and into the desired installation site. Bracket Screws Remote Control Bracket Wall If mounting surface is drywall, mark the location of the holes using a pencil or a marker (not included).
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. FCC Compliance Notice for Remote Control and LED Light Kit CAUTION: Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 17 OPERATING INSTRUCTIONS 2. Restore electrical power. IMPORTANT: To prevent damage to remote control transmitter, remove the batteries if not used for long periods. Store the remote control transmitter away from excess heat or humidity. NOTE: If fan and/or remote control fail(s) to operate or you have purchased a new remote control transmitter, make sure to turn the power off first.
-
Page 18: Care And Maintenance
CARE AND MAINTENANCE At least twice each year, lower canopy to check downrod assembly, and then tighten all screws on fan. Clean motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added protection. -
Page 19: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY The distributor warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option, replace the ceiling fan with a comparable or superior model.
