Related Manuals for Cadel TILE3 MOON
Summary of Contents for Cadel TILE3 MOON

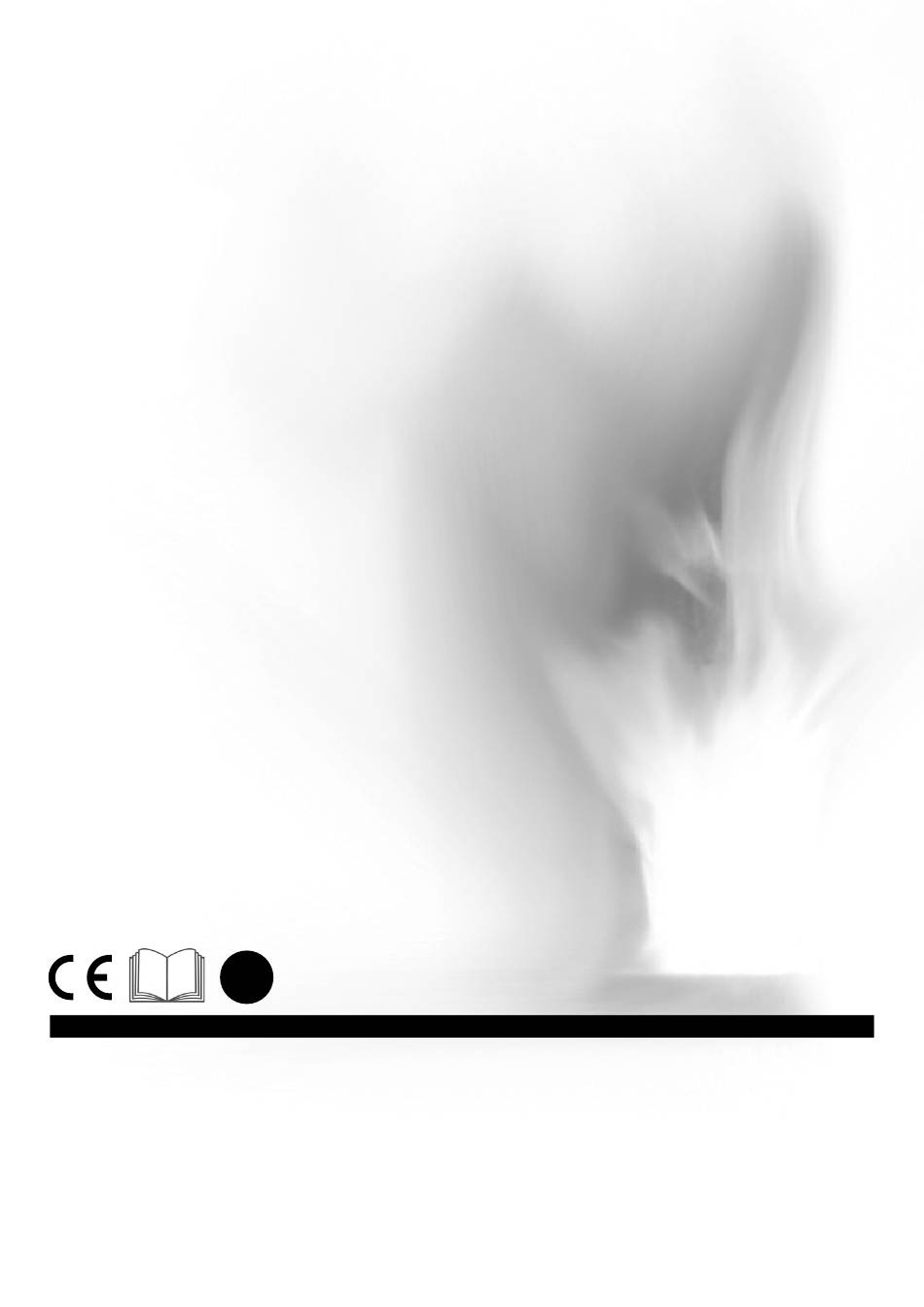

- Page 1 USER MANUAL Pellet Stove ©2019 CADEL srl | All rights reserved - Tutti i diritti riservati WALL PLUS - TILE PLUS - MOON - LEAN PLUS...
- Page 2 IT - SCHEDA PRODOTTO EN - PRODUCT DATA SHEETS FR - FICHE DE PRODUIT NL - PRODUCTKAART DE - PRODUKTDATENBLATT ES - FICHA DEL PRODUTO PT - FICHA DO PRODUTO PL - KARTA PRODUKTU CZ - INFORMAČNÍ LIST VÝROBKU SK - INFORMAČNÝ LIST VÝROBKU RO - FIȘA PRODUSULUI HU - TERMÉKISMERTETŐ...
- Page 3 - SCHEDA PRODOTTO - KARTA PRODUKTU - ΔΕΛΤΙΟ ΠΡΟΪΟΝΤΟΣ - PRODUCT DATA SHEETS - INFORMAČNÍ LIST VÝROBKU - ПРОДУКТОВ ФИШ - FICHE DE PRODUIT - INFORMAČNÝ LIST VÝROBKU - GAMINIO VARDINIŲ - PRODUCTKAART - FIȘA PRODUSULUI PARAMETRŲ LENTELĖ - PRODUKTDATENBLATT - TERMÉKISMERTETŐ...
- Page 4 Potenza termica indiretta Putere termică indirectă Indirect heat output Közvetett hőteljesítmény Puissance thermique indirecte Posredna toplotna moč Onrechtstreeks thermisch vermogen Neizravna toplinska snaga Indirekte Heizleistung Έμμεση θερμική ισχύς Potencia térmica indirecta Индиректна топлинна мощност Potência térmica indireta Netiesioginė šiluminė galia Pośrednia moc cieplna Kaudne soojusvõimsus Nepřímý...
- Page 5 Overhold advarslerne og instruktionerne for installation og periodisk vedligeholdelse, der er angivet i instruktionsvejledningen. Respektera de bestämmelser och anvisningar för installation och löpande underhåll som anges i de specifika kapitlen i handboken. CADEL srl FREEPOINT by Cadel Via Foresto Sud, 7 31025 Santa Lucia di Piave (TV) - ITALY www.cadelsrl.com...
-
Page 6: Table Of Contents
10.4 VENTILATION ............18 SUMMARY 10.5 REMOTE CONTROL ..........19 1 MANUAL SIMBOLOGY ........3 11 SAFETY DEVICES AND ALARMS ....20 2 DEAR CUSTOMER ..........3 11.1 SAFETY DEVICES ...........20 3 CAUTIONS ............3 11.2 PRESSURE SWITCH ..........20 SAFETY REQUIREMENTS ......4 11.3 SMOKE TEMPERATURE PROBE ......20 5 WARRANTY CONDITIONS .......5 11.4 CONTACT THERMOSTAT IN THE FUEL HOPPER..20 6 SPARE PARTS ..........6... -
Page 7: Manual Simbology
MANUAL SIMBOLOGY USER AUTHORISED TECHNICIAN (ONLY to interpret or the Stove-manufacturer or the Authorized Techni- cian of Technical Assistance Service approved by the Stove-manufacturer) SPECIALIZED STOVE-REPAIRER CAUTION: READ CAREFULLY THE NOTE CAUTION: DANGER OR IRREVERSIBLE DAMAGE POSSIBILITY • The icons with the stylized figures indicates whom the subject dealt in the paragraph is addressed to (between the User and/ or the Authorized Technician and/or the Specialized Stove-repairer). -
Page 8: Safety Requirements
SAFETY REQUIREMENTS • Installation, electrical connection, functional verification and maintenance must only be performed by qualified or authorised personnel. • Live electrical parts: disconnect the product from the 230V power supply before perfor- ming any maintenance operation. Only power the product after completing assembly. •... -
Page 9: Warranty Conditions
experience and knowledge must be kept away from packaging. The stove is not a toy. • Childreen must be constantly overseen in order to assure that they do not play with the appliance. • During its running, the stove reaches high temperatures: keep away childreen and animals and for your safety please use appropriate fireproof devices, such as heat-protecting gloves. -
Page 10: Spare Parts
• Failure to have the stove cleaned on an annual basis by an authorised technician or qualified personnel will result in the loss of the warranty. Also excluded from this guarantee are: • Parts subject to normal wear such as gaskets, glass, claddings and cast iron grids, painted, chrome-plated or gilded parts, handles and electric cables, bulbs, indicator lights, knobs, all parts which can be removed from the hearth. -
Page 11: Wifi - Bluetooth Connection
useful life, this product, the batteries and the accumulators included must not be collected, recycled or disposed of together with domestic waste. Improper management of electric or electronic waste or batteries or accumulators can lead to the leakage of hazardous substances contained in the product. -
Page 12: Navel Stand Alone
NAVEL STAND ALONE Procedure if only valid for models with NAVEL STAND ALONE Wi-Fi technology. ATTENTION! Installation must ONLY be carried out by specialised personnel. The manufacturer will not be held responsible for injury to persons or damage to property or in the event of failed operation. -
Page 13: Securing The Display
Oily plant waste and lacquers can cause smells and smoke during the first working hours: it is advisable to ventilate the room because they could be noxious to people and animals. Set values from 1 to 5 are defined by the manufacturer and they can be changed only by an authorized tech- nician. -
Page 14: Main Menu
MAIN MENU It is accessed by pressing key 3 (menu). The items that are accessed are: • Time and Date • Timer • Sleep (only with the stove on) • Settings • Info Date and time setting To set the date and time act as follows: •... - Page 15 To select “Screw loading” (only when the boiler is switched off) act as follows: • Press the “menu” button. • Scroll to “Settings” using the arrows • Press “menu” to confirm. • Scroll to “Screw loading” using the arrows. • Press “menu” to confirm. •...
-
Page 16: Info Menu
• Modify the % with the + - keys. • Press “menu” to confirm and “esc” to exit j - Components Test To activate the “Components Test” function (only when the boiler is switched off) act as follows: • Press the “menu” button. •... -
Page 17: Failed Ignition
temperature and the big flame (see Fig. 10). • If the ambient temperature value exceeds the limit set on the button panel in the temperature set, the heat output is brought to its lowest value and the small flame is shown (see Fig. 11). When the ambient temperature decreases below the set tem- perature, the stove goes back to the set output. -
Page 18: Programmed Mode (Timer) - Main Menu
Fig. 12 - Display Note: The full stop to the right of the ambient temperature shown in the control panel display (upper right) indicates the half degree (e.g. 23.° means 23.5°C). Air Fan Speed 1 - this function allows selecting the desired speed for the ambient fans from 1 to 5 or A. A means automatic, ventilation depends on power, recommended setting (see Fig. -
Page 19: Programming Examples
in which it is active. When one or more programmes are active, the panel alternately displays the boiler status and TIMER “n” whereby “n” is the number relating to the activated timer programmes, separated from each other with a dash Example: •... -
Page 20: Auto Eco Mode
9.15 AUTO ECO MODE (SEE SECTION F-G SETTINGS MENU A PAG. 10) To activate the “Auto-Eco” mode and adjust the time refer SETTINGS MENU a pag. 10. The possibility to adjust the “ t Off Time Eco” comes from the need to ensure proper operation in the various rooms the boiler can be installed in and prevent continuous shutdowns and start-ups in the event the temperature is subject to sudden changes (air currents, poorly insulated rooms, etc.). -
Page 21: Smoke Rpm Variation (See Section I Settings Menu A Pag. 10)
-5= 5% reduction with respect to the default setting. 0= No variation. +5= 5% increase with respect to the default setting. +10 = 10% increase with respect to the default setting. +15 = 15% increase with respect to the default setting. 9.18 SMOKE RPM VARIATION (SEE SECTION I SETTINGS MENU A PAG. -
Page 22: Pellet Supply
10.2 PELLET SUPPLY Fig. 21 - Wrong opening of the pellets bag Fig. 22 - Right opening of the pellets bag It is necessary to avoid to fill the hopper with the pellet when the stove is running. • Do not get the bag of pellet in contact with hot stove surfaces. •... -
Page 23: Remote Control
Fig. 26 - Do not cover air slits 10.5 REMOTE CONTROL • The stove can be operated through a remote control (optional) • Operation requires 1 CR 2025 (3Volt) Lithium battery • Operating temperature 0 ° C / 50 ° C •... -
Page 24: Safety Devices And Alarms
SAFETY DEVICES AND ALARMS 11.1 SAFETY DEVICES The product is supplied with the following safety devices 11.2 PRESSURE SWITCH • It controls pressure in the fume duct. It blocks the pellet feed screw in the following instances: • - clogged exhaust •... -
Page 25: Alarm Reset
PANEL ALERT TYPE OF PROBLEM SOLUTION Check whether the brazier is clean / level of pellets in the hopper. Check pellet level in the tank. Check that the burning pot is correctly positioned in its case and does not contain deposits or unburned The fire does not ignite. -
Page 26: Burning Pot And Ash Tray Cleaning
• It is also necessary to have the combustion chamber, motors and fans cleaned and to have the gaskets and the electronical elements checked at least once a year. All these operations must be planned in time with your Autorized Technical Assistance Service. •... -
Page 27: Fume Chamber Cleaning
Fig. 34 - Hopper and auger cleaning 12.4 FUME CHAMBER CLEANING Every season (or every 1500 operation hours) the fume chamber and the fume passages cleaning must be executed. • Remove the left front panel, see . Fig. 35 - Heat protection panel removing Fig. -
Page 28: Fume Conduit Cleaning
12.5 FUME CONDUIT CLEANING The exhaust system must be cleaned every month. Fig. 39 - Fume conduit cleaning • Remove the inspection lid of the T-union (see Fig. 39). • Extract the ash which has accumulated in the inner. • After cleaning repeat the operation in reverse order, checking the condition and efficiency of the gasket, and if necessary replace it. -
Page 29: In Case Of Anomaly
REMEMBER THAT ONLY A CORRECTLY POSITIONED AND CLEAN BRAZIER CAN GUARANTEE START-UP AND OPTI- MAL OPERATION OF YOUR PELLET PRODUCT. For the brazier to be cleaned properly, remove it from its housing completely and thoroughly clean all the holes and the grate on the bottom. - Page 30 PROBLEM CAUSE SOLUTION INTERVENTION Empty hopper Full the hopper. Open fire door or Close fire door and pellet door and check that there are no open pellet door pellet grains at the gasket level. Clogged stove Fume chamber cleaning Pellets do not reach the combu- Auger blocked by a stion chamber...
- Page 31 PROBLEM CAUSE SOLUTION INTERVENTION Check as following: probable obstructions of the combusti- Not sufficient ble air inlet from the back or from the bottom of the stove; combustion air burning pot obstructed holes with too ash remains. Have the fan blades and auger cleaned. The exhaust chimney is partially or totally obsturcted.
- Page 32 Rev. 00 - 2021 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy www.pegasoheating.com Tel. +39.0438.738669 Fax +39.0438.73343...
