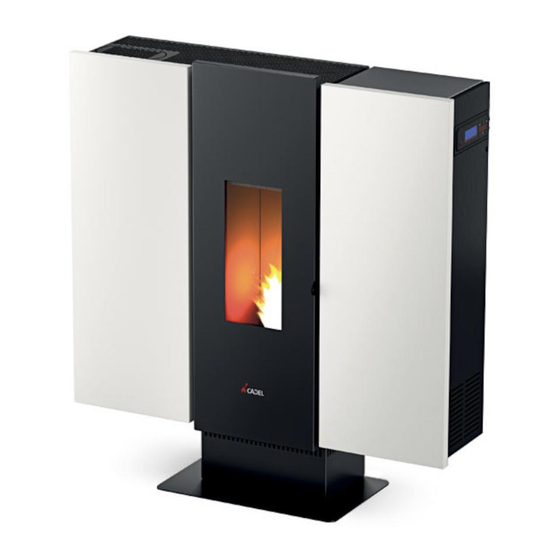

- Page 1 INSTALLER MANUAL Pellet Stove ©2022 CADEL srl | All rights reserved - Tutti i diritti riservati WALL PLUS - TILE PLUS - MOON - LEAN PLUS...
-
Page 2: Manual Simbology
MANUAL SIMBOLOGY USER AUTHORISED TECHNICIAN (ONLY to interpret or the Stove-manufacturer or the Authorized Technician of Technical Assistance Service approved by the Stove-manufacturer) SPECIALIZED STOVE-REPAIRER CAUTION: READ CAREFULLY THE NOTE CAUTION: DANGER OR IRREVERSIBLE DAMAGE POSSIBILITY • The icons with the stylized figures indicates whom the subject dealt in the paragraph is addressed to (between the User and/ or the Authorized Technician and/or the Specialized Stove-repairer). -
Page 3: Stove Handling
STOVE HANDLING Both whether the stove is packed or not it is necessary to observe the following instructions for handling and transporting the stove from its sale point to its installation point and for any future movements: • The stove must be handled with idoneous means paying attention to the existing safety regulations; •... - Page 4 SMOKE DUCT (SMOKE FITTING) The smoke duct is the pipe that connects the appliance to the flue. This smoke fitting must comply in particular with the following requirements: • comply with product standard EN 1856-2; • its cross-section must be of constant diameter and no less than that of the appliance outlet, from the firebox outlet up to the connection in the flue;...
-
Page 5: Chimney Pot
Fig. 3 - Chimney Flues LEGEND Fig. 3 Chimney flue with insulated stainless-steel pipes Chimney flue on the existing chimney Inspection plug Inspection door • The chimney flue must be provided CE in accordance with EN 1443 regulation. Please find attached an example of label: Fig. -
Page 6: Maintenance
Fig. 5 - Anti-wind chimney pots Fig. 6 - Reflux area MAINTENANCE • The fumes extraction pipes (fumes conduit + chimney flue + chimney pot) must always be cleaned, scrubbed and checked by an expert stove-repairer, in compliance with current regulations, with the instructions of the stove-manufacturer and the directives of your insurance company. - Page 7 (***) In the event the combustion air is ducted on unsealed products, still verify that no more than 4 Pa of negative pressure is created inside the installation room with respect to the outside, otherwise provide for an additional air intake in the room. Below 15 kW: Air duct diameter Maximum length (smooth duct)
- Page 8 Fig. 9 - Cut- Removal Fig. 10 - Connections How to connect to the stove in the sealed chamber with concentric system: • Insert the N fitting into the I air intake pipe (see Fig. 11 and Fig. 12). Connect N to Q using a flexible tube which can resist a temperature of 100°C (a flexible aluminium tube is recommended).
- Page 9 EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) Fig. 14 - Chimney flue 1. Flue installation with hole for the passage of the pipe increased by: minimum 100mm around the pipe if next to non-flammable parts such as cement, brick, etc.; or minimum 300mm around the pipe (or as required by plate data) if next to flammable parts such as wood etc.
-
Page 10: Installation
LEGEND Fig. 14 Insulation Possible diameter increase Inspection cap Inspection access panel Air inlet Tee fitting with inspection cap Distance from flammable material (smoke duct plate) Maximum 4 m Minimum 3° slope Distance from flammable material (appliance plate) Reflux area Air ducting The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. -
Page 11: Minimum Distances
A sealed installation does not consume the room’s oxygen because it draws all the air from the outer environment (if suitably ducted) and makes it possible to install the product in all houses that require a high degree of insulation such as “passive” or “high energy efficiency”... -
Page 12: Wall Mounting
This operation (1*) must be performed by a technician qualified to disconnect the combustion product expulsion ducts and their subsequent restoration. For generators connected to the hydraulic system, a connection must be provided between the system itself and the product so that, during extraordinary maintenance, carried out by a qualified technician, it is possible to move the generator 1 by at least 50 cm from adjacent walls without emptying the system (e.g. - Page 13 LEGEND WALL PLUS LEAN PLUS MOON 833 mm 833 mm 833 mm 148 mm 168 mm 124 mm 182 mm 182 mm 182 mm 101 mm 101 mm 101 mm 305 mm 325 mm 281 mm 257 mm 257 mm 257 mm 875 mm 895 mm...
-
Page 14: Overall Dimensions
Fig. 19 - Wall fixing OVERALL DIMENSIONS Fig. 20 - General dimensions: Wall Plus LEGEND Fig. 20 96,3 cm 100,5 cm 27,7 cm 82,8 cm 17,2 cm 87,7 cm 17,1 cm 15,9 cm 8,3 cm 87,5 cm 13,5 cm 13,5 cm 30,5 cm 29 cm Ducting outlet d.8 cm... - Page 15 Fig. 21 - General dimensions: Lean Plus LEGEND Fig. 21 93 cm 117,5 cm 25 cm 85,5 cm 8 cm 89,5 cm 17,2 cm 10,5 cm 8,3 cm 89,5 cm 7,5 cm 7,5 cm 46,5 cm 32,5 cm 27,3 cm Ducting outlet d.8 cm Hole combustion air inlet d.6 cm Exhaust fumes d.8 cm...
- Page 16 LEGEND Fig. 22 95,2 cm 99 cm 26,4 cm 82 cm 17,2 cm 85,3 cm 17,2 cm 13,4 cm 8,3 cm 85 cm 13,2 cm 13,2 cm 28 cm 28,4 cm Ducting outlet d.8 cm Hole combustion air inlet d.6 cm Exhaust fumes d.8 cm Fig.
-
Page 17: Panel Assembly
LEGENDA Fig. 23 Presa aria comburente d.6 cm Scarico fumi d.8 cm STOVE DOOR REMOVAL/INSTALLATION DOOR REMOVAL For some operations (e.g.: side panel assembly and cleaning) you must remove the stove door. To remove the door: • Open the door. •... - Page 18 PANEL ASSEMBLY (LEAN PLUS MODEL) Assembly must be carried out by an authorised technician. For panels installation, proceed as follows: Fig. 28 - Panels assembly Fig. 29 - Panels fixing Fig. 30 - Panel lower fixing • Insert the side metal panels from above, introducing the teeth/screws in the appropriate slots and making them lower to the bottom (see Fig.
- Page 19 6.10 PANEL ASSEMBLY (TILE PLUS MODEL) Assembly must be carried out by an authorised technician. Proceed as follows to assemble the panel: Fig. 33 - Disassembly of the upper bracket Fig. 34 - Release of the lower bracket Fig. 35 - Panels fixing •...
- Page 20 Fig. 39 - Ducting 1 Fig. 40 - Ducting 2 Fig. 41 - Ducting 3 • The pipe can be directed to the left (see Fig. 39). • The pipe can be directed to the right (see Fig. 40). For this solution, the pipe can run through the pedestal, removing the pre- cut caps.
-
Page 21: Electric Connection
ried out by an authorised technician. 6.12 ELECTRIC CONNECTION Warning: the appliance must be installed by an authorized technician! • The electric connection occurs through a cable with plug put in an electric socket which is able to support charge and tension specific of every model, as described in the technical datas table (see FEATURES a pag. -
Page 22: Special Maintenance
minimum draught). • Compare the read values with those on the table. • Change power every 10 minutes and wait for it to stabilise. • Access the user menu and, if necessary, change the parameters. Fig. 46 - Casing removal Fig. - Page 23 Fig. 48 - Screw removal Fig. 49 - Coque removal Fig. 50 - Gear motor removal • Enter the tank and loosen the 4 screws of the feed screw coque (see Fig. 48). • Remove the coque (see Fig. 49). •...
-
Page 24: Fume Chamber Cleaning
FUME CHAMBER CLEANING Every season (or every 1500 operation hours) the fume chamber and the fume passages cleaning must be executed. • Remove the left front panel, see . Fig. 56 - Heat protection panel removing Fig. 57 - Inspection panel removing •... -
Page 25: In Case Of Anomaly
• Extract the ash which has accumulated in the inner. • After cleaning repeat the operation in reverse order, checking the condition and efficiency of the gasket, and if necessary replace it. Is it important to hermetically seal the cap to avoid harmful fumes escaping into the room. FUME PIPES ANNUAL CLEANING Clean annually from soot with brushes. - Page 26 PROBLEM CAUSE SOLUTION INTERVENTION The stove is without Check if the plug is connected. power supply Burned protection fuse in the electric Replace the protection fuses in the electric socket (3.15A-250V). socket The control display Faulty control Replace the control display. does not switch on display Faulty flat cable...
- Page 27 PROBLEM CAUSE SOLUTION INTERVENTION Check as following: probable obstructions of the combustible air Not sufficient com- inlet from the back or from the bottom of the stove; burning pot bustion air obstructed holes with too ash remains. Have the fan blades and auger cleaned.
- Page 28 Fig. 61 - Shutter with fuses to remove Proceed as follows: • Remove the frame (see the dedicated chapters). • After these operations you can have access at the following components: geared motor, ignition plug, ambient fan, fume fan, ambient probe, fume probe, thermostat, electronic board, pressostat. •...
- Page 29 FEATURES DESCRIPTION WALL PLUS LEAN PLUS MOON WIDTH 96,4 cm 93 cm 95,2 cm DEPTH 25 cm 25 cm 26,4 cm HEIGHT 102 cm 117,5 cm 99 cm WEIGHT 103 - 133 kg 115 kg 103 kg INTRODUCED THERMAL POWER (Min/Max) 3,16 - 11 kW 3,16 - 11 kW 3,16 - 11 kW...
- Page 30 DESCRIPTION TILE PLUS WIDTH 94,8 cm DEPTH 28,8 cm HEIGHT 110,8 cm WEIGHT 125 kg INTRODUCED THERMAL POWER (Min/Max) 3,16 - 11 kW NOMINAL THERMAL POWER (Min/Max) 3 - 10 kW EFFICIENCY (Min/Max) 94,5 - 91 % FLUE GAS TEMPERATURE (Min/Max) 111 - 215 °C MAXIMUM FLUE GAS FLOW RATE (Min/Max) 2,5 - 5,6 g/s...
- Page 31 Rev. 00 - 2022 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy Tel. +39.0438.738669 Fax +39.0438.73343...
