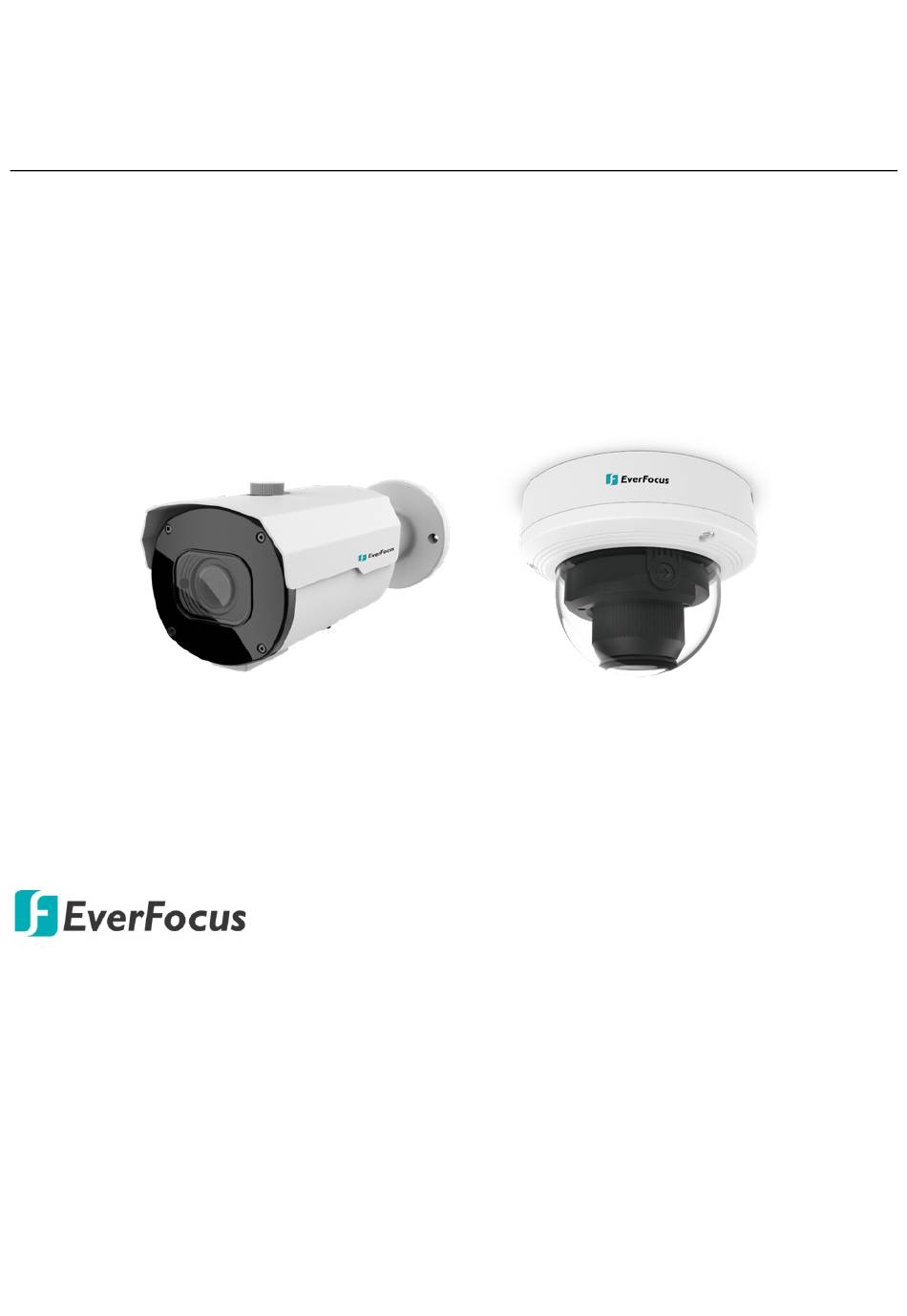

Value IP Series Network Camera
EZN2550-SG, EHZ2550-SG, H265, IR, WDR
Quick Installation Guide
EZN2550-SG
EHN2550-SG
Copyright © EverFocus Electronics Corp.
Release Date: June, 2021
All the images including product pictures or screen shots in this document are for example only.
The images may vary depending on the product and software version. Information contained in
this document is subject to change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., ShenkengDist., New Taipei City 222, Taiwan
TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw
Advertisement
Related Manuals for EverFocus EZN2550-SG
Summary of Contents for EverFocus EZN2550-SG
- Page 1 The images may vary depending on the product and software version. Information contained in this document is subject to change without notice. EverFocus Taiwan: 2F., No.12, Ln. 270, Sec. 3, Beishen Rd., ShenkengDist., New Taipei City 222, Taiwan TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw...
- Page 2 1. Physical Description No. Item Name Descriptions Reset Button Use the supplied Hexagon Wrench to loosen the / Micro SD Card Slot screws to access the Reset Button, Micro SD slot, /CVBS Lan / Zoom in & CVBS Lan (this function is currently reserved), and Zoom In &...
- Page 3 Note: Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the...
- Page 4 Optional Accessory You can go to the product page on EverFocus’ website to check the related optional accessories.www.everfocus.com.tw 2. Cables The cables of the EZN & EHN Series provide connections for network, power, audio input / output, and alarm input / output.
- Page 5 3. Installation 3.1 EZN2550-SG 1. Drill three holes on the surface according to the screw positions on the Camera Base. Push the supplied 3 Screw Anchors into the holes. Drill another hole in the middle within the 3 screw holes if you wish to run the wires into the surface.
- Page 6 b. Connect the RJ-45 cable to the LAN/PoE Cable of the camera. RJ-45 Cable LAN/PoE Cable c. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45 Connector Cable. Screw Cap Cable Gland d. Crimp the RJ-45 connector onto the RJ-45 network cable. Note that the wires should be placed into the RJ-45 connector based on the following order (from left to right).
- Page 7 Screw Position x 4 Optionally drill the 2 Cable Holes if you want to run the cables through the surface. 2. Remove the camera cover by unscrewing the 3 cover screws using the supplied Torx Wrench (Left Image). Screw the camera base to the surface using the supplied 4 Screws (Right Image).
- Page 8 4. Accessing the Camera You can look up the IP address of the IP camera using the IP Utility (IPU) program from EverFocus website (key word search: "IP Utility"). The default network is DHCP. However, if there is no dynamic IP address assigned to the device, its IP will switch to 192.168.0.10.
