EverFocus EQ900 eZ.HD Series User Manual

720p analog high definition true day/night box camera ez.hd series
Hide thumbs
Table of Contents

Advertisement

Quick Links

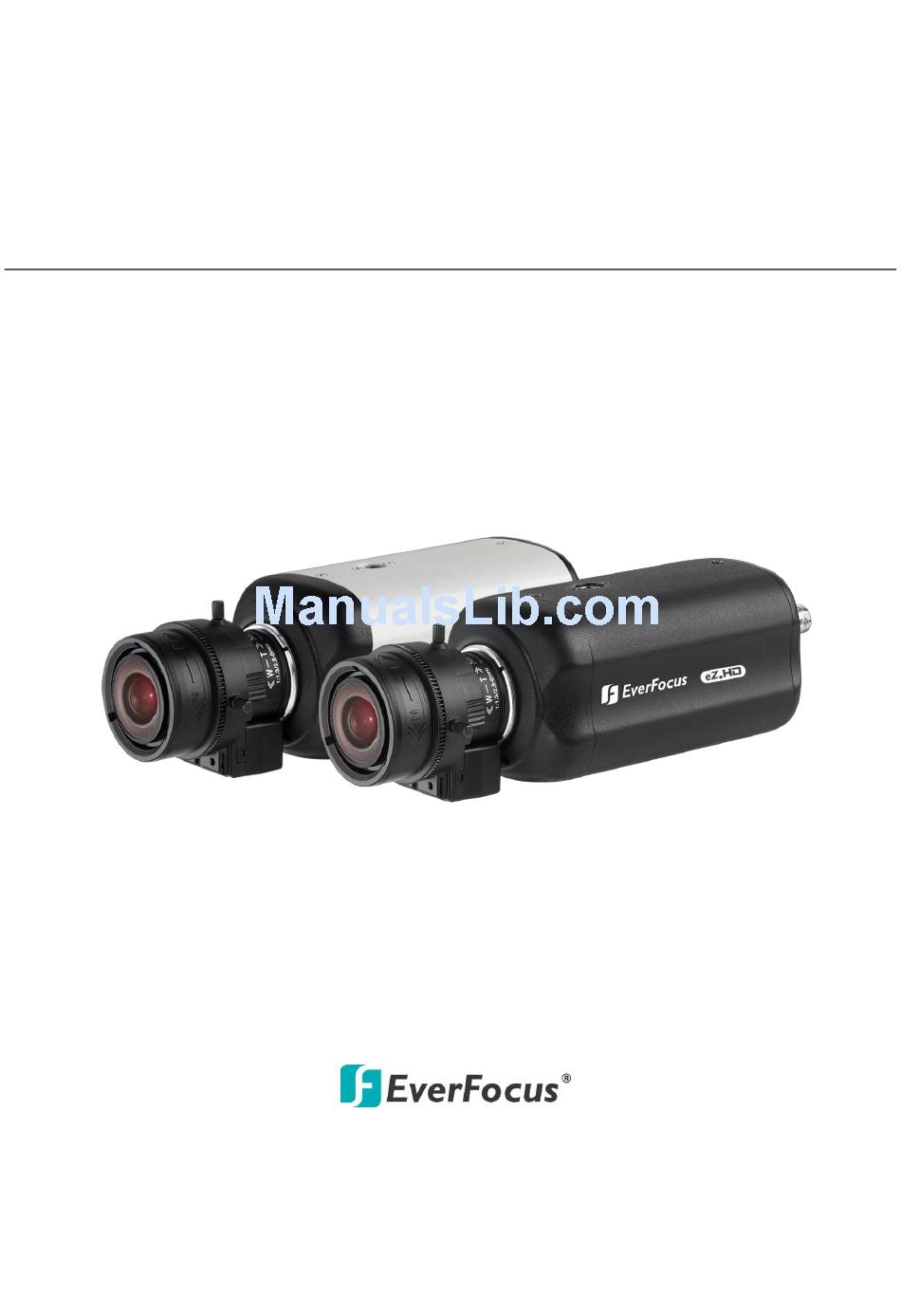

EQ900 eZ.HD Series
720p Analog High Definition
True Day/Night Box Camera
User's Manual
** Lens not included.
Copyright © EverFocus Electronics Corp,
Release Date: Nov., 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EQ900 eZ.HD Series and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus EQ900 eZ.HD Series

Summary of Contents for EverFocus EQ900 eZ.HD Series

  • Page 1 EQ900 eZ.HD Series 720p Analog High Definition True Day/Night Box Camera User’s Manual ** Lens not included. Copyright © EverFocus Electronics Corp, Release Date: Nov., 2014...
  • Page 2 Precautions Please read this manual first to ensure correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.
  • Page 3 This Product is RoHS compliant. Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

  • Page 4: Table Of Contents

    Contents Introduction ........................1 1.1 Packing List ........................... 1 1.2 Features..........................1 Overview ........................2 Installation ........................3 3.1 Lens Installation and Adjustment ..................3 3.2 Top / Bottom-Mount ......................3 Basic Connection ......................4 OSD Menu Structure ...................... 5 Specifications ........................

  • Page 5: Introduction

    EQ900 eZ.HD True Day/Night Box Camera 1. Introduction The EQ900 is a box camera equipped with 1/2.8" SONY 1.37M pixels CMOS to deliver 720p high Resolution. The camera delivers vastly superior video quality compared to traditional CCTV images. This superior resolution not only captures more critical evidentiary information, but the inherent ability for video also extends the area of coverage, expedites completion of investigations, resolves complaints and reduces both capital and operational costs.

  • Page 6: Overview

    EQ900 eZ.HD True Day/Night Box Camera 2. Overview Name Descriptions Dual Video Output 720p and 960H output, using a 75 Ohm BNC-type coaxial cable. Use the function buttons to configure the settings in the OSD OSD Menu menu. Power LED Glow red then power is present.

  • Page 7: Installation

    EQ900 eZ.HD True Day/Night Box Camera 3. Installation 3.1 Lens Installation and Adjustment You can install either a CS-mount or a C-mount lens into the camera. It is recommended to use a lens with aperture ratio of F/1.2 or lower. Please refer to the following steps. CS-Mount Lens: Remove the Cover Cap from the Camera Body.

  • Page 8: Basic Connection

    EQ900 eZ.HD True Day/Night Box Camera 4. Basic Connection Connect the camera to a 12VDC or 24VAC power source using the supplied DC Power Pigtail Cable. The power LED will be lit in red. Configure the OSD Menu, using the function button. Note: The function button is not only for direction control, also for switching Video format and Video output.

  • Page 9: Osd Menu Structure

    EQ900 eZ.HD True Day/Night Box Camera 5. OSD Menu Structure The default value is marked with a star “*”. Main Sub Menu Sub Menu / Function Indoor* NTSC: 1/30* Min Shu. PAL: 1/25* NTSC: 1/60,FLK,1/240, 1/480,1/1000, Mode 1/2000,1/5000*, Outdoor 1/10000, 1/50000 Lens Max.
  • Page 10 EQ900 eZ.HD True Day/Night Box Camera Default Select Area1*, Area2, Area3, Area4 Display Position, Size,↑,↓,→,← Black On*/Off HSBLC Mask Level 0-100(20*) All Day* Model Night AGC Level 0-255(48*) Default ATW* AWC→SET Indoor White Outdoor Balance Blue 1-500(50*) Manual 0-100(50*) 0-60(1*) D→N(Delay) 0-60(1*) N→D(Delay)
  • Page 11 EQ900 eZ.HD True Day/Night Box Camera Neg. Off*/On Image Off* Select Area1*,Area2,Area3,Area4 Position, Size,↑,↓,→,← Display Sensitivity 0-100(64*) Color Green*, Blue, White, Red 1.00*,0.75,0.50, Motion Trans 0.25 View Type Off, Block, Outline, All* OSD View On*/Off Alarm Alarm Out On*/Off Alarm Sig High*, Low Time 1-15(3*)
  • Page 12 EQ900 eZ.HD True Day/Night Box Camera x2*, x4, x6, x8,x10, x15, Sens-up x20, x25, x30 Off* Pos/Siz Position, Size,↑,↓,→,← Black Start Press Enter DPC View Off*/On Level 0-255(255*) CAM ID 0-255(1*) RS485 ID Display Off*/On Baud Rate 2400,4800,9600,19200 ,38400 Level 0-10(6*) Sharpness Auto*...

  • Page 13: Specifications

    EQ900 eZ.HD True Day/Night Box Camera 6. Specifications EQ900 Pickup Device 1/2.8" SONY 1.37M pixels CMOS Video Format NTSC and PAL( can be switched via OSD) Effective Pixels 1280 (H)*720 (V) Scanning System Progressive Scan Sensitivity 0.08 lux. S/N Ratio Over 48 dB (AGC OFF) Electronic Shutter AUTO, Manual (X30~1/ 50000), FLK...
  • Page 14 TEL: +91 22 6726 4500 FAX: +91 22 6726 4518 www.everfocus.in sales@everfocus.in Ihr EverFocus Produkt wurde Your EverFocus product is designed and entwickelt und hergestellt mit manufactured with high quality materials qualitativ hochwertigen Materialien and components which can be recycled und Komponenten, die recycelt und and reused.
