Section 6.1 | Audio/Video Connection

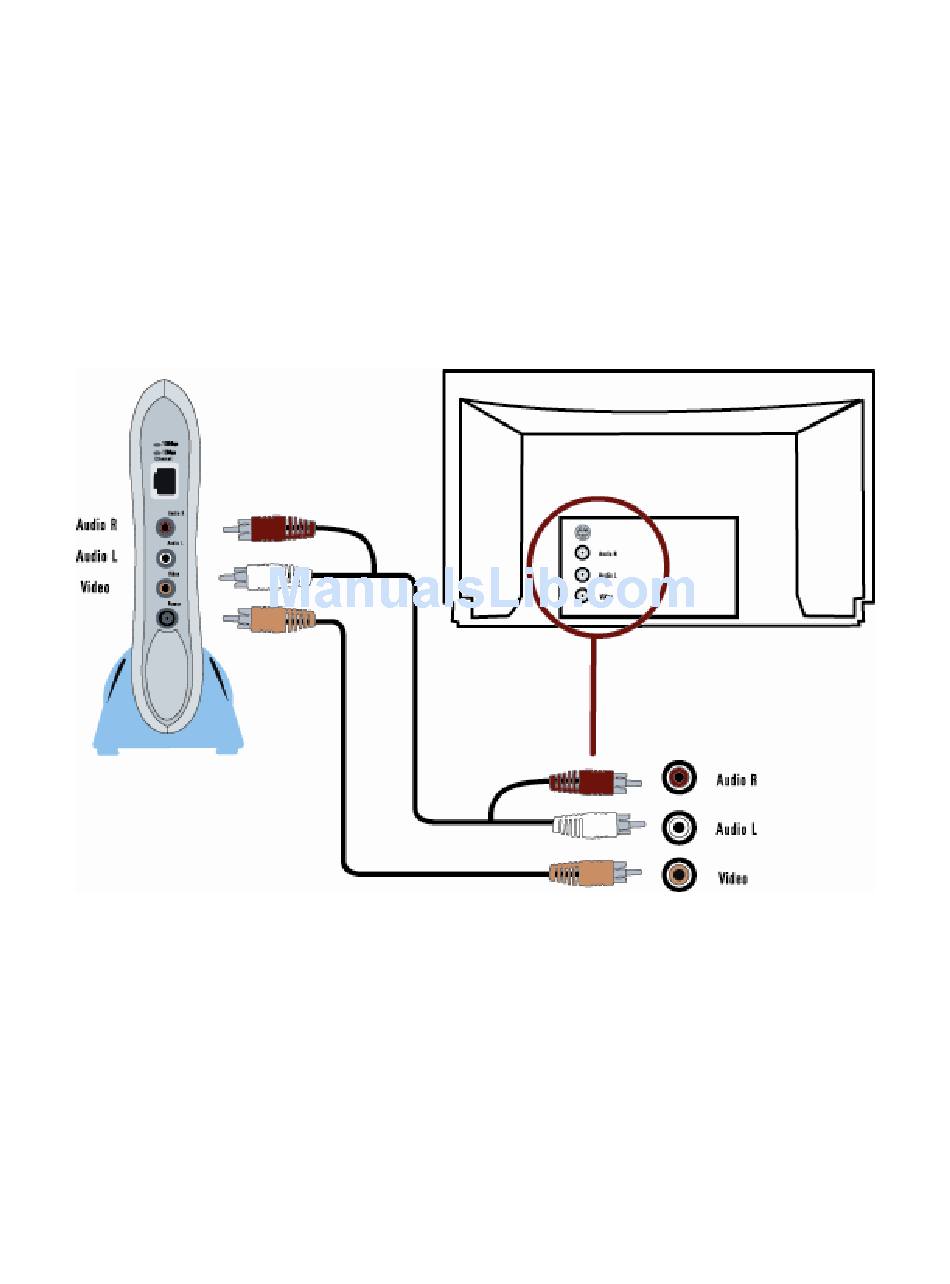

Step 1: Connect the Left (white) and Right (red) audio output jacks of the

SMCWMR-AG Universal Wireless Multimedia Receiver to any unused audio left

and right jacks on your stereo, TV, or A/V receiver.

Step 2: Connect the video (yellow) output jack on the SMCWMR-AG Universal

Wireless Multimedia Receiver to any unused video jack on your TV A/V receiver.

Step 3: Connect the power cable from the back of the SMCWMR-AG Universal

Wireless Multimedia Receiver to the nearest power outlet or, preferably, a fused

power strip and switch on your stereo or A/V receiver. Do not forget to set the

receiver to the output mode that corresponds to the jacks you used to connect to

the SMCWMR-AG.
