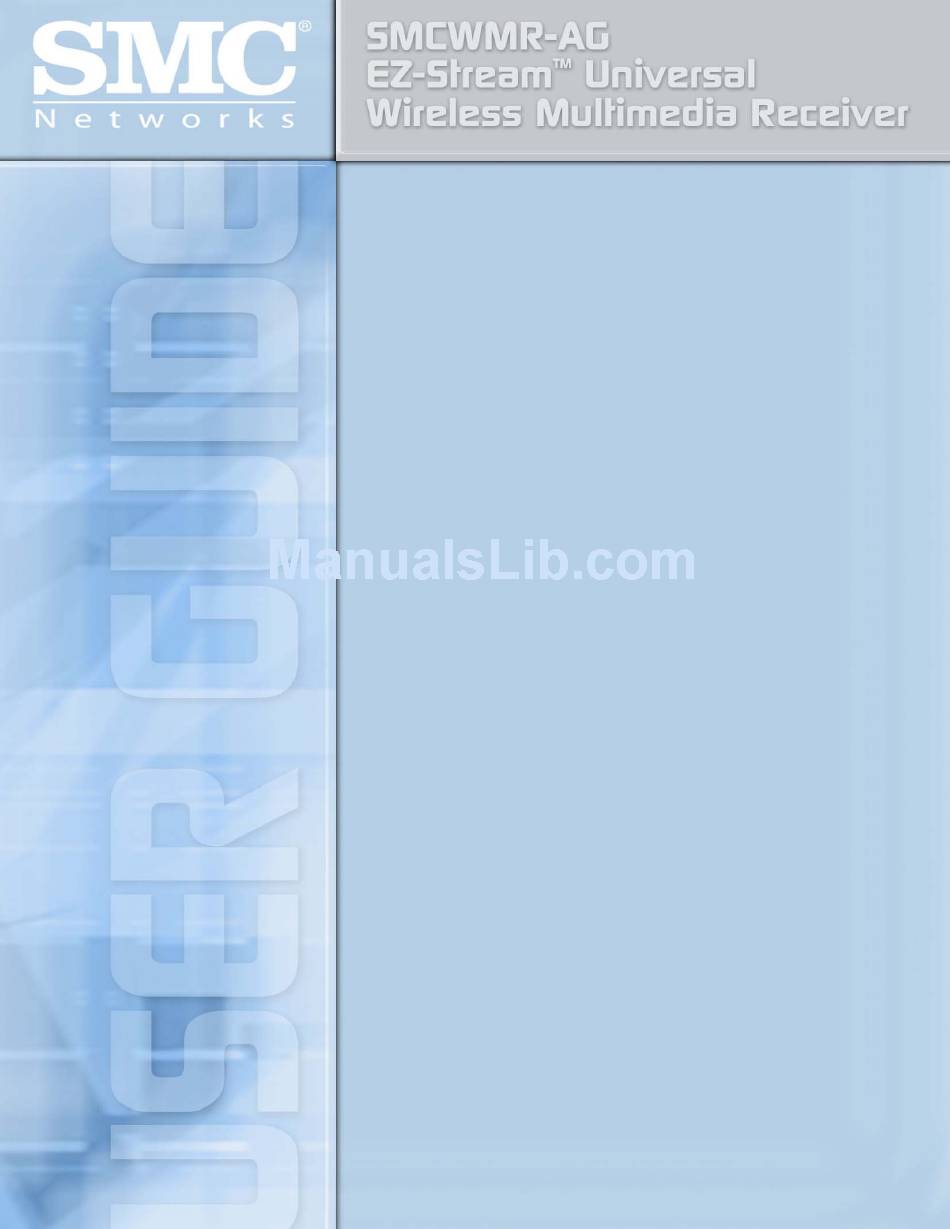

SMC Networks SMCWMR-AG User Manual

Universal wireless multimedia receiver
Hide thumbs Also See for SMCWMR-AG:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMCWMR-AG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks SMCWMR-AG

Summary of Contents for SMC Networks SMCWMR-AG

  • Page 2 Copyright Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
  • Page 3 Note: In order to maintain compliance with the limits of a Class B digital device, SMC requires that you use a quality interface cable when connecting to this device. Changes or modifications not expressly approved by SMC could void the user’s authority to operate this equipment.

  • Page 4: Important Safety Notices

    Classe B prescrites dans la norme sur le material brouilleur: "Appareils Numeriques," NMB-003 edictee par l'Industrie. EC Conformance Declaration – Class B SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II Calle Fructuos Gelabert 6-8, 2o, 4a 08970 –...
  • Page 5 • This product is for use with the AC adapter that comes with it. Use with any other AC power is strongly discouraged as it may cause fire, electric shock, or damage to the equipment.

  • Page 6: Hardware Description

    Link (blue) Solid LED indicates a valid connection to the wireless network & Media Server Blinking LED indicates that the SMCWMR-AG is attempting to connect to the Media Server No light indicates that there is no link to the Media Server...

  • Page 7: Section 1.1 | Features / Benefits

    • Full optimization of your digital content-oriented environment Section 1.2 | Using the Remote Control The SMCWMR-AG Universal Wireless Multimedia Receiver Remote Control works much like several other remotes already found with other products (like DVD players, VCRs, TVs, etc.) with several extra features to make your digital content-oriented environment much easier to navigate.

  • Page 8: Package Contents

    Press and hold to fast forward through the current selection.) 2 | Package Contents After unpacking the SMCWMR-AG, check the contents of the box to be sure you have received the following components: • 1 EZ-Stream Universal Wireless Multimedia Receiver •...

  • Page 9: System Requirements

    Immediately inform your dealer in the event of any incorrect, missing or damaged parts. If possible, please retain the carton and original packing materials in case there is a need to return the product. Please register this product and upgrade the product warranty at SMC's Web site: http://www.smc.com...
  • Page 10 NOTE: If the “Auto-run” feature of your CD-ROM is disabled or if the EZ Installation Wizard does not automatically appear, please click the [Start] button from your Windows start menu. Click [Run] and type “?:\smcwmr.exe”. Step 2: Click the [Install SMCWMR-AG Media Server] button.
  • Page 11 Step 3: The wizard will begin extracting the program files and Media Server Welcome screen will launch. Click [Next] to begin installation.
  • Page 12 Step 4: Read the License Agreement. Then click [Yes] to agree and continue. Step 5: Confirm the destination folder where the Media Server application will be stored. (Note: It is recommended to leave this at the default setting.) Click [Next] to continue.
  • Page 13 Step 6: The installation will begin. After completion, click [Finish] to exit. You have now completed the Media Server install process.
  • Page 14 5 | SMC EZ-Stream Universal Wireless Multimedia Receiver Media Server Software Configuration Note: Please make sure that you successfully complete this section before continuing to Section 6. Step 1: Start your host PC and ensure that your wireless Access Point/Router and network card(s) are functioning properly.
  • Page 15 “Network Connection” tab and verify that the selected Network Connection and corresponding IP Address are correct. The Media Server software must be operating on the same network as the SMCWMR-AG. If the incorrect network connection is selected, highlight the appropriate one, and press [Yes] when asked to restart the application.
  • Page 16 Step 6: Go to the “Update” tab. This tab allows you to specify how often you want your host PC to check for new files and in turn, update your SMCWMR-AG. You can also manually press the [Update Now] button at any point in time to make sure the SMCWMR-AG has the latest file listing of your multimedia content.
  • Page 17 PC and the SMCWMR-AG has been successfully established. The Media Server software will then display the Serial No. and URL of your SMCWMR-AG. You can double-click on the URL to configure the SMCWMR-AG via its web user interface. Read more in “Section 6.5”.

  • Page 18: Section 6.1 | Audio/Video Connection

    Step 2: Connect the video (yellow) output jack on the SMCWMR-AG Universal Wireless Multimedia Receiver to any unused video jack on your TV A/V receiver. Step 3: Connect the power cable from the back of the SMCWMR-AG Universal Wireless Multimedia Receiver to the nearest power outlet or, preferably, a fused power strip and switch on your stereo or A/V receiver.

  • Page 19: Section 6.2 | Setting Up The Remote Control

    Section 6.2 | Setting up the Remote Control Step 1: Open the battery cover on the back of the SMCWMR-AG Universal Wireless Multimedia Receiver Remote Control. Step 2: Insert two AA batteries (supplied) by matching the + and – on the batteries, with the diagram inside the battery compartment.
  • Page 20 “DHCP server present?” – Select [Yes] if you have a DHCP server on your network that will allow the SMCWMR-AG to obtain an IP address automatically. If you do not have a DHCP server on your network, select [No] and input your IP, Subnet Mask, and Gateway addresses.

  • Page 21: Section 6.4 | Configuration For Wired Operation Via Tv User Interface

    Once the SMCWMR-AG is connected, it will ask you to [Register Now]. This will give you the option to upgrade your firmware via Smart Box Management to take advantage of new updates. (Note: You can register at any point by going to the [Settings] menu) Section 6.4 | Configuration for Wired Operation via TV User Interface...

  • Page 22: Section 6.5 | Configuration Via Web User Interface

    [OK] to continue. The SMCWMR-AG will reset and automatically connect to your network upon boot-up. e) Once the SMCWMR-AG is connected, it will ask you to [Register Now]. This will give you the option to upgrade your firmware via Smart Box Management to take advantage of new updates.
  • Page 23 MediaLink] option in the MediaServer software to find it. See Step 7 of Section Step 3: You have the ability to make any necessary changes to the configuration of the SMCWMR-AG. Selecting a particular checkbox activates that option. Remember to review your settings before pressing the [Submit] button. After...

  • Page 24: Section 7.1 | Playing An Audio File

    7 | Playing Your Multimedia Content Note: Before you start, ensure that the Media Server is running. Turn on your EZ-Stream Wireless Multimedia Receiver and turn on your stereo or A/V system. Section 7.1 | Playing an Audio File Step 1: From the Main Menu, press the [Up] or [Down] arrow until “Audio” is highlighted.

  • Page 25: Section 7.2 | Playing Iradio

    Step 2.5: Playlist • Press [OK] to view all Playlists contained in your directory. • Scroll up or down to highlight the desired Playlist. • Press [OK] to play the selected Playlist. Section 7.2 | Playing iRadio Step 1: From the Main Menu, press the [Up] or [Down] arrow until “IRadio” is highlighted.

  • Page 26: Section 7.4 | Playing A Video File

    Section 7.4 | Playing a Video File Step 1: From the Main Menu, press the [Up] or [Down] arrow until “Video” is highlighted. (Or press [VIDEO] on the remote to proceed directly to the list of Video selections) Step 2: Press [OK]. All of your MPEG videos are presented. Scroll through the list using the [Up] or [Down] arrow on the remote to view your selections.
  • Page 27 MP3 collection by album art covers and create playlists for any mood or situation with AutoDJ. The SMCWMR-AG will play tracks from playlists you create on your computer. The media receiver supports playlists in “M3U” or MPEG Playlist file format.
  • Page 28 Section 8.3 | How To “Tag” MP3s ID3 Tag information is the “Artist”, “Album”, “Genre” and “Track” info you see when you are playing a song using the SMCWMR-AG Wireless Multimedia Receiver. Inserting Tag Info is optional, however you will find that it is very useful in effectively organizing your music collection.

  • Page 29: Troubleshooting

    The SMCWMR-AG EZ-Stream Universal Wireless Multimedia • Receiver is not detecting the host PC If you are using an Ethernet cable to plug the SMCWMR-AG into the network, verify that there is a link light on your network hub or switch.
  • Page 30 I can see the video on the screen but there is no sound. • Check to be sure the Audio L/R outputs on the SMCWMR-AG are securely connected to you’re audio receiver. The MPEG video may be encoded using a sound format other than MP3.
  • Page 31 The main menu shows selections that are not shown in the • manual The SMCWMR-AG is a UPnP compatible product. There are multimedia applications available from third parties that may also be UPnP compatible. If you have any of these type of applications installed on your host PC, there will be a conflict and incorrect menus will appear on your TV user interface.

  • Page 32: Frequently Asked Questions

    Yes. You must first share the drive (using standard Windows sharing) from the PC that contains the multimedia content you want access to. Then go to the host PC where the SMCWMR-AG MediaServer software is installed. Map the shared drive, then open the MediaServer and add the mapped network drive.
  • Page 33 This is where INFRASTRUCTURE or Network mode comes into play. An ACCESS POINT is attached to the network using CAT-5 Ethernet cable attaching to a hub, switch or another PC. Wireless PC’s can then communicate to Wired Ethernet computers through this access point.
  • Page 34 What is WEP? • Short for Wired Equivalent Privacy, WEP is a security protocol for wireless local area networks (WLANs) defined in the 802.11b and 802.11a standards. WEP is designed to provide the same level of security as that of a wired LAN.

  • Page 35: Technical Specifications

    IEEE 802.3 10Base-T; UTP cable, 2 pairs, RJ-45 (EIA/TIA Categories 3,4,5) IEEE 802.3u 100Base-TX; UTP cable, 2 pairs, RJ-45 (EIA/TIA Category 5) UPnP Wireless Data Rates (With Automatic Fall-back): 802.11b = 1/2/5.5/11 Mbps 802.11a = 6/9/12/18/24/36/48/54 Mbps 802.11g = 1/2/5.5/6/9/11/12/18/24/36/48/54 Mbps Data Modulation Techniques: 802.11b (DSSS) = BPSK, QPSK, CCK...

  • Page 36: Firmware Upgrade

    Media Access Protocol: CSMA/CA (Collision Avoidance) Firmware Upgrade: Built-in search for firmware upgrade Network Configuration: Ad-Hoc (Peer-to-Peer) Infrastructure Wired Interface: Network • RJ-45 Connector • 802.11a/b/g CVBS • NTSC • RCA connector (yellow) Audio • Analog Audio left and right •...

  • Page 37: Operational Conditions

    Compliance: Wi-Fi Compliant FCC Class B Industry Canada ETSI, EN301 893, EN60950 UPnP Operational Conditions: Supply voltage of external power supply: input 110 VAC, 50/60 Hz; output 5VDC, Ambient temperature: -10°C to +45°C Relative Humidity: 95% max Dimensions: 6.45” (D) x 6.38” (L) x 2.75 (W) [with Base] Weight: 0.70 lbs...
  • Page 38 - thereby creating a connection between the wireless and wired networks. Ad Hoc - An ad hoc wireless LAN is a group of computers, each with LAN adapters, connected as an independent wireless LAN.
  • Page 39 TCP/IP settings of every computer on your home network. DNS - DNS stands for Domain Name System, which allows Internet host computers to have a domain name (such as www.smc.com) and one or more IP addresses (such as 192.34.45.8). A DNS server keeps a database of host computers and their respective domain names and IP addresses, so that when a domain name is requested (as in typing "...
  • Page 40 IP Address - IP stands for Internet Protocol. An IP address consists of a series of four numbers separated by periods, that identifies an single, unique Internet computer host. Example: 192.34.45.8. ISP - Internet Service Provider. An ISP is a business that provides connectivity to the Internet for individuals and other businesses or organizations.
  • Page 41 Packet Binary Convulational Code(tm) (PBCC) - A modulation technique developed by Texas Instruments Inc. (TI) that offers data rates of up to 22Mbit/s and is fully backward compatible with existing 802.11b wireless networks. PAL – Phase Alternating Line. PAL is a color TV standard that broadcasts 25 interlaced frames per second at 625 lines of resolution.
  • Page 42 PPPoE - Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a method of secure data transmission originally created for dial-up connections. PPPoE is for Ethernet connections. Roaming - A function that allows your to move through a particular domain without losing network connectivity. Static IP - If your Service Provider has assigned a fixed IP address;...
