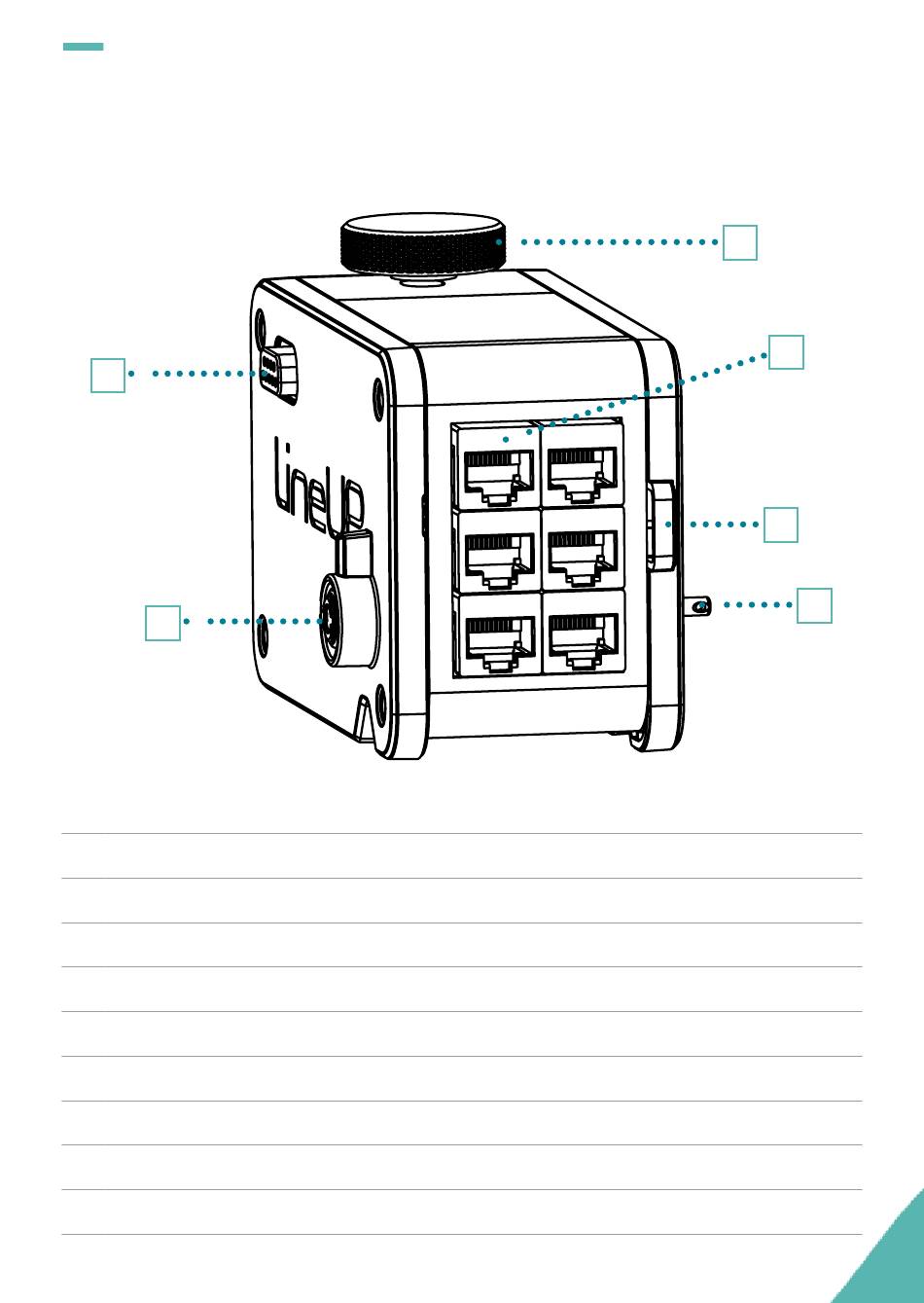

PRODUCT OVERVIEW
7
2
Pressure supply inlet
1
Pressure supply transmission
2
Operation window
3
Pause button
4
Interface buttons
5
Rotative dial
6
Power and data transmission
7
microfluidic valve ports
8
Unlock button
9
used with pressure controllers
displays connected valves and positions
used to program several orders and set them simultaneously
to set the valves positions and validate/deny orders
to navigate and to select the valve on which operate
to power and control the connected valves
press it to separate a LineUp module from another
used with pressure controllers
used for multi-channel configuration
