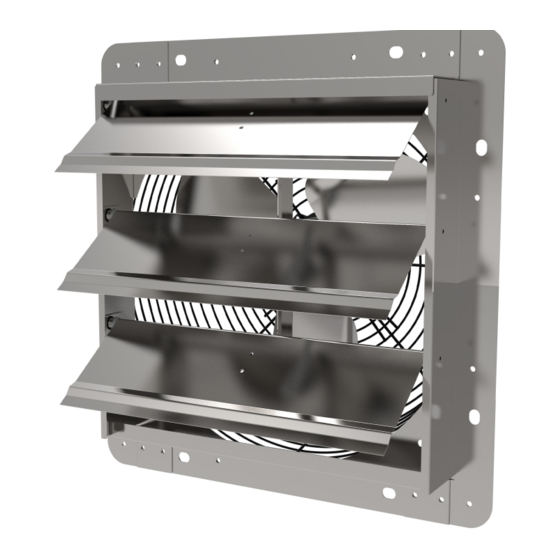

Shutter Exhaust Fan User Manual
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and doses not necessarily mean to
cover all categories of tools offered by us. You are kindly reminded to verify
carefully when you are placing an order with us if you are actually saving half
in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR AMX-FAG10
Summary of Contents for VEVOR AMX-FAG10

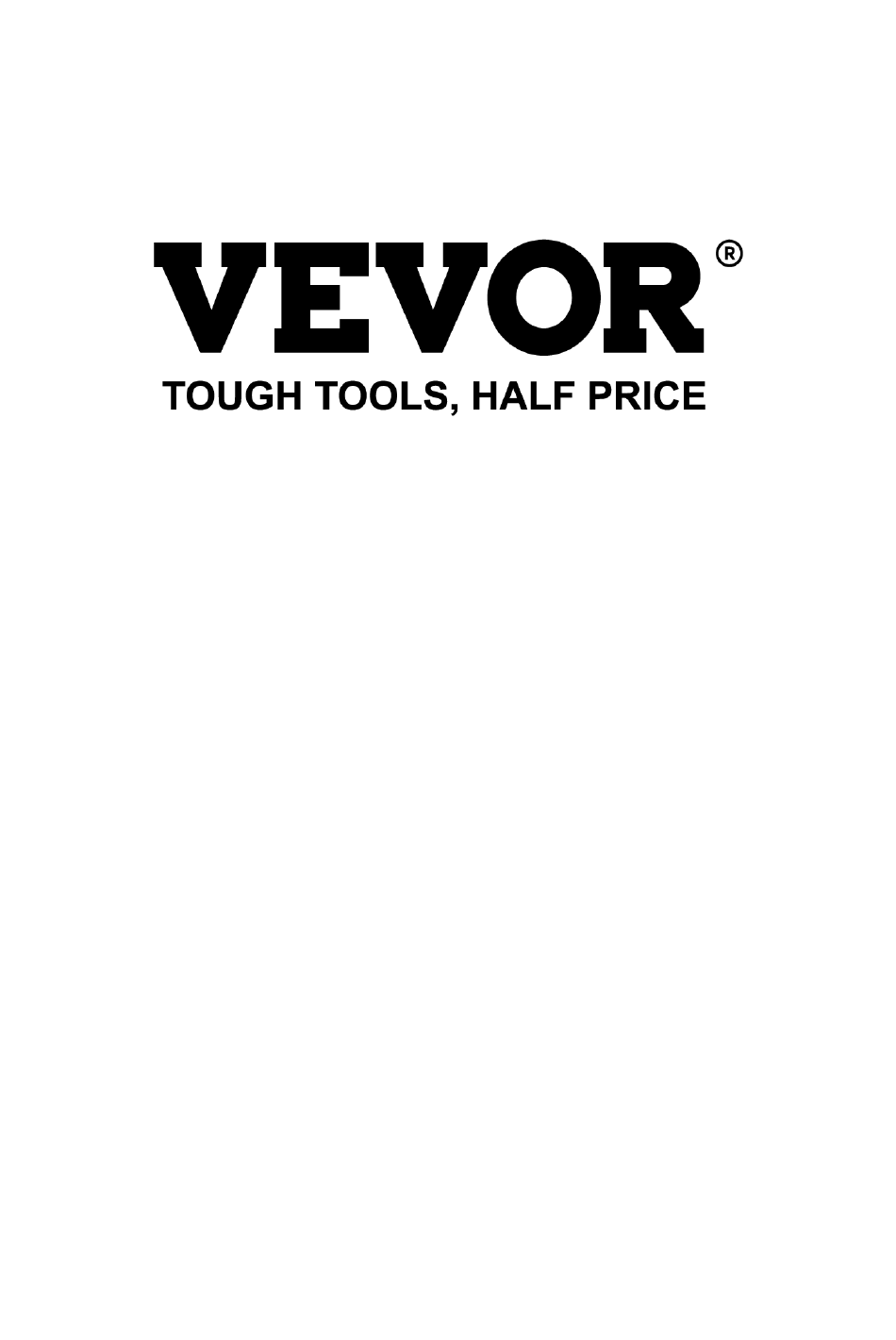

- Page 1 Shutter Exhaust Fan User Manual We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 4 Thank you for choosing our products. • Please read this User Manual carefully before installing, operating, and maintaining the product. • To ensure safety, please make sure to read and follow the ATTENTIONS. • Properly keep this manual for future reference. 【A pplications】...
- Page 5 It is forbidden to place over the cooking equipment or with overmuch lampblack. Please set up vent. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Installation height should be more than 2.3 m.
- Page 6 Do not install it at a place where is overmuch steam and easy to be sprayed with water. Must be installed firmly. • Check whether all components are securely connected before installation. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the...
- Page 7 AMX- FAG24 Product specifications and relative information in this manual may be changed without prior notice. Specifications Rated Voltage/Frequency: 120V/60Hz Model Air Volume Noise Net Weight Applicable Series (No.) (m3/h) (dB) (Kg) Area²(Reference) AMX-FAG10 1350 45~90 ＜50 - 5 -...
-
Page 8: Installation Methods
3. Refer to the electrical diagram, connect the fan to AC electricity of 120V/60Hz, then use the single-phase switch as the fan control switch to control the fan's start and stop. (Picture 2) Model Hole Size Series (No.) (W*H) AMX-FAG10 275*265MM AMX-FAG12 319*311MM Shutter Exhaust AMX-FAG16 415*415MM... - Page 9 GREEN GROUNDING GREEN GROUNDING AC120V ~ 60Hz CAPACITO R WHITE AC120V SWITCH ~ 60Hz BLACK Picture 2 Common Malfunction Analysis and Maintenance Caution: 1.When the equipment causes malfunctions, please self-checking according to the below items one by one. If you still cannot find the issues, please get in touch with the dealer or let a professional repair the product.
- Page 10 Not firmly installed (self- Reinstallation and fastening. checking). The device itself is loose (self- Let the professional fix. checking). The blade is covered with dust. Component defects Let the professional fix. The fan causes large cause the load changing (self- noise and vibration checking).
- Page 12 E-mail: CustomerService@vevor.com...
