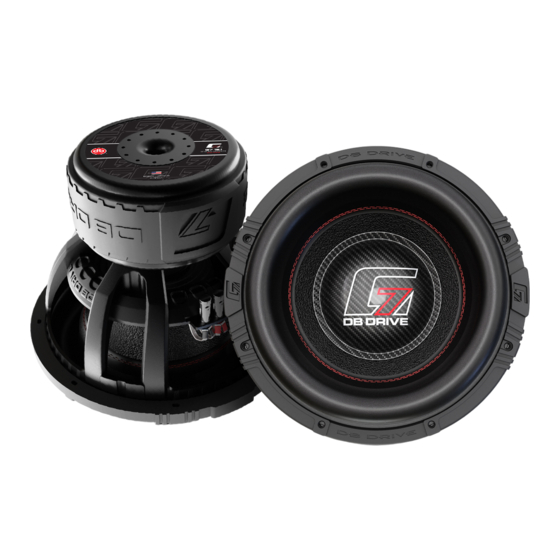

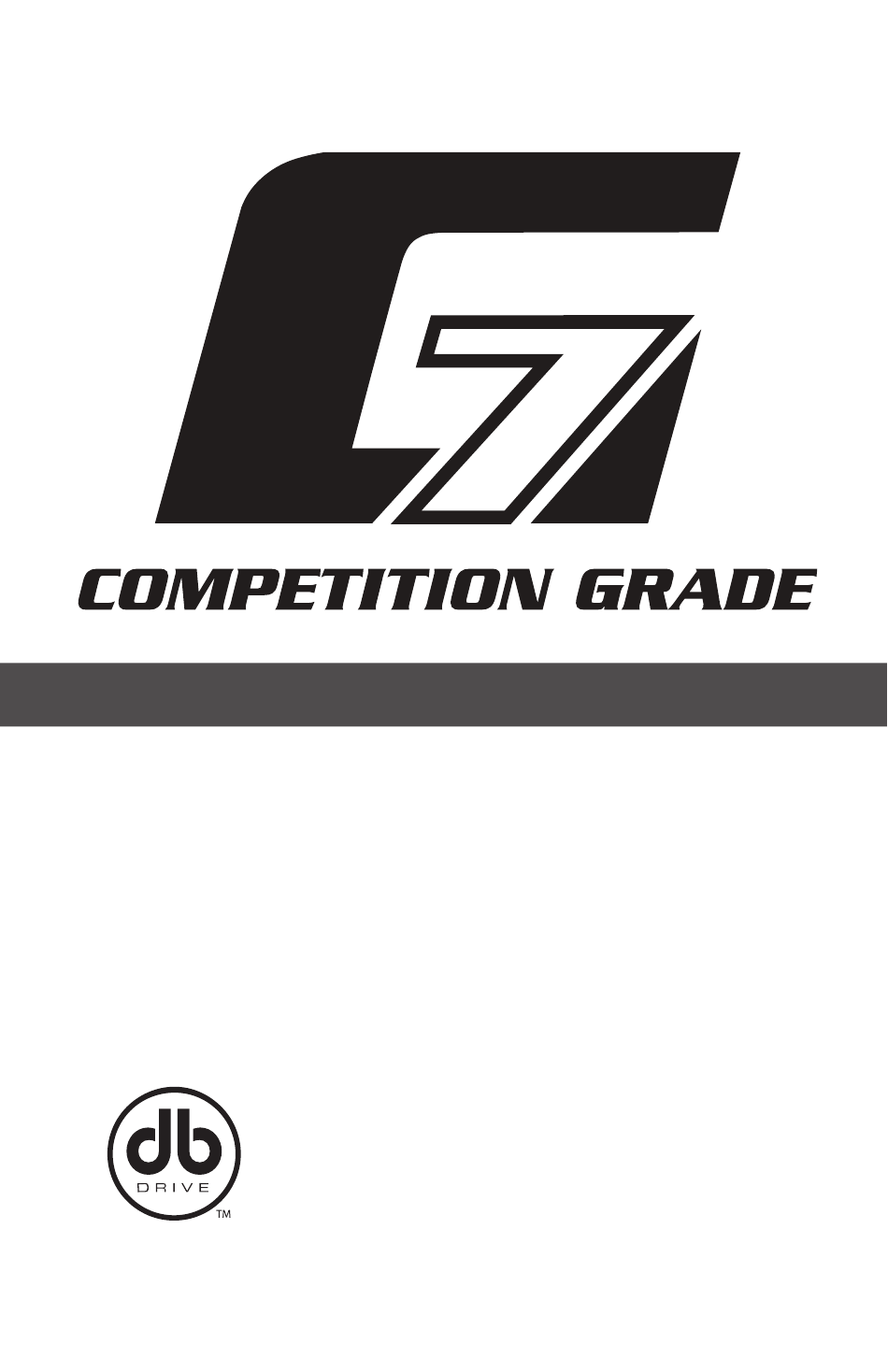

- Page 1 SUBWOOFER MODELS G7 15.1 / G7 15.2 G7 12.1 / G7 12.2 G7 8.2 / G7 8.4 USER MANUAL Installation Instructions | Owners Manual Due to continuous improvement of the product, specifications are subject to change without notice.
- Page 2 Congratulations on your purchase of a DB Drive state-of-the-art subwoofer. Your selection of a DB Drive car audio product indicates a true appreciation of fine musical reproduction. Whether adding to an existing system or including your DB Drive subwoofer in a new system, you are certain to notice immediate performance benefits.
- Page 3 • Excursion Induced Motor Cooling • Radial Balanced Paper Glass Fibrillated Mixed Cone • Aluminum Anodized Former With Reinforced Triple Joint G7 8.2 / G7 12.1 / G7 15.1 / G7 8.4 G7 12.2 G7 15.2 Structure 9.17” (233 mm) 12.91”...
- Page 4 PRODUCT DIMENSIONS Frame Diameter Mounting Depth Cutout Diameter G7 8.2 / G7 12.1 / G7 15.1 / G7 8.4 G7 12.2 G7 15.2 Frame 9.17 in. 12.91 in. 15.82 in. Diameter (233 mm) (328 mm) (402 mm) Mounting 7.38 in.
- Page 5 RECOMMENDED ENCLOSURES Vented G7 8.2 / G7 12.1 / G7 15.1 / ENCLOSURES G7 8.4 G7 12.2 G7 15.2 7.48 in. 11.14 in. 13.85 in. Woofer Cut-out: (190 mm) (283 mm) (352 mm) 7.38 in. 9.6 in. 11.75 in. Mounting Depth: (187.45 mm)
- Page 6 DVC WIRING CONFIGURATIONS You can change the wiring configuration of your speakers (Series, Parallel and Series / Parallel) to match the impedance loads that maximizes the power output of you amplifier. Wiring the same woofer or multiple woofers in these three different wiring configurations will result in different impedance loads. Series: Is the method of wiring of alternate positive with negative terminals (string method) (Illustration below) Parallel: Is the method of wiring where you wire match 2 speaker terminals with positive to positive...
- Page 7 4 x 2Ω DVC 3 x 2Ω DVC SUBWOOFERS SUBWOOFERS 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 1.33Ω 1Ω 4Ω DVC WIRING CONFIGURATIONS 1 x 4Ω DVC 2 x 4Ω DVC 2 x 4Ω DVC SUBWOOFER SUBWOOFER SUBWOOFERS...
- Page 8 (1) year. This warranty applies to the original purchase only. DB Drive™ will repair any unit that has been found to be defective and under warranty provided the defect occurs within the one (1) year warranty period.
