- Page 1 SUBWOOFER MODELS: WDX12G3.4 WDX15G3.4 USER MANUAL Installation Instructions | Owners Manual Due to continuous improvement of the product, specifications are subject to change without notice.
- Page 2 Congratulations on your purchase of a DB Drive state-of-the-art subwoofer. Your selection of a DB Drive car audio product indicates a true appreciation of fine musical reproduction. Whether adding to an existing system or including your DB Drive subwoofer in a new system, you are certain to notice immediate performance benefits.
-
Page 3: Product Features

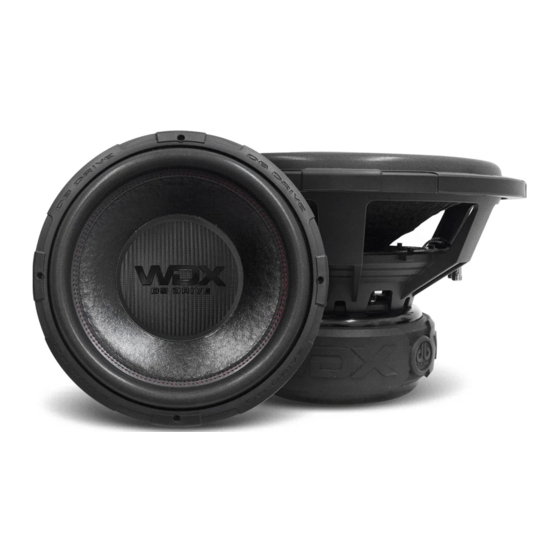

PRODUCT FEATURES • Protective magnet cover • Dual poly-cotton dampeners • Large gauge compression terminals • Double stitched foam surround • Rubber gasket trim ring • Non-Pressed paper cone • Die-cast aluminum vented basket • High temperature voice coil WDX15G3.4 WDX12G3.4 Structure 15”... -
Page 4: Product Dimensions
PRODUCT DIMENSIONS Frame Diameter Mounting Depth Cutout Diameter WDX12G3.4 WDX15G3.4 Frame 12.95 in. (329 mm) 15.71 in. (399 mm) Diameter Mounting 7.46 in. (189.5 mm) 8.56 in. (217.5 mm) Depth Cutout 11.18 in. (284 mm) 13.74 in. (349 mm) Diameter RECOMMENDED ENCLOSURE The purpose of the information below is to help you select the most appropriate type of enclosure for your application. - Page 5 RECOMMENDED ENCLOSURE Sealed Vented WDX12G3.4 WDX15G3.4 ENCLOSURES Woofer Cutout 11.18 in. (284 mm) 13.74 in. (349 mm) Mounting Depth 7.46 in. (189.5 mm) 8.56 in. (217.5 mm) Sealed Box 1.9 cuft. (53.80 L) 3.1 cuft (61.73 L) Vented Box 3.27 cuft. (92.59 L) 4.08 cuft.
- Page 6 4Ω DVC WIRING CONFIGURATIONS You can change the wiring configuration of your speakers (Series, Parallel and Series / Parallel) to match the impedance loads that maximizes the power output of you amplifier. Wiring the same woofer or multiple woofers in these three different wiring configurations will result in different impedance loads. Series: Is the method of wiring of alternate positive with negative terminals (string method) (Illustration below) Parallel: Is the method of wiring where you wire match 2 speaker terminals with positive to positive terminal and negative to negative.
- Page 7 NOTES...
-
Page 8: Limited Warranty
(1) year. This warranty applies to the original purchase only. DB Drive™ will either repair or replace (as its option) any unit that has been found to be defective and under warranty provided the defect occurs within the one (1) year warranty period.
