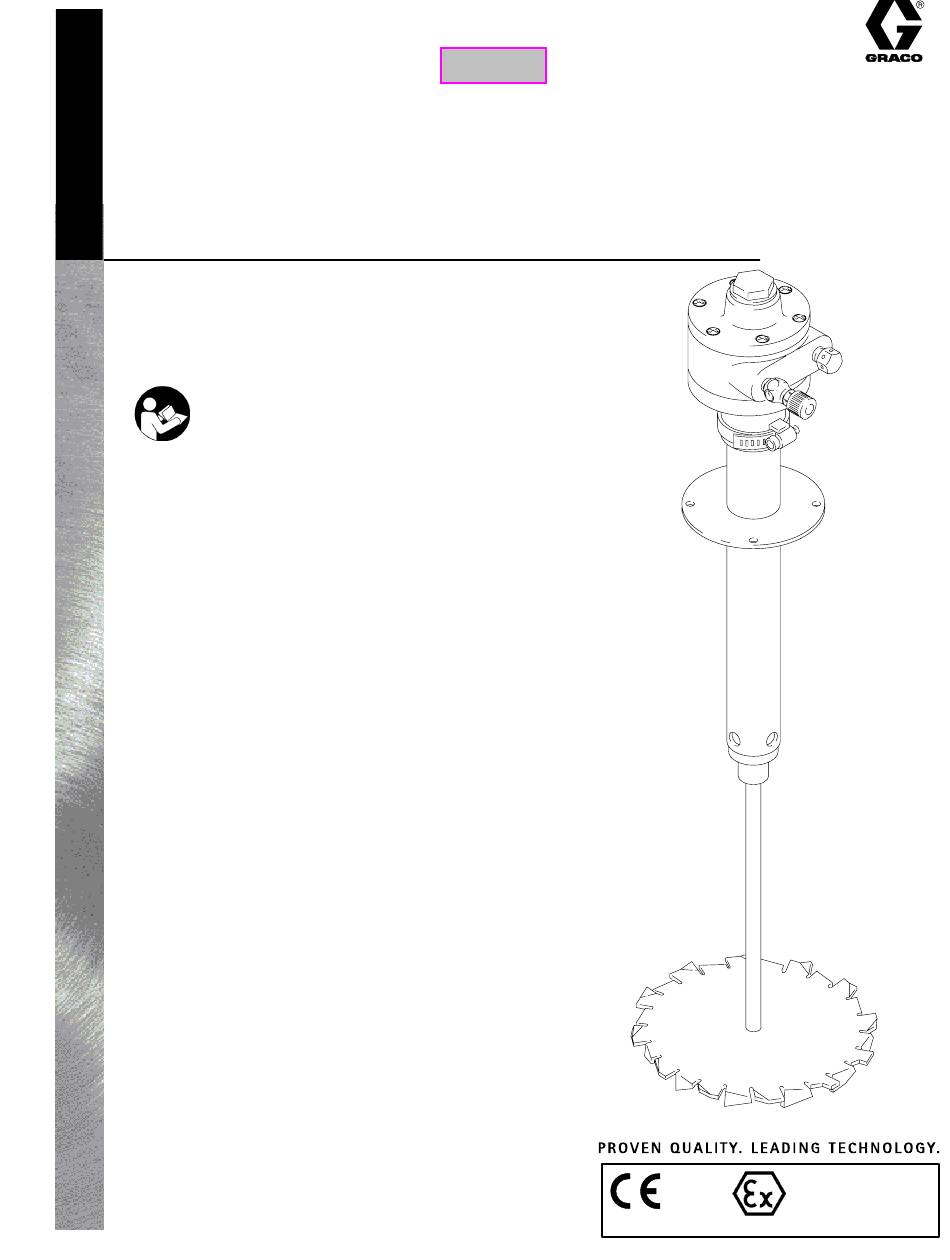

Instructions - Parts List
3/4 HP (550 W) MOTOR
Air-Driven Agitators
FOR USE WITH WATER-REDUCIBLE FLUIDS
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
100 psi (7 bar) Maximum Working Pressure
Model 210067, Series B
15-gallon mix tank size
Model 962947, Series B
15-gallon mix tank size
Model 210068, Series B
30-gallon mix tank size

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1975, Graco Inc. is registered to I.S. EN ISO 9001
Parts
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . .
. . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
10
10
2
4
4
4
4
5
5
6
6
7
9
9
9
0359
307154 Rev.J
05465
II 1/2 G T6
ITS03ATEX11226
