Instructions - Parts List

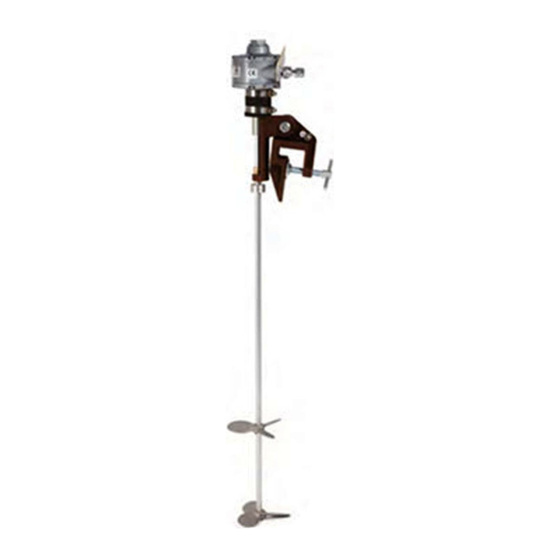

1 HP (746 W) AIR MOTOR DRIVEN
Outboard Agitator
100 psi (0.7 MPa, 7 bar) Maximum Working Pressure
Model 225831, Series B
Clamps to side of open 55 gallon drum
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1992, Graco Inc. is registered to I.S. EN ISO 9001
Parts
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
306358 rev.G
2
4
5
6
7
9
9
9
10
10
05382B
